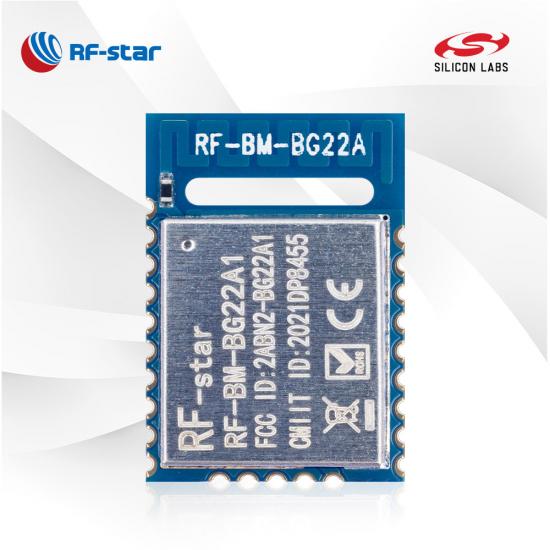

RF-BM-BG22A1 BLE5.2 nEFR32BG22 Module

RF-BM-BG22A1 is a Bluetooth 5.2 Low Energy module developed for the industry-leading energy efficiency that can extend the longer service life of a coin cell battery. This module is with the best-in-class ultra-low power consumption. Start your product development with RF-BM-BG22A1 EFR32BG22C112 BLE module.

  • P/N:

    RF-BM-BG22A1
  • SoC:

    EFR32BG22C112F352GM32-C
  • Processor:

    32-bit 38.4 MHz ARM® Cortex®-M33
  • Protocols:

    Bluetooth 5.2 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz

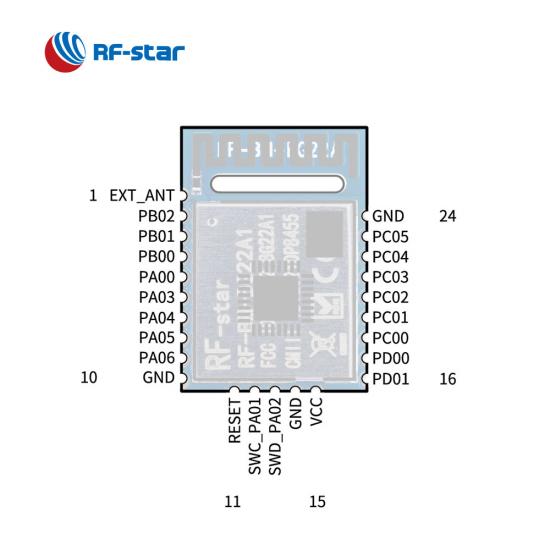

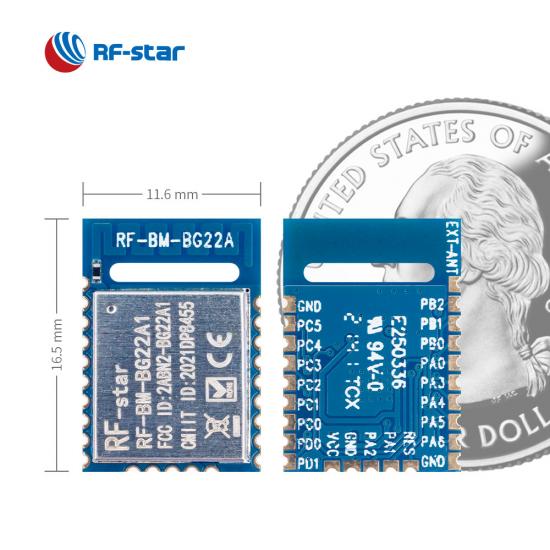

  • Package (mm):

    16.5 × 11.6 × 2.06, half-hole, 1.27 pitch, 24-pin
  • Features:

    2.4 GHz proprietary
  • GPIO:

    18
  • Max. TX Power:

    0 dBm
  • Transmission Range:

    50 m

RF-BM-BG22A1 is a BLE5.2 module based on EFR32BG22, one of Gecko family of SoCs from Silicon Labs, with a 32-bit ARM® Cortex®-M33 core with 38.4 MHz maximum operating frequency. It integrates a 38.4 MHz crystal, a matching, an antenna matching, a low-pass filter and antenna options of a meander line inverted-F PCB antenna and a half-hole interface. It also has a range of analog and digital interfaces such as PRS, ADC, UART, SPI, I²C, PWM, ISO 7816, IrDA, I²S, EUART and PDM. The module has the features of low power consumption, compact size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.



Transparent Transmission (Bridge) Protocol -


· Several roles: master, slave, master-slave, Beacon

· Multi-connection function: Up to 7 salves and 1 master

· Stable transparent transmission rate: up to 50 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, authentication

· Extended Broadcast Package

· Long Range



- Applications -

· Smart plug

· Building Automation and Security

· Connected Home

· Access control

· Beacons

· Security devices

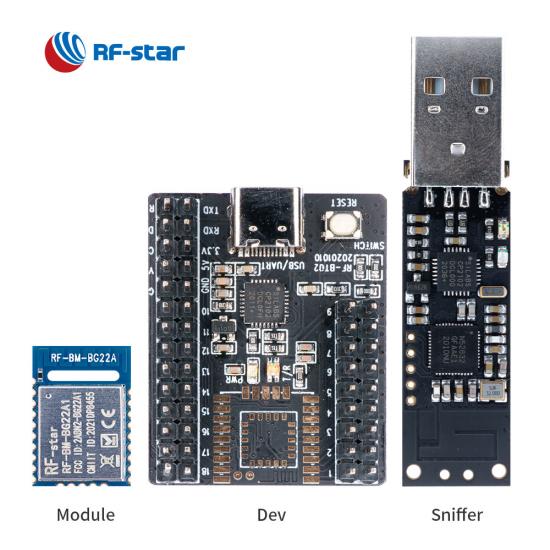

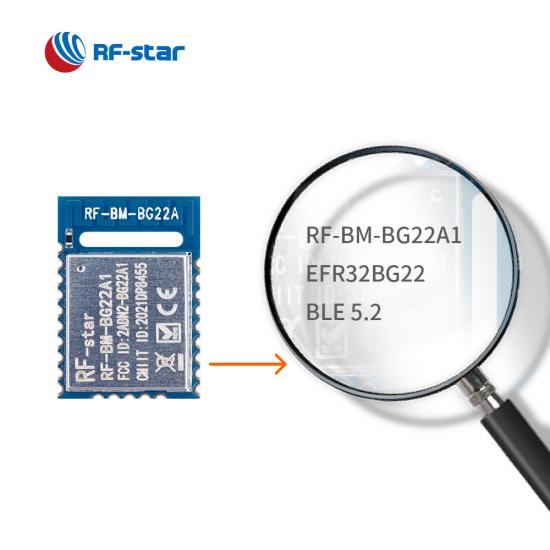

- Product Display -

Wireless SoC:


  • 32-bit 38.4 MHz ARM® Cortex®-M33
  • TX power: -28 dBm to 0 dBm
  • Sensitivity @ 1 Mbit/s GFSK: -98.9 dBm
  • Memory
    • 352 kB flash
    • 32 kB RAM
  • Data rate: 1 Mbps, 2 Mbps




Supported Modulation Format


  • (G)FSK with fully configurable shaping
  • OQPSK DSSS
  • (G)MSK




Protocol Support


  • Bluetooth Low Energy (Bluetooth 5.2)
  • Proprietary




Current Consumption:


  • 3.02 μA in sleep mode
  • 55.84 μA at 200 ms broadcast cycle
  • 90.58 μA at 30 ms connection cycle


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • 16-bit ADC
  • 18 GPIOs
  • DMA
  • PDM
  • PRS
  • EUART
  • I²C
  • RTC
  • Watchdog
  • UART/SPI/SmartCard (ISO 7816)/IrDA/I2S




Certificates:


  • FCC
  • SRRC
  • CE
  • RoHS
