Bluetooth 5.0 Low Energy Module High-Performance RSBRS02AA

  • Bluetooth 5.0 Low Energy Module RSBRS02AA
  • Bluetooth 5.0 Low Energy Module RSBRS02AA
  • Bluetooth 5.0 Low Energy Module RSBRS02AA
  • Bluetooth 5.0 Low Energy Module RSBRS02AA
  • Bluetooth 5.0 Low Energy Module RSBRS02AA

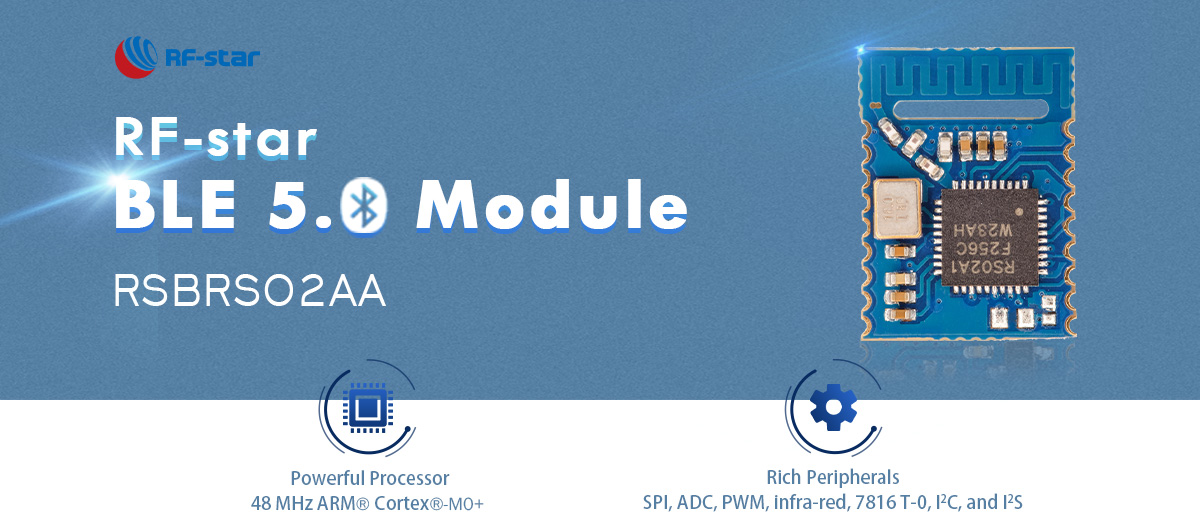

Bluetooth 5.0 Low Energy Module High-Performance RSBRS02AA

RSBRS02AA is a BLE5.0 module developed for the cost-effective and high-performance applications. This module with robust size supports Bluetooth 2 Mbps PHY rate. Start your product development with RSBRS02AA BLE module.

  • P/N:

    RSBRS02AA

  • SoC:

    RS02A1-A

  • Processor:

    ARM Cortex-M0+ @ 48 MHz

  • Protocols:

    Bluetooth 5.0 low energy

  • Working Frequency:

    2402 MHz ~ 2480 MHz

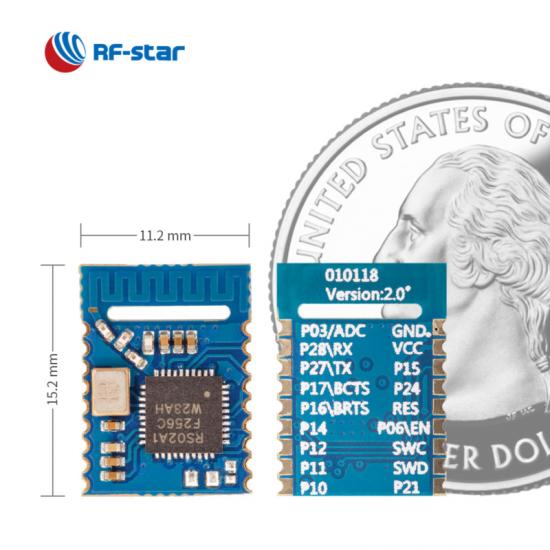

  • Package (mm):

    15.2 × 11.2 × 1.5, half-hole, 1.27 pitch, 18-pin

  • Features:

    7816 T-0, infra-red, 2 Mbps data rate

  • GPIO:

    13

  • Max. TX Power:

    +7 dBm

  • Transmission Range:

    150 m
Inquiry Now

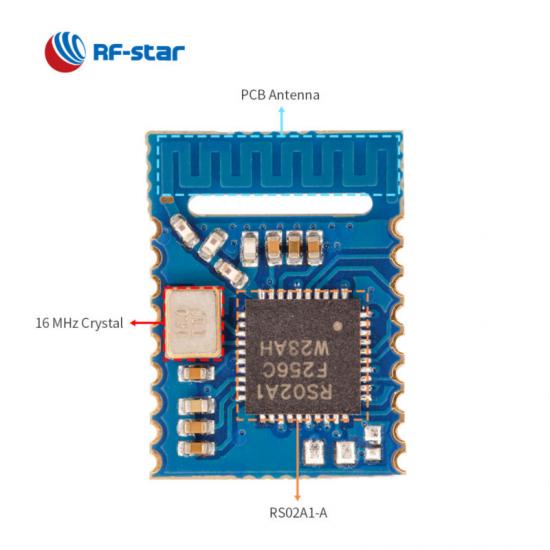

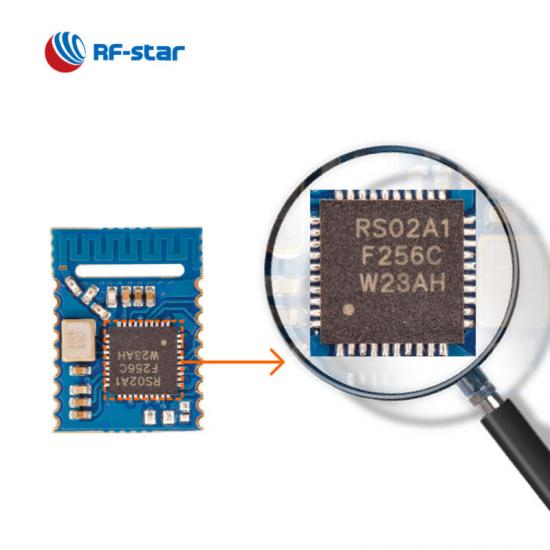

RSBRS02AA is a single-mode Bluetooth 5.0 low energy module based on an RF-star SoC RS02A1-A with compact size, good noise reduction, better sensitivity, robust transmission distance, high reliability, and cost-effective feature. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and a meander line inverted-F PCB antenna. It is reprogrammed with an easy-to-integrate serial interface communication protocol with 2 Mbps data rate. The numerous digital peripherals and interfaces of RSBRS02AA, such as SPI, ADC, PWM, infra-red, 7816 T-0, I²C, and I²S, make it applied in many applications. RSBRS02AA is pin-to-pin compatible with RSBRS02AI.


Bluetooth 5.0 Low Energy Module RSBRS02AA

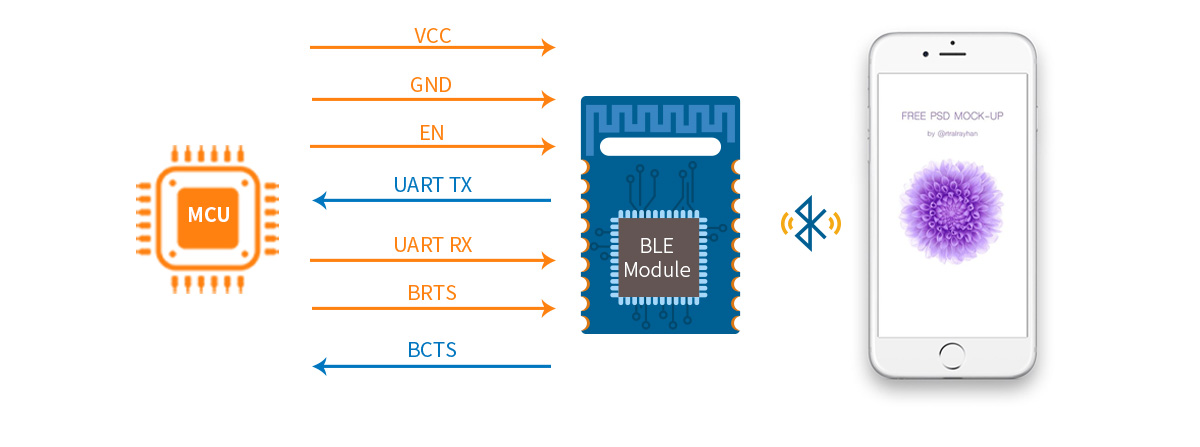

- Transparent Transmission (Bridge) -


Transparent Transmission (Bridge) - & Direct-Driven Protocol

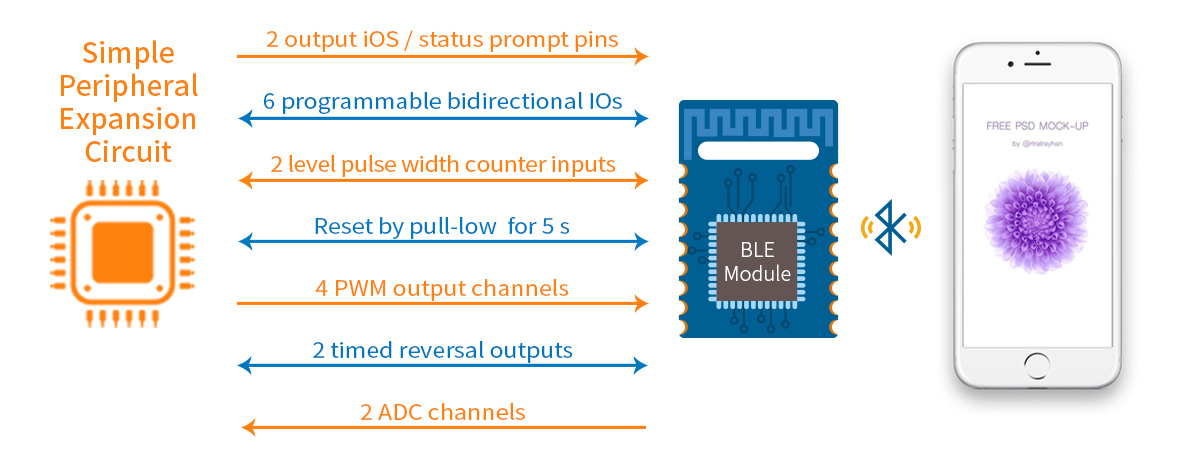

- Direct-Driven Protocol -

Transparent Transmission (Bridge) - & Direct-Driven Protocol

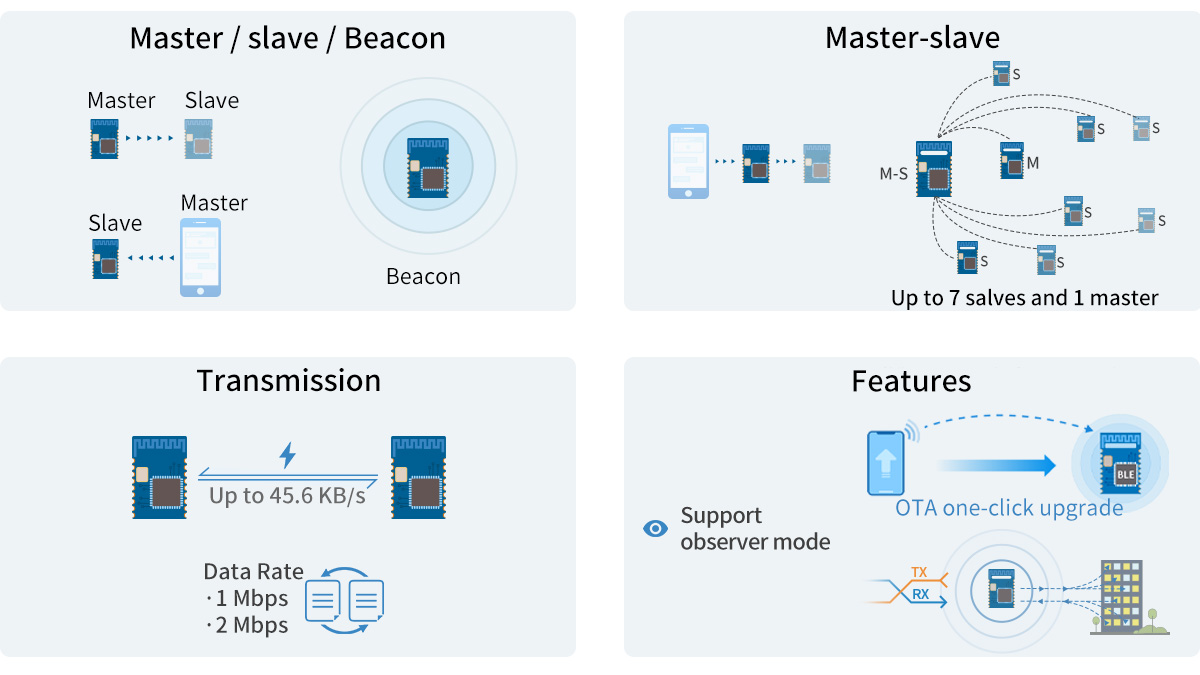

· Several roles: master, slave, master-slave, Beacon

· Multi-connection function: Up to 5 salves and 1 master

· Max. transparent transmission rate: up to 45.6 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, Observer

· Custom Service UUID

· Pairing

key features


- Applications -

· Health-care equipment

· Smart door locks

· Energy harvesting

· Human input devices

· Passive keyless entry (PKE)

· Sports equipment

Bluetooth 5.0 Low Energy Module RSBRS02AA Applications

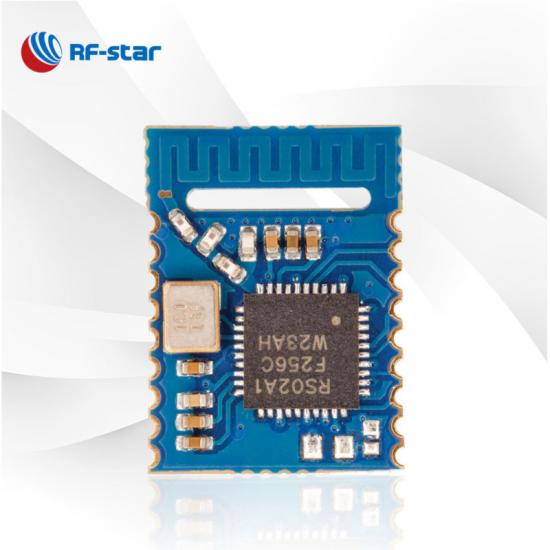

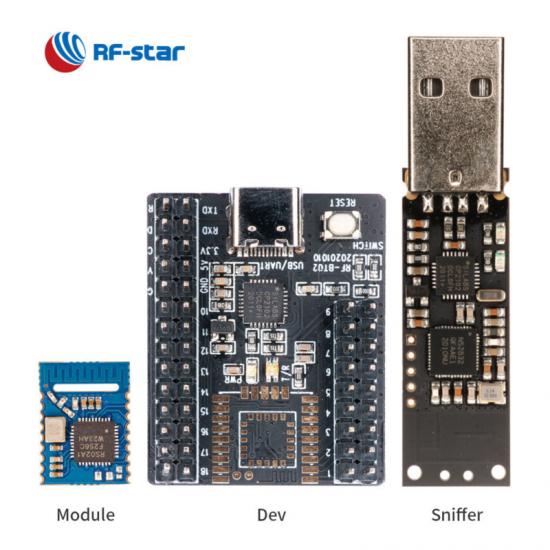

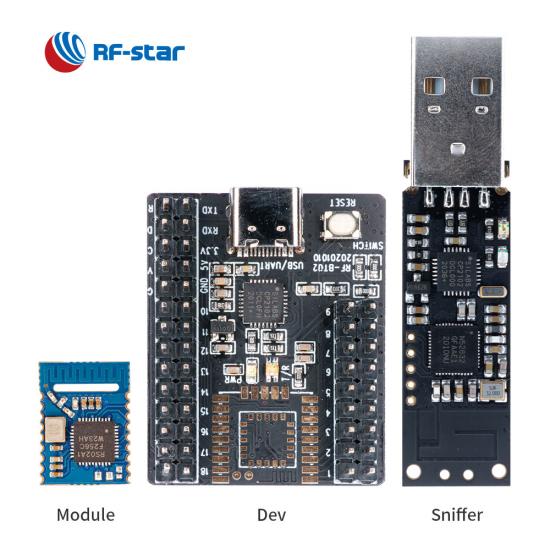

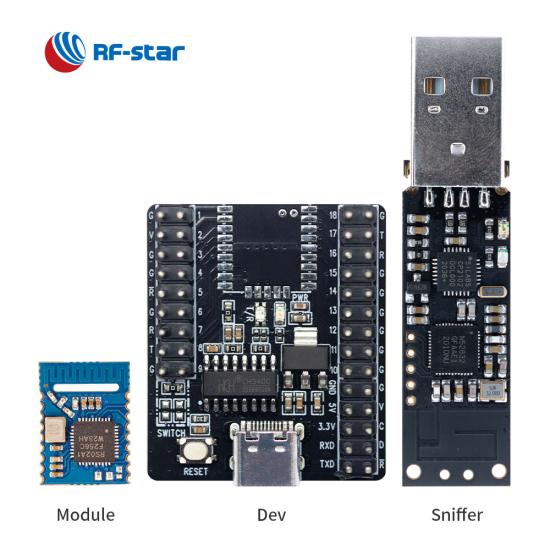

- Product Display -

Wireless SoC:


  • ARM® Cortex®-M0+ processor, 48 MHz
  • TX power: -20 dBm to +5 dBm
  • Sensitivity: -95 dBm @ 1 Mbps
  • Memory
    • -256 kB flash
    • -32 kB SRAM
  • Data rate: 1 Mbps, 2 Mbps



Supported Protocols:


  • Bluetooth 5.0 low energy
  • Bluetooth 4.2 low energy




Current Consumption:


  • 6.94 μA in sleep mode
  • 64.0 μA at 200 ms broadcast cycle (enable EN internal pull-up)
  • 95.83 μA at 100 ms connection cycle (enable EN internal pull-up)


Operating Range:


  • Supply voltage range 1.8 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • 13 GPIOs.
  • 2 UARTs with hardware flow control
  • 2 SPIs with master/slave configurable
  • 2 I²Cs with master/slave configurable
  • I²S
  • 7816 T-0 master interface
  • Keyboard interface
  • Infra-red generator
  • PWM
  • 10-bit ADC
  • Temperature sensor
  • DMA



Certificates:


  • SRRC
  • RoHS


Domestic IC-Based Series BLE Modules
Part Number VL-LE01B VL-LE01A RSBRS02ABRI RSBRS02ABR RSBRS02AI RSBRS02AA
IC LE5010SI LE5010AI RS02A1-B RS02A1-B RS02A1-A RS02A1-A
Core 64 MHz ARM® Cortex®-M0 64 MHz ARM® Cortex®-M0 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+
Antenna PCB PCB IPEX PCB IPEX PCB
RAM 64 KB 64 KB 36 KB + 4 KB 36 KB + 4 KB 32 KB 32 KB
Flash 512 KB 512 KB 256 KB 256 KB 256 KB 256 KB
Protocols BLE5.1 BLE5.1 BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY
Power Supply 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +12 dBm +12 dBm +5 dBm +5 dBm +7 dBm +7 dBm
Receiving Sensitivity -99.7dBm @ 1 Mbps BLE -97 dBm @ 2 Mbps BLE -105 dBm @125 kbps BLE Coded PHY -99.7dBm @ 1 Mbps BLE -97 dBm @ 2 Mbps BLE -105 dBm @125 kbps BLE Coded PHY -94 dBm @1 Mbit/s BLE -94 dBm @1 Mbit/s BLE -95 dBm @1 Mbit/s BLE -95 dBm @1 Mbit/s BLE
GPIO 9 15 11 11 13 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 140 m 140 m 140 m (exteral PCB antenna) 110 m 160 m (exteral PCB antenna) 120 m
Dimension (mm) 15.23 x 11.2 x 2.3 15.23 x 11.2 x 1.5 15.2 x 11.2 x 2.3 15.2 x 11.2 x 1.8 15.2 x 11.2 x 2.1 15.2 x 11.2 x 1.7
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √
Mesh × × × × × ×
Long Range √ √ × × × ×
2Mbps PHY √ √ √ √ √ √
AoA/AoD × × × × × ×
UART Protocol Slave Slave Slave Slave Master-slave simultaneously Master-slave simultaneously
Functions High cost-effective Cost-effective Feasible for external antenna, Support OTA, Compact size Small dimension, High transparent transmission rate Feasible for external antenna, Support direct-driven mode Support direct-driven mode, Easy to use
