BLE Serial Port module BLE4.2 CC2540 Module RF-BM-S02

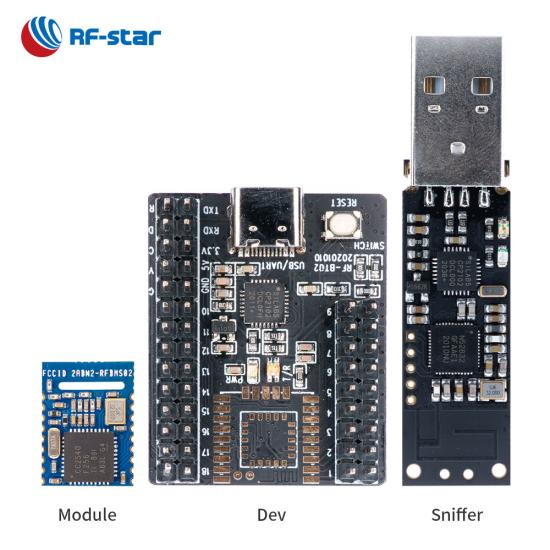

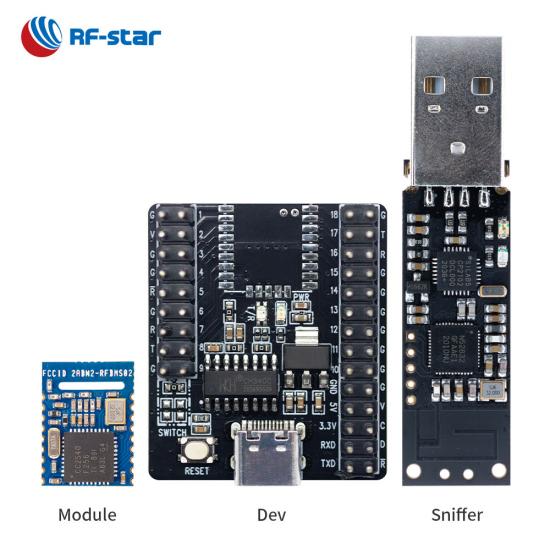

  • Bluetooth LE4.2 CC2540 Serial Interface Module
  • Bluetooth LE4.2 CC2540 Serial Interface Module
  • Bluetooth LE4.2 CC2540 Serial Interface Module
  • Bluetooth LE4.2 CC2540 Serial Interface Module
  • Bluetooth LE4.2 CC2540 Serial Interface Module

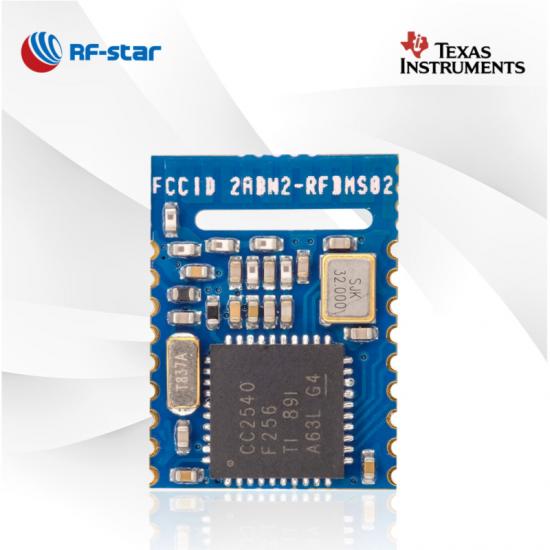

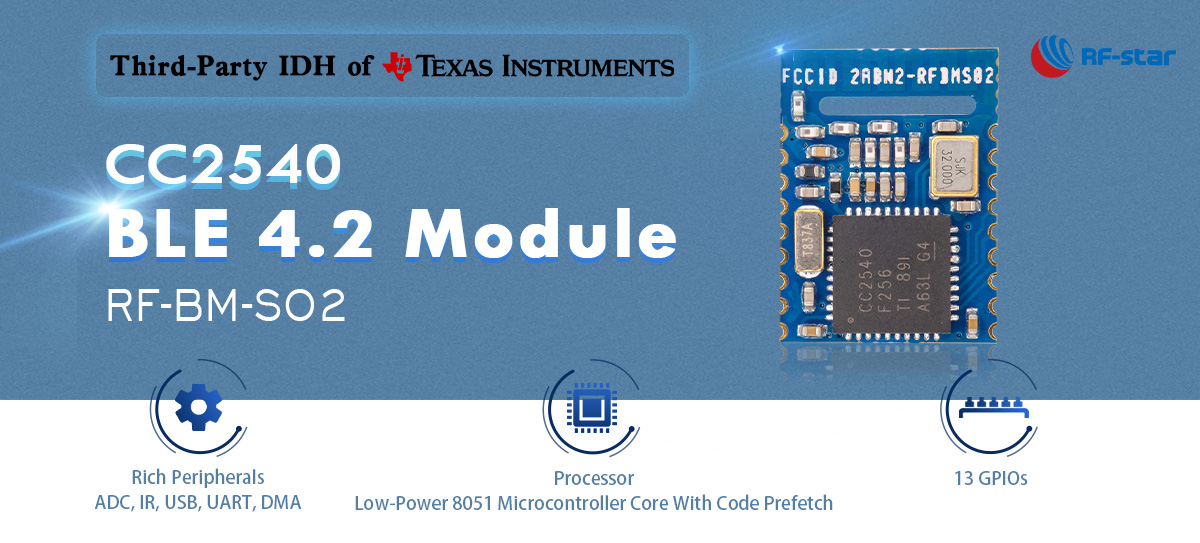

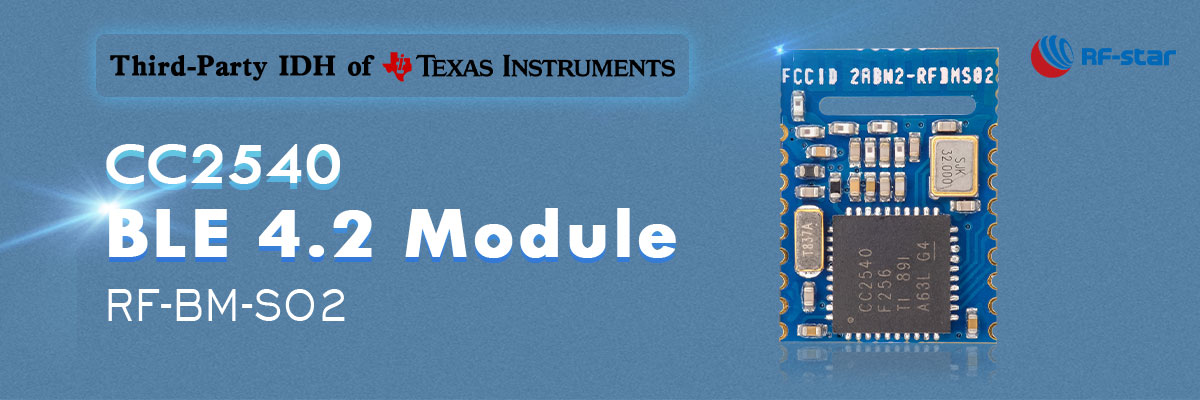

BLE Serial Port module BLE4.2 CC2540 Module RF-BM-S02

As one of the most popular modules, the RF-BM-S02 CC2540 Bluetooth LE4.2 module is designed for battery-powered based applications. The classic package size of RF-star enables this serial interface module to have a bigger market since 2010. RF-BM-S02 will be your good choice for design.

  • P/N:

    RF-BM-S02

  • SoC:

    CC2540

  • Processor:

    Low-Power 8051 Microcontroller Core With Code Prefetch

  • Protocols:

    Bluetooth 4.2 low energy

  • Working Frequency:

    2402 MHz ~ 2480 MHz

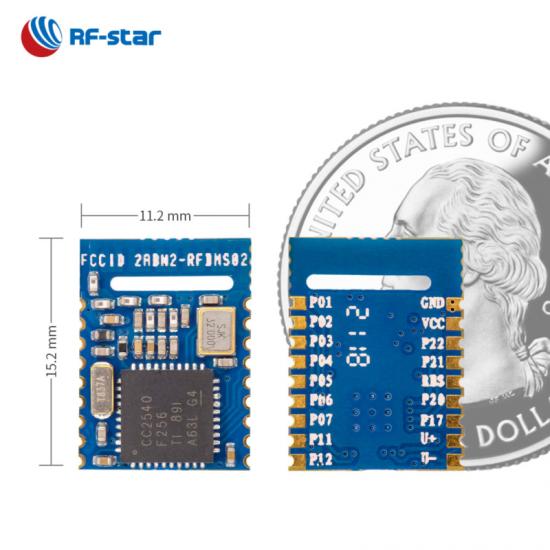

  • Package (mm):

    15.2 x 11.2 x 1.7, half-hole, 1.27 pitch, 18-pin

  • Features:

    USB port

  • GPIO:

    13

  • Max. TX Power:

    +4 dBm

  • Transmission Range:

    50 m
Inquiry Now

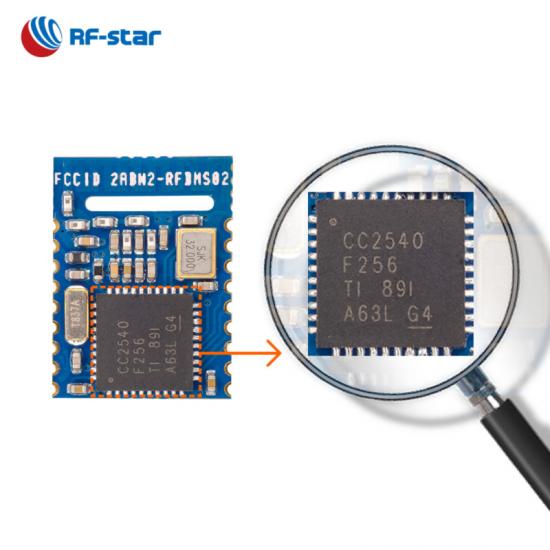

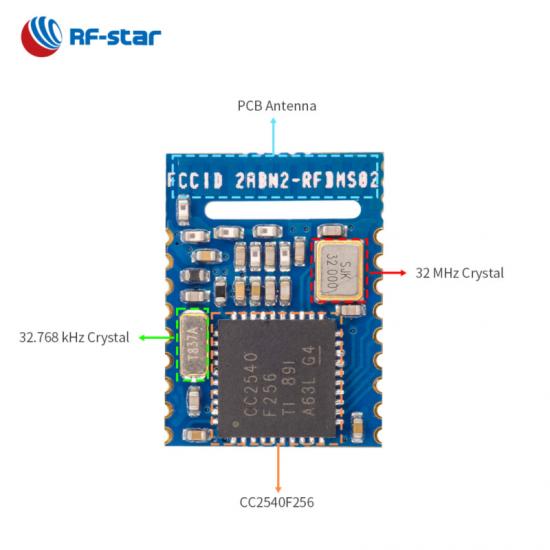

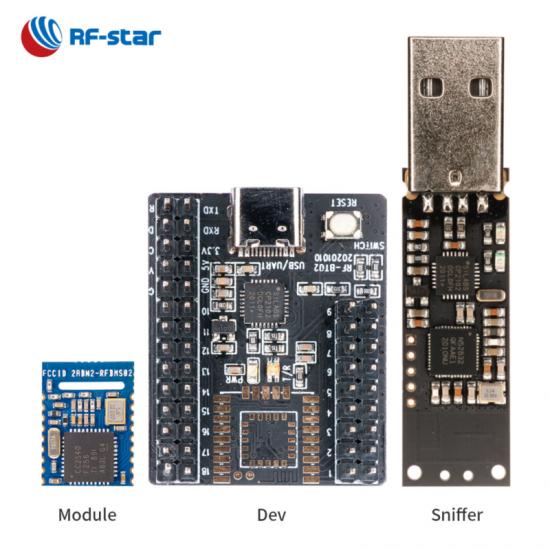

RF-BM-S02 is a module based on Texas Instruments Bluetooth 4.2 Low Energy CC2540 SoC. As the senior SoC, it is based on a low-power 8051 core. The module integrates a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, and a high-performance inverted-F PCB antenna. This module can be used in many applications with the need of USB. The 15.2 * 11.2 package is the most popular package among RF-star design, it supports pin-2-pin compatible with a series of BLE module designs. Pre-programmed with the BLE master or slave protocol, the BLE module can be used for transparent transmission and direct-driven.


BLE4.2 CC2540 Module

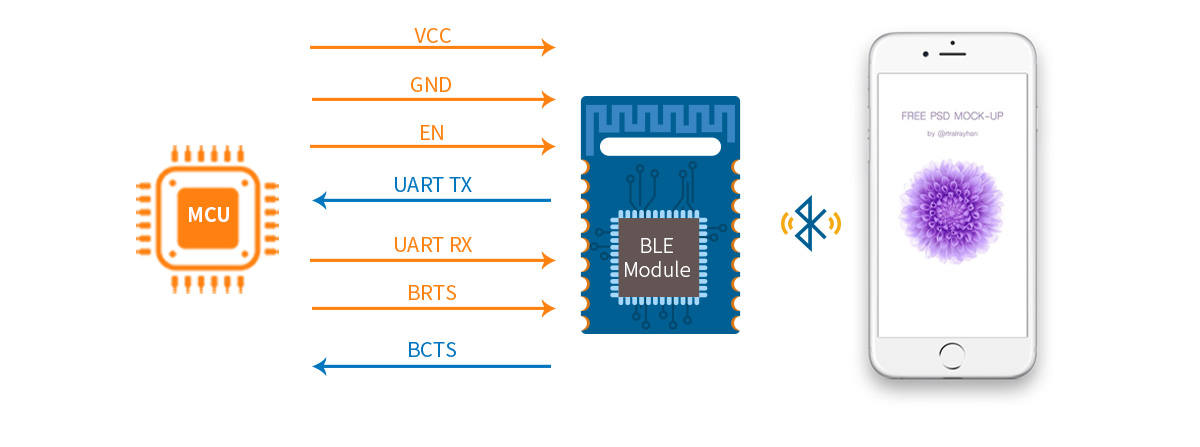

- BLE 4.2 Transparent Transmission (Bridge) Protocol -


BLE 4.2 Transparent Transmission

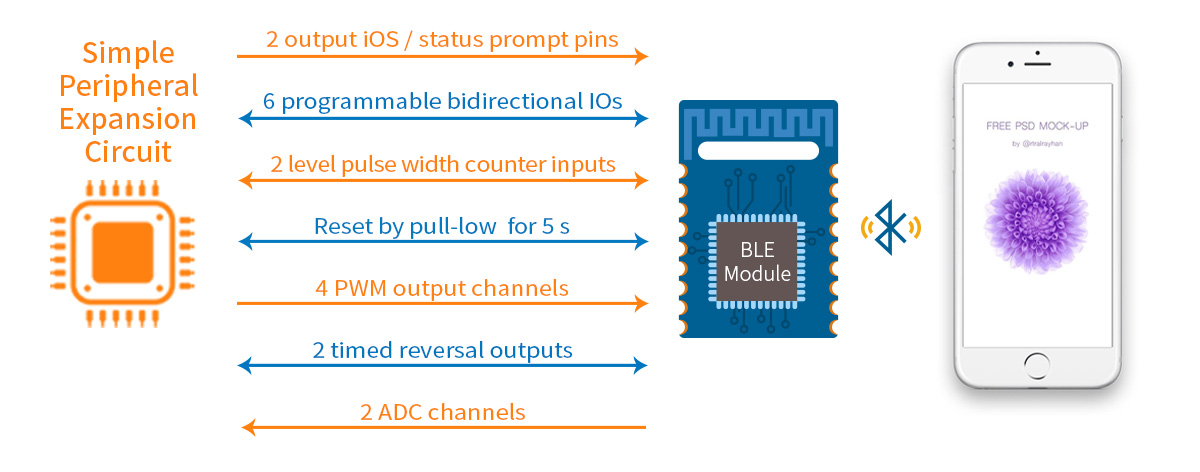

- Direct-Driven Protocol -

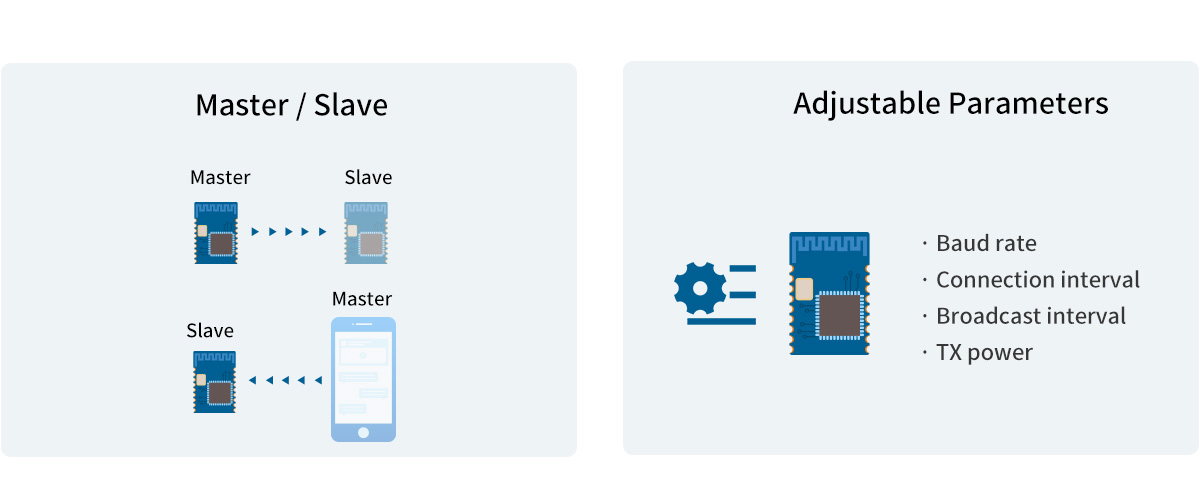

· Module roles: slave, master

· Adjustable parameters: baud rate, connection interval, broadcast interval, TX power…

Module roles: slave, master


Wireless SoC:


  • Low-Power 8051 Microcontroller Core With Code Prefetch
  • TX power: +4 dBm
  • Sensitivity in BLE mode: -94 dBm
  • Memory
    • -256 kB flash
    • -8 kB SRAM


Features:


  • Bluetooth 4.2 low energy


Current Consumption:


  • 0.35 μA in sleep mode
  • 202 μA at 250 ms broadcast cycle
  • 243 μA at 100 ms connection cycle

Operating Range:


  • Supply voltage range: 2.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:


  • 12-bit ADC
  • 13 GPIOs
  • USB
  • IR
  • DMA
  • UART (CTS/RTS)
TI CC254x Series BLE Modules
Part Number RF-BM-S01 RF-BM-S01A RF-BMPA-2541B1 RF-BM-S02 RF-BM-S02A RF-BM-S02I
IC C2540 CC2541 CC2541, CC2592 C2540 CC2541 C2540
Core 8051 8051 8051 8051 8051 8051
Antenna PCB/Half-hole interface PCB/Half-hole interface PCB/IPEX/Half-hole interface PCB PCB IPEX
RAM 8 KB 8 KB 8 KB 8 KB 8 KB 8 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2
Power Supply 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +4 dBm 0 dBm +19 dBm +4 dBm 0 dBm +4 dBm
Receiving Sensitivity -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm
GPIO 19 19 19 13 13 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 75 m 55 m 120 m 70 m 50 m 80 m (external PCB antenna)
Dimension (mm) 17.4 x 13.7 x 1.7 17.4 x 13.7 x 1.7 31.4 x 13.7 x 2.1 15.2 x 11.2 x 1.7 15.2 x 11.2 x 1.7 15.2 x 11.2 x 2.1
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √
Bluetooth Mesh × × × × × ×
Long Range × × × × × ×
2Mbps PHY × × × × × ×
AoA/AoD × × × × × ×
UART Protocol Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave
Functions All IOs, Transparent transmission & Direct-driven All IOs, Transparent transmission & Direct-driven PA+LNA, longer transmission range Small dimension, Transparent transmission & Direct-driven Small dimension, Transparent transmission & Direct-driven External antenna, Transparent transmission & Direct-driven
related case studies
Smart BLE Lock
Smart BLE Lock
Smart BLE Bulb
Smart BLE Bulb
MIP Robot Toy
MIP Robot Toy
BLE & Wi-Fi Environmental Monitor
BLE & Wi-Fi Environmental Monitor
Related Products
Cheap BLE5.0 CC2640R2L Module RF-BM-4077B1L Cost-Effective BLE5.0 CC2640R2L Module RF-BM-4077B1L

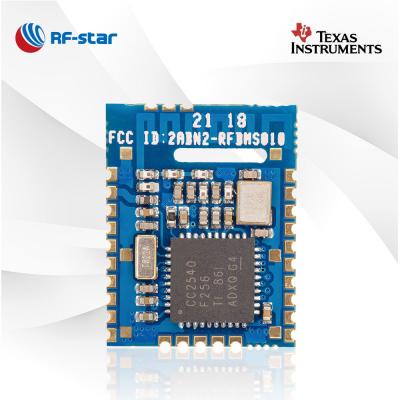

Bluetooth 4.2 CC2540 Module RF-BM-S01 Long Battery Life Bluetooth 4.2 CC2540 Module RF-BM-S01
