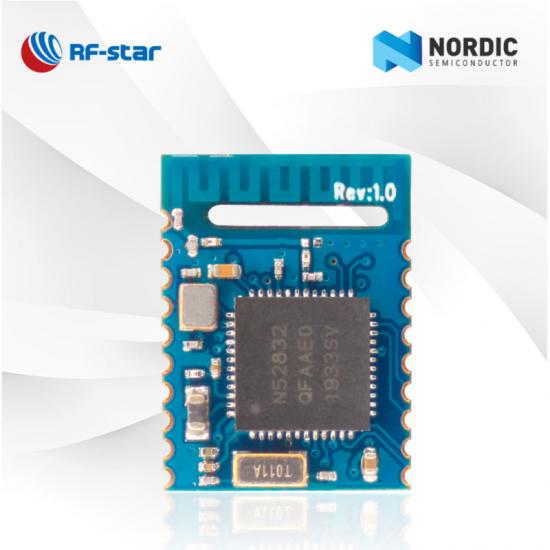

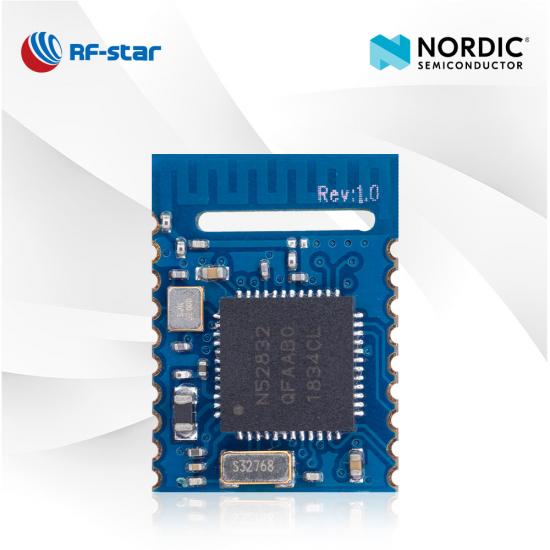

Robust Size BLE 5.0 module Based on Nordic BLE SoC nRF52832 RF-BM-ND08

RF-BM-ND08 is a BLE 5.0 module designed for the robust size, high reliability, high-performance requirements of battery-powered IoT products. It meets the needs of a wide range of applications. Start your design with RF-BM-ND08 nRF52832 BLE module.

  • P/N:

    RF-BM-ND08
  • SoC:

    nRF52832
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 low energy, Bluetooth Mesh
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

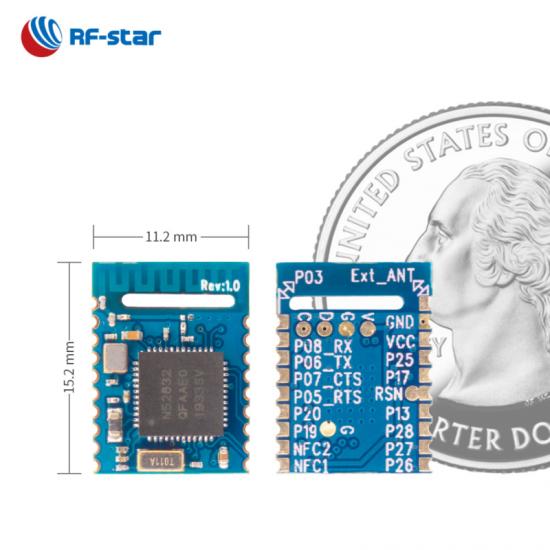

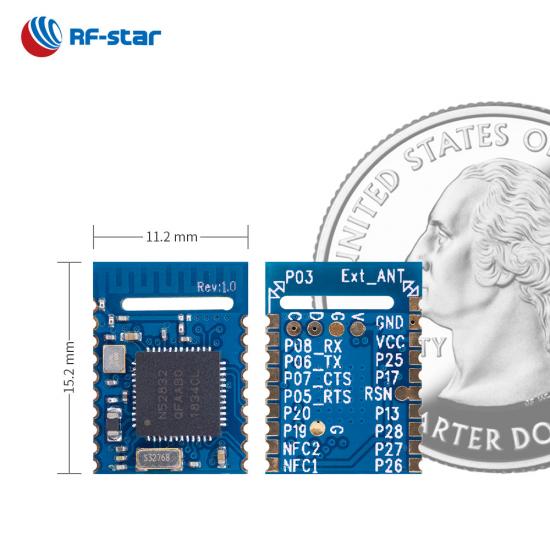

    15.2 × 11.2 × 1.7, half-hole, 1.27 pitch, 19-pin
  • Features:

    NFC, ANT, 2.4 GHz proprietary
  • GPIO:

    16
  • Max. TX Power:

    +4 dBm
  • Transmission Range:

    80 m

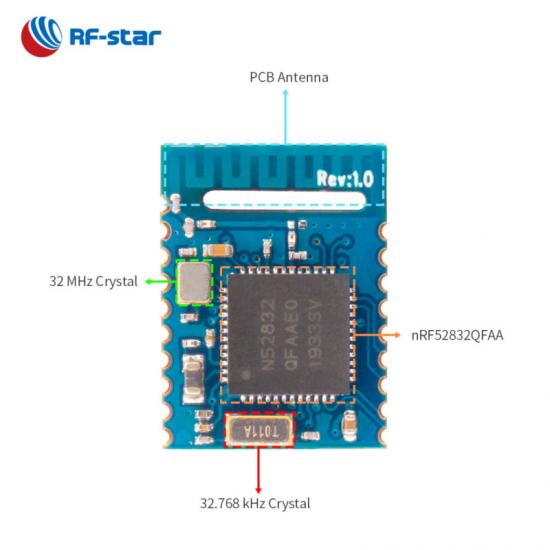

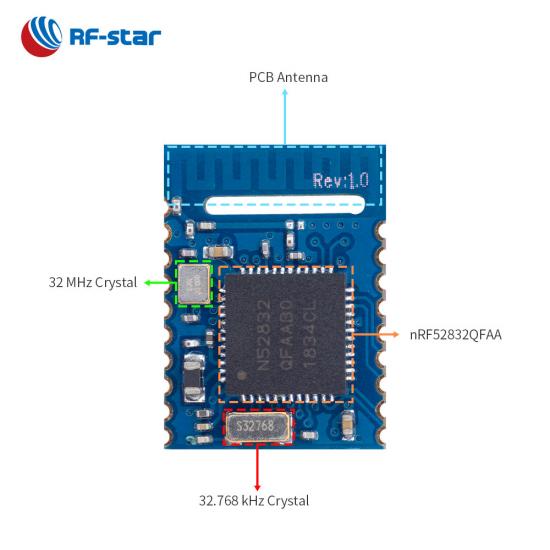

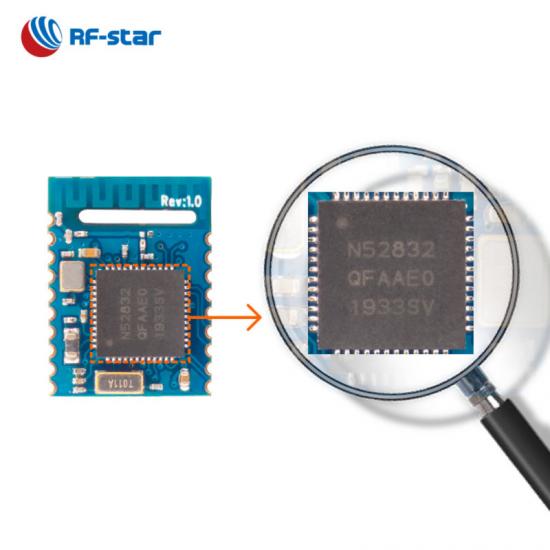

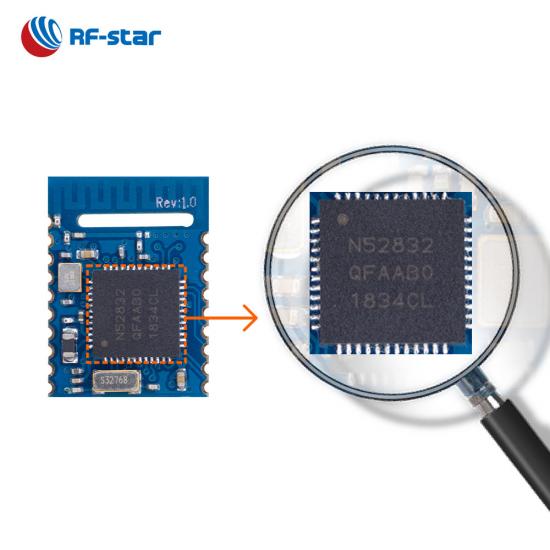

RF-BM-ND08 is an RF module based on Nordic BLE SoC nRF52832 with a 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching, and a meander line inverted-F PCB antenna. It supports BLE stack v5.0 including the high-speed 2 Mbps feature and can be preprogrammed with serial interface communication protocols, such as NFC, ANT, and 2.4 GHz proprietary. It also supports Bluetooth mesh which can be run concurrently with Bluetooth LE. The NFC-A peripheral enables the module used in simplified pairing and payment solutions. The numerous digital peripherals and interfaces of RF-BM-ND08, such as ADC, PDM, PWM, I2C, and I2S, make it applied in many applications. It features low power consumption, small size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package is for easy assembling and cost-effective PCB design.


BLE 5.0 nRF52832 module RF-BM-ND08

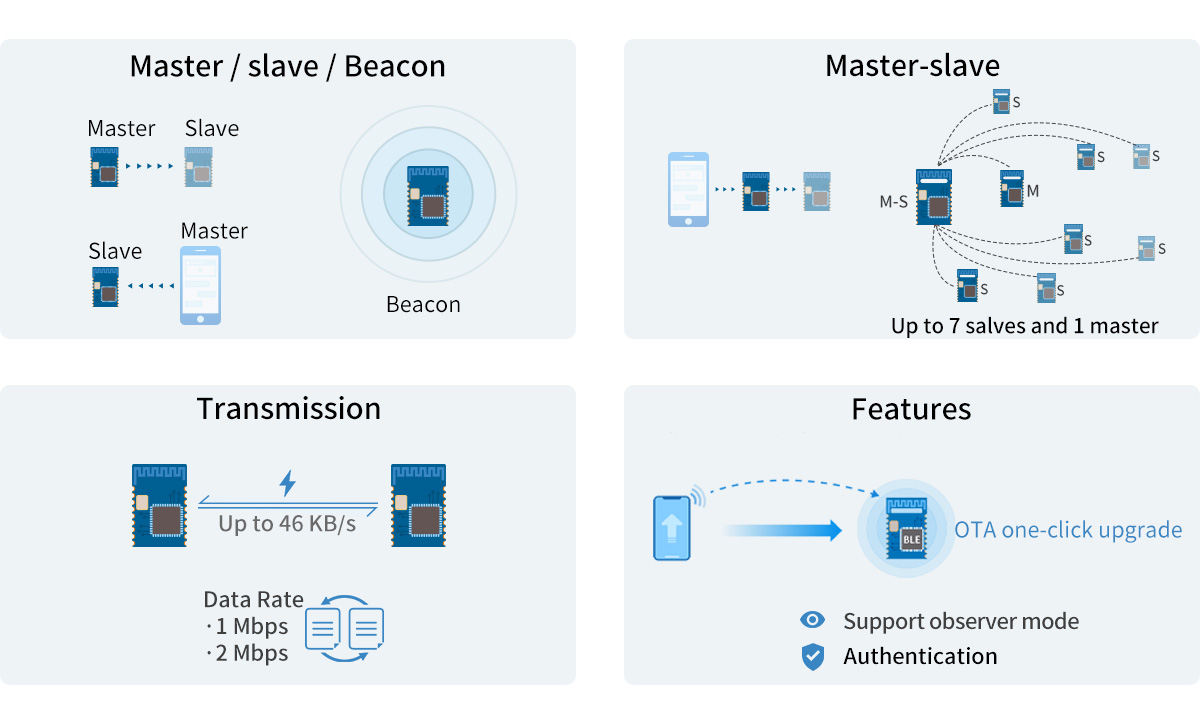

- Transparent Transmission (Bridge) Protocol -

· Several Roles: master, slave, master-slave, Beacon

· Multi-connection Function: Up to 7 salves and 1 master

· Max. transparent transmission rate: up to 46 kB/s

· Data Rate: 1 Mbps, 2 Mbps

· Features: OTA, observer, authentication

nRF52832 BLE 5.0 module RF-BM-ND08 transmisssion protocol


- Applications -

· Beacon

· Sensor networks

· Home automation

· Wearables

· Retail

· Medical devices

BLE 5.0 module nRF52832 RF-BM-ND08 Applications


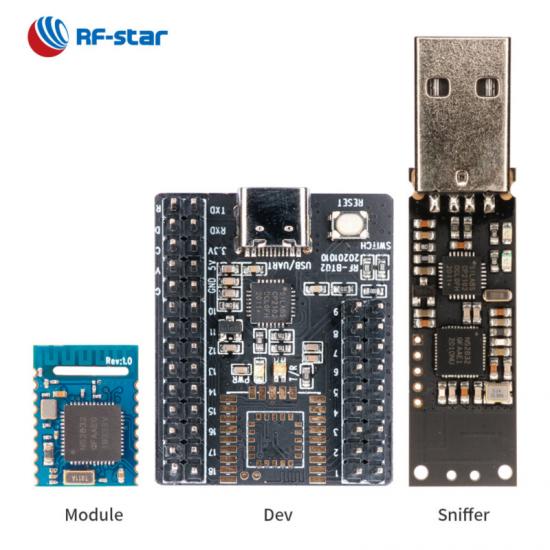

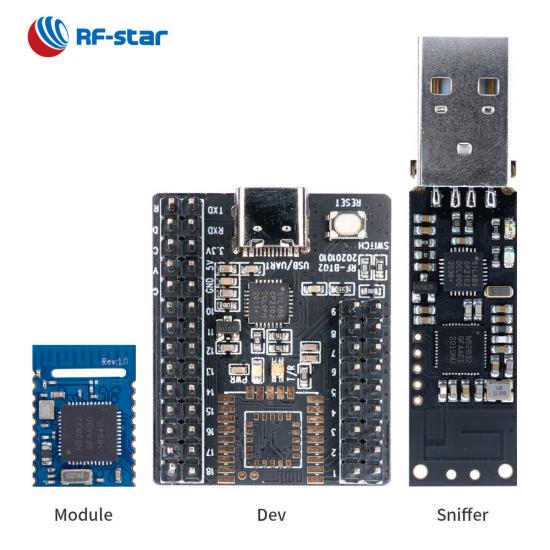

- Product Display -

Watch here to learn more aboutRF-BM-ND08


Wireless SoC:


  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +4 dBm
  • Sensitivity in BLE mode: -96 dBm
  • Memory
    • -512 KB flash
    • -64 KB RAM
  • Data rate: 1 Mbps, 2 Mbps



Supported Protocols:


  • Bluetooth 5.0 low energy
  • Bluetooth Mesh
  • NFC
  • ANT
  • 2.4 GHz proprietary



Current Consumption:


  • 2.62 μA in sleep mode
  • 77.7 μA at 200 ms broadcast cycle
  • 72.8 μA at 50 ms connection cycle


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • NFC-A
  • 12-bit, 200 ksps ADC
  • 16 GPIOs
  • PWM
  • PDM
  • SPI master/slave
  • I²C master/slave
  • I²S
  • UART (CTS/RTS)



Certificates:


  • FCC
  • SRRC



Item

Chip

Pin

GPIO

Atenna

Distance

Package Size (mm)

RF-BM-ND04

Nordic nRF52832

33

29

PCB

100 m

24.8 x 15.0 x 2.1

RF-BM-ND04I

Nordic nRF52832

33

29

IPEX

150 m

24.8  x 15.0 x 2.3

RF-BM-ND08

Nordic nRF52832

19

16

PCB & Half-Hole

100 m

15.2 x 11.2  x 1.7
