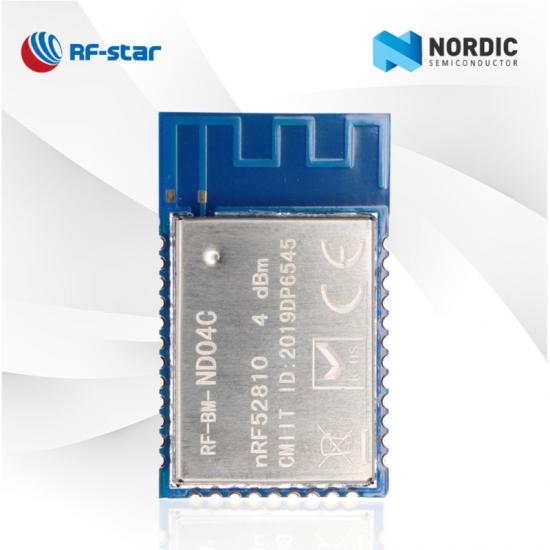

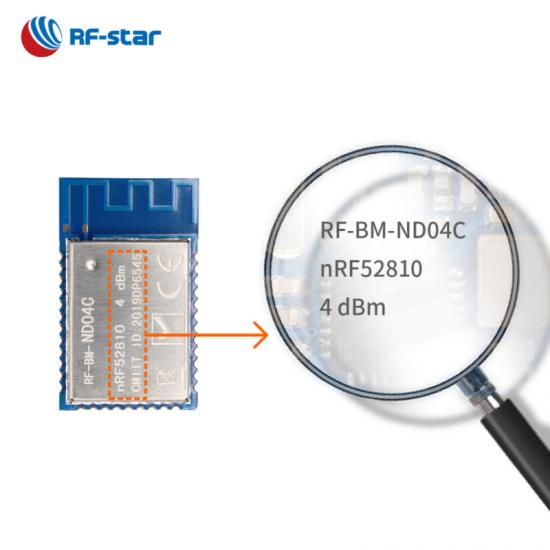

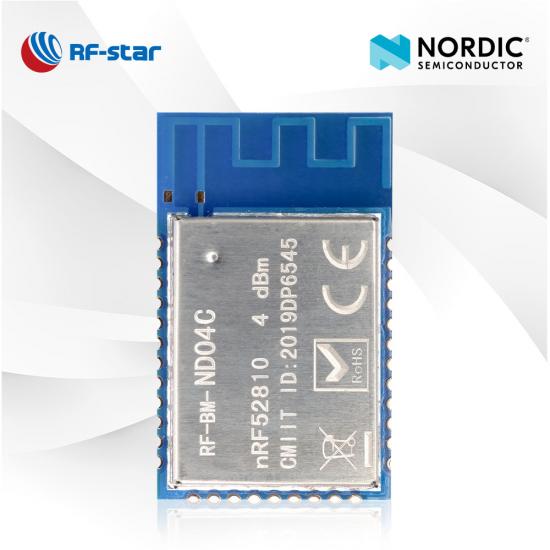

RF-BM-ND04C is an RF module based on versatile Nordic BLE5.0 SoC nRF52810 with a 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching, and a meander line inverted-F PCB antenna. It supports BLE stack v5.0 including the high-speed 2 Mbps feature. The numerous digital peripherals and interfaces of RF-BM-ND04C, such as PDM, PWM, UART, SPI, I²C and 12-bit ADC, make it applied in many applications including remote controls, wearables, virtual reality headsets and so on. It features low power consumption, robust connection distance, and rigid reliability.
Powerful Processor
RF-BM-ND04C is a Bluetooth5.0 Low Energy module with a powerful 64 MHz 32-bit ARM® Cortex®-M4 processor.
Rich Peripheral & Interfaces
The nRF52810 module has numerous digital peripherals and interfaces such as PDM, PWM, UART, SPI, I2C, and 12-bit ADC.
High Effective Antenna

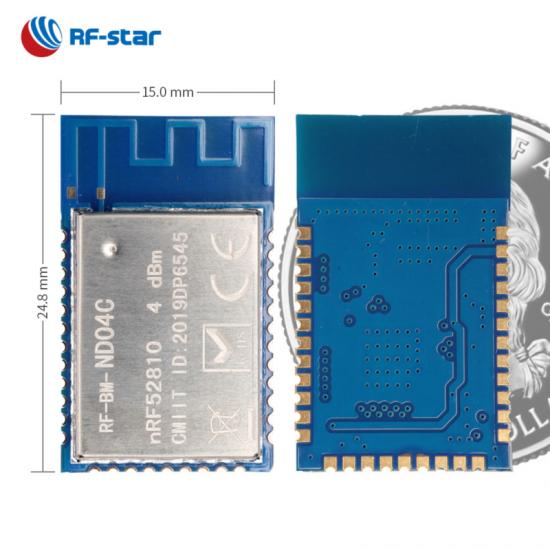

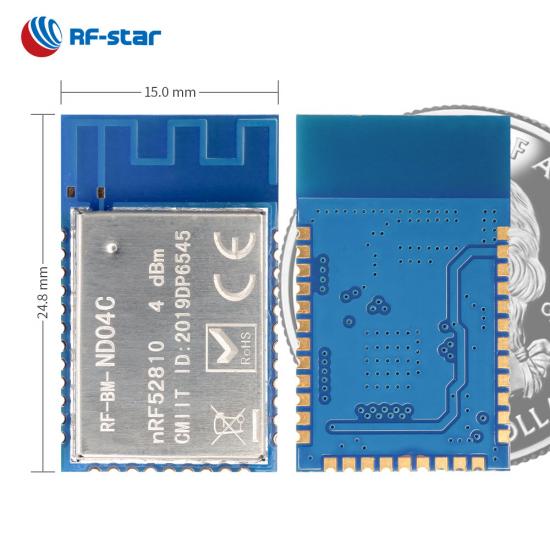

Its 1.27-mm pitch stamp stick package and PCB design offer you easy assembly and a better transmission range than other antenna.
Ultra-low Power Consumption
The power consumption of the nRF52810 BLE module draws 1.23 μA in sleep mode.
UART Protocol
Rich functions with OTA, slave only
- Transparent Transmission (Bridge) Protocol -
· Several roles: slave, Beacon
· Max. transparent transmission rate: up to 46 kB/s
· Features: OTA, authentication
