Embedded Bluetooth 5.0 Module with Nordic nRF52810 Chip RF-BM-ND08C

RF-BM-ND08C is a Bluetooth 5.0 Low Energy module developed for the high reliability, high-performance, compact size and extremely power efficiency requirements of battery-powered IoT products. It is an ideal module for applications with less complex uses. Start your product development with RF-BM-ND08C nRF52810 BLE module.

  • P/N:

    RF-BM-ND08C
  • SoC:

    nRF52810
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

    15.2 × 11.2 × 1.7, half-hole, 1.27 pitch, 19-pin
  • Features:

    ANT, 2.4 GHz proprietary, Slave/Beacon Mode
  • GPIO:

    16
  • Max. TX Power:

    +4 dBm
  • Transmission Range:

    80 m

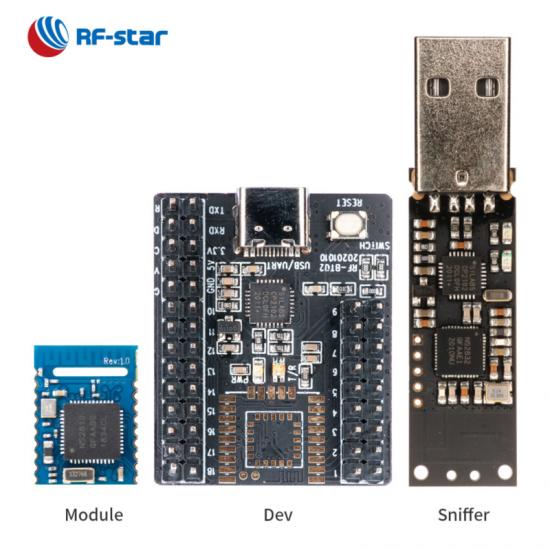

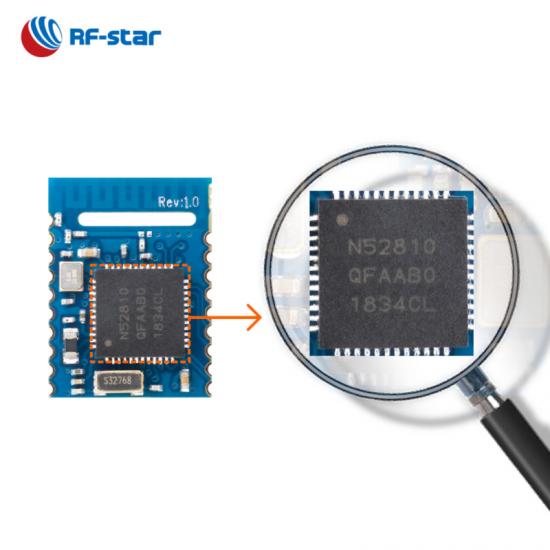

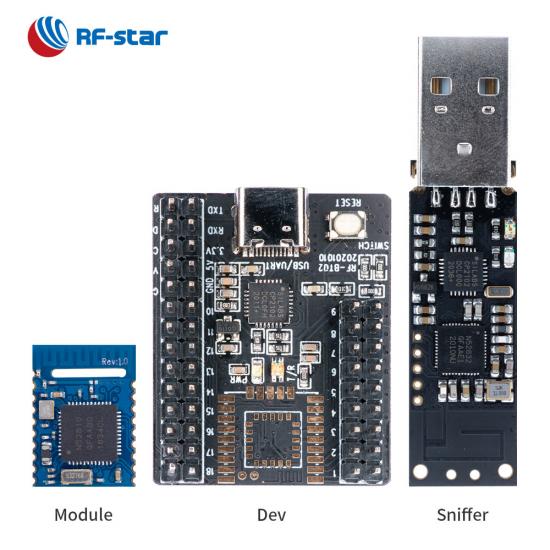

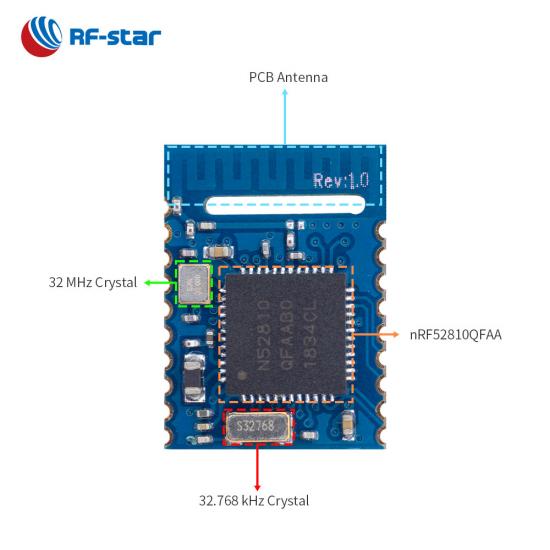

RF-BM-ND08C is an RF module based on versatile Nordic Bluetooth LE5.0 SoC nRF52810 with a 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching, and antenna options of a meander line inverted-F PCB antenna and a half-hole interface for more possibilities uses. It supports BLE stack v5.0 including the high-speed 2 Mbps feature. It features ultra-low power consumption, conpact size robust connection distance, and rigid reliability. The numerous digital peripherals and interfaces of RF-BM-ND08C, such as PDM, PWM, UART, SPI, I²C and 12-bit ADC, make it applied in a wide range of applications, for example, BLE beacons, medical devices, wearables, and connectivity devices, etc.

Bluetooth 5.0 Module with Nordic nRF52810 Chip RF-BM-ND08C

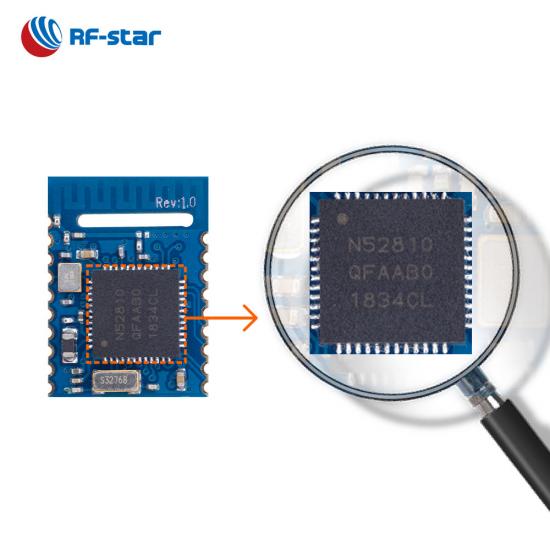

Powerful Processor

RF-BM-ND08C is a Bluetooth5.0 Low Energy module with a powerful 64 MHz 32-bit ARM® Cortex®-M4 processor.

Alternative Antenna Output Modes

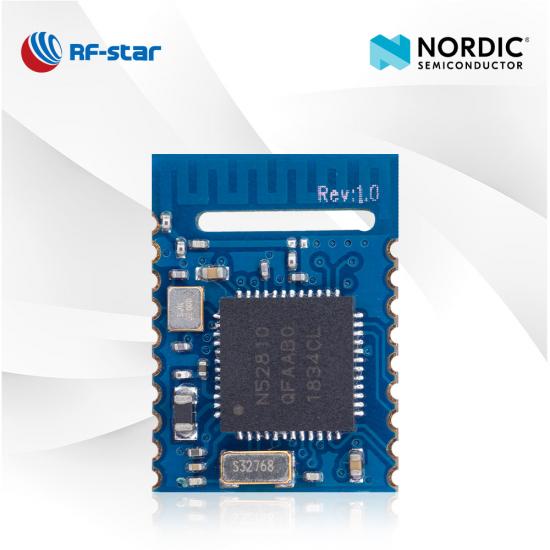

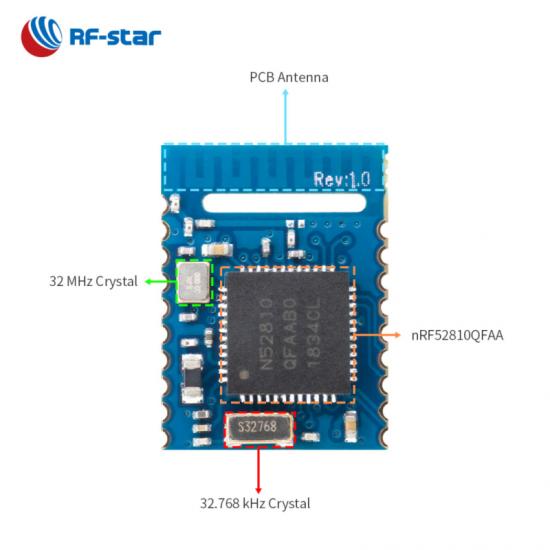

The nRF52810 BLE module titled RF-BM-ND08C has two antenna options of a meander line inverted-F PCB antenna and a half-hole RF interface.

Rich Peripheral & Interfaces

The nRF52810 module has numerous digital peripherals and interfaces such as NFC-A, PDM, PWM, UART, SPI, I2C, I2S, and 12-bit ADC.

Small Size

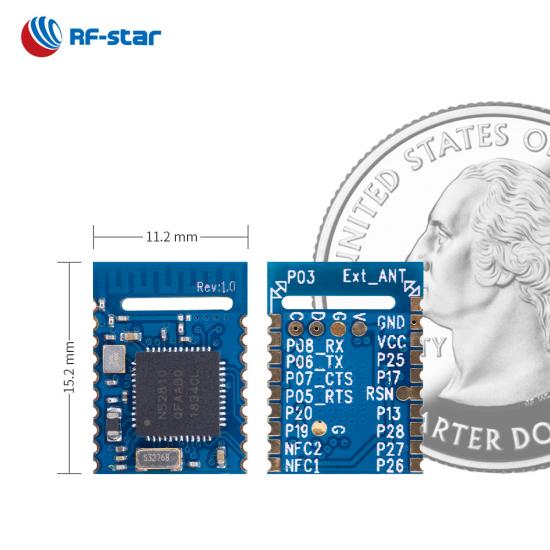

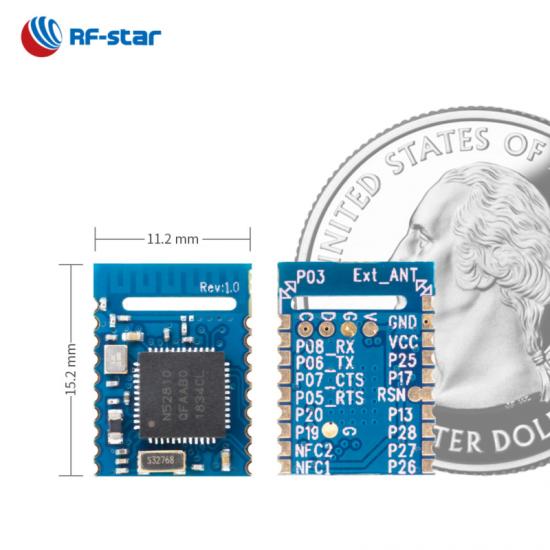

It is the smallest one of the nRF52810 series modules with an 15.2 mm x 11.2 mm x 1.78 mm stamp half-hole package.

UART Protocol

Rich functions with OTA, slave only


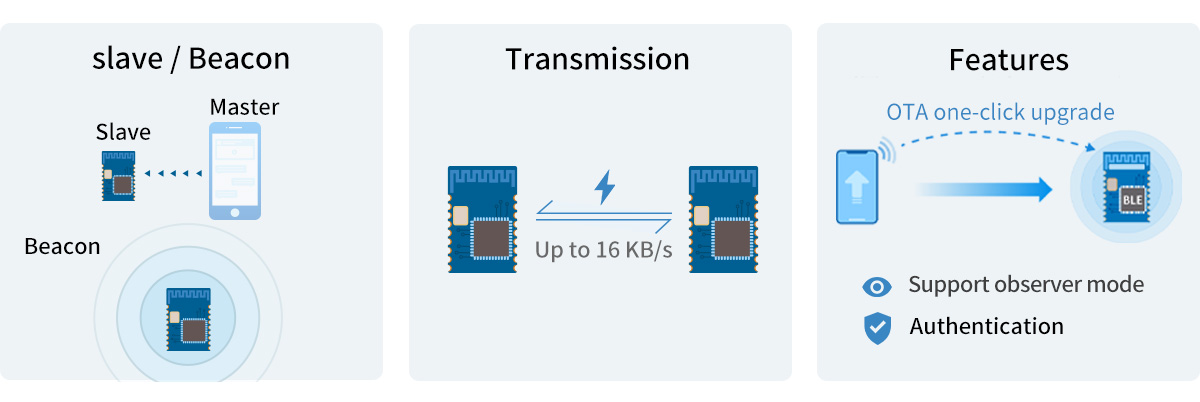

- Transparent Transmission (Bridge) Protocol -

· Several roles: slave, Beacon

· Max. transparent transmission rate: up to 46 kB/s

· Features: OTA, authentication

nRF52810 BLE module supports transparent transmission (bridge) protocol


Reference Resource:

How Many Working Modes Can Nordic BLE Series Products Support?

Wireless SoC:


  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +4 dBm
  • Sensitivity in BLE mode: -96 dBm
  • Memory
    • -192 KB flash
    • -24 KB RAM
  • Data rate: 1 Mbps, 2 Mbps


Supported Protocols:


  • Bluetooth 5.0 low energy
  • ANT
  • 2.4 GHz proprietary


Current Consumption:


  • 2.62 μA in sleep mode
  • 70.33 μA at 200 ms broadcast cycle
  • 64.72 μA at 50 ms connection cycle

Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:


  • 12-bit, 200 ksps ADC
  • 16 GPIOs
  • 4-channel PWM
  • Digital microphone interface (PDM)
  • SPI master/slave
  • I²C master/slave
  • UART (CTS/RTS)


Certificate:


  • SRRC


NORDIC nRF52 Series BLE Module
Part Number RF-BM-ND09A RF-BM-ND09 RF-BM-ND08C RF-BM-ND04CI RF-BM-ND04C RF-BM-ND08 RF-BM-ND04I RF-BM-ND04
IC nRF52805 nRF52805 nRF52810 nRF52810 nRF52810 nRF52832 nRF52832 nRF52832
Core 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F
Antenna PCB/Pad Pad PCB/Half-hole interface IPEX/Half-hole interface PCB PCB/Half-hole interface IPEX/Half-hole interface PCB
RAM 24 KB 24 KB 24 KB 24 KB 24 KB 64 KB 64 KB 64 KB
Flash 192 KB 192 KB 192 KB 192 KB 192 KB 512 KB 512 KB 512 KB
Protocols BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, BLE 2M PHY, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT, NFC BLE5.3, Proprietary, ANT, NFC BLE5.3, Proprietary, ANT, NFC
Power Supply 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm
Receiving Sensitivity -97 dBm @1 Mbit/s BLE -97 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE
GPIO 10 10 16 29 29 29 29 29
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 30 m 40 m (external PCB antenna) 75 m 100 m (external PCB antenna) 80 m 80 m 110 m (external PCB antenna) 90 m
Dimension (mm) 7.0 x 9.0 x 2.0 7.0 x 7.0 x 2.0 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3
Package 0.6-mm pitch DFN 0.6-mm pitch DFN 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × × × × ×
Long Range × × × × × × × ×
2Mbps PHY
AoA/AoD × × × × × × × ×
UART Protocol Slave Slave Slave Slave Slave Master-slave simultaneously, one master-slaves Master-slave simultaneously, one master-slaves Master-slave simultaneously, one master-slaves
Functions Ultra-small dimension, High effective Ultra-small dimension, high effective, Feasible for external antenna High compatibility, High effective High effective, IPEX conenctor for more external antenna design Lower power consumption, High effective Compact size for more applications Feasible for external antennas with a longer transmission range High compatibility
