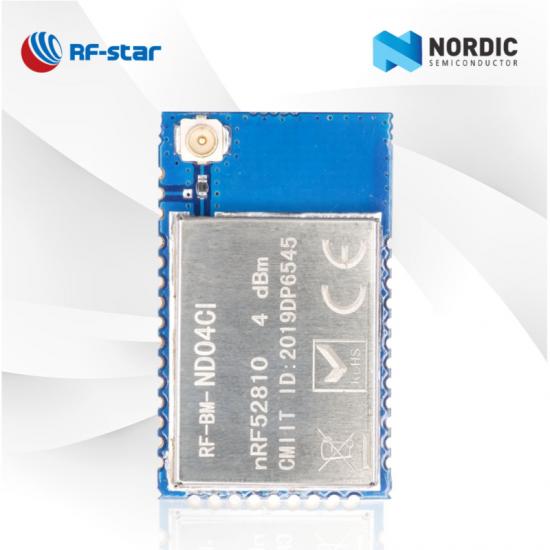

Battery-Powered Bluetooth 5.0 Low Energy module with Nordic SoC nRF52810 RF-BM-ND04CI

RF-BM-ND04CI is a Bluetooth 5.0 Low Energy module developed for the high reliability, high-performance requirements of battery-powered IoT products.It is an ideal module for applications with less complex uses. The IPEX connector makes it more possibilities of the antenna output ways, as well as half-hole antenna interface. Start your product development with RF-BM-ND04CI nRF52810 BLE module.

  • P/N:

    RF-BM-ND04CI
  • Goods Stock:

    1000
  • SoC:

    nRF52810
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz

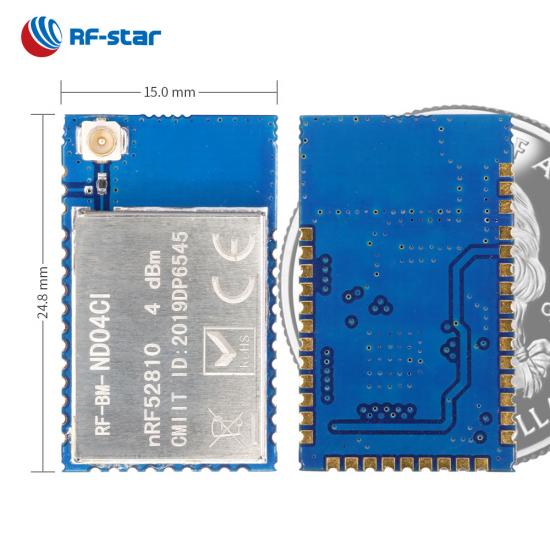

  • Package (mm):

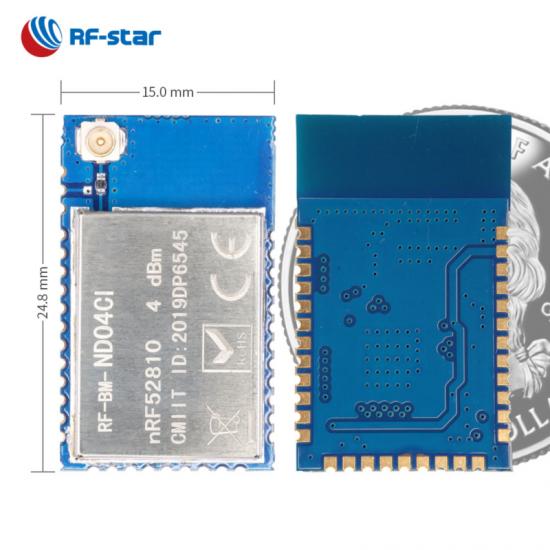

    24.8 × 15.0 × 2.3, half-hole, 1.27 pitch, 36-pin
  • Features:

    ANT, 2.4 GHz proprietary, IPEX connector & half-hole interface
  • GPIO:

    29
  • Max. TX Power:

    +4 dBm
  • Transmission Range:

    100 m

RF-BM-ND04CI is an RF module based on versatile Nordic BLE 5.0 SoC nRF52810 with a 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching, and antenna options of an IPEX connector and a half-hole interface. It supports BLE stack v5.0 including the high-speed 2 Mbps feature. The numerous digital peripherals and interfaces of RF-BM-ND04CI, such as PDM, PWM, UART, SPI, I²C and 12-bit ADC, make it applied in many applications. It features low power consumption, robust connection distance, and rigid reliability.


Bluetooth 5.0 Low Energy module with Nordic SoC nRF52810 RF-BM-ND04CI

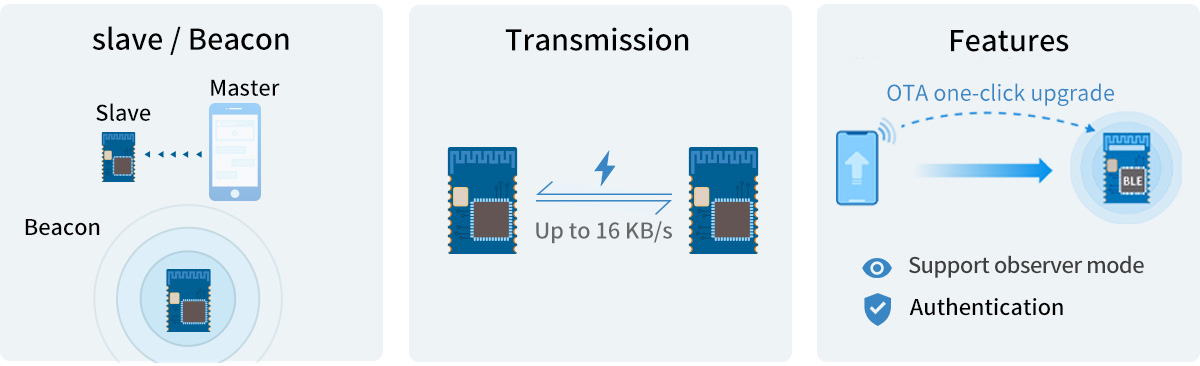

- Transparent Transmission (Bridge) Protocol -

· Several roles: slave, Beacon

· Max. transparent transmission rate: up to 46 kB/s

· Features: OTA, authentication

Bluetooth 5.0 Low Energy nRF52810 module RF-BM-ND04CI Transmission protocol

- Applications -


· Industrial lighting

· Commercial lighting

· Beacons

· ESL (Electronic shelf label)

· Wearables

· Computer peripherals

Bluetooth 5.0 Low Energy module with Nordic SoC nRF52810 RF-BM-ND04CI Applications

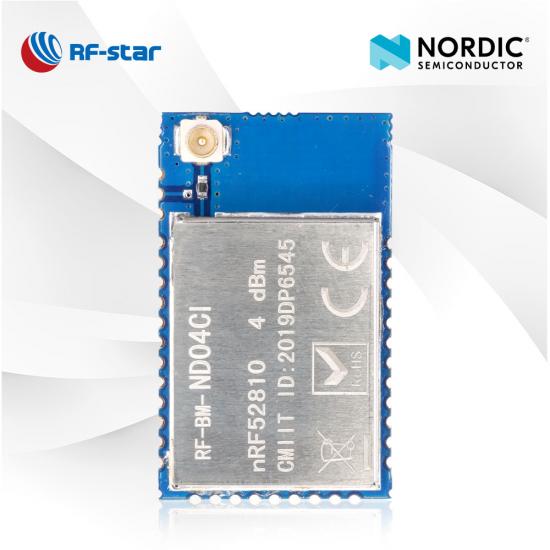

- Product Display -

Wireless SoC:


  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +4 dBm
  • Sensitivity in BLE mode: -96 dBm
  • Memory
    • -192 KB flash
    • -24 KB RAM
  • Data rate: 1 Mbps, 2 Mbps



Supported Protocols:


  • Bluetooth 5.0 low energy
  • ANT
  • 2.4 GHz proprietary



Current Consumption:


  • 2.62 μA in sleep mode
  • 70.33 μA at 200 ms broadcast cycle
  • 64.72 μA at 50 ms connection cycle


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • 12-bit, 200 ksps ADC
  • 29 GPIOs
  • 4-channel PWM
  • Digital microphone interface (PDM)
  • SPI master/slave
  • I²C master/slave
  • UART (CTS/RTS)


Item

Chip

Pin

GPIO

Atenna

Distance

Package Size (mm)

RF-BM-ND04C

Nordic nRF52810

33

29

PCB

100 m

24.8 x 15.0 x 2.1

RF-BM-ND04CI

36

29

IPEX & Half-Hole

100 m

24.8  x 15.0 x 2.3

RF-BM-ND08C

19

16

PCB & Half-Hole

80 m

15.2 x 11.2  x 1.7
