RF-star Offers Stardard Wireless RF Modules & Solutions, Customized RF HW & SW Solutions and OEM & ODM.

Long Battery Life Bluetooth 4.2 CC2540 Module RF-BM-S01

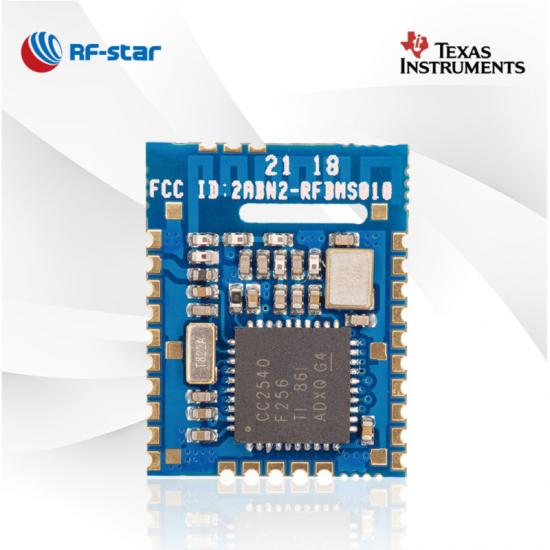

RF-BM-S01 Bluetooth 4.2 module is based on Texas Instruments CC2540 SoC. This BLE module is aimed at the markets with a USB port need and the low power energy need. The high and stable performances make the module be one of your best choices.

P/N:
RF-BM-S01
SoC:
CC2540
Processor:
Low-Power 8051 Microcontroller Core With Code Prefetch
Protocols:
Bluetooth 4.2 low energy
Working Frequency:
2402 MHz ~ 2480 MHz
Package (mm):

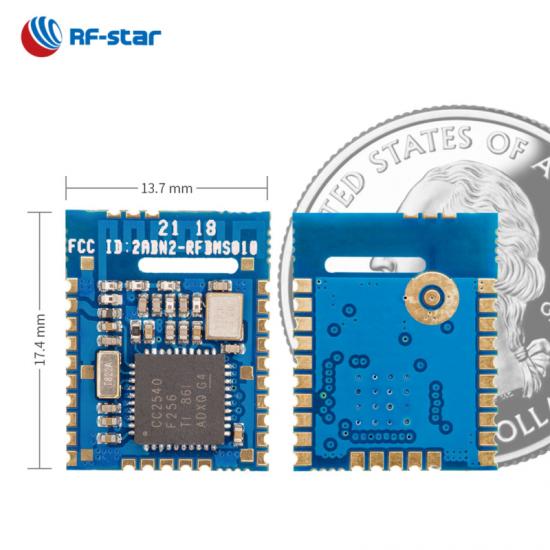

17.4 x 13.7 x 1.7, half-hole, 1.27 pitch, 28-pin
Features:
USB port
GPIO:
19
Max. TX Power:
+4 dBm
Transmission Range:
50 m

Inquiry Now

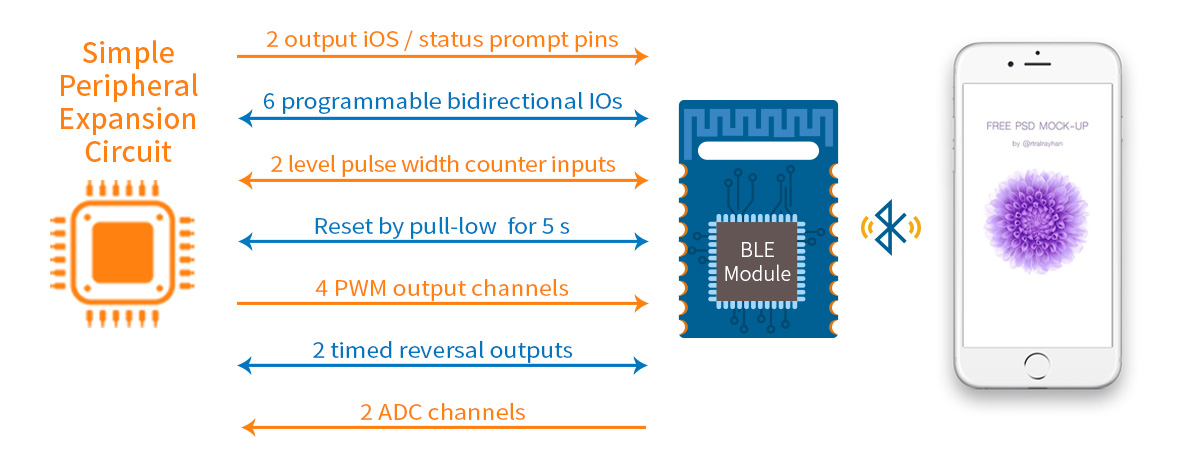

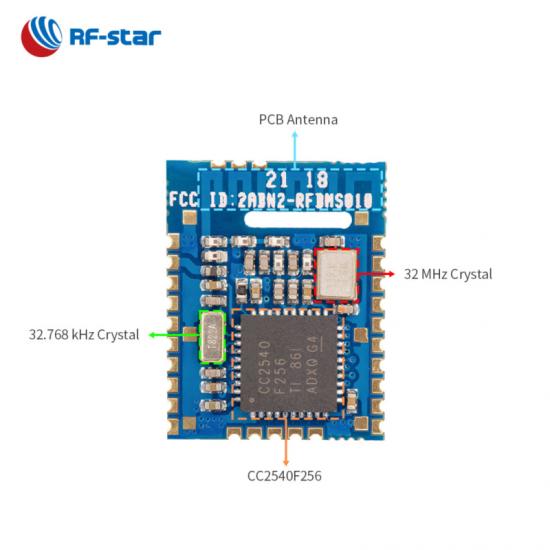

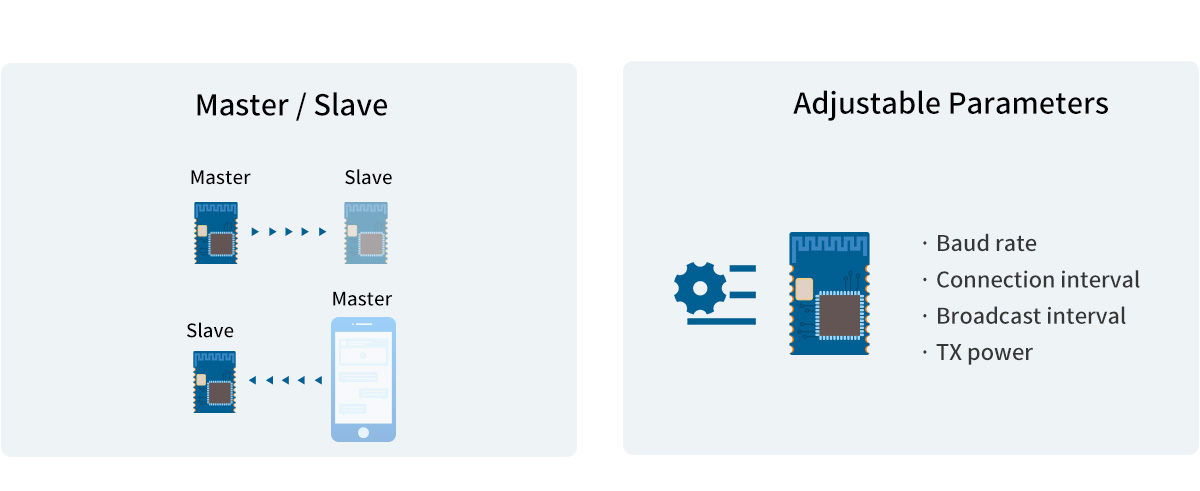

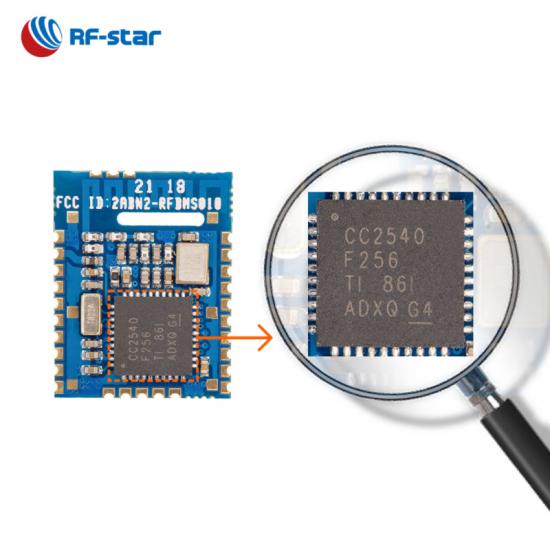

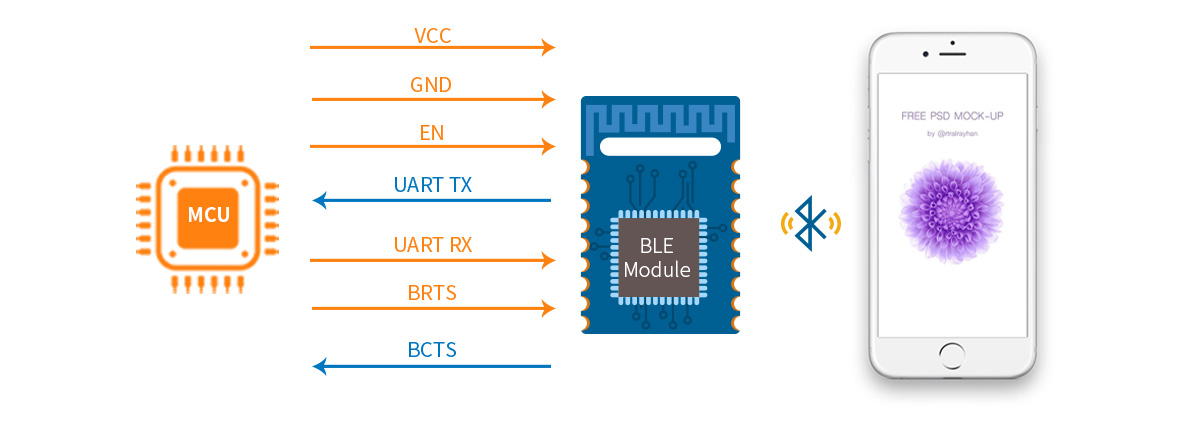

RF-BM-S01 is a BLE4.2 module based on TI CC2540 SoC. The first generation Bluetooth 4.2 Low Energy Module is based on an 8051 core and integrates a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, and a high-performance inverted-F PCB antenna. This module is the best choice for the USB dongle application, which makes it easy to establish a connection between a BLE device and the smartphone. This CC2540 module can be pre-programmed with the BLE master or slave protocol. Besides transparent transmission mode, the BLE protocol also supports the direct-driven mode.

Reference Resource:

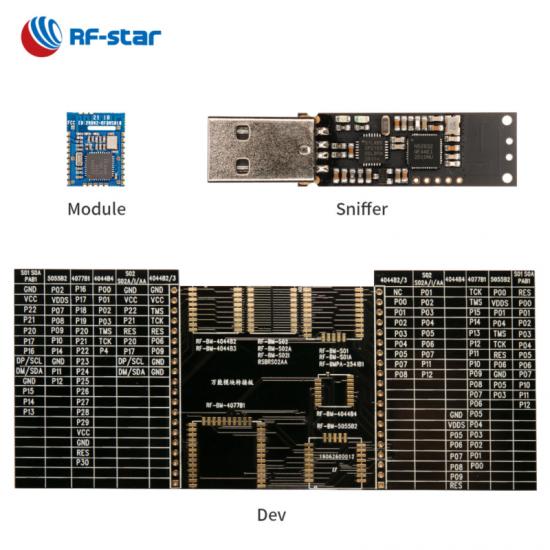

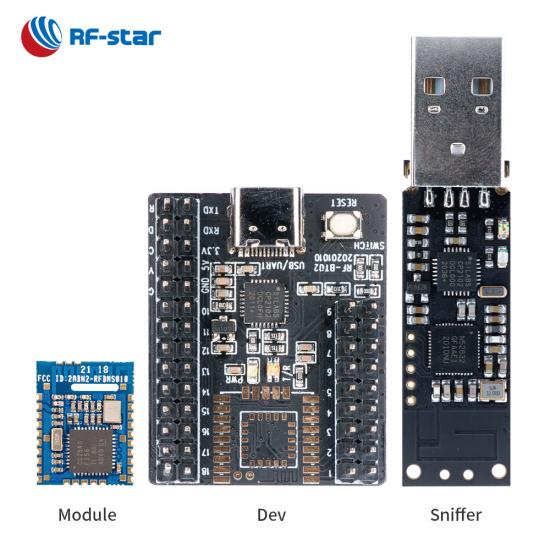

Test Board Pinboard for TI Series Module (CC2540 CC2541 CC2640)

Wireless SoC:

Low-Power 8051 Microcontroller Core With Code Prefetch
TX power: 0 dBm
Sensitivity in BLE mode: -94 dBm
Memory

-256 KB flash
-8 KB RAM

Features:

Bluetooth 4.2 low energy

Current Consumption:

0.35 μA in sleep mode
202 μA at 250 ms broadcast cycle
243 μA at 100 ms connection cycle

Rich Peripherals:

ADC
19 GPIOs
I²C
IR
DMA
UART (CTS / RTS)

Certificates:

FCC
CE
RoHS

Operating Range:

Supply voltage range 2.0 V ~ 3.6 V
Working temperature range: -40 °C ~ +85 °C

RF-BM-S01_S01A Hardware Datasheet V1.0_20230526

TI CC254x Series BLE Modules
Part Number	RF-BM-S01	RF-BM-S01A	RF-BMPA-2541B1	RF-CC2540A1	RF-BM-S02	RF-BM-S02A	RF-BM-S02I
IC	C2540	CC2541	CC2541, CC2592	C2540	C2540	CC2541	C2540
Core	8051	8051	8051	8051	8051	8051	8051
Antenna	PCB/Half-hole interface	PCB/Half-hole interface	PCB/IPEX/Half-hole interface	PCB	PCB	PCB	IPEX
RAM	8 KB	8 KB	8 KB	8 KB	8 KB	8 KB	8 KB
Flash	256 KB	256 KB	256 KB	256 KB	256 KB	256 KB	256 KB
Protocols	BLE4.2	BLE4.2	BLE4.2	BLE4.2	BLE4.2	BLE4.2	BLE4.2
Power Supply	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V	2.0 V ~ 3.6 V, recommend to 3.3 V
Frequency	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz
Max. TX Power	+4 dBm	0 dBm	+19 dBm	+4 dBm	+4 dBm	0 dBm	+4 dBm
Receiving Sensitivity	-94 dBm	-94 dBm	-94 dBm	-94 dBm	-94 dBm	-94 dBm	-94 dBm
GPIO	19	19	19	19	13	13	13
Working Temperature	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃	-40 ℃ ~ +85 ℃
Storage Temperature	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃	-40 ℃ ~ +125 ℃
Transmission Range	75 m	55 m	120 m	75 m	70 m	50 m	80 m (external PCB antenna)
Dimension (mm)	17.4 x 13.7 x 1.7	17.4 x 13.7 x 1.7	31.4 x 13.7 x 2.1	24.1 x 15.2 x 1.7	15.2 x 11.2 x 1.7	15.2 x 11.2 x 1.7	15.2 x 11.2 x 2.1
Package	1.27-mm pitch half-hole	1.27-mm pitch half-hole	1.27-mm pitch half-hole	1.27-mm pitch half-hole	1.27-mm pitch half-hole	1.27-mm pitch half-hole	1.27-mm pitch half-hole
OTA	√	√	√	√	√	√	√
Bluetooth Mesh	×	×	×	×	×	×	×
Long Range	×	×	×	×	×	×	×
2Mbps PHY	×	×	×	×	×	×	×
AoA/AoD	×	×	×	×	×	×	×
UART Protocol	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave	Master/Slave
Functions	All IOs, Transparent transmission & Direct-driven	All IOs, Transparent transmission & Direct-driven	PA+LNA, longer transmission range	All IOs, Transparent transmission & Direct-driven	Small dimension, Transparent transmission & Direct-driven	Small dimension, Transparent transmission & Direct-driven	External antenna, Transparent transmission & Direct-driven

related case studies

BLE Postpartum Recovery Devices

Bluetooth HID Device

Smart Body Temperature Sticker

Smart BLE Motion Capture Technology

Pulse Oximeter with BLE

Related Products

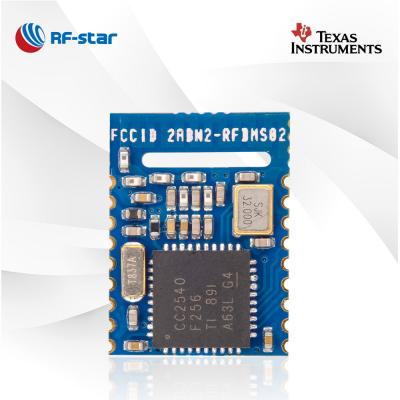

Bluetooth LE4.2 CC2540 Serial Interface Module

BLE Serial Port module BLE4.2 CC2540 Module RF-BM-S02

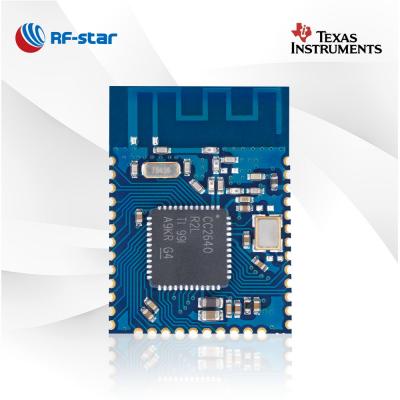

Cheap BLE5.0 CC2640R2L Module RF-BM-4077B1L

Cost-Effective BLE5.0 CC2640R2L Module RF-BM-4077B1L

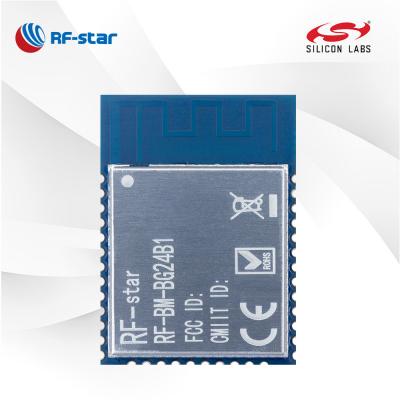

BLE5.3 EFR32BG24 Module for Mesh networking

RF-BM-BG24B1 BLE5.3 EFR32BG24 Module

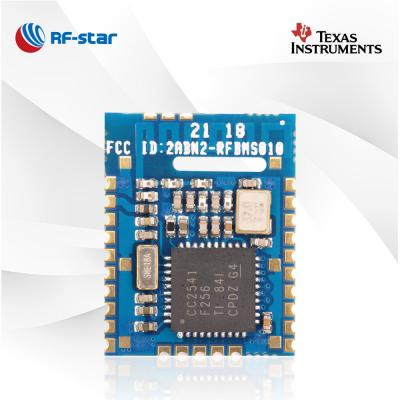

Low-Cost BLE4.2 CC2541 Module RF-BM-S01A

Robust Size BLE 5.0 module Based on Nordic BLE SoC nRF52832 RF-BM-ND08

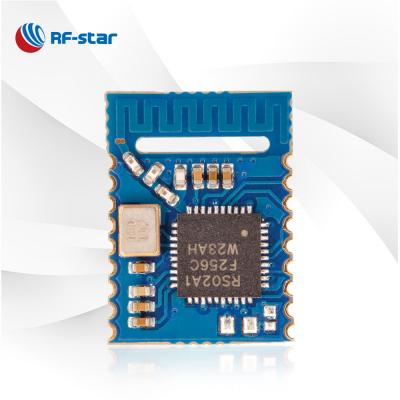

Bluetooth 5.0 Low Energy Module RSBRS02AA

Bluetooth 5.0 Low Energy Module High-Performance RSBRS02AA

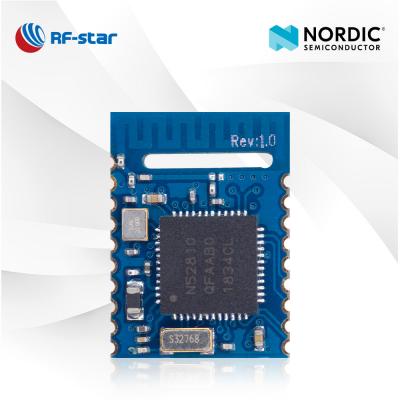

5.0 Bluetooth Module with Nordic nRF52810 Chip RF-BM-ND08C

Embedded Bluetooth 5.0 Module with Nordic nRF52810 Chip RF-BM-ND08C

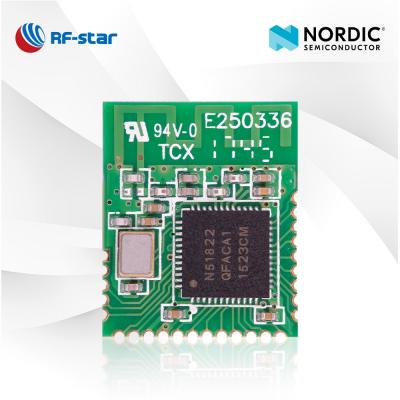

BLE4.2 Wireless Module with Nordic nRF51822 Chip RF-BM-ND02
