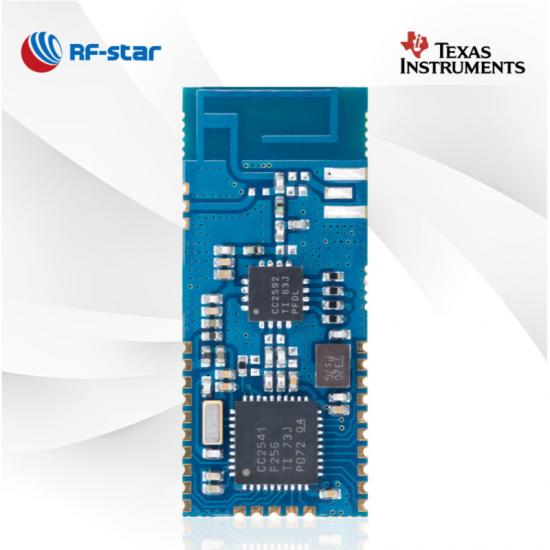

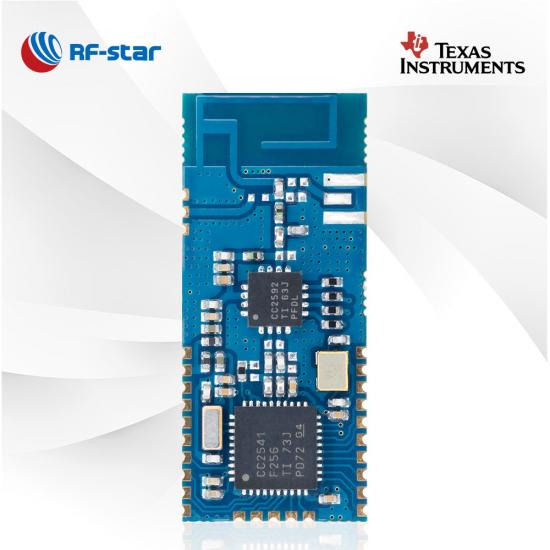

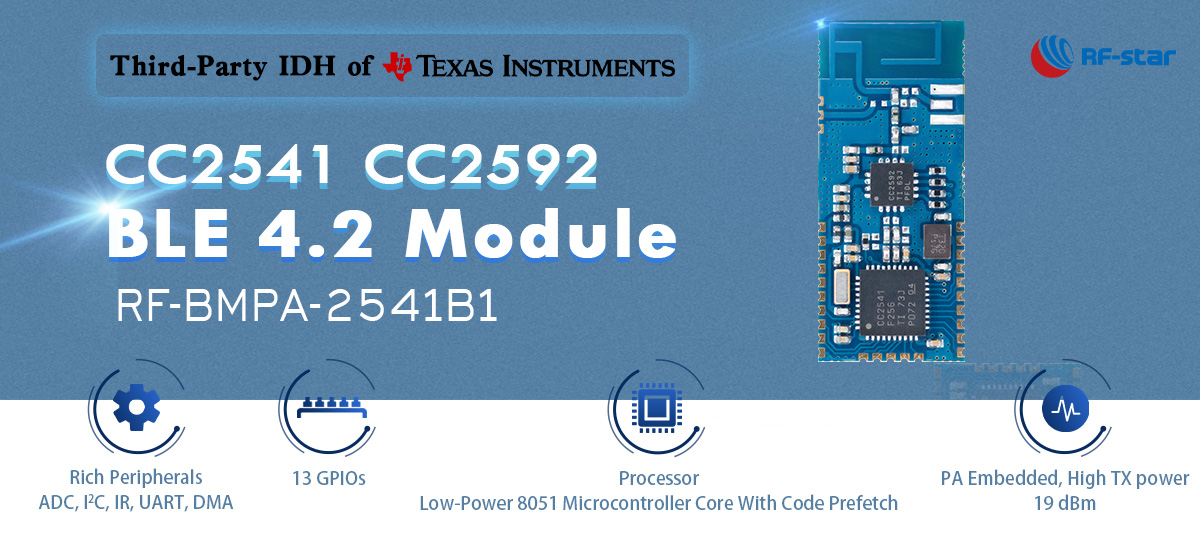

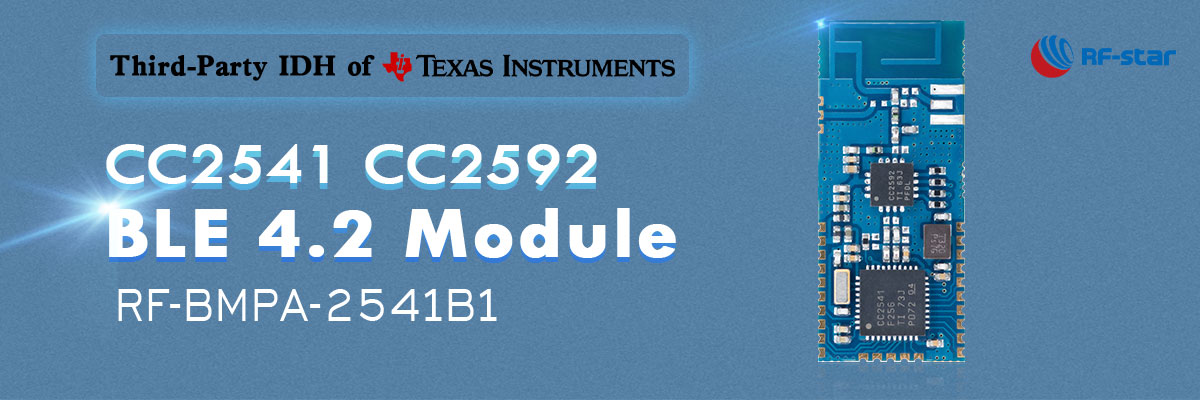

Certified BLE4.2 CC2541 Module with PA CC2592 RF-BMPA-2541B1

RF-BMPA-2541B1 is a BLE4.2 module aimed at the Internet of Things markets with the requirements of the long range and the bigger power features. The module with a max. TX power of 19 dBm enables your application with a wider range coverage and an option of the antenna output way.

  • P/N:

    RF-BMPA-2541B1
  • SoC:

    CC2541, CC2592
  • Processor:

    Low-Power 8051 Microcontroller Core With Code Prefetch
  • Protocols:

    Bluetooth 4.2 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz

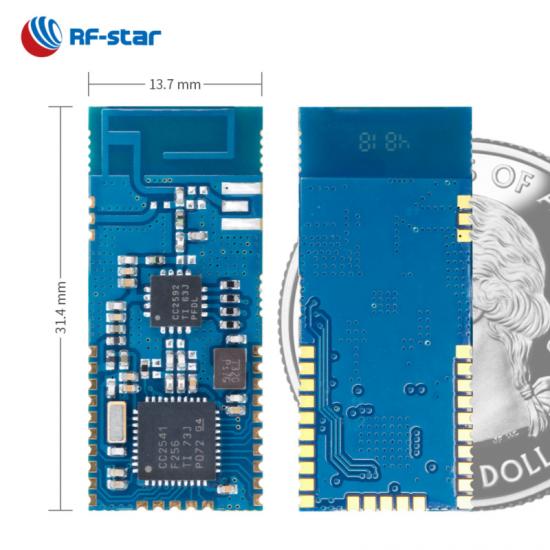

  • Package (mm):

    31.4 × 13.7 × 1.7, half-hole, 1.27 pitch, 28-pin
  • Features:

    Power Amplifier
  • GPIO:

    13
  • Max. TX Power:

    +19 dBm
  • Transmission Range:

    200m

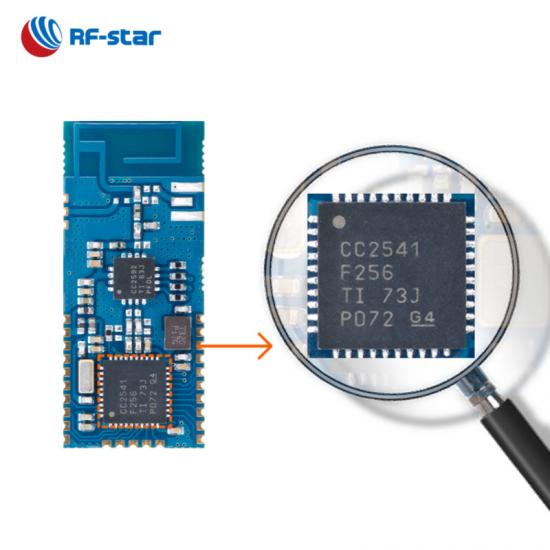

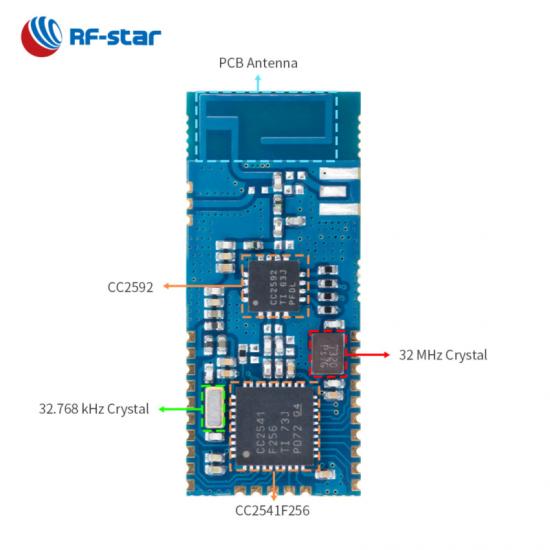

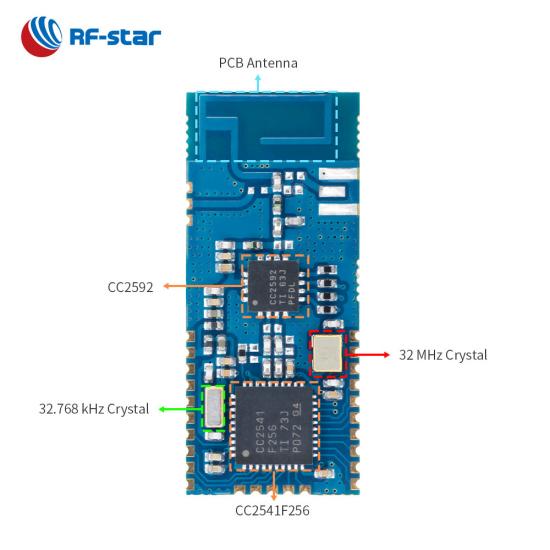

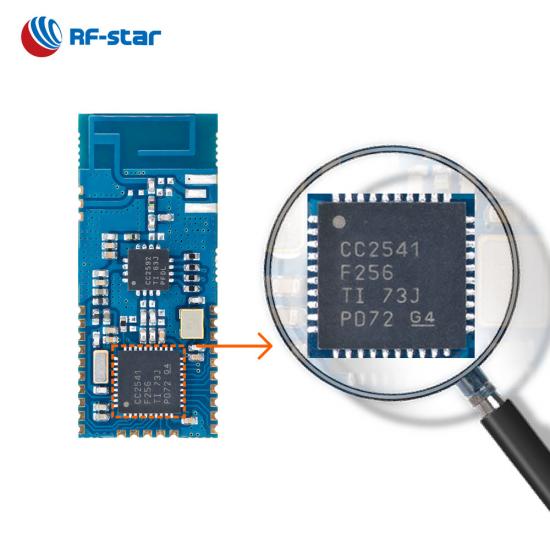

RF-BMPA-2541B1 is a module based on TI CC2541 BLE4.2 SoC with a PA CC2592. The module is the first generation Bluetooth 4.2 Low Energy Module with a power amplifier which is based on an 8051 core and integrates a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, and an option antenna output mode of the inverted-F PCB antenna, an IPEX connector and a half-hole interface. This design enables the module with a longer transmission range, which makes this module popular in applications with higher performance requirements such as the gateway, the remote control.


Certified BLE4.2 CC2541 Module

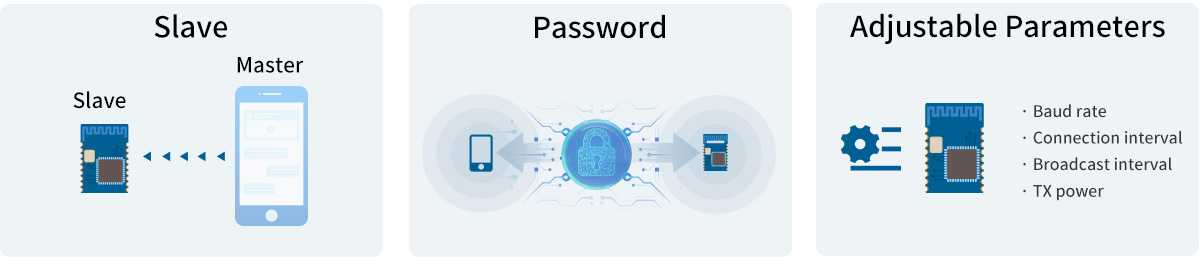

- BLE 4.2 Transparent Transmission (Bridge) Protocol -

· Module role: slave

· Adjustable parameters: baud rate, connection interval, broadcast interval, TX power…

· Connection Password

BLE 4.2 Transparent Transmission


- Applications -

· Remote control

· Consumer Electronics

· Sports Equipment

· Smart lamp

· Long range controller

· Smart oximeter

Remote control applications

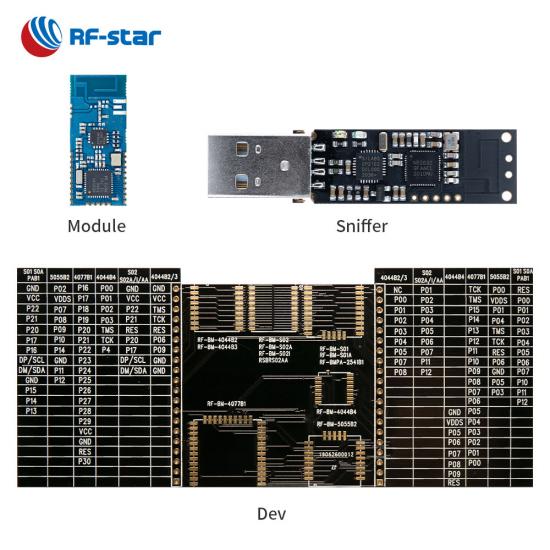

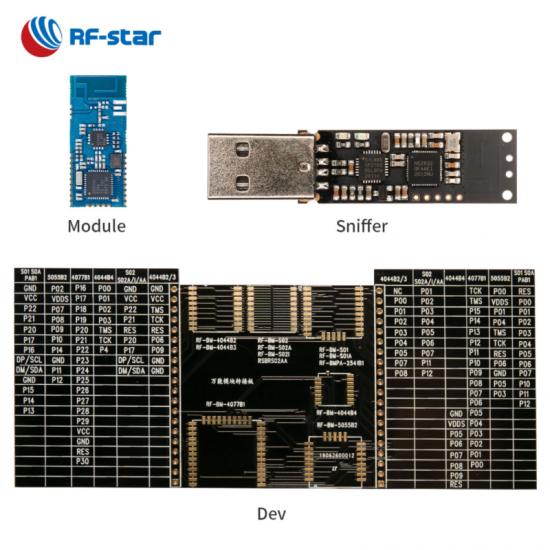

- Product Display -


Wireless SoC:


  • Low-Power 8051 Microcontroller Core With Code Prefetch
  • TX power: 19 dBm
  • Sensitivity in BLE mode: -94 dBm
  • Memory
    • - 256 kB flash
    • - 8 kB RAM




Features:


  • Bluetooth 4.2 low energy




Current Consumption:


  • 0.79 mA at 200 ms broadcast cycle
  • 1.8 mA at 20 ms connection cycle


Operating Range:


  • Supply voltage range: 2.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • 12-bit ADC
  • 13 GPIOs
  • I²C
  • IR
  • UART (CTS/RTS)


TI CC254x Series BLE Modules
Part Number RF-BM-S01 RF-BM-S01A RF-BMPA-2541B1 RF-CC2540A1 RF-BM-S02 RF-BM-S02A RF-BM-S02I
IC C2540 CC2541 CC2541, CC2592 C2540 C2540 CC2541 C2540
Core 8051 8051 8051 8051 8051 8051 8051
Antenna PCB/Half-hole interface PCB/Half-hole interface PCB/IPEX/Half-hole interface PCB PCB PCB IPEX
RAM 8 KB 8 KB 8 KB 8 KB 8 KB 8 KB 8 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2
Power Supply 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +4 dBm 0 dBm +19 dBm +4 dBm +4 dBm 0 dBm +4 dBm
Receiving Sensitivity -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm
GPIO 19 19 19 19 13 13 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 75 m 55 m 120 m 75 m 70 m 50 m 80 m (external PCB antenna)
Dimension (mm) 17.4 x 13.7 x 1.7 17.4 x 13.7 x 1.7 31.4 x 13.7 x 2.1 24.1 x 15.2 x 1.7 15.2 x 11.2 x 1.7 15.2 x 11.2 x 1.7 15.2 x 11.2 x 2.1
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × × × × × × ×
Long Range × × × × × × ×
2Mbps PHY × × × × × × ×
AoA/AoD × × × × × × ×
UART Protocol Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave
Functions All IOs, Transparent transmission & Direct-driven All IOs, Transparent transmission & Direct-driven PA+LNA, longer transmission range All IOs, Transparent transmission & Direct-driven Small dimension, Transparent transmission & Direct-driven Small dimension, Transparent transmission & Direct-driven External antenna, Transparent transmission & Direct-driven
