Master-Slave BLE4.2 CC2540 Module RF-BM-S02I

RF-BM-S02I is a CC2540 module with an IPEX connector designed for battery-powered and long range requirement applications. This module with small size may be the most suitable BLE part in your design.

  • P/N:

    RF-BM-S02I
  • SoC:

    CC2540
  • Processor:

    Low-Power 8051 Microcontroller Core With Code Prefetch
  • Protocols:

    Bluetooth 4.2 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz

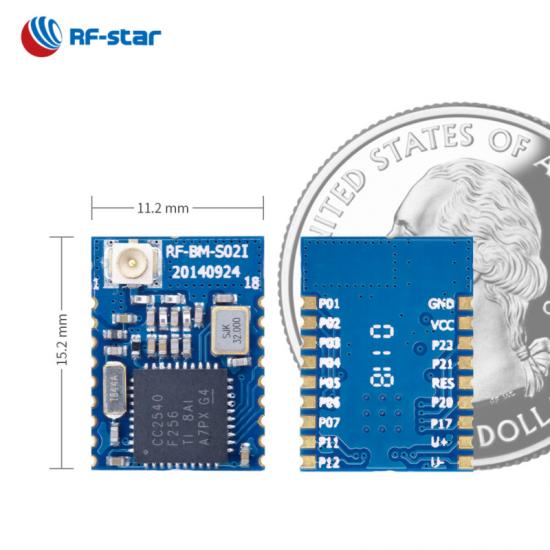

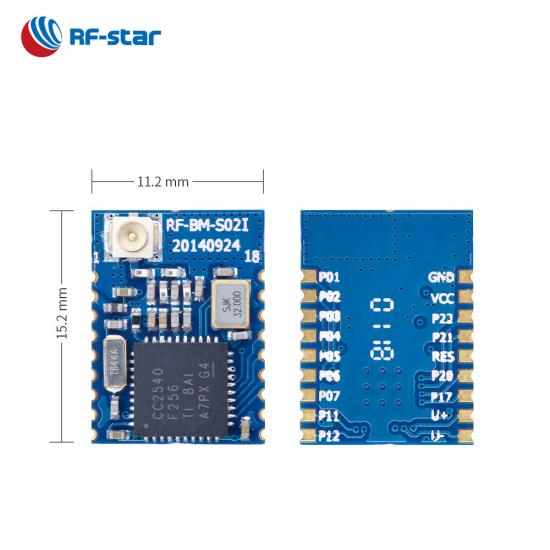

  • Package (mm):

    15.2 x 11.2 x 1.7, half-hole, 1.27 pitch, 18-pin
  • Features:

    IPEX connector
  • GPIO:

    13
  • Max. TX Power:

    +4 dBm
  • Transmission Range:

    50 m

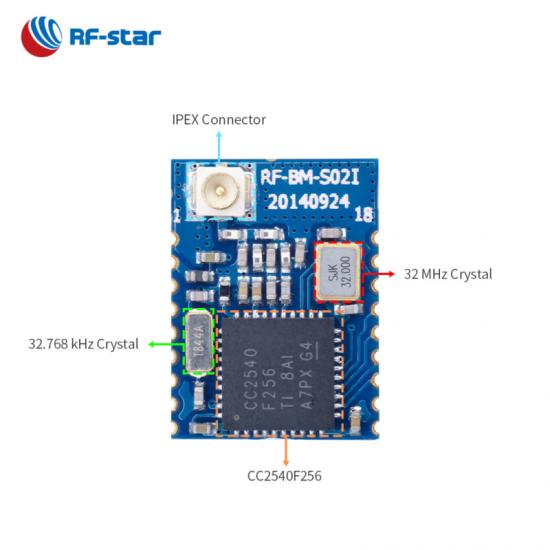

RF-BM-S02I Bluetooth 4.2 LE module is based on Texas Instruments CC2540 SoC with a low-power 8051 core. The module consists of a 32 MHz crystal, a 32.768 kHz crystal, an LC balun, and an IPEX connector for RF signal output. This module with up to 4 dBm TX power and the IPEX connector makes it have more possibilities in a long range application. It can be pre-programmed with the BLE master or slave protocol, which enables you to have a quick start of the product design. And this module is pin-2-pin compatible with a wide range of RF-star BLE modules from BLE4.2 to BLE5.2.


Master-Slave BLE4.2 CC2540 Module

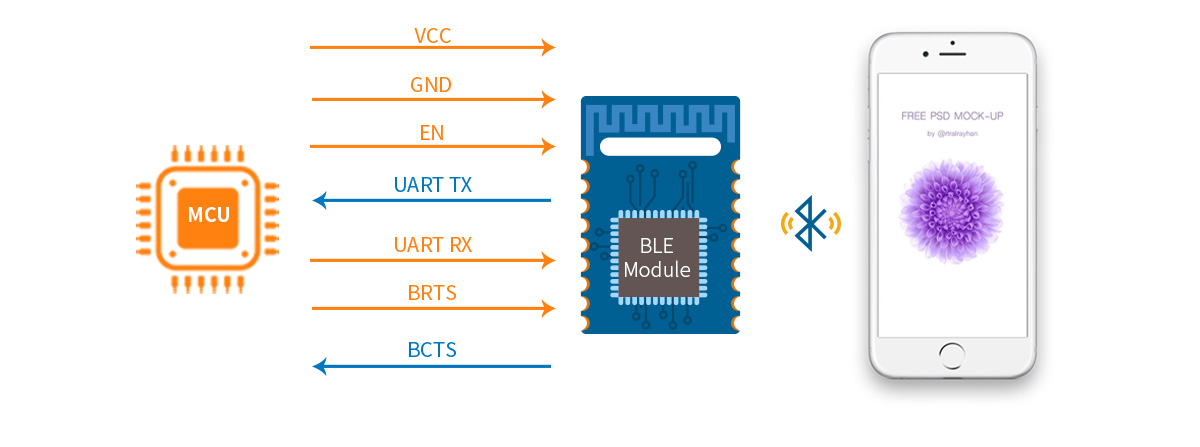

- BLE 4.2 Transparent Transmission (Bridge) Protocol -

BLE 4.2 Transparent Transmission module features

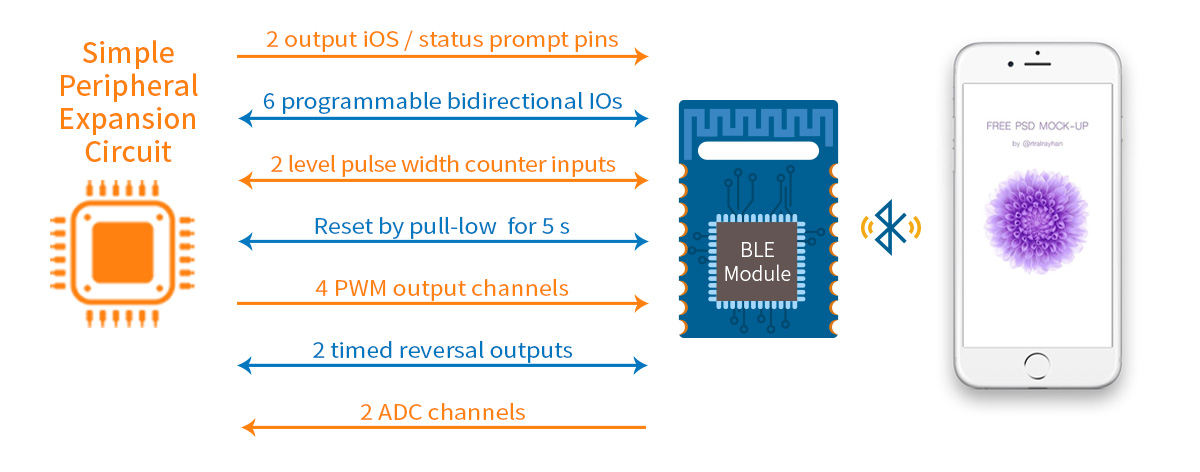

- Direct-Driven Protocol -

BLE 4.2 Transparent Transmission module features

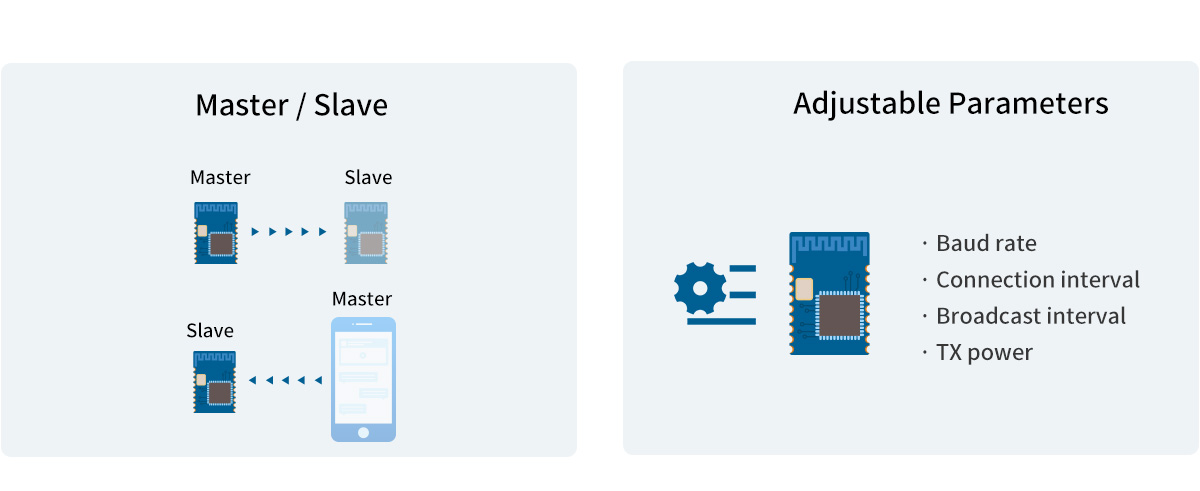

· Module roles: slave, master

· Adjustable parameters: baud rate, connection interval, broadcast interval, TX power…

master slave module features

- Applications -

· USB-type Beacon

· Smart Toy

· Portable POS

· Smart laser range finder

· Pelvic Floor Muscle Repair Instrument

· Smart photovoltaic reverter

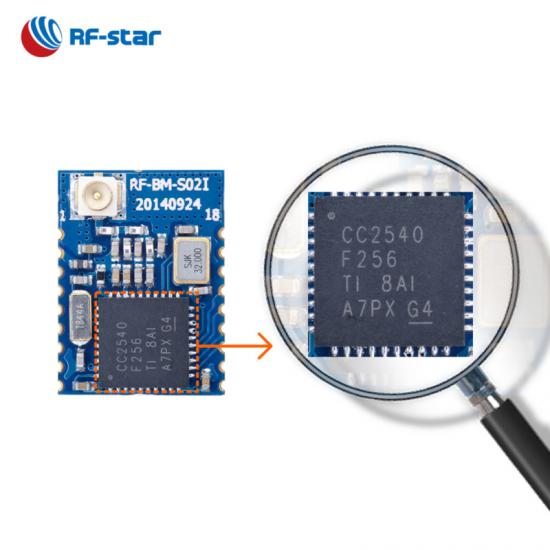

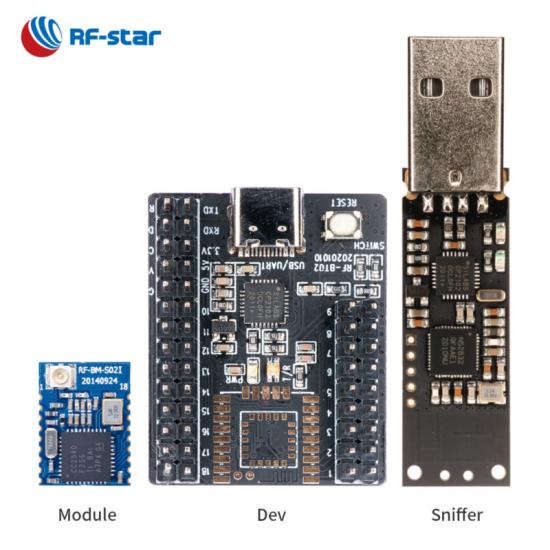

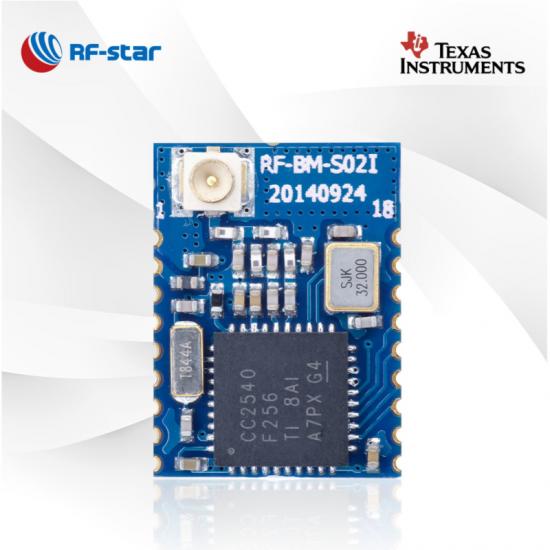

- Product Display -

Wireless SoC:


  • Low-Power 8051 Microcontroller Core With Code Prefetch
  • TX power: +4 dBm
  • Sensitivity in BLE mode: -94 dBm
  • Memory
    • -256 kB flash
    • -8 kB SRAM



Features:


  • Bluetooth 4.2 low energy



Current Consumption:


  • 0.35 μA in sleep mode
  • 202 μA at 250 ms broadcast cycle
  • 243 μA at 100 ms connection cycle


Operating Range:


  • Supply voltage range: 2.0 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • 12-bit ADC
  • 13 GPIOs
  • USB
  • IR
  • DMA
  • UART (CTS/RTS)


TI CC254x Series BLE Modules
Part Number RF-BM-S01 RF-BM-S01A RF-BMPA-2541B1 RF-CC2540A1 RF-BM-S02 RF-BM-S02A RF-BM-S02I
IC C2540 CC2541 CC2541, CC2592 C2540 C2540 CC2541 C2540
Core 8051 8051 8051 8051 8051 8051 8051
Antenna PCB/Half-hole interface PCB/Half-hole interface PCB/IPEX/Half-hole interface PCB PCB PCB IPEX
RAM 8 KB 8 KB 8 KB 8 KB 8 KB 8 KB 8 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2 BLE4.2
Power Supply 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V 2.0 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +4 dBm 0 dBm +19 dBm +4 dBm +4 dBm 0 dBm +4 dBm
Receiving Sensitivity -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm -94 dBm
GPIO 19 19 19 19 13 13 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 75 m 55 m 120 m 75 m 70 m 50 m 80 m (external PCB antenna)
Dimension (mm) 17.4 x 13.7 x 1.7 17.4 x 13.7 x 1.7 31.4 x 13.7 x 2.1 24.1 x 15.2 x 1.7 15.2 x 11.2 x 1.7 15.2 x 11.2 x 1.7 15.2 x 11.2 x 2.1
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × × × × × × ×
Long Range × × × × × × ×
2Mbps PHY × × × × × × ×
AoA/AoD × × × × × × ×
UART Protocol Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave
Functions All IOs, Transparent transmission & Direct-driven All IOs, Transparent transmission & Direct-driven PA+LNA, longer transmission range All IOs, Transparent transmission & Direct-driven Small dimension, Transparent transmission & Direct-driven Small dimension, Transparent transmission & Direct-driven External antenna, Transparent transmission & Direct-driven
