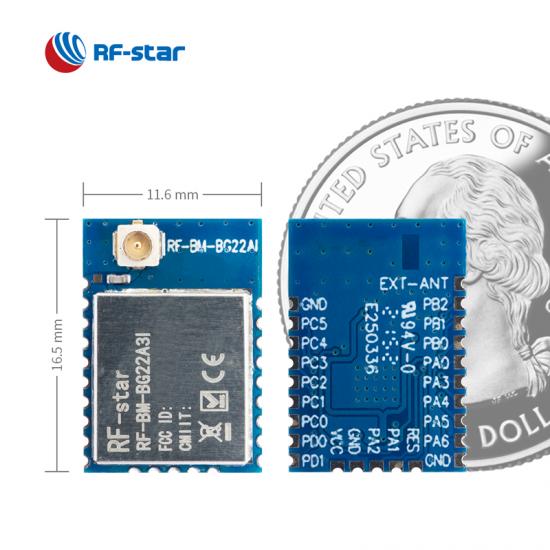

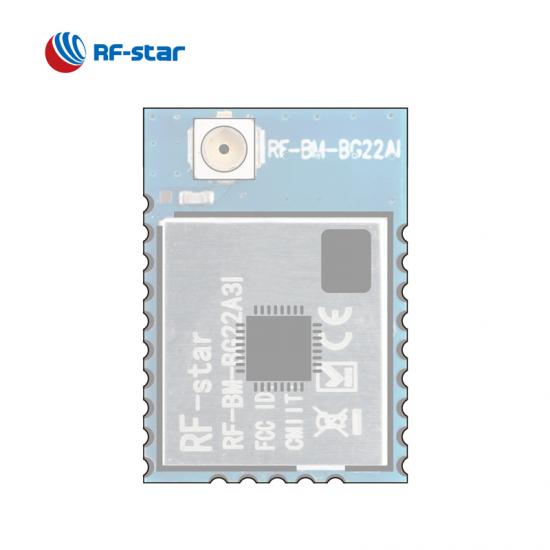

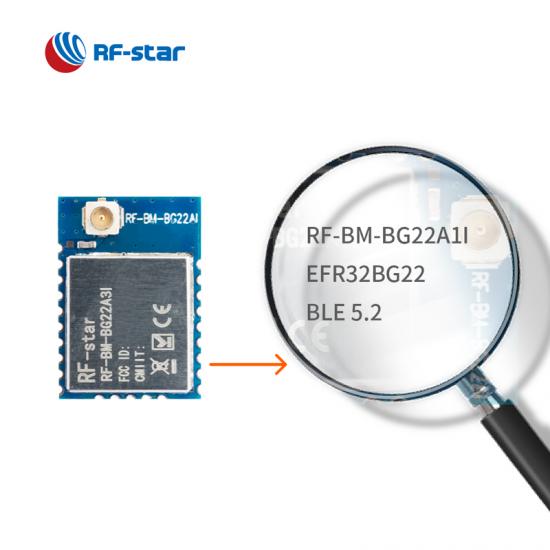

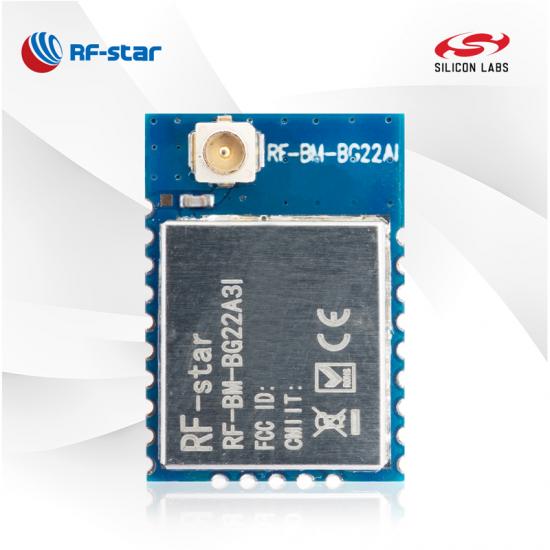

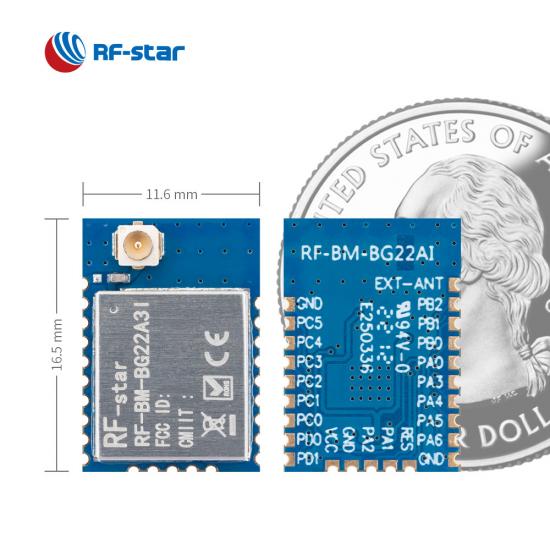

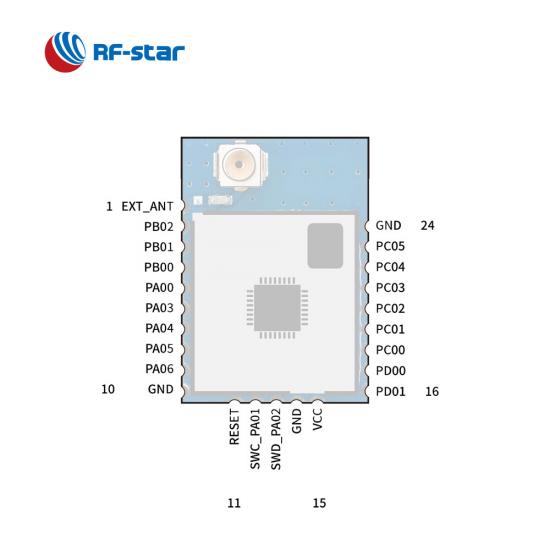

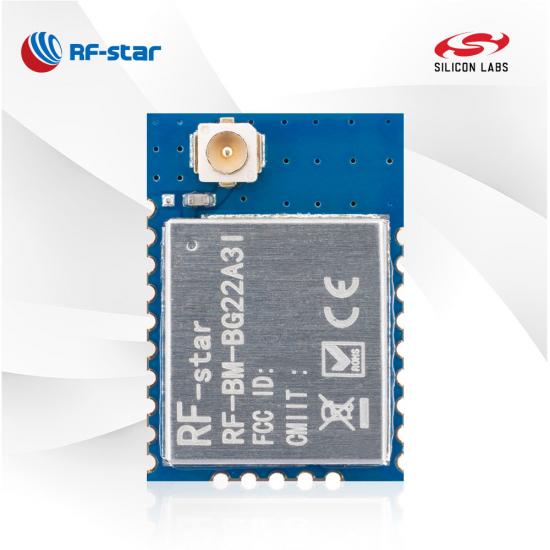

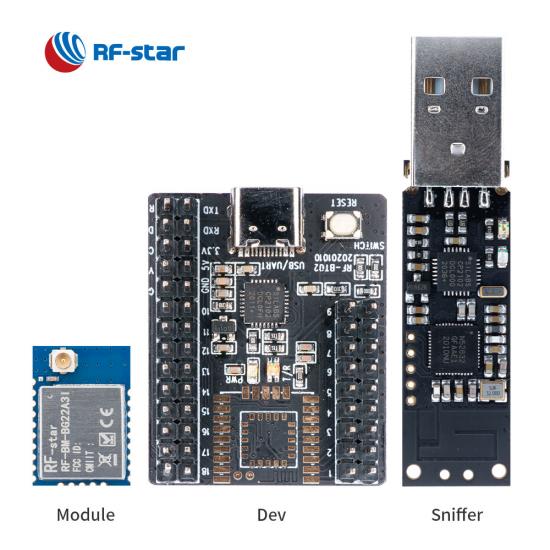

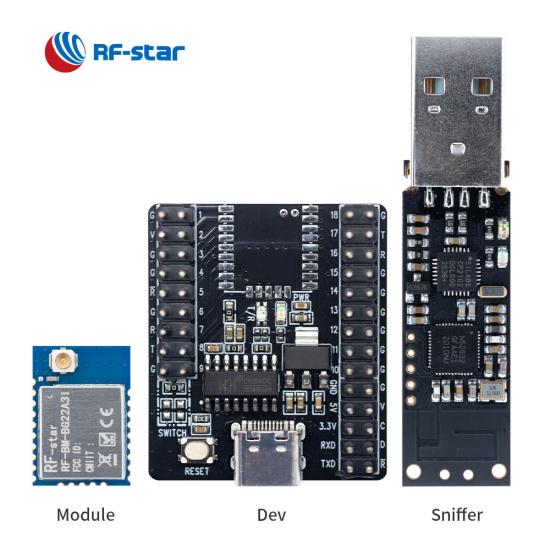

BLE5.2 EFR32BG22 Module RF-BM-BG22A3I

RF-BM-BG22A3I is a Bluetooth 5.2 Low Energy module developed for the industry-leading energy efficiency that can extend the longer service life of a coin cell battery. This module is with the best-in-class ultra-low power consumption. The powerful resources enable the module with Bluetooth Direction Finding features. Start your product development with RF-BM-BG22A3I EFR32BG22C224 BLE module.

  • P/N:

    RF-BM-BG22A3I
  • SoC:

    EFR32BG22C224F512GM32-C
  • Processor:

    32-bit 76.8 MHz ARM® Cortex®-M33
  • Protocols:

    Bluetooth 5.2 low energy, Bluetooth Direction Finding
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

    16.5 × 11.6 × 2.10, half-hole, 1.27 pitch, 24-pin
  • Features:

    AoA/AoD, Bluetooth Mesh Low Power Node, 2.4 GHz proprietary
  • GPIO:

    18
  • Max. TX Power:

    6 dBm
  • Transmission Range:

    80 m

RF-BM-BG22A3I is an RF module based on EFR32BG22C224F512GM32-C, one of Gecko family of SoCs from Silicon Labs, with a 32-bit ARM® Cortex®-M33 core with 76.8 MHz maximum operating frequency. It integrates a 38.4 MHz crystal, a matching, an antenna matching and a low-pass filter. It supports BLE 5.2 low energy, BLE mesh, AoA / AoD and proprietary and can be preprogrammed with a serial interface communication protocol for simple programming. It also has a range of analog and digital interfaces such as PRS, ADC, UART, SPI, I2C, PWM, ISO 7816, IrDA, I2S, EUART and PDM. It features low power consumption, compact size, robust connection distance, and rigid reliability. An integrated PA in the chip enables the module reach up to 6 dBm TX power. RF-BM-BG22A3I is pin-2-pin compatible with BG22A1I.


RF-BM-BG22A3I is a new product that optimized from RF-BM-BG22A3. It has IPEX antenna to achieve a longer transmission range.

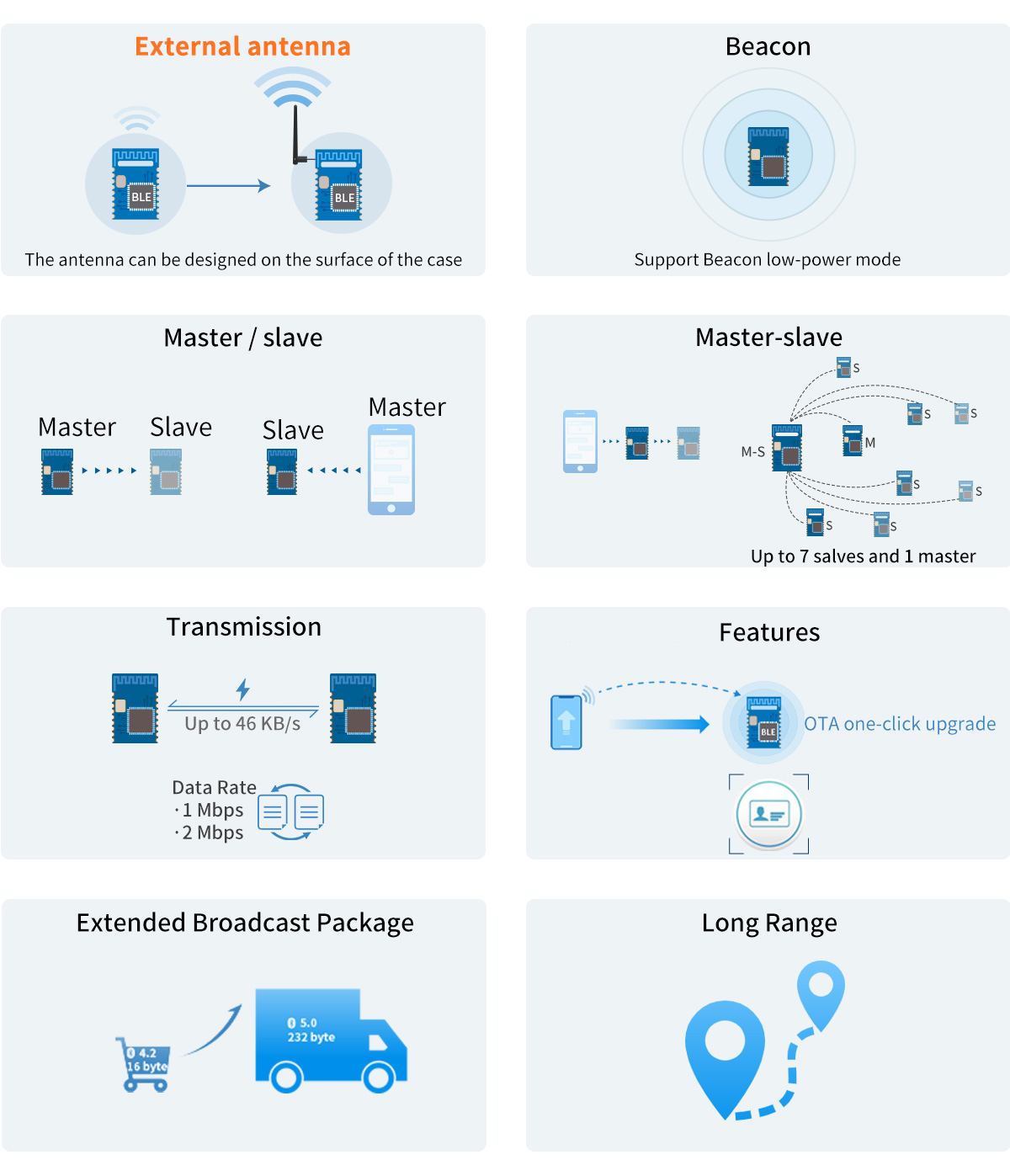

· Several roles: master, slave, master-slave, Beacon

· Multi-connection function: Up to 7 salves and 1 master

· Stable transparent transmission rate: up to 50 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, authentication

· Extended Broadcast Package

· Long Range


· Asset Tags and Beacons

· Consumer Electronics

· Building automation

· Sports devices

· Bluetooth Mesh Low Power Nodes

· Portable Medical



Wireless SoC:


  • 32-bit 38.4 MHz ARM® Cortex®-M33
  • TX power: -28 dBm to 0 dBm
  • Sensitivity @ 1 Mbit/s GFSK: -98.9 dBm
  • Memory
    • 352 kB flash
    • 32 kB RAM
  • Data rate: 1 Mbps, 2 Mbps




Supported Modulation Format


  • (G)FSK with fully configurable shaping
  • OQPSK DSSS
  • (G)MSK




Protocol Support


  • Bluetooth Low Energy (Bluetooth 5.2)
  • Direction finding using Angle-of-Arrival (AoA) and Angle-of-Departure (AoD)
  • Bluetooth mesh Low Power Node
  • Proprietary


Current Consumption:


  • 3.02 μA in sleep mode
  • 55.84 μA at 200 ms broadcast cycle
  • 90.58 μA at 30 ms connection cycle




Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • 16-bit ADC
  • 18 GPIOs
  • DMA
  • PDM
  • PRS
  • EUART
  • I²C
  • RTC
  • Watchdog
  • UART/SPI/SmartCard (ISO 7816)/IrDA/I2S


Silicon Labs EFR32BG22 Wireless Gecko Series BLE Modules
Part Number RF-BM-BG22C3 RF-BM-BG22B1 RF-BM-BG22A3I RF-BM-BG22A3 RF-BM-BG22A2 RF-BM-BG22A1I RF-BM-BG22A1
IC EFR32BG22C224F512GM32-C EFR32BG22C112F352GM32-C EFR32BG22C224F512GM32-C EFR32BG22C224F512GM32-C EFR32BG22C222F352GM32-C EFR32BG22C112F352GM32-C EFR32BG22C112F352GM32-C
Core 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33
Antenna Chip/Half-hole interface PCB IPEX/Half-hole interface PCB/Half-hole interface PCB/Half-hole interface IPEX/Half-hole interface PCB/Half-hole interface
RAM 32 KB 32 KB 32 KB 32 KB 32 KB 32 KB 32 KB
Flash 512 KB 512 KB 512 KB 512 KB 352 KB 352 KB 352 KB
Protocols BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary
Power Supply 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +6 dBm 0 dBm +6 dBm +6 dBm +6 dBm 0 dBm 0 dBm
Receiving Sensitivity -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK)
GPIO 12 10 18 18 18 18 18
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range Chip antenna 40 m @ 1M PHY 80 m @ LE CODE 80 m External PCB antenna 150 m @ 1M PHY 280 m @ LE CODE 120 m @ 1M PHY 240 m @ LE CODE 120 m 200 m (external PCB antenna) 90 m @ 1M PHY
Dimension (mm) 8 x 8 x 1.82 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh LPN × LPN LPN × × ×
Long Range × × × ×
2Mbps PHY
AoA/AoD × × × ×
UART Protocol Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves
Functions Ultra-small dimension, Feasible for external antennas Smaller dimension, High cost-effective Suitible for complexed applications Support AoA/AoD High cost-effective Suitible for complex applications High cost-effective
