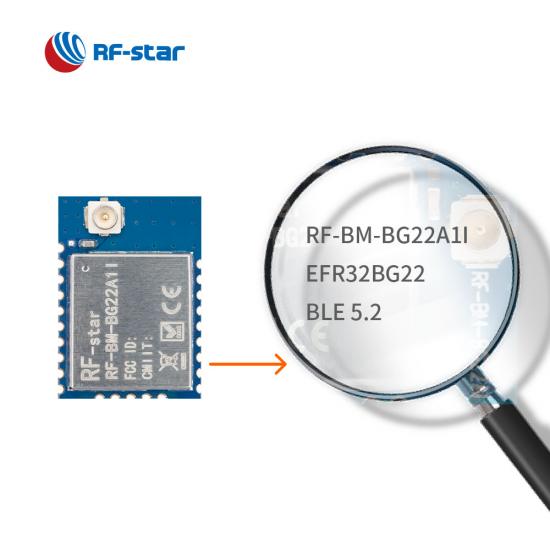

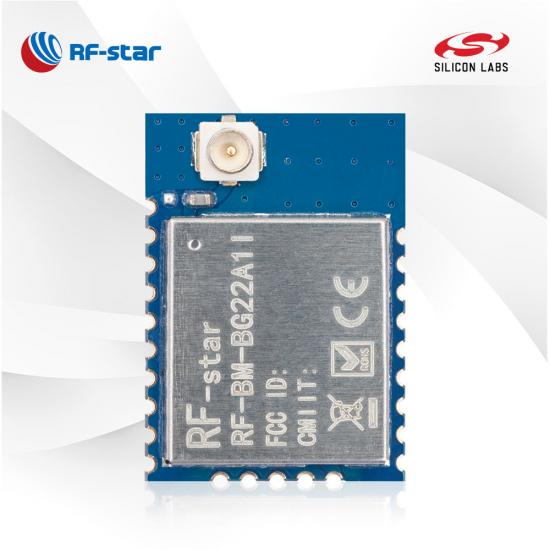

BLE5.2 EFR32BG22 Module with IPEX RF-BM-BG22A1I

RF-BM-BG22A1I is a Bluetooth 5.2 Low Energy module developed for the industry-leading energy efficiency that can extend the longer service life of a coin cell battery. This module is with the best-in-class ultra-low power consumption. Start your product development with RF-BM-BG22A1I EFR32BG22C112 BLE module.

  • P/N:

    RF-BM-BG22A1I
  • SoC:

    EFR32BG22C112F352GM32-C
  • Processor:

    32-bit 38.4 MHz ARM® Cortex®-M33
  • Protocols:

    Bluetooth 5.2 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

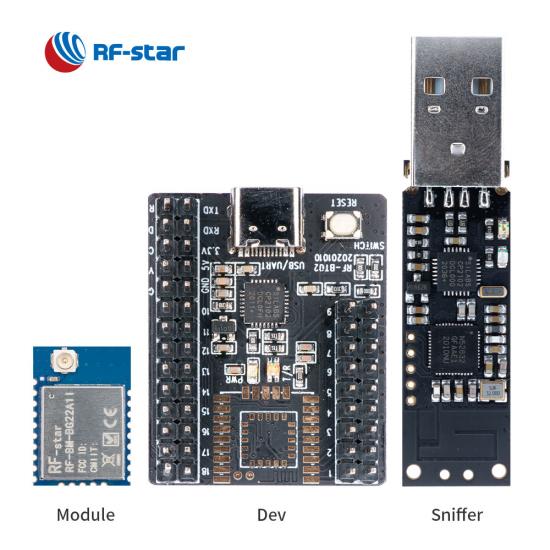

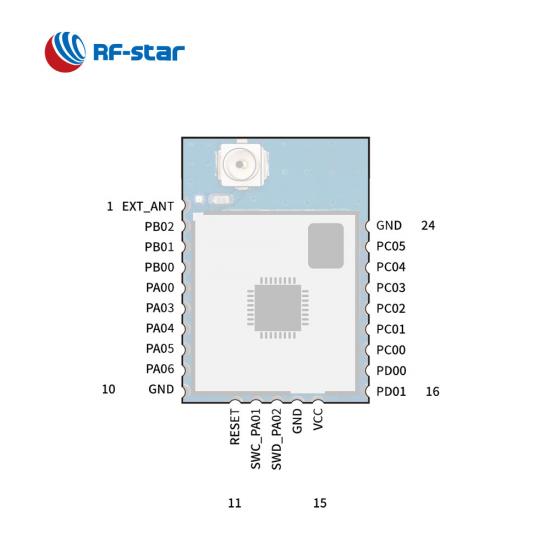

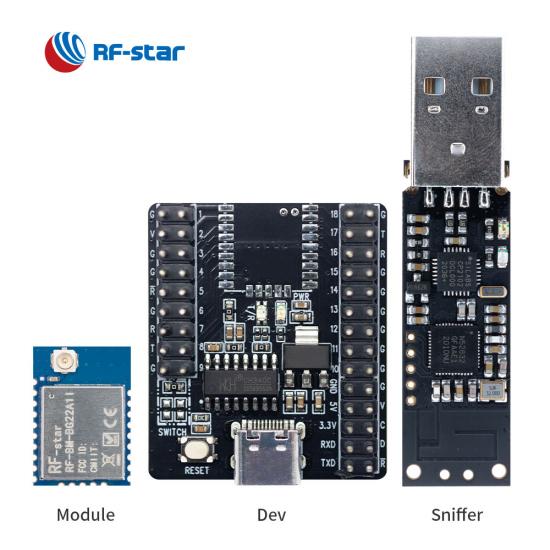

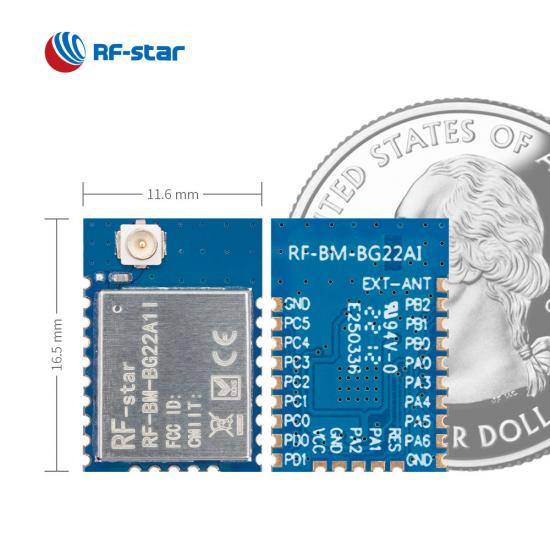

    16.5 × 11.6 × 2.10, half-hole, 1.27 pitch, 24-pin
  • Features:

    2.4 GHz proprietary
  • GPIO:

    18
  • Max. TX Power:

    0 dBm
  • Transmission Range:

    50 m

RF-BM-BG22A1I is an RF module based on EFR32BG22C112F352GM32-C, one of Gecko family of SoCs from Silicon Labs, with a 32-bit ARM® Cortex®-M33 core with 38.4 MHz maximum operating frequency. It integrates a 38.4 MHz crystal, a matching, an antenna matching and a low-pass filter. It supports Bluetooth 5.2 low energy and Bluetooth 5.0 low energy and can be preprogrammed with a serial interface communication protocol for simple programming. It also has a range of analog and digital interfaces such as PRS, ADC, UART, SPI, I²C, PWM, ISO 7816, IrDA, I²S, EUART and PDM. It features low power consumption, compact size, robust connection distance, and rigid reliability. The module reaches up to 0 dBm TX power. RF-BM-BG22A1I is pin-2-pin compatible with BG22A3I.


RF-BM-BG22A1I is a new product that optimized from RF-BM-BG22A1. It has IPEX antenna to achieve a longer

transmission range.

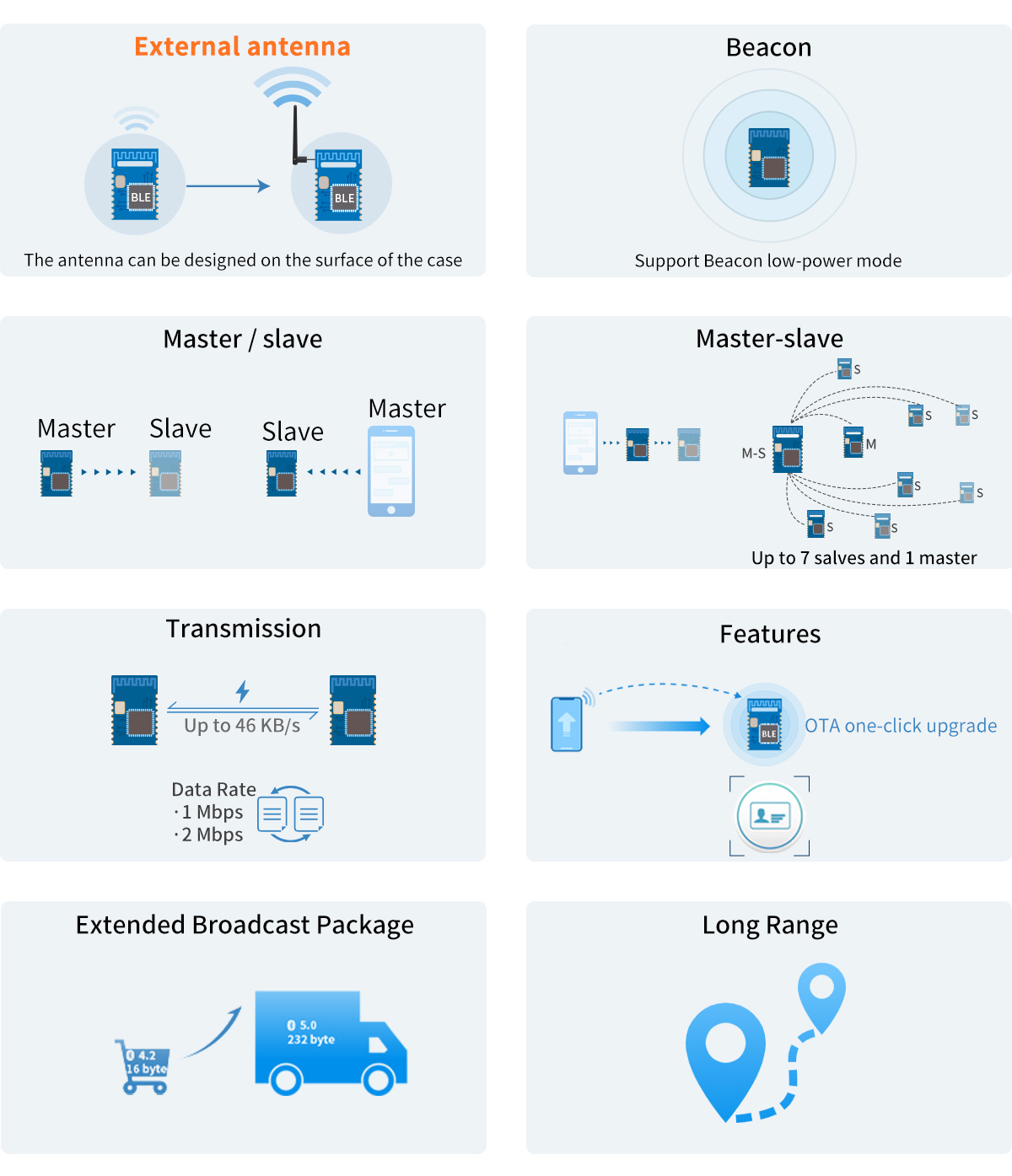

· Several roles: master, slave, master-slave, Beacon

· Multi-connection function: Up to 7 salves and 1 master

· Stable transparent transmission rate: up to 50 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, authentication

· Extended Broadcast Package

· Long Range

 · Smart plug                                                                                                                                                      · Access control

 · Building Automation and Security                                                                                                               · Beacons

· Connected Home                                                                                                                                            · Security devices

Wireless SoC:


  • 32-bit 38.4 MHz ARM® Cortex®-M33
  • TX power: -28 dBm to 0 dBm
  • Sensitivity @ 1 Mbit/s GFSK: -98.9 dBm
  • Memory
    • 352 kB flash
    • 32 kB RAM
  • Data rate: 1 Mbps, 2 Mbps




Supported Modulation Format


  • (G)FSK with fully configurable shaping
  • OQPSK DSSS
  • (G)MSK




Protocol Support


  • Bluetooth Low Energy (Bluetooth 5.2)
  • Proprietary




Current Consumption:


  • 3.02 μA in sleep mode
  • 55.84 μA at 200 ms broadcast cycle
  • 90.58 μA at 30 ms connection cycle


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • 16-bit ADC
  • 18 GPIOs
  • DMA
  • PDM
  • PRS
  • EUART
  • I²C
  • RTC
  • Watchdog
  • UART/SPI/SmartCard (ISO 7816)/IrDA/I2S




Certificates:


  • FCC
  • SRRC
  • CE
  • RoHS


Silicon Labs EFR32BG22 Wireless Gecko Series BLE Modules
Part Number RF-BM-BG22C3 RF-BM-BG22B1 RF-BM-BG22A3I RF-BM-BG22A3 RF-BM-BG22A2 RF-BM-BG22A1I RF-BM-BG22A1
IC EFR32BG22C224F512GM32-C EFR32BG22C112F352GM32-C EFR32BG22C224F512GM32-C EFR32BG22C224F512GM32-C EFR32BG22C222F352GM32-C EFR32BG22C112F352GM32-C EFR32BG22C112F352GM32-C
Core 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33
Antenna Chip/Half-hole interface PCB IPEX/Half-hole interface PCB/Half-hole interface PCB/Half-hole interface IPEX/Half-hole interface PCB/Half-hole interface
RAM 32 KB 32 KB 32 KB 32 KB 32 KB 32 KB 32 KB
Flash 512 KB 512 KB 512 KB 512 KB 352 KB 352 KB 352 KB
Protocols BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary
Power Supply 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +6 dBm 0 dBm +6 dBm +6 dBm +6 dBm 0 dBm 0 dBm
Receiving Sensitivity -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK)
GPIO 12 10 18 18 18 18 18
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range Chip antenna 40 m @ 1M PHY 80 m @ LE CODE 80 m External PCB antenna 150 m @ 1M PHY 280 m @ LE CODE 120 m @ 1M PHY 240 m @ LE CODE 120 m 200 m (external PCB antenna) 90 m @ 1M PHY
Dimension (mm) 8 x 8 x 1.82 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh LPN × LPN LPN × × ×
Long Range × × × ×
2Mbps PHY
AoA/AoD × × × ×
UART Protocol Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves
Functions Ultra-small dimension, Feasible for external antennas Smaller dimension, High cost-effective Suitible for complexed applications Support AoA/AoD High cost-effective Suitible for complex applications High cost-effective
