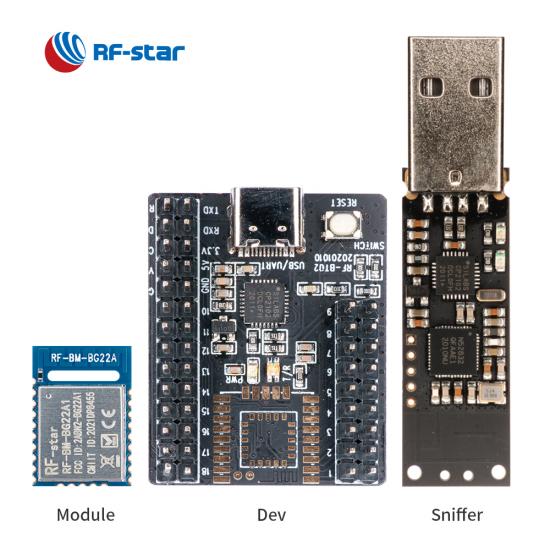

RF-BM-BG22A1 BLE5.2 EFR32BG22 Module

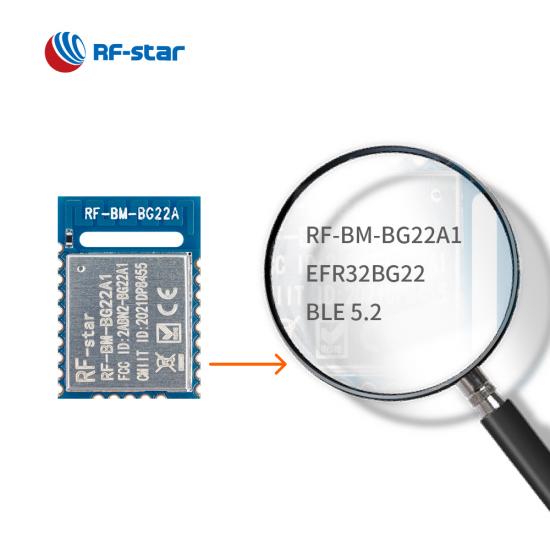

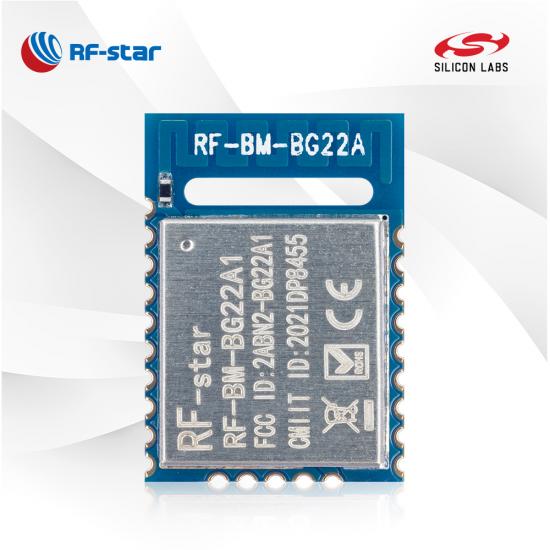

RF-BM-BG22A1 is a Bluetooth 5.2 Low Energy module developed for the industry-leading energy efficiency that can extend the longer service life of a coin cell battery. This Bluetooth master-slave module is with the best-in-class ultra-low power consumption. Start your product development with RF-BM-BG22A1 EFR32BG22C112 BLE module.

  • P/N:

    RF-BM-BG22A1
  • SoC:

    EFR32BG22C112F352GM32-C
  • Processor:

    32-bit 38.4 MHz ARM® Cortex®-M33
  • Protocols:

    Bluetooth 5.2 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

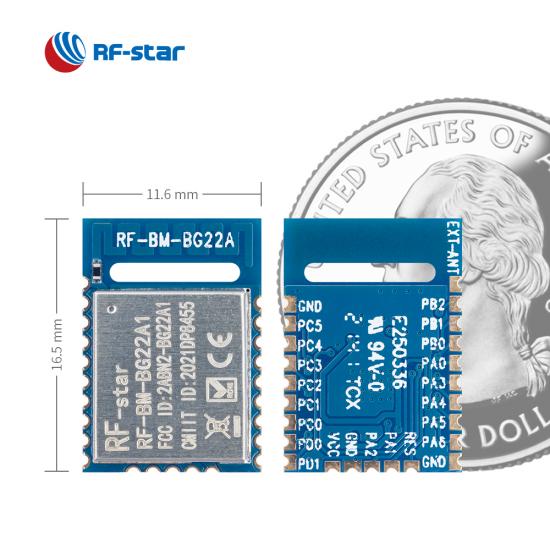

    16.5 × 11.6 × 2.06, half-hole, 1.27 pitch, 24-pin
  • Features:

    2.4 GHz proprietary
  • GPIO:

    18
  • Max. TX Power:

    0 dBm
  • Transmission Range:

    50 m

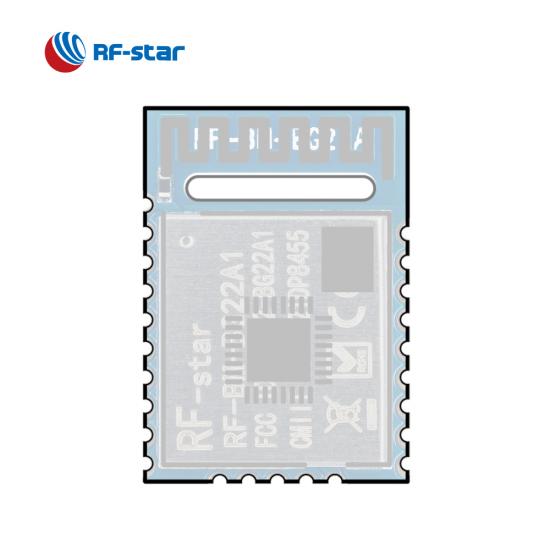

RF-BM-BG22A1 is a Bluetooth Low Energy 5.2 module based on EFR32BG22, one of Gecko family of SoCs from Silicon Labs, with a 32-bit ARM® Cortex®-M33 core with 38.4 MHz maximum operating frequency. It integrates a 38.4 MHz crystal, a matching, an antenna matching, a low-pass filter and antenna options of a meander line inverted-F PCB antenna and a half-hole interface. It also has a range of analog and digital interfaces such as PRS, ADC, UART, SPI, I²C, PWM, ISO 7816, IrDA, I²S, EUART and PDM. The EFR32BG22 module has the features of low power consumption, compact size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.  It is an ideal RF module for these low-power applications including smart plugs, building automation, security devices and systems, beacons and so on.


EFR32BG22 BLE5.2 Module RF-BM-BG22A1


Transparent Transmission (Bridge) Protocol -


· Several roles: master, slave, master-slave, Beacon

· Multi-connection function: Up to 7 salves and 1 master

· Stable transparent transmission rate: up to 50 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, authentication

· Extended Broadcast Package

· Long Range


EFR32BG22 BLE5.2 Module supports Transparent Transmission (Bridge) Protocol


Related Resources:

RFstar BG22A1 Bluetooth Module Empowers BMS Industry


Wireless SoC:


  • 32-bit 38.4 MHz ARM® Cortex®-M33
  • TX power: -28 dBm to 0 dBm
  • Sensitivity @ 1 Mbit/s GFSK: -98.9 dBm
  • Memory
    • 352 kB flash
    • 32 kB RAM
  • Data rate: 1 Mbps, 2 Mbps


Supported Modulation Format:


  • (G)FSK with fully configurable shaping
  • OQPSK DSSS
  • (G)MSK


Protocols:


  • Bluetooth Low Energy (Bluetooth 5.2)
  • Proprietary



Current Consumption:


  • 3.02 μA in sleep mode
  • 55.84 μA at 200 ms broadcast cycle
  • 90.58 μA at 30 ms connection cycle


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:


  • 16-bit ADC
  • 18 GPIOs
  • DMA
  • PDM
  • PRS
  • EUART
  • I²C
  • RTC
  • Watchdog
  • UART/SPI/SmartCard (ISO 7816)/IrDA/I2S

Certificates:


  • FCC
  • CE
  • SRRC
  • RoHS
  • Reach
  • NCC



Silicon Labs EFR32BG22 Wireless Gecko Series BLE Modules
Part Number RF-BM-BG22C3 RF-BM-BG22B1 RF-BM-BG22A3I RF-BM-BG22A3 RF-BM-BG22A1I RF-BM-BG22A1
Photo RF-BM-BG22C3 EFR32BG22 BLE Module RF-BM-BG22B1 EFR32BG22 BLE Module RF-BM-BG22A3I EFR32BG22 BLE Module RF-BM-BG22A3 EFR32BG22 BLE Module RF-BM-BG22A1I EFR32BG22 BLE Module RF-BM-BG22A1
IC EFR32BG22C224F512GM32-C EFR32BG22C112F352GM32-C EFR32BG22C224F512GM32-C EFR32BG22C224F512GM32-C EFR32BG22C112F352GM32-C EFR32BG22C112F352GM32-C
Core 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 76.8 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33 38.4 MHz ARM® Cortex®-M33
Antenna Chip/Half-hole interface PCB IPEX/Half-hole interface PCB/Half-hole interface IPEX/Half-hole interface PCB/Half-hole interface
RAM 32 KB 32 KB 32 KB 32 KB 32 KB 32 KB
Flash 512 KB 512 KB 512 KB 512 KB 352 KB 352 KB
Protocols BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary BLE5.3, Proprietary
Power Supply 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V 2.2 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +6 dBm 0 dBm +6 dBm +6 dBm 0 dBm 0 dBm
Receiving Sensitivity -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -106.7 dBm (125 kbps GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK) -98.9 dBm (1 Mbit/s GFSK) -96.2 dBm (2 Mbit/s GFSK)
GPIO 12 10 18 18 18 18
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range Chip antenna 40 m @ 1M PHY 80 m @ LE CODE 80 m External PCB antenna 150 m @ 1M PHY 280 m @ LE CODE 120 m @ 1M PHY 240 m @ LE CODE 200 m (external PCB antenna) 90 m @ 1M PHY
Dimension (mm) 8 x 8 x 1.82 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06 16.5 x 11.6 x 2.06
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh LPN × LPN LPN × ×
Long Range × × ×
2Mbps PHY
AoA/AoD × × ×
UART Protocol Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves Master-slave simultaneously, Masters-slaves
Functions Ultra-small dimension, Feasible for external antennas Smaller dimension, High cost-effective Suitible for complexed applications Support AoA/AoD Suitible for complex applications High cost-effective
