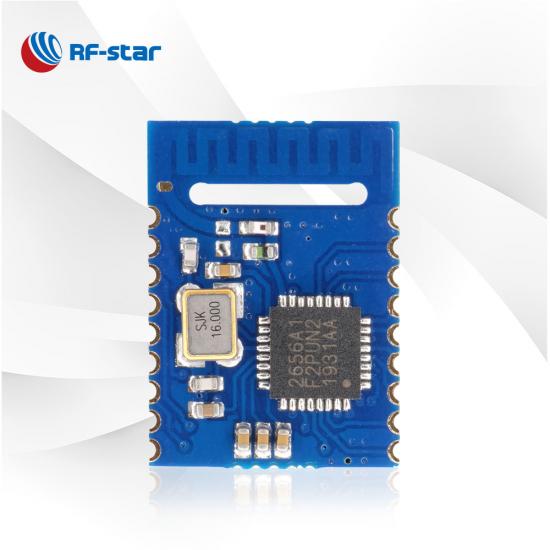

Single-Mode Bluetooth 5.0 Low Energy Module RSBRS02AC

RSBRS02AC Bluetooth LE module is designed for cost-effective and high-performance applications. This module with 2 Mbps PHY rate meets a wide range of application requirements. Start your product development with RSBRS02AC BLE module.

  • P/N:

    RSBRS02AC
  • SoC:

    RS02A1-A
  • Processor:

    32-bit ARM Cortex-M0+ @ 48 MHz
  • Protocols:

    Bluetooth 5.0 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

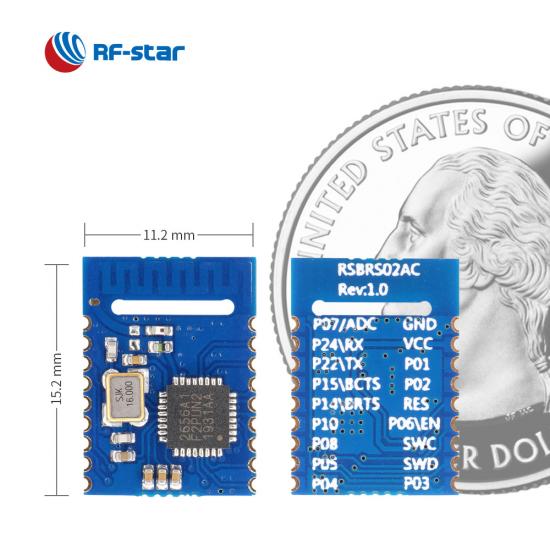

    15.2 × 11.2 × 1.5, half-hole, 1.27 pitch, 18-pin
  • Features:

    7816 T-0, infra-red, 2 Mbps data rate
  • GPIO:

    13
  • Max. TX Power:

    +5 dBm
  • Transmission Range:

    120 m

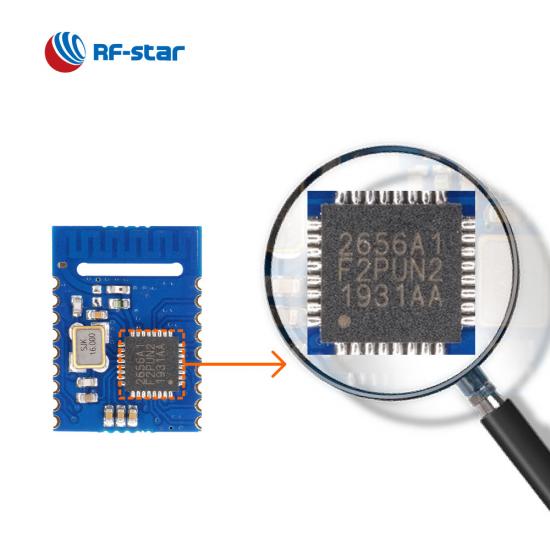

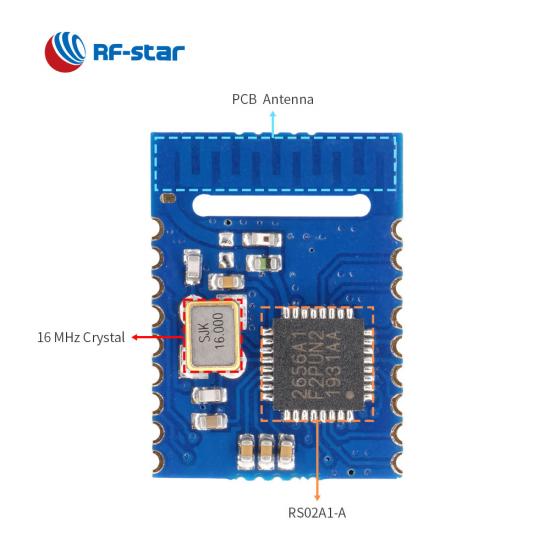

RSBRS02AC, based on a powerful SoC 2657B, is a single-mode cost-effective Bluetooth 5.0 low energy module. This module features a compact size, a good noise reduction, a better sensitivity, a robust transmission distance, and high reliability. It integrates a 16 MHz crystal, an RF matching filter, a power filter, and a high-performance meander line inverted-F PCB antenna. RSBRS02AC is reprogrammed with an easy-to-integrate transparent transmission protocol and direct-driven protocol with 2 Mbps data rate supported. The numerous digital peripherals and interfaces of RSBRS02AC make it applied in many applications. All RF-star series modules are pin-2-pin compatible.

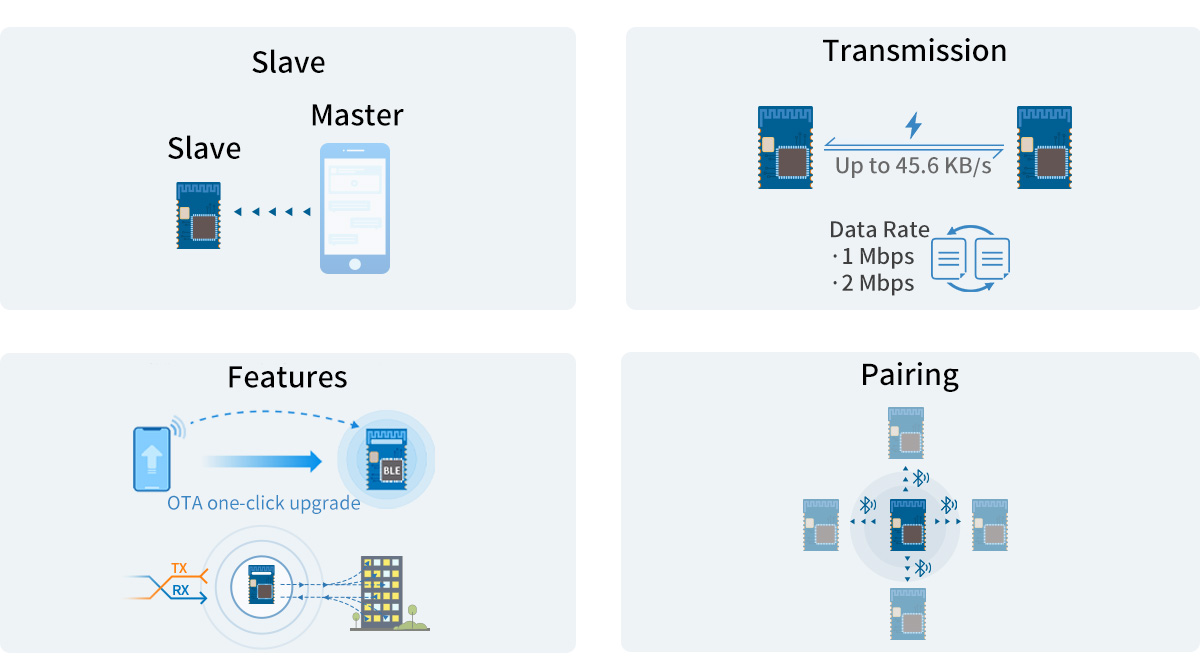

- Transparent Transmission (Bridge) & Direct-Driven Protocol -

· Slave

· Max. transparent transmission rate: up to 45.6 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA

· Custom Service UUID

· Pairing

- Applications -

· Remote control toys

· Beacon

· Game controller

· Health device

· Fitness device

· Electronic Shelf Label

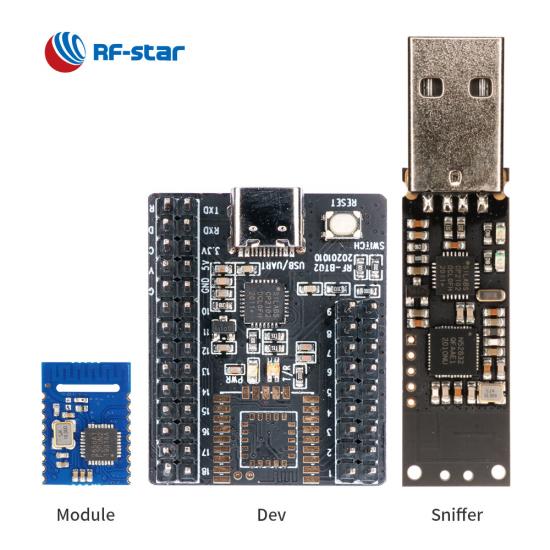

- Product Display -

Wireless SoC:


  • 32-bit ARM® Cortex®-M0+ processor, 48 MHz
  • TX power: -20 dBm to +5 dBm
  • Sensitivity: -94 dBm @ 1 Mbps
  • Memory
    • -512 kB flash
    • -36 kB SRAM, 4 kB CACHE
    • -80 kB ROM
    • -32B eFuse
  • Data rate: 1 Mbps, 2 Mbps



Supported Protocols:


  • Bluetooth 5.0 low energy
  • Bluetooth 4.2 low energy




Currnt Consumption:



  • 13.0 mA peak current in TX (0 dBm)
  • 12.0 mA peak current in RX


Operating Range:


  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • 13 GPIOs
  • 2 UARTs with CTS/RTS
  • SPI with master/slave configurable
  • I²C with master/slave configurable
  • I²S
  • 7816 T-0 master interface
  • Infra-red generator
  • PWM
  • 16-bit ADC


Item

Chip

Pin

GPIO

Atenna

Distance

Package Size (mm)

RSBRS02AA

RS02A1-A

18

13

PCB

120 m

15.2 x 11.2 x 1.5

RSBRS02AI

18

13

IPEX

120 m

15.2 x 11.2 x 2.1

RSBRS02ABR

RS02A1-B

18

11

PCB

100 m

15.2 x 11.2 x 1.7

RSBRS02ABRI

18

11

IPEX

100 m

15.2 x 11.2 x 2.3

RSBRS02AC

2657B

18

13

PCB

100 m

15.2 x 11.2 x 1.5
