BLE5.0 CC2640R2F-Q1 Module for Automotive RF-BM-4077B2

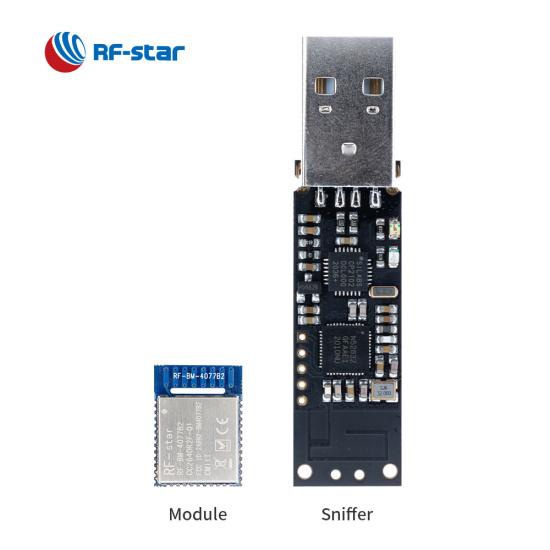

  • BLE5.0 CC2640R2F Q1 Module RF-BM-4077B2 for Automotive Applications
  • BLE5.0 CC2640R2F Q1 Module RF-BM-4077B2 for Automotive Applications
  • BLE5.0 CC2640R2F Q1 Module RF-BM-4077B2 for Automotive Applications
  • BLE5.0 CC2640R2F Q1 Module RF-BM-4077B2 for Automotive Applications
  • BLE5.0 CC2640R2F Q1 Module RF-BM-4077B2 for Automotive Applications

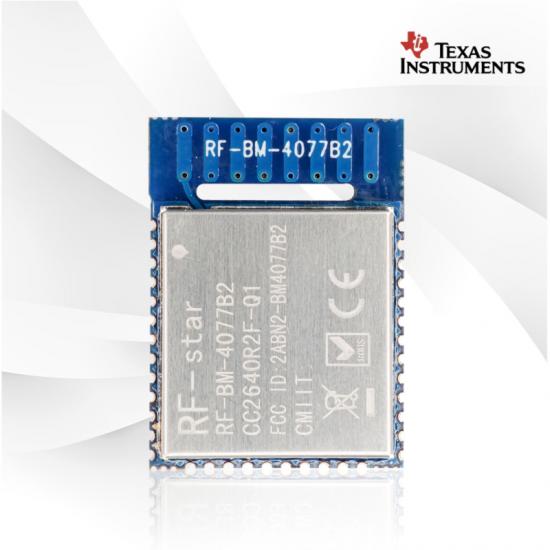

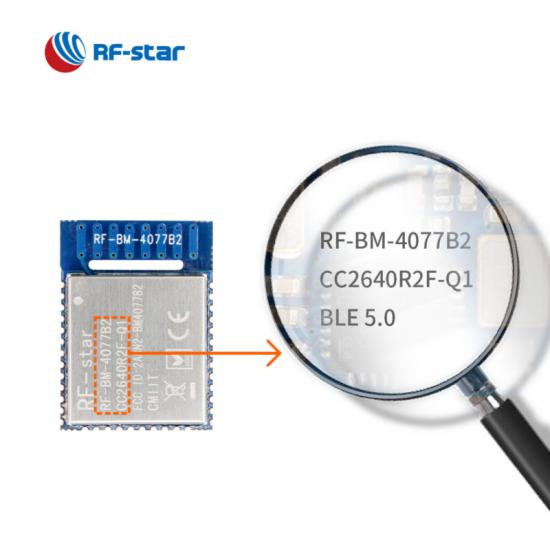

BLE5.0 CC2640R2F-Q1 Module for Automotive RF-BM-4077B2

RF-BM-4077B2 is a Bluetooth 4.2 and Bluetooth 5.0 Low Energy module aimed at the automotive markets. The IC CC2640R2F-Q-1 is an AEC-Q100 compliant wireless SoC. Find RF-BM-4077B2, help you to finish the RF part of your design.

  • P/N:

    RF-BM-4077B2

  • SoC:

    CC2640R2F-R2F

  • Processor:

    48 MHz ARM® Cortex®-M3

  • Protocols:

    Bluetooth 5.0 low energy

  • Working Frequency:

    2402 MHz ~ 2480 MHz

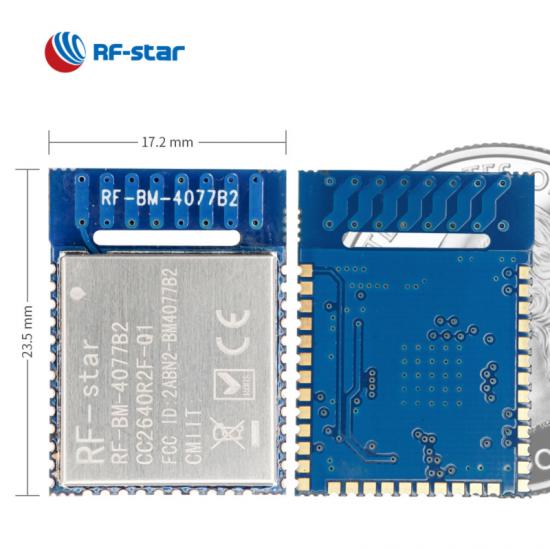

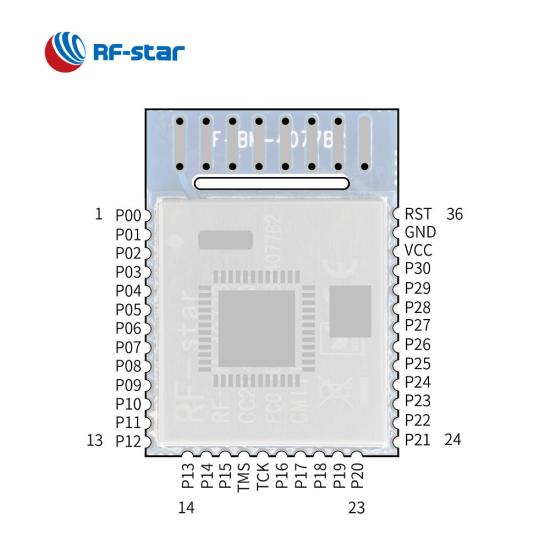

  • Package (mm):

    23.5 × 17.0 × 1.7, half-hole, 1.27 pitch, 36-pin

  • Features:

    wide working temperature range of -40 °C ~ +105 °C, LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Advertising extension

  • GPIO:

    31

  • Max. TX Power:

    +5 dBm

  • Transmission Range:

    120 m
Inquiry Now

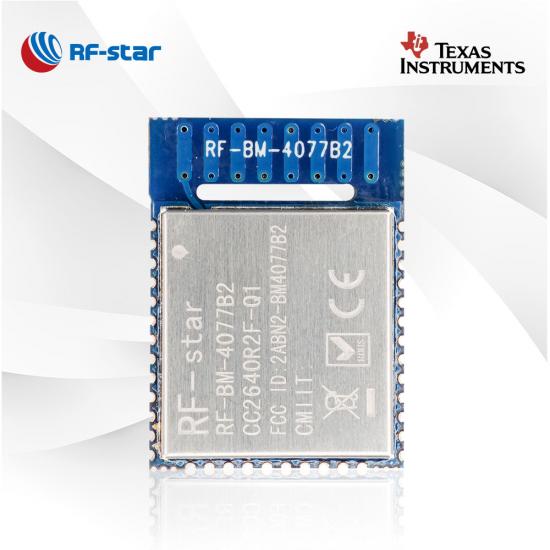

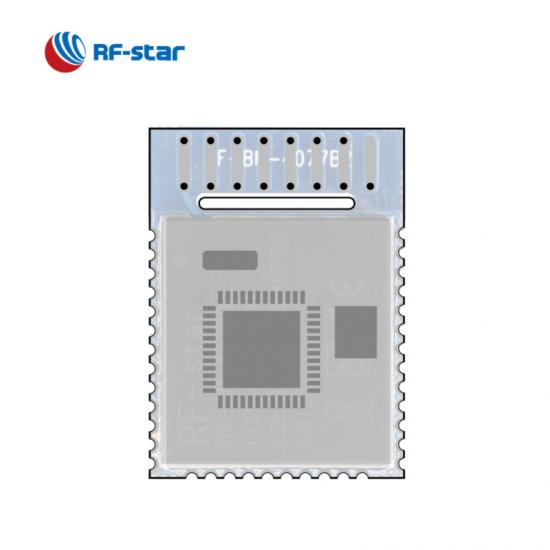

RF-BM-4077B2 is RF-star's first automative Bluetooth transmitter. It is based on Texas Instruments CC2640R2F-Q1 AEC-Q100 compliant wireless SoC supporting Bluetooth 4.2 and Bluetooth 5.0 Low Energy. The 32-bit ARM Cortex-M3 main processor at 48 MHz makes this module have high performance and lower power consumption. The module consists of a 24 MHz crystal, a 32.768 kHz crystal, an LC balun, and an inverted-F PCB antenna. It can work under transparent transmission mode and set parameters by AT commands, which allows users to quickly build a reliable BLE connection for the applications. Now here is one upgrade version of automotive grade module RF-BM-2642QB1I based on CC2642R-Q1 SoC.


BLE5.0 CC2640R2F-Q1 Module for Automotive

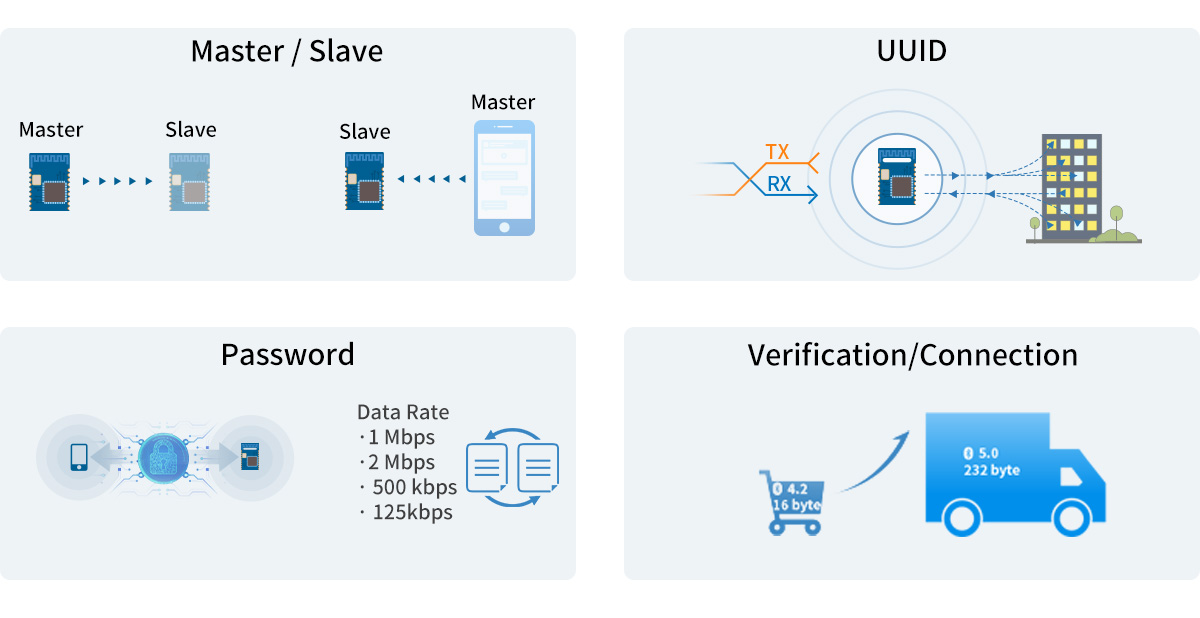

- BLE 5.0 Transparent Transmission (Bridge) Protocol -

· Single role of slave, Single role of master

· Custom Service UUID

· Connection Password

· Data rate: 1 Mbps, 2 Mbps, 500 kbps, 125 kbps

· Advertising extension packets

CC2640R2F-Q1 module supports BLE 5.0 Transparent Transmission module

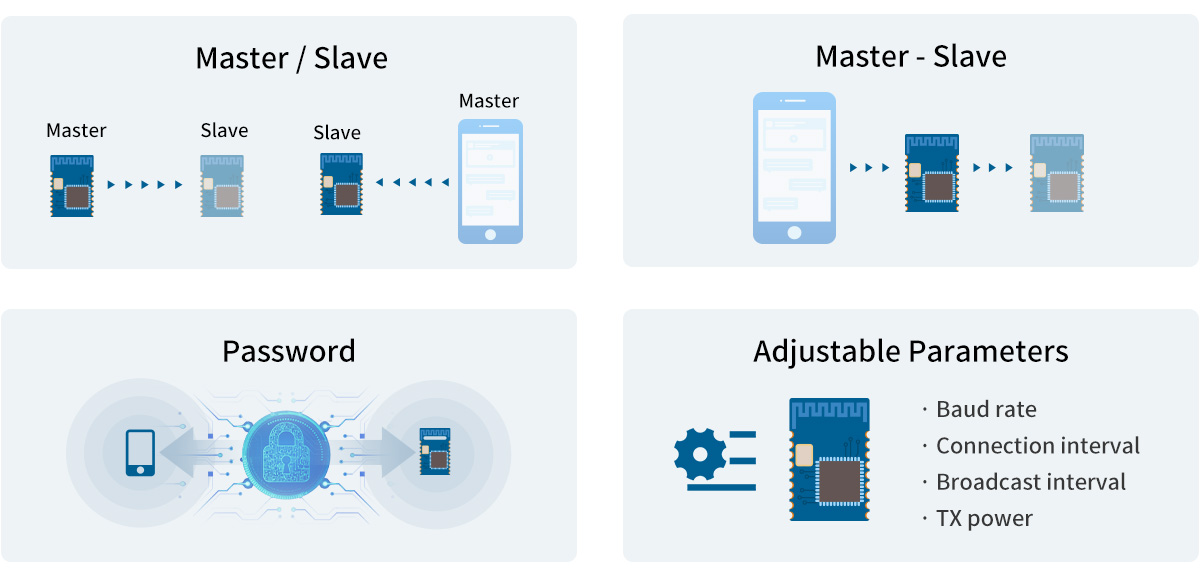

- BLE 4.2 Transparent Transmission (Bridge) Protocol -

· Several roles: slave, master, master-slave

· Adjustable parameters: baud rate, connection interval, broadcast interval, TX power…

· Connection Password

CC2640R2F-Q1 module supports BLE 4.2 Transparent Transmission module


Related Resources:

CC2642R-Q1 Automotive Grade BLE Module Empowers Connected Vehicles

Differences Between TI CC2640R2L and CC2640R2F

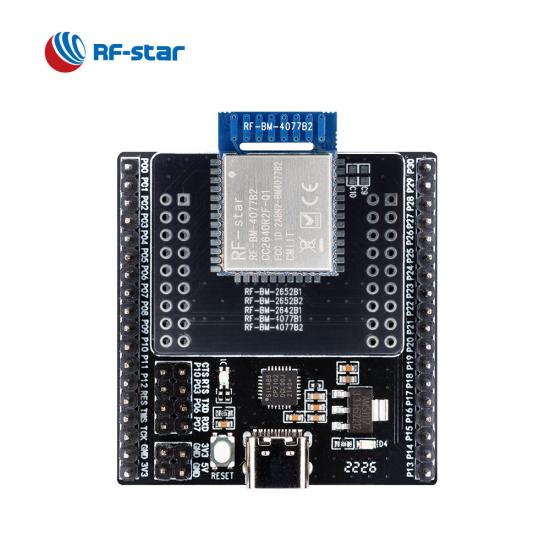

Test Board Pinboard for TI Series Module (CC2540 CC2541 CC2640)

Wireless SoC:

  • 48 MHz ARM® Cortex®-M3 processor
  • TX power: Up to +5 dBm
  • Sensitivity in BLE mode: -97 dBm
  • Memory
    • -128 kB flash
    • -20 kB SRAM


Supported Protocols:

  • Bluetooth 4.2 low energy
  • Bluetooth 5.0 low energy


Current Consumption:

  • 2.71 μA in sleep mode
  • 38.11 μA at 200 ms broadcast cycle (disable the internal EN pull-up)
  • 188.72 μA at 20 ms connection cycle (disable the internal EN pull-up)

Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +105 °C


Rich Peripherals:


  • 12-bit ADC
  • 31 GPIOs
  • SPI
  • I²C
  • I²S
  • RTC
  • UART (CTS/RTS)
  • AES-128


TI CC264x Series BLE Modules
Part Number RF-BM-2642QB1I RF-BM-2642B1 RF-BM-2642B2 RF-BM-4055B1L RF-BM-4077B1L RF-BM-4077B1 RF-BM-4044B5 RF-BM-4044B4 RF-BM-4044B3 RF-BM-4044B2
Photo RF-BM-2642QB1I CC2642R-Q1 BLE Module RF-BM-2642B1 CC2642R BLE Module RF-BM-2642B2 CC2642R BLE Module RF-BM-4055B1L CC2640R2LRHB BLE Module RF-BM-4077B1L CC2640R2LRGZ BLE Module RF-BM-4077B1 CC2640R2FRGZ BLE Module RF-BM-4044B5 CC2640R2F BLE Module RF-BM-4044B4 CC2640R2F BLE Module RF-BM-4044B3 CC2640R2F BLE Module RF-BM-4044B2 CC2640R2F BLE Module
IC CC2642R-Q1 CC2642R CC2642R CC2640R2LRHB CC2640R2LRGZ CC2640R2FRGZ CC2640R2FRSM CC2640R2FRSM CC2640R2FRSM CC2640R2FRSM
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3
Antenna IPEX PCB PCB PCB PCB PCB Chip/Half-Hole Interface Chip/Half-Hole Interface IPEX PCB
RAM 88 KB 88 KB 88 KB 28 KB 28 KB 28 KB 28 KB 28 KB 28 KB 28 KB
Flash 352 KB 352 KB 352 KB 128 KB 128 KB 128 KB 128 KB 128 KB 128 KB 128 KB
Protocols BLE5.2 BLE5.2 BLE5.2 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3 BLE5.3
Power Supply 1.8 V ~ 3.63 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +5 dBm +5 dBm +5 dBm +5 dBm +5 dBm +5 dBm +2 dBm +2 dBm +2 dBm +2 dBm
Receiving Sensitivity -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -105 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY -97 dBm @ BLE 1M PHY -103 dBm @ 125 kbps LE Coded PHY
GPIO 31 31 31 13 31 31 10 10 10 10
Working Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 200 m @ 1M PHY 300m @ LE Coded PHY 110 m @ 1M PHY 160 m @ LE Coded PHY 140 m @ 1M PHY 255 m @ LE Coded PHY 60 m @ 1M PHY 90 m @ LE Coded PHY 70 m @ 1M PHY 100 m @ LE Coded PHY 80 m @ 1M PHY 110 m @ LE Coded PHY Chip Antenna 30 m @ 1M PHY 60 m @ LE Coded PHY Chip Antenna 20 m @ 1M PHY 50 m @ LE Coded PHY External PCB antenna 110 m @ 1M PHY 150 m @ LE Coded PHY 60 m @ 1M PHY 90 m @ LE Coded PHY
Dimension (mm) 21.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 15.2 x 11.2 x 1.7 23.5 x 17.0 x 1.7 23.5 x 17.0 x 1.7 10.5 x 8.5 x 2.0 8.0 x 8.0 x 1.5 15.2 x 11.2 x 2.1 16.6 x 11.2 x 1.7
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √ √ √ √ √ √
Bluetooth Mesh √ √ × × × × × × × ×
Long Range √ √ √ √ √ √ √ √ √ √
2Mbps PHY √ √ √ √ √ √ √ √ √ √
AoA/AoD √ √ √ × × √ √ √ √ √
UART Protocol Master-slave simultaneously Master-slave simultaneously Master-slave simultaneously Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave Master/Slave
Functions AEC-Q100 Grade High anti-interference performance High anti-interference performance High Cost-Effective High Cost-Effective 31 GPIOs for more avaliable applications Small dimension, Double-side pads Ultra-small dimension Feasible for external antennas High stablity
