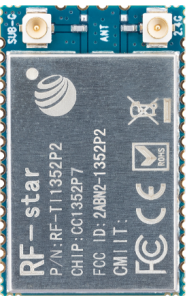

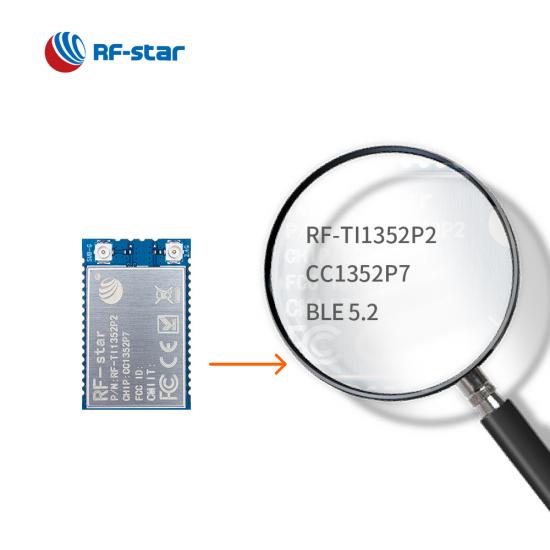

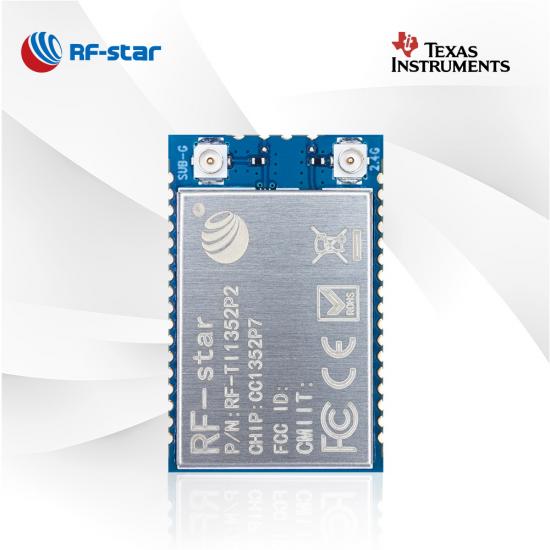

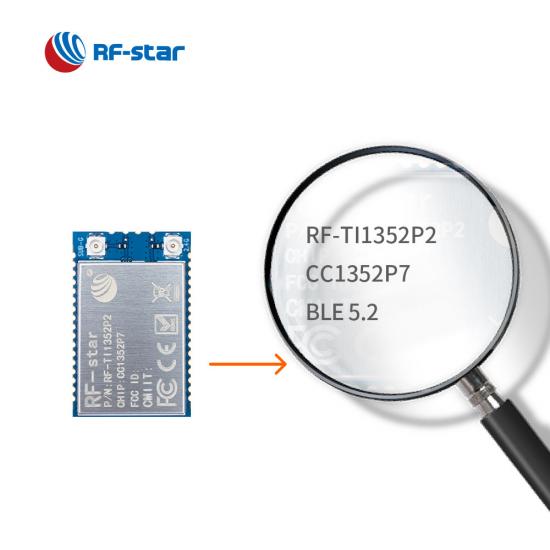

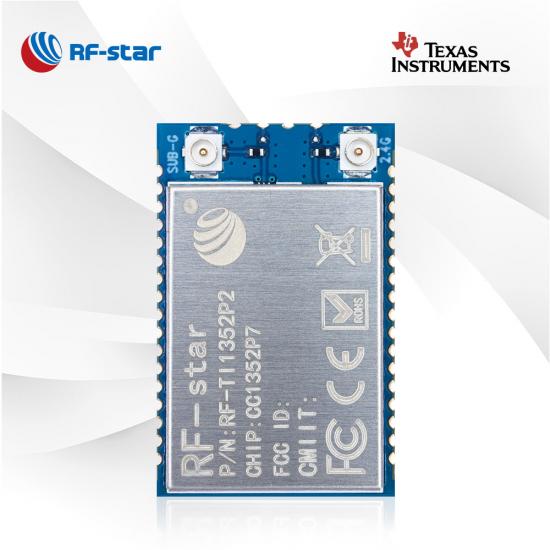

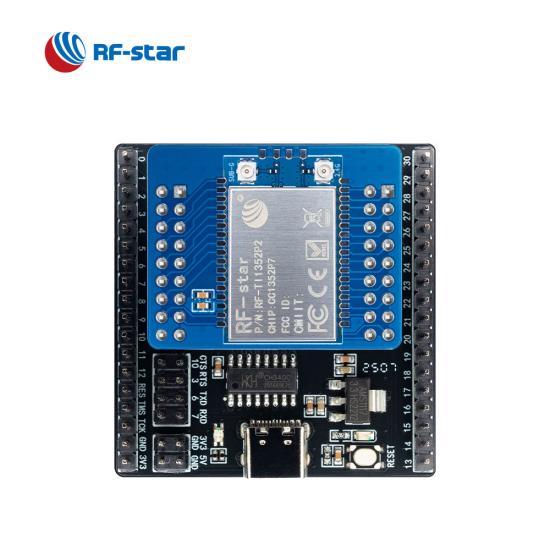

CC1352P7 Multiprotocol Sub-1 GHz and 2.4-GHz Wireless Module RF-TI1352P2

RF-TI1352P2, based on CC1352P7, is a multiprotocol and multi-band Sub-1 GHz (800 MHz ~ 928 MHz) and 2.4-GHz wireless module aimed at the low-power wireless communication and advanced sensing IoT markets. RF-TI1352P2 with two bands antenna output will be a nice choice to simplify your design work.
  • P/N:

    RF-TI1352P2
  • SoC:

    CC1352P7
  • Processor:

    48 MHz ARM® Cortex®-M4F
  • Protocols:

    Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz)
  • Working Frequency:

    800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz
  • Package (mm):

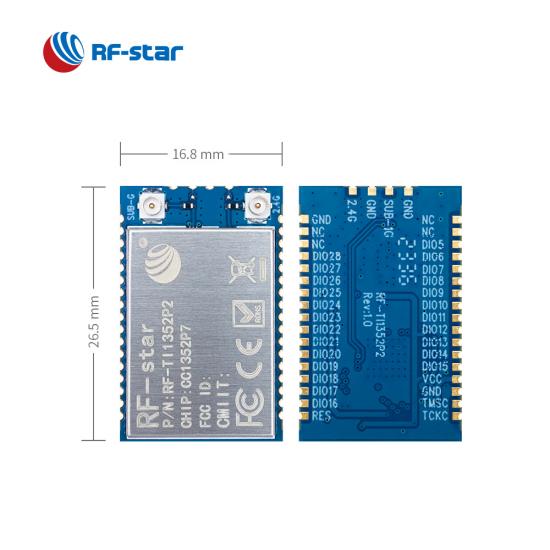

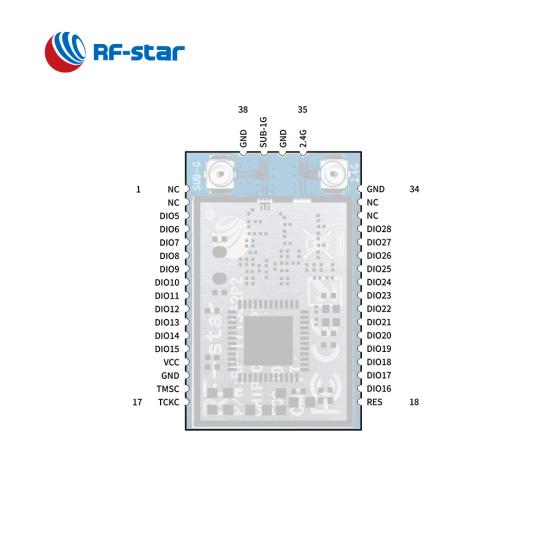

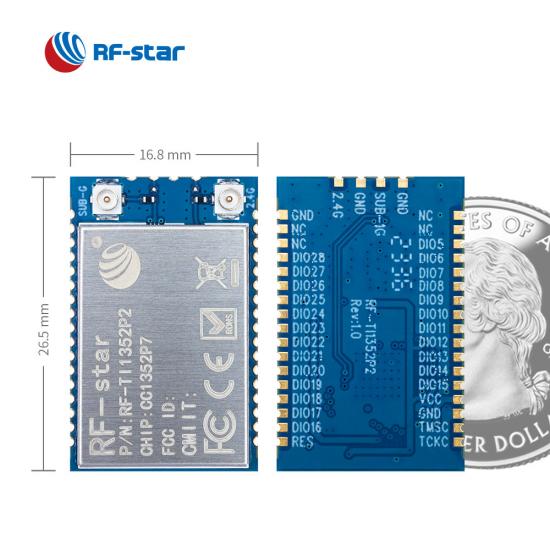

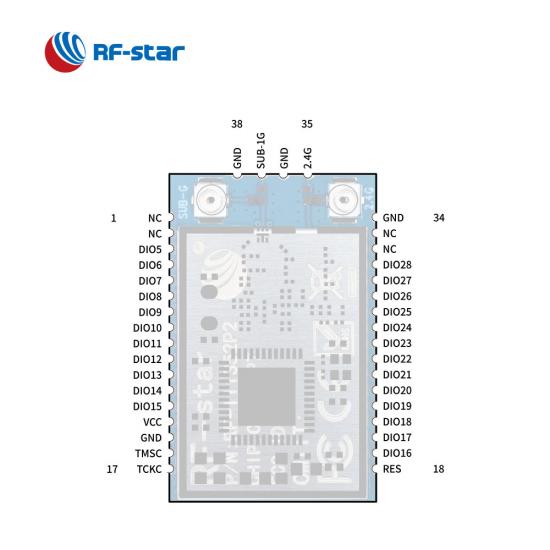

    26.5 x 16.8 x 2.2, half-hole, 1.27 pitch, 38-pin
  • Features:

    Power Amplifier, DMM driver, Matter, Wi-SUN, IPEX connectors supporting dual-band radio, 704 KB Flash
  • GPIO:

    24
  • Max. TX Power:

    +20 dBm
  • Transmission Range:

    180 m @ 1M PHY (external PCB antenna) 230 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 1400 m @ Sub-1G (external glue stick antenna)

RF-TI1352P2 based on on TI SoC CC1352P7 with an integrated power amplifier is a high-performance sub-1GHz + 2.4 GHz dual-band module. It integrates a 48 MHz and a 32.768 kHz crystal, a 256 KB ROM, a 704 KB Flash, and the IPEX connectors and half-hole RF output pins of different radio frequencies to guarantee the external antenna connection. Its ARM® Cortex®-M4F core application processor is optimized for long-range and low-power. It features a small size, robust connection distance, and rigid reliability. The multi-band module supports multiprotocol for 868 MHz, 915 MHz and 2.4 GHz through a DMM driver for Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz and 2.4 GHz). 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.

TI CC1352P7 Multiprotocol & Multi-Band Sub-1 GHz RF-TI1352P2

Rich Memory

The CC1352P7 wireless module integrates a 256 KB ROM, a 704 KB Flash making it possible in many complex applications, especially in Matter networking.

Flexible RF Output Modes

Two IPEX connectors individually for sub 1G and 2.4G radio frequency, and half-hole RF output pins may satisfy for your any requirement.

Dynamic Multiprotocol Manager

The multi-protocol RF module supports Zigbee®, Thread, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, 6LoWPAN, MIOTY®, proprietary systems and concurrent multiprotocol through a DMM driver.

Dual-band Radio Frequency

Dual-band radio frequency for 868 MHz, 915 MHz and 2.4 GHz enables the CC1352P7 multi-protocol module popular in smart meters,building security systems, portable electronics and long-range sensor applications.

Related Resources:

What Is TI CC1352P Multi-band Wireless Module?

CC1352R Multi-Protocol Dual-Band Wireless Solution

Sub-1GHz vs. 2.4 GHz: 7 Takeaways

RF-star Implementing Wi-SUN Tech

Wireless SoC:

  • 48 MHz ARM® Cortex®-M4F processor
  • TX power: Up to +20 dBm
  • Sensitivity:
    • -121 dBm @ Sub GHz (Long-range Mode)
    • -110 dBm @ Sub GHz (50 kbps)
    • -104 dBm @ Bluetooth 125 kbps (LE Coded PHY)
  • Memory
    • 704 kB flash
    • 256 kB ROM
    • 80 kB SRAM

Features:

  • Proprietary 2.4 GHz
  • Amazon Sidewalk
  • Bluetooth 5.3 Low Energy
  • ZigBee, Thread, Matter
  • IEEE 802.15.4
  • IPv6-nabld smart objects (6LoWPAN)
  • MIOTY
  • Wireless M-Bus
  • Wi-SUN
  • KNX RF
  • Amazon Sidewalk
  • Proprietary systems
  • SimpleLinkTM TI 15.4-Stack (Sub-1 GHz)
  • Dynamic Multiprotocol Manager (DDM) driver

Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • ADC
  • DAC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC


TI CC131x Series Sub-1G Modules
Part Number RF-TI1352P2 RF-TI1352P1 RF-TI1352B1 RF-SM-1277B2 RF-SM-1277B1 RF-SM-1044B4 RF-SM-1044B2 RF-SM-1044B1 RF-SM-1077B2 RF-SM-1077B1
IC CC1352P7 CC1352P CC1352R CC1312R CC1312R CC1310F128RSM CC1310F128RSM CC1310F128RSM CC1310F128RGZ CC1310F128RGZ
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3
Antenna IPEX Half-hole interface IPEX IPEX/Half-hole interface IPEX/Half-hole interface PCB Half-hole interface PCB IPEX/Half-hole interface IPEX/Half-hole interface
RAM 152 KB 88 KB 88 KB 88 KB 88 KB 28 KB 28 KB 28 KB 28 KB 28 KB
Flash 704 KB 352 KB 352 KB 352 KB 352 KB 128 KB 128 KB 128 KB 128 KB 128 KB
Protocols Thread, ZigBee, Matter, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz)
Power Supply 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V
Frequency 800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MHz, 2.4 GHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz
Max. TX Power +20 dBm +20 dBm +14 dBm @ Sub-1 GHz +5 dBm @ 2.4 GHz +13 dBm +14 dBm +14 dBm +14 dBm +14 dBm +15 dBm +14 dBm
Receiving Sensitivity –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @ 50 Kbps Sub-1G –104 dBm @125 kbps LE Coded PHY –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @Sub-1G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @Sub G (Long-Range Mode) –110 dBm @Sub G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps)
GPIO 23 23 28 30 30 12 7 8 30 30
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 180 m @ 1M PHY (external PCB antenna) 230 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 1400 m @ Sub-1G (external glue stick antenna) 180 m @ 1M PHY (external PCB antenna) 230 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 1400 m @ Sub-1G (external glue stick antenna) 120 m @ 1M PHY (external PCB antenna) 180 m @ LE Coded PHY (external PCB antenna) 900 m @ 802.15.4 (external glue stick antenna) 900 m @ Sub-1G (external glue stick antenna) 1000 m (external glue stick antenna) 1000 m (external glue stick antenna) 720 m 1000 m (external glue stick antenna) 720 m 1000 m (external glue stick antenna) 1000 m (external glue stick antenna)
Dimension (mm) 26.5 x 16.8 x 2.2 25.0 x 16.4 x 2.2 26.5 x 16.8 x 2.2 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3 22.0 × 14.0 × 1.85 12.5 × 9.0 × 1.8 22.0 × 14.0 × 1.8 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Wireless M-Bus, energy-harvesting Smart agriculture, sensor control Smart grid, industrial monitoring and control Support DMM, longer transmission range Support DMM, longer transmission range On-board PCB antenna Ultra-small dimension, feasible for external antennas Plug pins for easy embed Longer transmission range Longer transmission range
