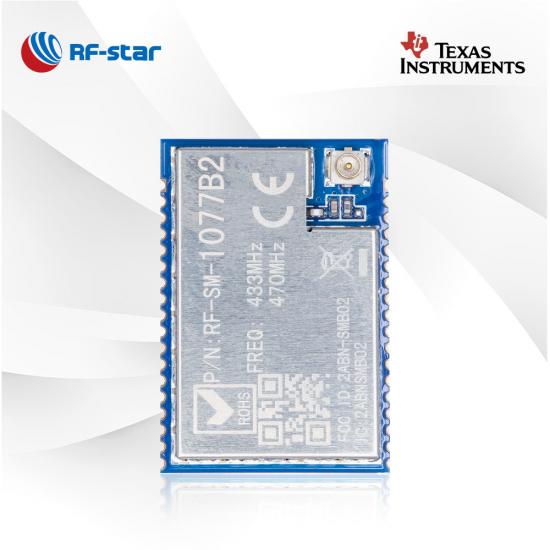

CC1310 Sub-1G Module 433 MHz & 470 MHz Range RF-SM-1077B2

RF-SM-1077B2 is a module working under the 433 MHz frequency. The module is aimed at power-supplied applications with long-range and low power consumption requirements. It is widely used in the sensor monitoring market. Choose RF-SM-1077B2 to simplify your monitoring devices.


  • P/N:

    RF-SM-1077B2
  • SoC:

    CC1310
  • Processor:

    48 MHz Arm® Cortex®-M3
  • Protocols:

    IEEE 802.15.4, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY
  • Working Frequency:

    431 MHz ~ 527 MHz

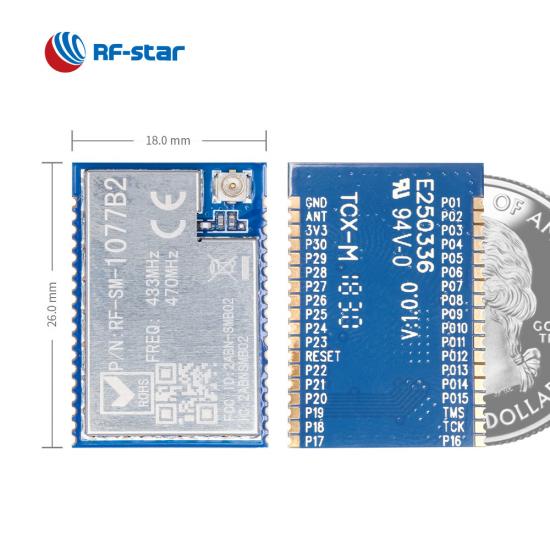

  • Package (mm):

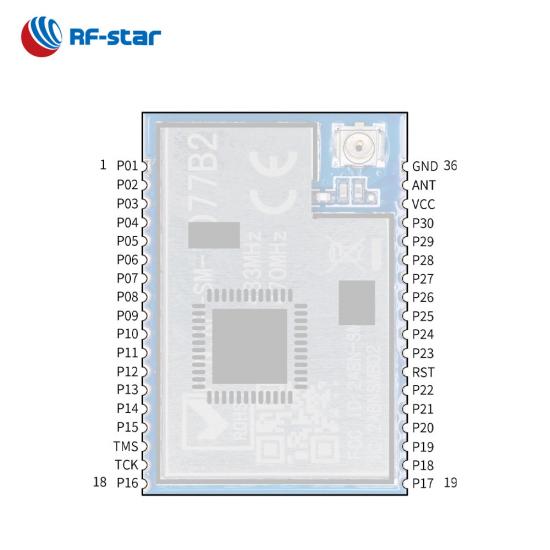

    26.0 × 18.0 × 2.3, half-hole, 1.27 pitch, 36-pin
  • Features:

    All GPIOs are lead out
  • GPIO:

    30
  • Max. TX Power:

    +15 dBm
  • Transmission Range:

    1500 m

RF-SM-1077B2 is a wireless module. This transceiver module is based on TI CC1310, and the 48 MHz Arm® Cortex®-M3 main processor enables it to work mostly power-saved. It is integrated with a 24.0 MHz crystal, a balun, a bandpass filter, an antenna matching and an antenna option of IPEX antenna connector and the half-hole interface. Up to 15 dBm TX power makes it reach a longer coverage of the transmission. It is also the serial module with many parameters to be set.

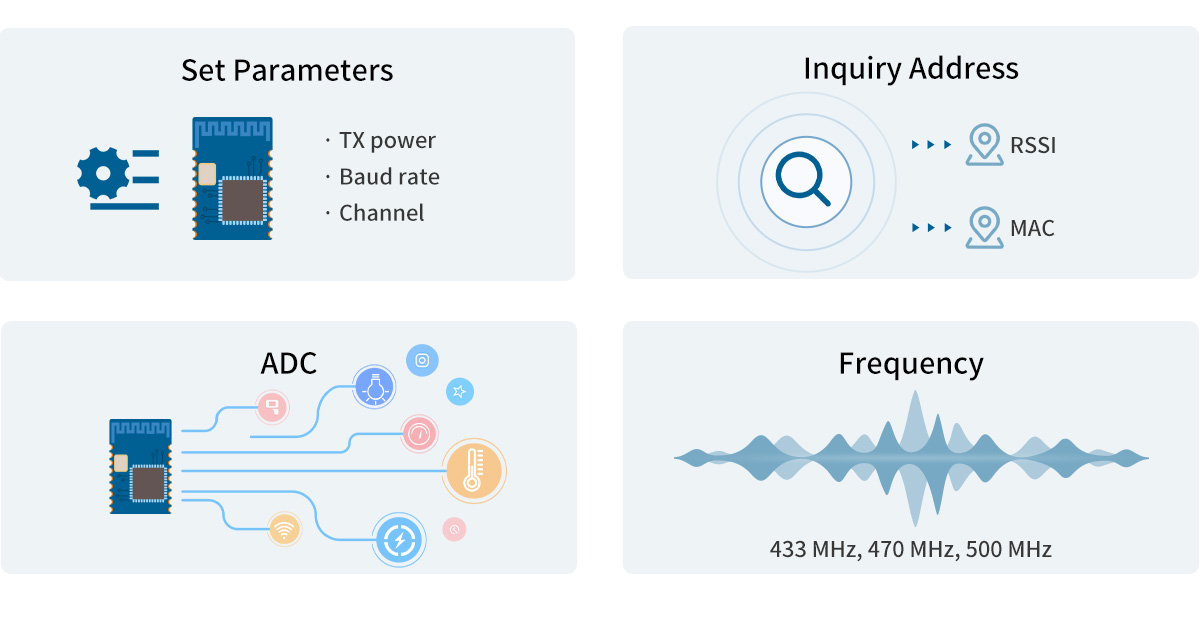

- Transparent Transmission Protocol -

· Set parameters: TX power, Baud rate, Channel

· Inquiry RSSI and MAC address

· ADC acquisition enabled

· Frequency: 433 MHz, 470 MHz, 500 MHz


- Applications -

· Low-Power Wireless Systems with 50-kHz to 5-MHz Channel Spacing

· Industrial Monitoring and Control

· Wireless Healthcare Applications

· Electronic Shelf Label (ESL)

· Long-Range Sensor Applications

· Building Automation

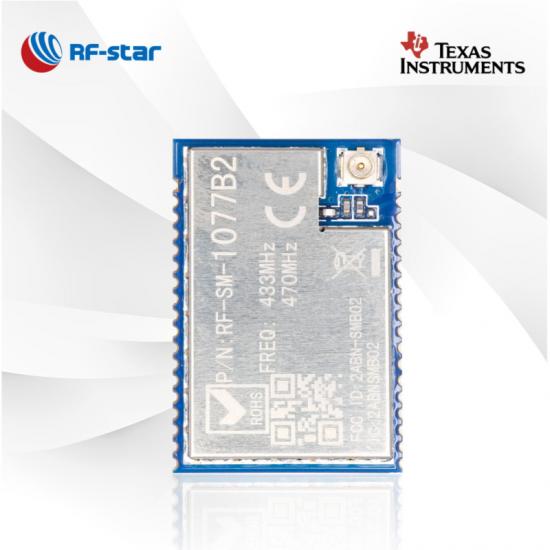

- Product Display -

Wireless SoC:


  • 48 MHz ARM® Cortex®-M3 processor
  • TX power: Up to +15 dBm
  • Sensitivity:
    • -124 dBm @ Long-Range Mode
    • -110 dBm @ 50 kbps
  • Memory
    • 128 kB flash
    • 8 kB SRAM
  • Data Rate:
    • 625 bps
    • 50 kbps
    • 200 kbps




Features:


  • AES-128 security
  • 30 GPIOs


Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency: 431 MHz ~ 527 MHz




Rich Peripherals:


  • ADC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC




Certificates:


  • CE
  • RoHS
  • Reach
