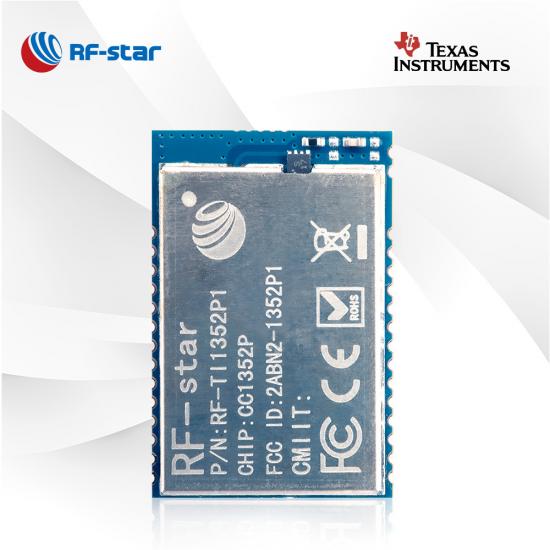

CC1352P Multiprotocol and Multi-band Sub-1 GHz and 2.4-GHz Wireless Module RF-TI1352P1

RF-TI1352P1 is a multiprotocol and multi-band Sub-1 GHz and 2.4-GHz wireless module based on CC1352P and designed for the advanced IoT markets. The module supports concurrent multiprotocol operation through the DMM driver. RF-TI1352P1 can optimize your design and applications.

  • P/N:

    RF-TI1352P1
  • SoC:

    CC1352P
  • Processor:

    48 MHz ARM® Cortex®-M4F
  • Protocols:

    IEEE 802.15.4, Wireless M-Bus (T, S, C, N mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.1 Low Energy, Zigbee, Thread, MIOTY Working Frequency: 800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz
  • Working Frequency:

    800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz
  • Package (mm):

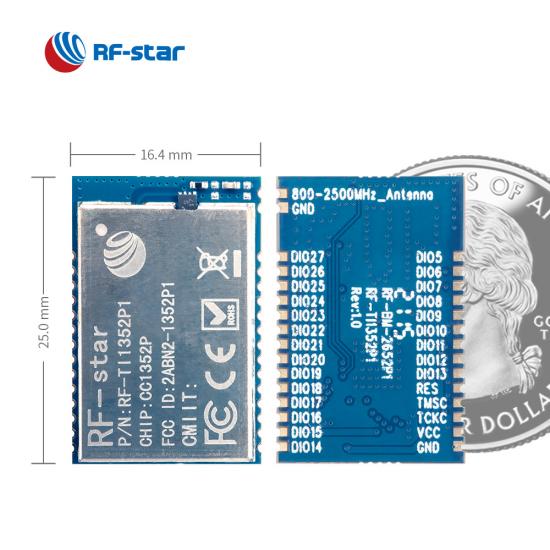

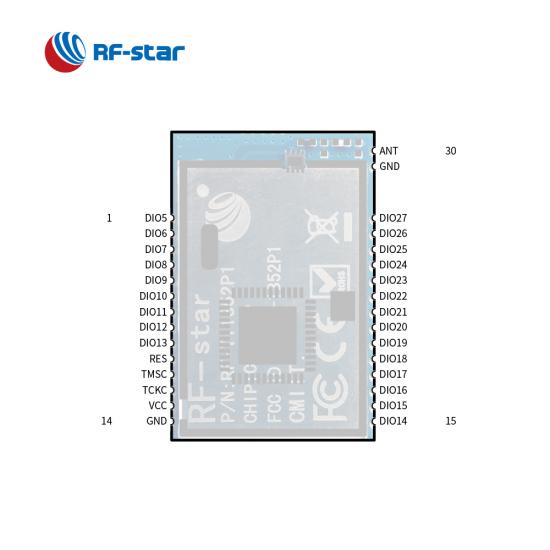

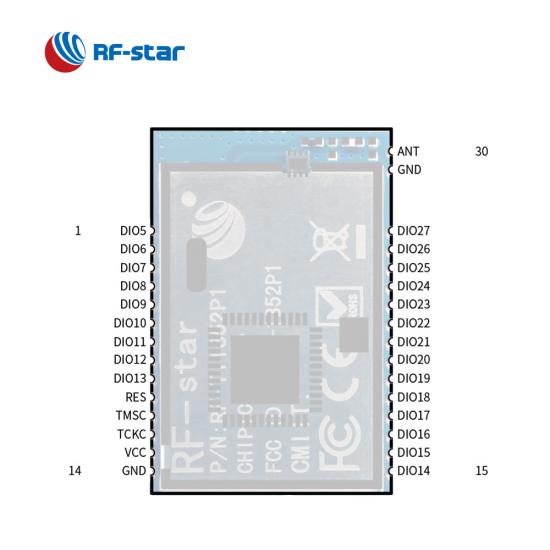

    25.0 × 16.4 × 2.2, half-hole, 1.27 pitch, 30-pin
  • Features:

    Bluetooth mesh, Border router, Direction finding, LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), NCP, OAD, Sleepy end device, Zigbee coordinator
  • GPIO:

    23
  • Max. TX Power:

    +20 dBm
  • Transmission Range:

    500 m (@BLE), 800 m (@ZigBee), 1000 m (@Sub-1 GHz)

RF-TI1352P1 is a multiprotocol and multi-band module based on TI CC1352P with a powerful processor of 48 MHz ARM® Cortex®-M4F. The module consists of a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 256 kB ROM, an LC filter, and an IPEX connector for various antenna options. The maximum TX power is up to 20 dBm which enables the module to achieve a longer transmission range and a higher RF performance. It is widely used in the ZHA (ZigBee Home Automation) and Zigbee2MQTT. The multiple protocols and multiple bands are succeeded by the Dynamic Multiprotocol Manager driver, which achieves the diversity of applications.



- Applications -

· Sleepy end device

· ZigBee coordinator

· Energy harvesting

· Smoke sensor

· Fire alarm sensor

· Smart trackers

- Product Display -

Wireless SoC:


  • 48 MHz ARM® Cortex®-M4F processor
  • TX power: Up to +20 dBm
  • Sensitivity:
    • -121 dBm @ Sub GHz (Long-range Mode)
    • -110 dBm @ Sub GHz (50 kbps)
    • -105 dBm @ Bluetooth 5.0 (LE Coded PHY)
  • Memory
    • 352 kB flash
    • 256 kB ROM
    • 80 kB SRAM
  • Data Rate:
    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)




Features:


  • IEEE 802.15.4
  • Wireless M-Bus (T, S, C, N mode)
  • 6LoWPAN
  • Wi-SUN NWP
  • Proprietary 2.4 GHz
  • Amazon Sidewalk
  • Bluetooth 5.1 Low Energy
  • ZigBee
  • Thread
  • MIOTY
  • Bluetooth mesh
  • Direction finding NCP
  • OAD


Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • ADC
  • DAC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC
