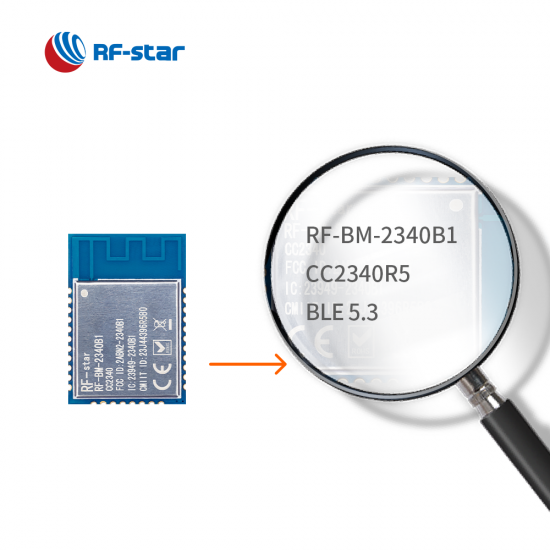

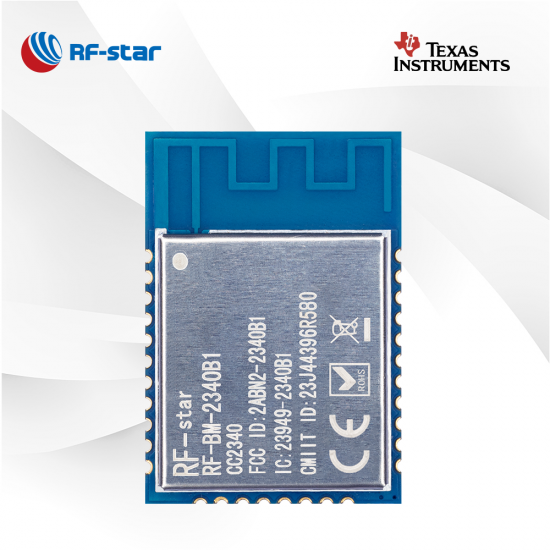

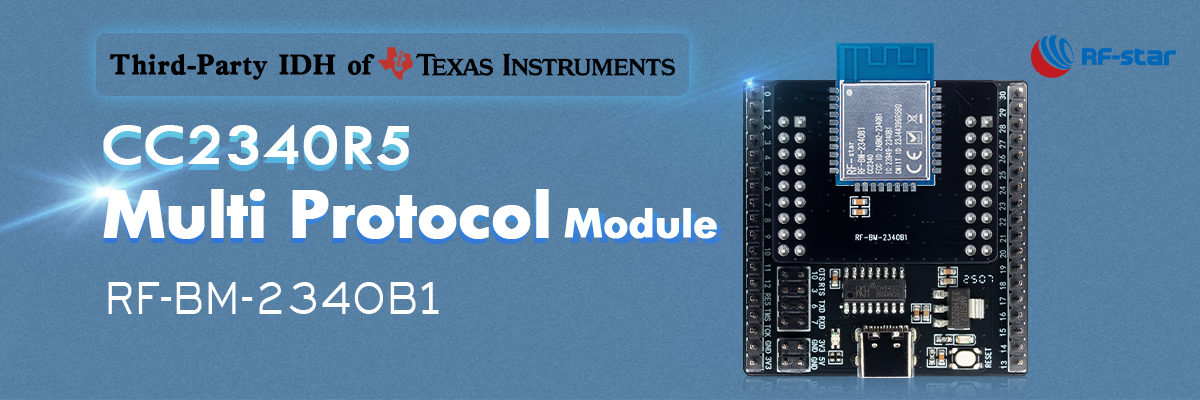

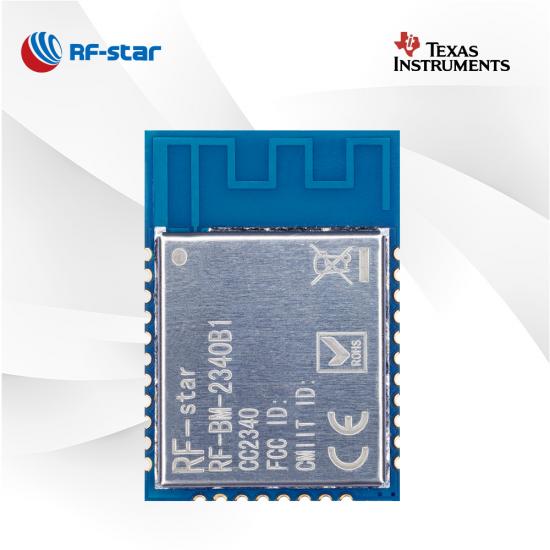

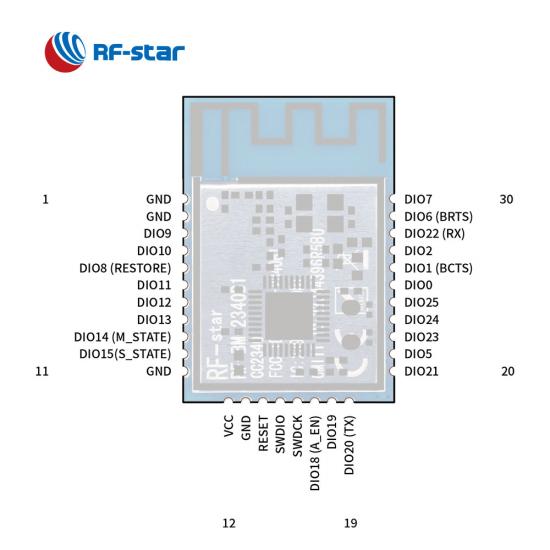

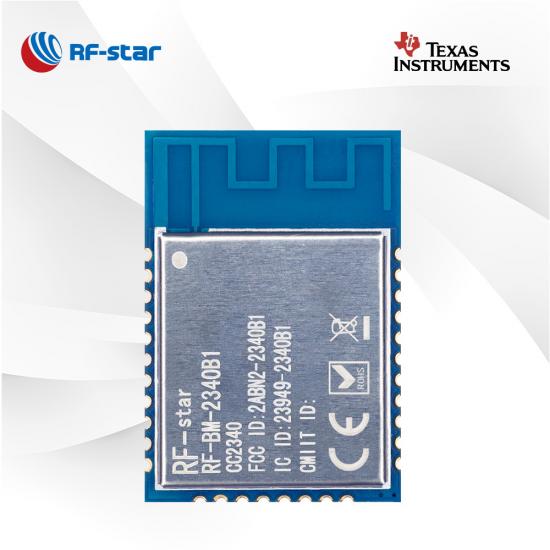

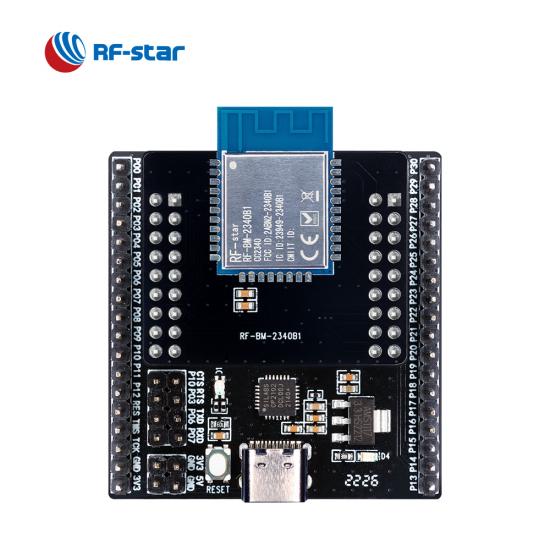

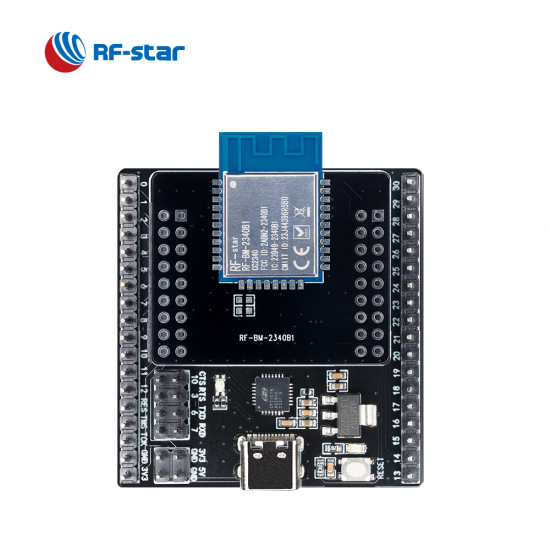

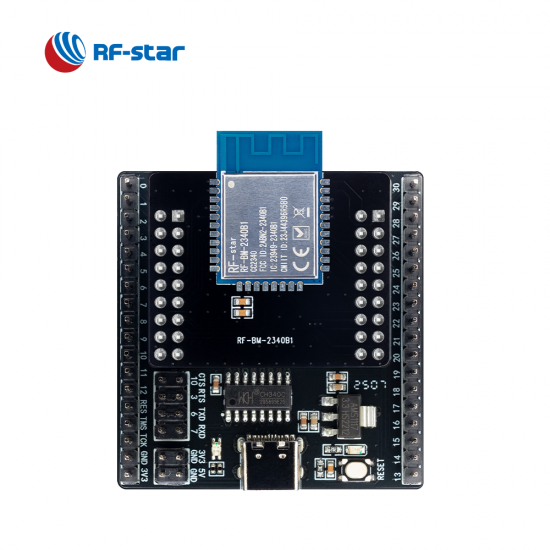

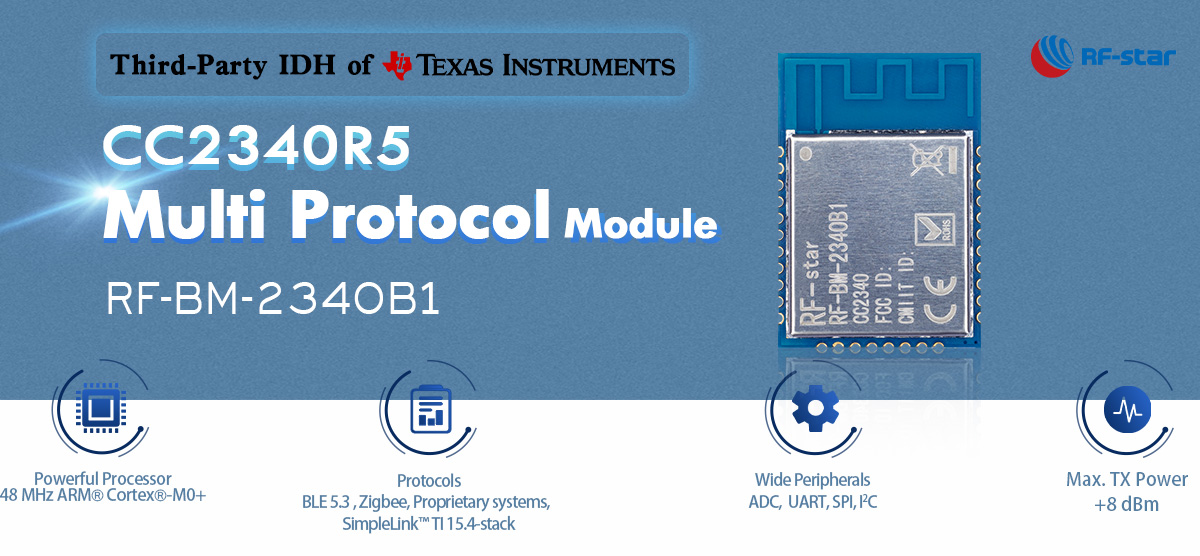

RF-BM-2340B1 BLE5.3 Module

RF-BM-2340B1 is new developed BLE5.3 module based on TI CC2340R5. The module enables you to embed the BLE to any application easily and quickly. It also supports ZigBee 3.0, which makes wireless connectivity possible in a wide range of scenarios.

  • P/N:

    RF-BM-2340B1
  • SoC:

    CC2340R5
  • Processor:

    48 MHz ARM® Cortex®-M0+
  • Protocols:

    Bluetooth 5.3 Low Energy, Zigbee 3.0, SimpleLinkTM TI 15.4-stack, Proprietary system
  • Working Frequency:

    2402 MHz ~ 2480 MHz

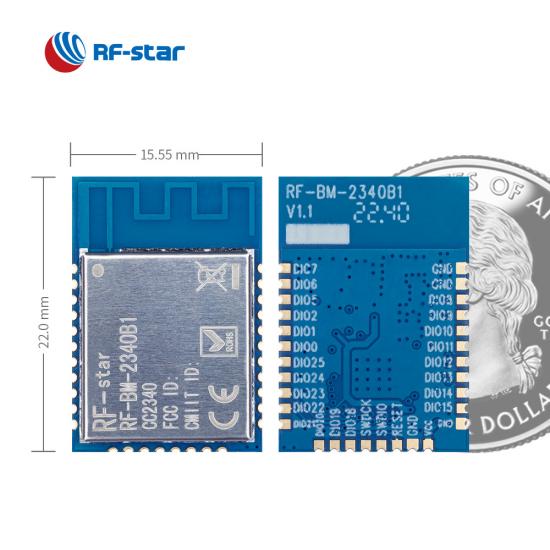

  • Package (mm):

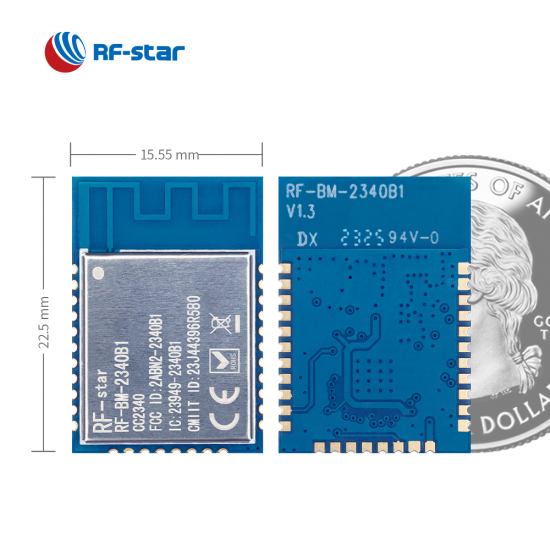

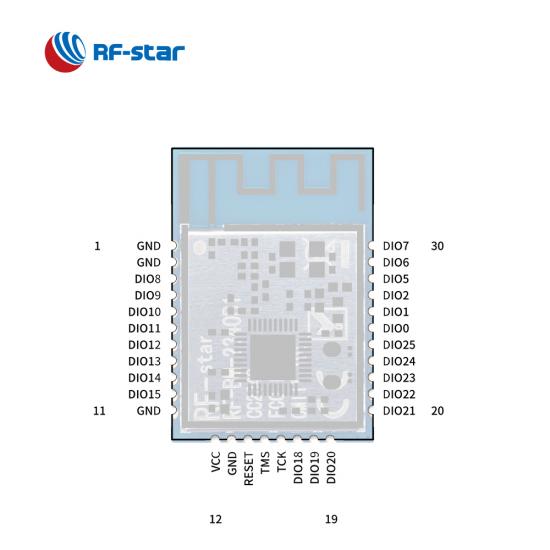

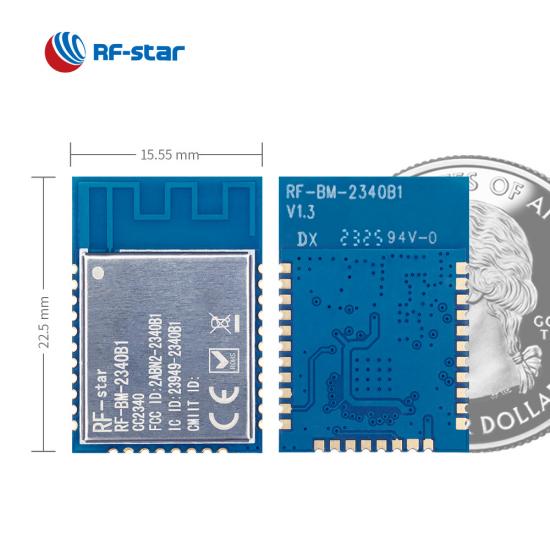

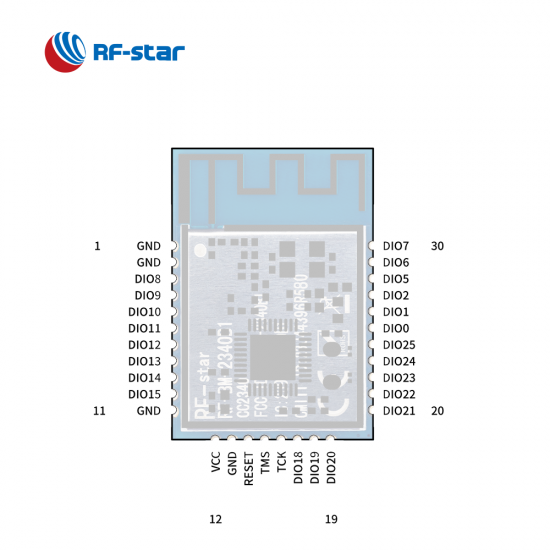

    22.5 × 15.55 × 2.1, half-hole, 1.27 pitch, 30-pin
  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Direction finding, Bluetooth mesh (low power node), ZigBee
  • GPIO:

    24
  • Max. TX Power:

    +8 dBm
  • Transmission Range:

    130 m @ 1M PHY, 180 m @ LE Coded PHY, 500 m @ 802.15.4

RF-BM-2340B1 is a wireless module based on TI new released series CC2340Rx. The module integrated a powerful 48 MHz ARM® Cortex®-M0+ processor, a matching, a high-performance onboard inverted-F PCB antenna, and the rich resources of memory. The up to 8 dBm TX power enable the module to be able to more applications with high requirements and longer range. It not only supports the Bluetooth 5.3 Low Energy, but ZigBee 3.0, SimpleLinkTM TI 15.4-stack, and Proprietary system. RF-star embeds the BLE5.0 UART transparent transmission protocol, which makes it easy for your design and development.

- Applications -

· Electronic Shelf Label

· Wearable fitness & activity monitor

· Electric toothbrush

· Blood pressure monitor

· Keyboards and keypads

· Electronic and robotic toys



Wireless SoC:


  • 48 MHz ARM® Cortex®-M0+ processor

  • TX power: Up to +8 dBm
  • Sensitivity:
    • -96 dBm @ 802.15.4 (2.4 GHz)

    • -102 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)


  • Memory
    • 512 kB flash
    • 12 kB ROM
    • 36 KB SRAM


  • Data Rate

    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)




Features:


  • Bluetooth 5.3 Low Energy

  • Zigbee 3.0

  • Proprietary

  • Bluetooth Mesh(low power node)

  • SimpleLinkTM TI 15.4-stack





Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • ADC
  • UART
  • SPI
  • I2C
  • RTC
