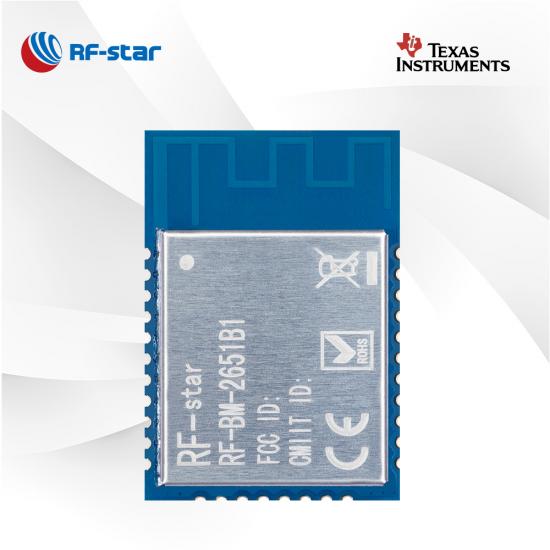

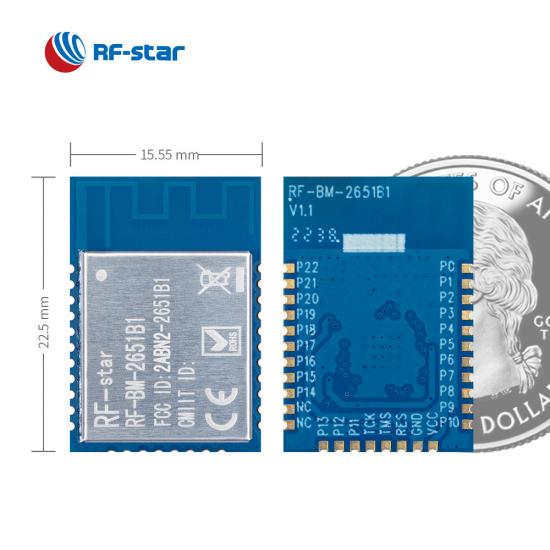

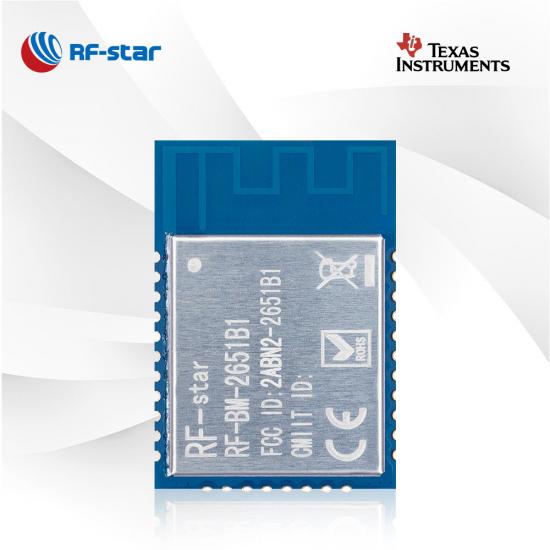

RF-BM-2651B1 CC2651R3 Module

RF-BM-2651B1 is a single protocol module designed for lower-power wireless communication and advanced sensing IoT products. It supports BLE5.3, ZigBee, IEEE 802.15.4g, TI 15.4-stack(2.4 GHz). RF-BM-2651B1 is RF module which enables a higher requirements application with a relatively lower cost.

  • P/N:

    RF-BM-2651B1

  • SoC:

    CC2651R3

  • Processor:

    48 MHz ARM® Cortex®-M4

  • Protocols:

    Bluetooth 5.3 Low Energy, ZigBee 3.0, IEEE 802.15.4, TI 15.4-stack(2.4 GHz)

  • Working Frequency:

    2402 MHz ~ 2480 MHz

  • Package (mm):

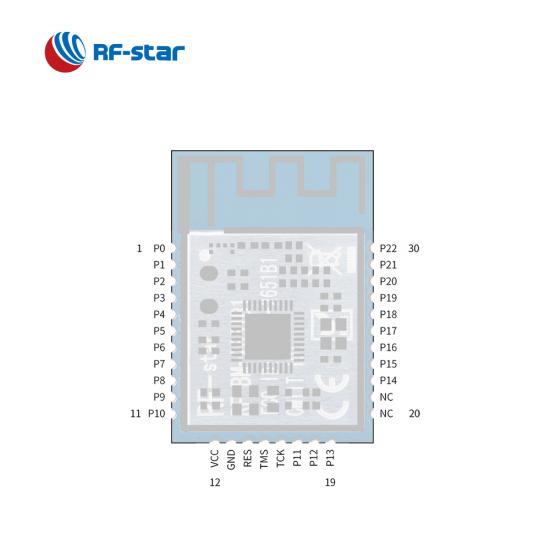

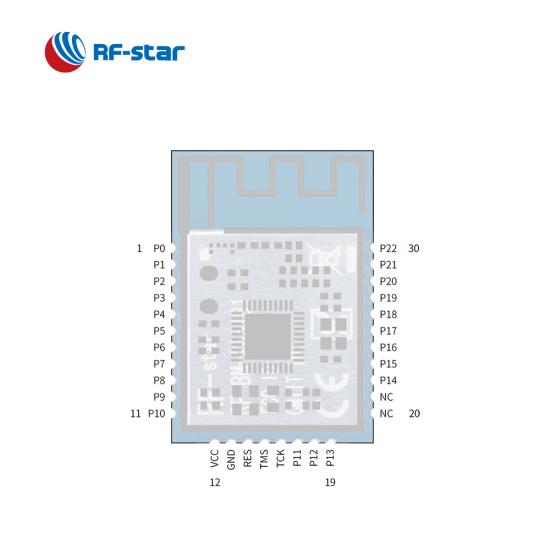

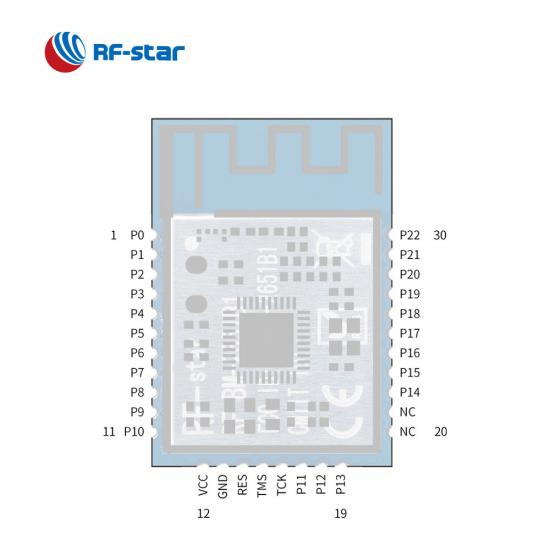

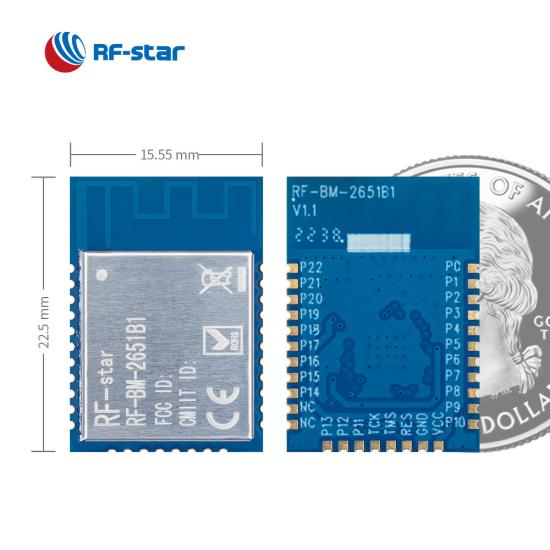

    22.5 × 15.55 × 2.3, half-hole, 1.27 pitch, 30-pin

  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Bluetooth mesh, Zigbee coordinator, Zigbee network processor, Sleepy end device, OAD

  • GPIO:

    23

  • Max. TX Power:

    +5 dBm

  • Transmission Range:

    150 m (@BLE), 300 m (@ZigBee)
Inquiry Now

RF-BM-2651B1 single-protocol module is based on TI with a powerful processor of 48 MHz ARM® Cortex®-M4. The module integrates a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 40 kB RAM, and a high-performance PCB onboard antenna. The high RF performance enables it well embedded in the grid infrastructure, medical applications, and retail automation.

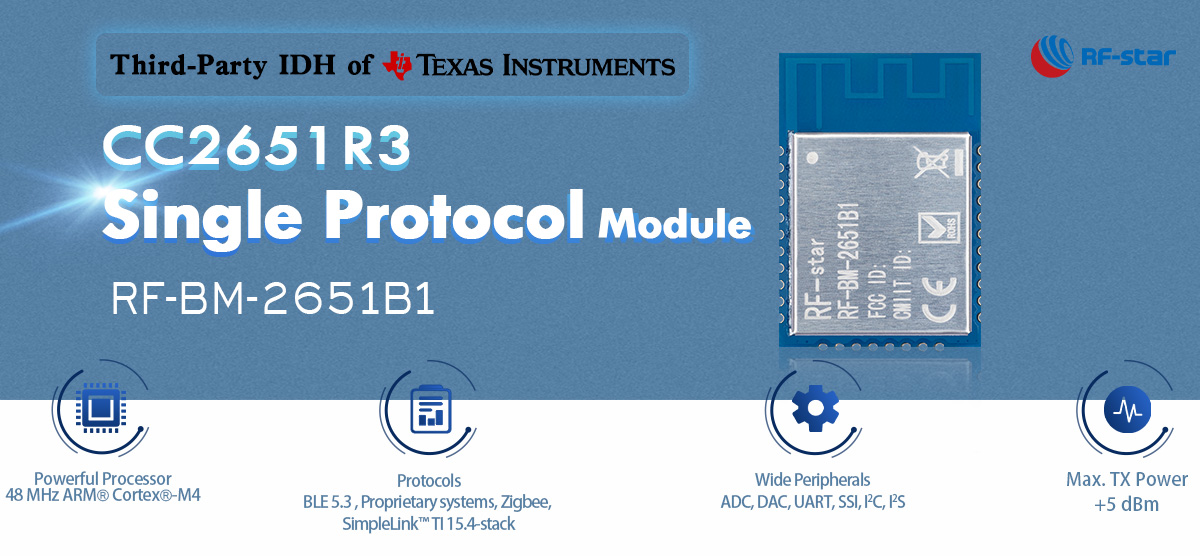

CC2651R3 Single Protocol Module RF-BM-2651B1


- Applications -

· Motion detector

· Medical

· Electronic Shelf Label

· Industrial transport

· Smart tracker

· Fire alarm control panel

Applications of CC2651R3 Single Protocol Module RF-BM-2651B1

Related Resources:

2.4 GHz Module Based on CC2651R3 SoC -- RF-BM-2651B1

Wireless SoC:

  • 48 MHz ARM® Cortex®-M4 processor

  • TX power: Up to +5 dBm
  • Sensitivity:

    • 100 dBm @ 802.15.4 (2.4 GHz)

    • - 104 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)

  • Memory
    • 352 kB flash
    • 8 kB RAM

  • Data Rate

    • LE 1M PHY

    • LE 2M PHY

    • LE Coded PHY (long range)



Features:

  • ZigBee

  • Bluetooth 5.3 Low Energy

  • SimpleLink TI 15.4-stack

  • Proprietary systems

Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:

  • DAC
  • SSI
  • ADC
  • UART
  • I2C
  • I2S







TI SimpleLink CC265xR Series Multi-Protocol Modules
Part Number RF-BM-2652RB2 RF-BM-2652B2 RF-BM-2652B1 RF-BM-2651B1
Photo CC2652RB RF-BM-2652-RB2 Multi-protocol module CC2652R7 RF-BM-2652-B2 Multi-protocol module CC2652R RF-BM-2652-B1 Multi-protocol module CCC2651R3 RF-BM-2651B1 Multi-protocol module
IC CC2652RB CC2652R7 CC2652R CC2651R3
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F
Antenna Chip PCB PCB PCB
RAM 88 KB 152 KB 88 KB 40 KB
Flash 352 KB 704 KB 352 KB 352 KB
Protocols Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) ZigBee, BLE5.3, SimpleLink™ TI 15.4 stack (2.4 GHz), proprietary systems
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +5 dBm +5 dBm +5 dBm +5 dBm
Receiving Sensitivity -100 dBm @ 802.15.4 (2.4 GHz) -102 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY
GPIO 34 31 31 23
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 50 m @ 1M PHY 70 m @LE Coded 200 m @ 802.15.4 110 m @ 1M PHY 165 m @LE Coded PHY 400 m @ 802.15.4 110 m @ 1M PHY 160 m @LE Coded PHY 400 m @ 802.15.4 110 m @ 1M PHY 160 m @LE Coded PHY 400 m @ 802.15.4
Dimension (mm) 16.0 x 16.0 x 2.0 23.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 22.5 x 15.55 x 2.3
Package 0.6-mm & 1.20-mm pitch BGA 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √
Bluetooth Mesh √ √ √ √
Long Range √ √ √ √
2Mbps PHY √ √ √ √
AoA/AoD √ √ √ √
UART Protocol N/A N/A N/A N/A
Application Home area network Industrial transport, health care Consumer electronics, smart sensors Access control, IP network camera
