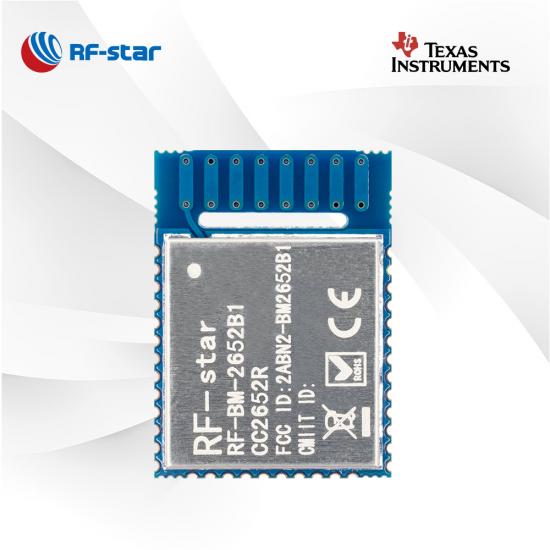

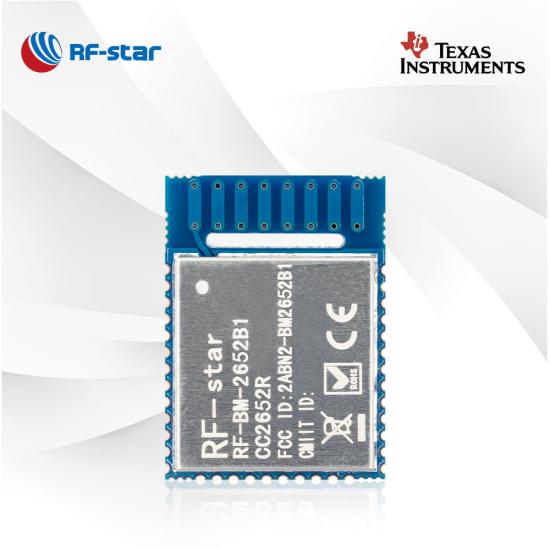

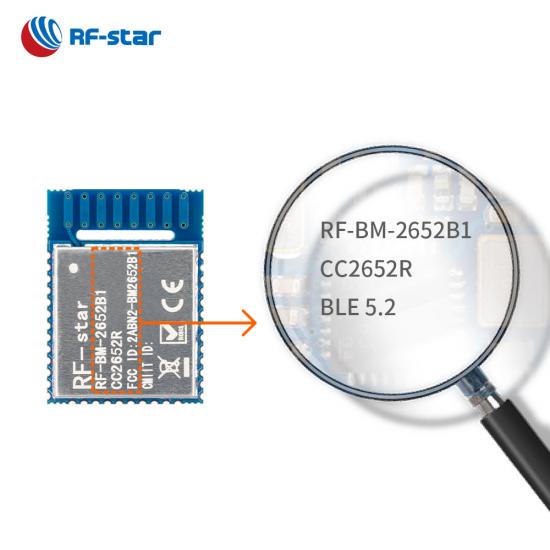

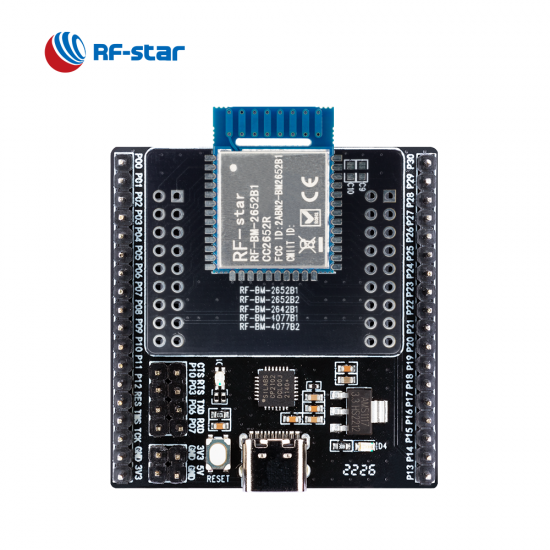

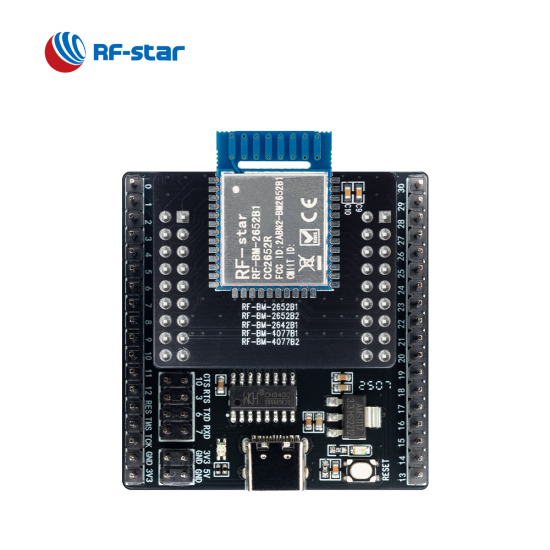

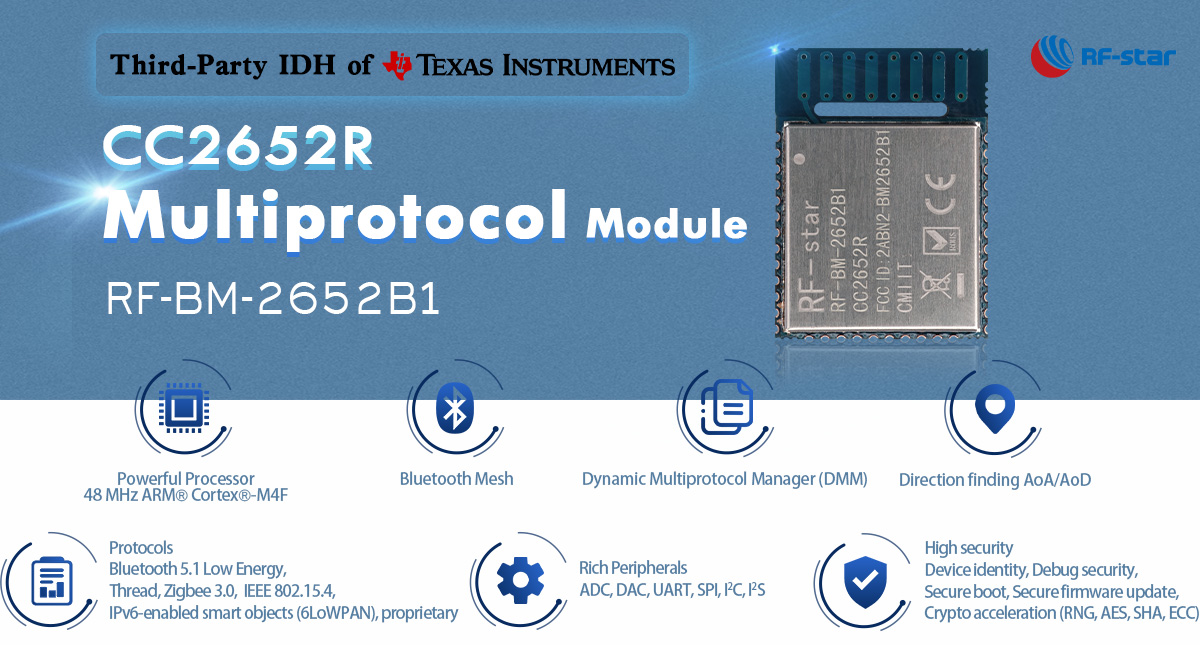

Ultra Low Power BLE5.1 CC2652R Module RF-BM-2652B1

RF-BM-2652B1 is a multi-protocol module designed for the high-performance requirements of IoT products. It integrates BLE 5.1, ZigBee, Thread  IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), and proprietary. RF-BM-2652B1 will be one of the optimized multiprotocol modules for low-power wireless communication and advanced sensing applications.

  • P/N:

    RF-BM-2652B1
  • SoC:

    CC2652R
  • Processor:

    48 MHz ARM® Cortex®-M4F
  • Protocols:

    Bluetooth 5.1 Low Energy, Thread, Zigbee 3.0,  IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

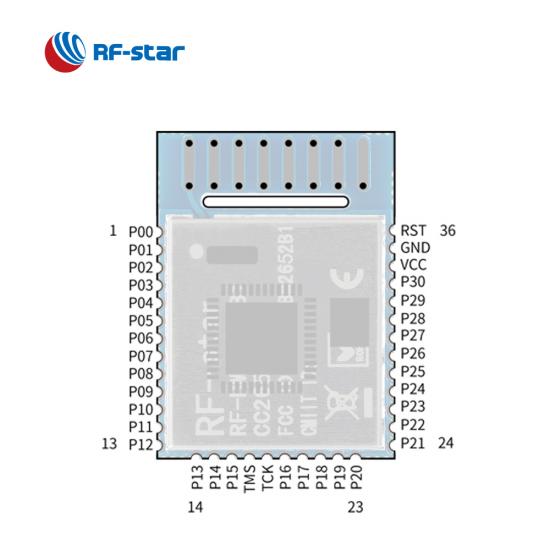

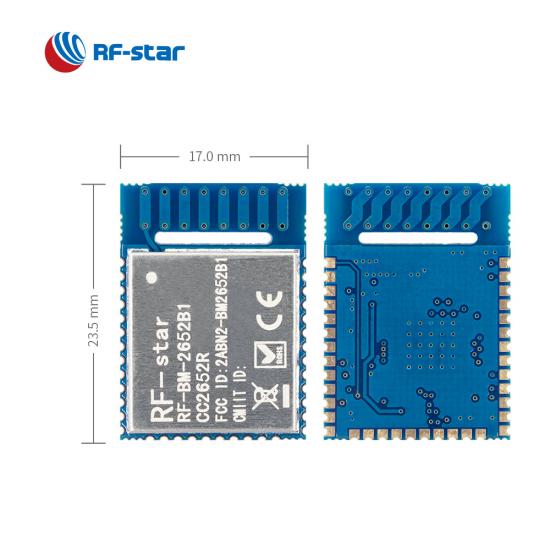

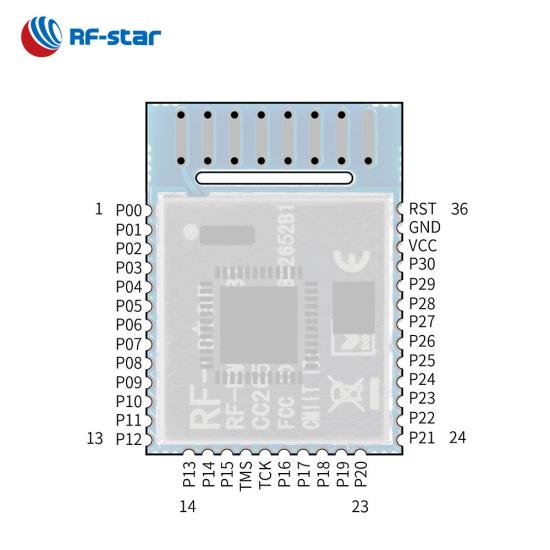

    23.5 × 17.0 × 2.2, half-hole, 1.27 pitch, 36-pin
  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), Direction finding, Bluetooth mesh, Zigbee coordinator, Zigbee network processor
  • GPIO:

    31
  • Max. TX Power:

    +5 dBm
  • Transmission Range:

    150 m (@BLE), 300 m (@ZigBee)

RF-BM-2652B1 multiprotocol module is based on a powerful processor of 48 MHz ARM® Cortex®-M4F. The module integrates a 48 MHz crystal, a 32.768 kHz crystal, 352 kB Flash, 256 kB ROM, an LC filter, and a high-performance PCB onboard antenna. The main IC CC2652R enables the module to work in applications with longer battery life and advanced sensing performance requirements. Using SimpleLink MCU platform, you can develop your protocol. The module supports concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver, which can achieve the different protocols working at the same time. The powerful function can make it a great job on the gateway.

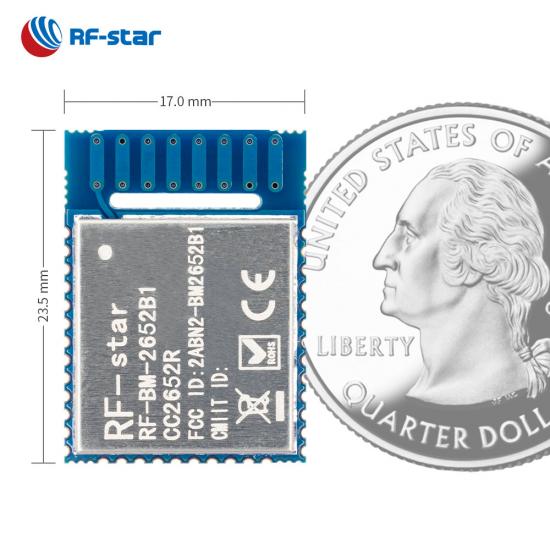

BLE5.1 CC2652R Module


- BLE 5.0 Transparent Transmission (Bridge) Protocol -

· Several roles: Master, Slave, Master-slave, Beacon

· Multi-connections: One Master & Seven Slaves at the same time

· Custom Service UUID

· User Authentication

· Automatic reconnection

BLE 5.0 Transparent Transmission


- Applications -

· Zigbee coordinator

· Zigbee network processor

· Sleepy end device

· Border router

· HVAC

· Portable electronics

IoT Applications


- Product Display -

Wireless SoC:


  • 48 MHz ARM® Cortex®-M4F processor
  • TX power: Up to +5 dBm
  • Sensitivity:
    • -100 dBm @ 802.15.4 (2.4 GHz)
    • -105 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)
  • Memory:
    • 352 kB flash
    • 256 kB ROM
    • 80 kB SRAM
  • Data Rate:
    • LE 1M PHY
    • LE 2M PHY
  • LE Coded PHY (long range)


Features:


  • Bluetooth 5.1 Low Energy

  • Thread
  • Zigbee 3.0
  • IEEE 802.15.4
  • IPv6-enabled smart objects (6LoWPAN)
  • Proprietary
  • Bluetooth Mesh
  • Direction Finding


Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C




Rich Peripherals:


  • ADC
  • DAC
  • UART
  • SPI
  • I²C
  • I²S


TI SimpleLink Series Multi-Protocol Modules (Table 1)
Part Number RF-TI1352P2 RF-TI1352P1 RF-TI1352B1 RF-BM-2340B1I RF-BM-2340B1 RF-BM-2652P7 RF-BM-2652P4I RF-BM-2652P4
Photo TAB TAB TAB TAB
IC CC1352P7 CC1352P CC1352R CC2340R5 CC2340R5 CC2652P7 CC2652P7 CC2652P7
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F
Antenna IPEX Half-hole interface IPEX IPEX PCB PCB IPEX/Half-hole interface PCB
RAM 152 KB 88 KB 88 KB 36 KB 36 KB 152 KB 152 KB 152 KB
Flash 704 KB 352 KB 352 KB 512 KB 512 KB 704 KB 704 KB 704 KB
Protocols Thread, ZigBee, Matter, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz)
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MH, 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +20 dBm +20 dBm +14 dBm @ Sub-1 GHz +5 dBm @ 2.4 GHz +8 dBm +8 dBm +20 dBm +20 dBm +20 dBm
Receiving Sensitivity –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @ 50 Kbps Sub-1G –104 dBm @125 kbps LE Coded PHY –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @Sub-1G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @Sub G (Long-Range Mode) –110 dBm @Sub G (50 Kbps) –105 dBm @125 kbps LE Coded PHY -96 dBm @ 802.15.4 (2.4 GHz) -102 dBm @ 125 kbps BLE Coded PHY -96 dBm @ 802.15.4 (2.4 GHz) -102 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY
GPIO 23 23 28 24 24 20 23 23
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range - 180 m @ 1M PHY (external PCB antenna) 230 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 1400 m @ Sub-1G (external glue stick antenna) 120 m @ 1M PHY (external PCB antenna) 180 m @ LE Coded PHY (external PCB antenna) 900 m @ 802.15.4 (external glue stick antenna) 900 m @ Sub-1G (external glue stick antenna) 150 m @ 1M PHY (external PCB antenna) 220 m @ LE Coded PHY (external PCB antenna) 600 m @ 802.15.4 (external glue stick antenna) 130 m @ 1M PHY 180 m @ LE Coded PHY 500 m @ 802.15.4 150 m @ 1M PHY 220 m @ LE Coded PHY 700 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4
Dimension (mm) - 25.0 x 16.4 x 2.2 26.5 x 16.8 x 2.2 22.0 x 15.55 x 2.1 22.0 x 15.55 x 2.1 22.0 x 17.0 x 2.2 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh
Long Range
2Mbps PHY
AoA/AoD × × ×
UART Protocol N/A N/A N/A N/A N/A N/A N/A N/A
Application Wireless M-Bus, energy-harvesting Smart agriculture, sensor control Smart grid, industrial monitoring and control Medical device, ESL Medical device, ESL Fire safety system, home appliances Smart home gateway, building automation Home automation, fire alarm control panel (FACP)
TI SimpleLink Series Multi-Protocol Modules (Table 2)
Part Number RF-BM-2652P3 RF-BM-2652P2I RF-BM-2652P2 RF-BM-2652P1 RF-BM-2652RB2 RF-BM-2652B2 RF-BM-2652B1 RF-BM-2651B1
Photo TAB
IC CC2652P CC2652P CC2652P CC2652P CC2652RB CC2652R7 CC2652R CC2651R3
Core 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F
Antenna PCB IPEX/Half-hole interface PCB Half-hole interface Chip PCB PCB PCB
RAM 88 KB 88 KB 88 KB 88 KB 88 KB 152 KB 88 KB 40 KB
Flash 352 KB 352 KB 352 KB 352 KB 352 KB 704 KB 352 KB 352 KB
Protocols Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4, 6LoWPAN, proprietary systems, SimpleLink™ TI 15.4 stack (2.4 GHz) ZigBee, BLE5.3, SimpleLink™ TI 15.4-stack, Proprietary systems
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +20 dBm +20 dBm +20 dBm +20 dBm +5 dBm +5 dBm +5 dBm +5 dBm
Receiving Sensitivity -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -102 dBm @ 125 kbps BLE Coded PHY -99 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -105 dBm @ 125 kbps BLE Coded PHY -100 dBm @ 802.15.4 (2.4 GHz) -104 dBm @ 125 kbps BLE Coded PHY
GPIO 11 23 23 23 34 31 31 31
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 150 m @ 1M PHY 220 m @ LE Coded PHY 600 m @ 802.15.4 180 m @ 1M PHY (external PCB antenna) 240 m @ LE Coded PHY (external PCB antenna) 1200 m @ 802.15.4 (external glue stick antenna) 50 m @ 1M PHY 70 m @LE Coded 200 m @ 802.15.4 110 m @ 1M PHY 165 m @LE Coded PHY 400 m @ 802.15.4 110 m @ 1M PHY 160 m @LE Coded PHY 400 m @ 802.15.4 110 m @ 1M PHY 160 m @LE Coded PHY 400 m @ 802.15.4
Dimension (mm) 24.0 x 16.0 x 2.1 30.0 x 16.4 x 2.2 30.0 x 16.4 x 2.2 25.0 x 16.4 x 2.2 16.0 x 16.0 x 2.0 23.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2 23.5 x 17.0 x 2.2
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 0.6-mm & 1.20-mm pitch BGA 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh
Long Range
2Mbps PHY
AoA/AoD ×
UART Protocol N/A N/A N/A N/A N/A N/A N/A N/A
Application Smoke and heat detector, asset tracking Factory automation and control, building security systems Security systems, gateway Smart grid, wireless sensor networks Home area network Industrial transport, health care Consumer electronics, smart sensors Access control, IP network camera
