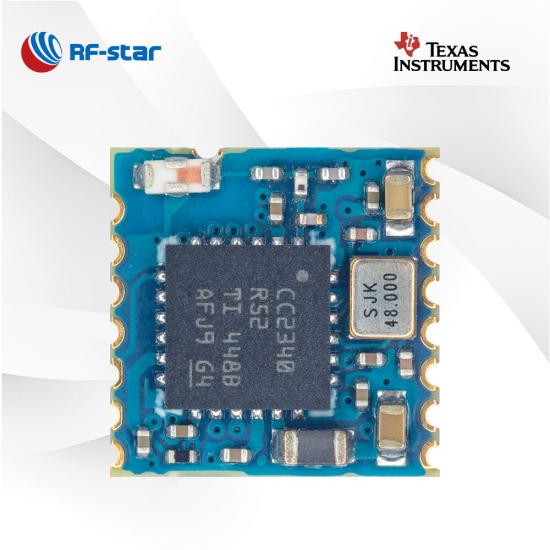

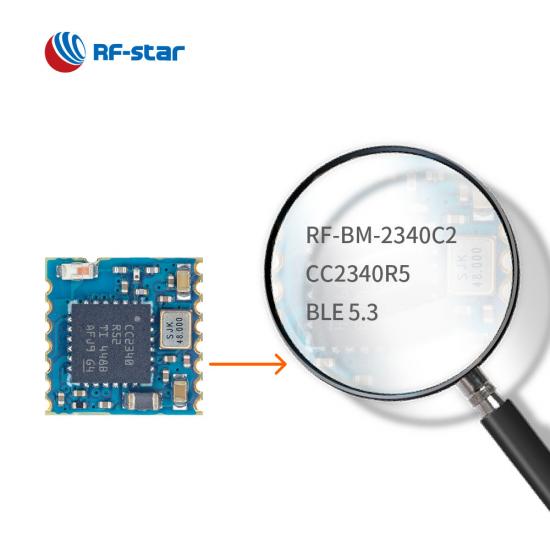

Multi-protocol CC2340R5 Module RF-BM-2340C2 with Mini Size

RF-BM-2340C2 is a Multi-protocol module aimed at the high-performance requirements of IoT products, which doesn't support only Bluetooth Low Energy, but also ZigBee 3.0 and 2.4GHz Proprietary system.The CC2340R5 module with mini size is designed to meet the needs of a wide range of applications. Select RF-BM-2340C2 CC2340R5 Multi-protocol module for your projects.

  • P/N:

    RF-BM-2340C2
  • SoC:

    CC2340R5
  • Processor:

    48 MHz ARM® Cortex®-M0+
  • Protocols:

    Bluetooth 5.3 Low Energy, Zigbee 3.0, SimpleLinkTM TI 15.4-stack, Proprietary system
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

    8.0 x 8.0 x 1.5, half-hole, 1.27 pitch, 18-pin
  • Features:

    Direction finding AoA/AoD, Bluetooth mesh (low power node), ZigBee, Chip antenna

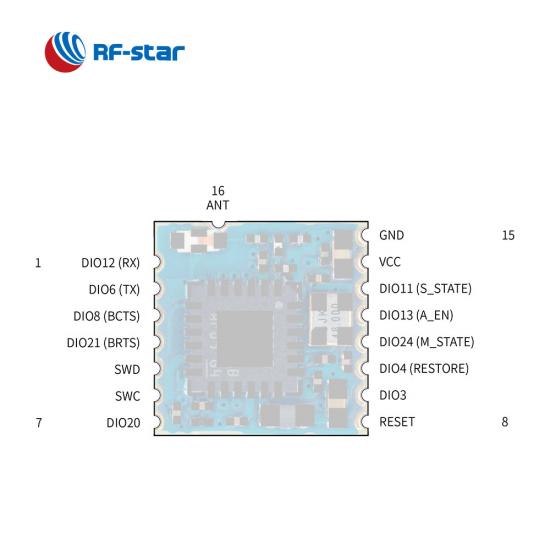

  • GPIO:

    12
  • Max. TX Power:

    +8 dBm
  • Transmission Range:

    50 m @ 1M PHY, 80 m @ LE Coded PHY

RF-BM-2340C2, a new-arrival multi-protocol module of CC2340Rx modules, is also a Bluetooth low energy (BLE) module compatible with ZigBee 3.0, SimpleLinkTM TI 15.4-stack, and Proprietary system. These highlights, such as a powerful 48 MHz ARM® Cortex®-M0+ processor, an in-system programmable flash of 512 KB, an ultra-low leakage SRAM of 36 KB, up to 12 GPIOs, etc., enable the CC2340R5 module with chip antenna to have high reliability and high anti-interference capability. Many advanced peripherals, e.g. ADC, UART, SPI, I2C, and RTC, let the BLE module have more opportunities to work in different applications. The module can be equipped with a transparent transmission protocol, making it more compatible with applications that have a primary MCU.

Features of TI CC2340R5 Multi-protocol Module RF-BM-2340C2

Two RF Output Modes

With two different RF output modes, a half-hole ANT RF pin and a Chip antenna are available to satisfy your project’s needs.

Rich Peripherals

One of the CC2340R5 modules also supports rich peripherals such as UART, SPI, I2C, ADC, etc. It offers 12 GPIOs in the the small package.

Serial Port (UART) Protocol

RF-BM-2340C2 is embedded with the BLE5.0 transparent transmission protocol (serial port protocol) to realize rich functions with AT commands.

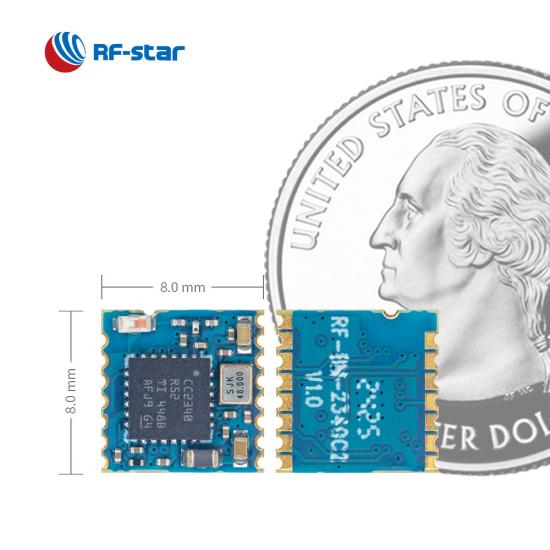

Compact Size

The tiny size of the RF-BM-2340C2 module with an 8 mm x 8 mm stamp half-hole package makes you embed it into a space-constrained application.

High-Performance RF

RF-BM-2340C2 offers high-performance radio frequency with an output power of up to +8 dBm and premium receiving sensitivity of -96 dBm for BLE 1 Mb/s and -102 dBm for BLE Coded PHY 125 kbps.



- Related Video -


Reference Resource:

Affordable CC2340R5 Bluetooth 5.3 Modules - In Stock Now

Intorduction of CC2340 Series Ultra-Low Power BLE Module RF-BM-2340B1

Comparison in CC2340 Bluetooth LE modules

Wireless SoC:

  • 48 MHz ARM® Cortex®-M0+ processor

  • TX power: Up to +8 dBm
  • Sensitivity:
    • -96 dBm @ 802.15.4 (2.4 GHz)

    • -102 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)

  • Memory
    • 512 kB flash
    • 12 kB ROM
    • 36 KB SRAM
  • Data Rate

    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)



Protocols:

  • Bluetooth 5.3 Low Energy

  • Zigbee 3.0

  • Proprietary

  • Bluetooth Mesh(low power node)

  • SimpleLink TMTI 15.4-stack


Operating Range:

  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:

  • ADC
  • UART
  • SPI
  • I2C
  • RTC
TI SimpleLink CC2340 Series Multi-Protocol Modules
Part Number RF-BM-2340B1 RF-BM-2340B1I RF-BM-2340A2 RF-BM-2340A2I RF-BM-2340C2
RF-BM-2340B1I CC2340R5 BLE module
RF-BM-2340A2 CC2340R5 BLE module
RF-BM-2340A2I CC2340R5 BLE module
RF-BM-2340C2 CC2340R5 BLE module
IC CC2340R5 CC2340R5 CC2340R5 CC2340R5 CC2340R5
Core 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+
Antenna PCB IPEX/Half-hole interface IPEX IPEX/Half-hole interface Chip/Half-hole interface
RAM 36 KB 36 KB 36KB 36 KB 36 KB
Flash 512 KB 512 KB 512 KB 512 KB 512 KB
Protocols BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems
Power Supply 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V 1.8 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm
Receiving Sensitivity

–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps

–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps
–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps
–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps
–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps
GPIO 24 24 12 12 12
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 130 m @ 1M PHY 180 m @ LE Coded PHY


150 m @ 1M PHY (external PCB antenna) 220 m @ LE Coded PHY (external PCB antenna)  130 m @ 1M PHY 180 m @ LE Coded PHY


150 m @ 1M PHY (external PCB antenna) 220 m @ LE Coded PHY (external PCB antenna) 50 m @ 1M PHY

80 m @ LE Coded PHY

Dimension (mm) 22.0 x 15.55 x 2.1 22.0 x 15.55 x 2.1 16.6 x 11.2 x 2.1 15.2 x 11.2 x 2.1 8.0 x 8.0 x 1.82
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh
Long Range
2Mbps PHY
AoA/AoD SDK is under planning SDK is under planning SDK is under planning SDK is under planning SDK is under planning
UART Protocol BLE√ BLE√ BLE√ BLE√ BLE√
Application Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL
