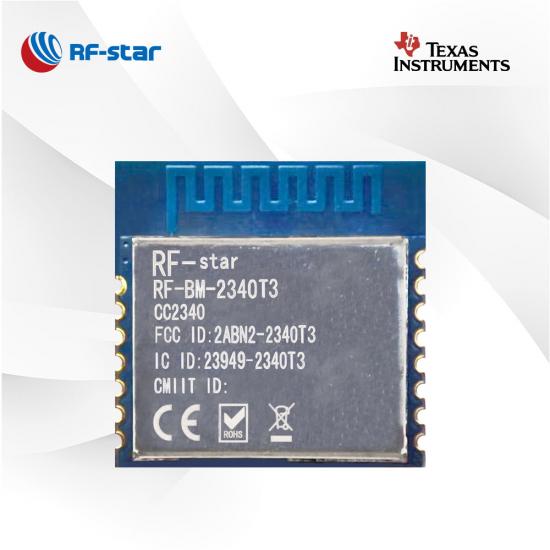

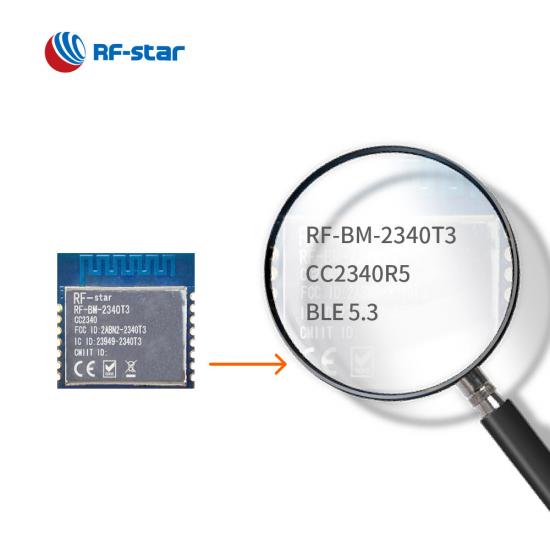

Small CC2340 2.4GHz RF Transceiver Module RF-BM-2340T3 Compatible with BLE 5.3

  • Bluetooth CC2340 RF Transceiver Module RF-BM-2340T3
  • Bluetooth CC2340 RF Transceiver Module RF-BM-2340T3
  • Bluetooth CC2340 RF Transceiver Module RF-BM-2340T3
  • Bluetooth CC2340 RF Transceiver Module RF-BM-2340T3

Small CC2340 2.4GHz RF Transceiver Module RF-BM-2340T3 Compatible with BLE 5.3

RF-BM-2340T3 is a compact 2.4GHz wireless transceiver module targeting BLE5.3 and Proprietary 2.4 GHz applications. As a member of CC2340R5 series, its 8 dBm TX power, universal interfaces, embedded UART serial sort protocol, and high-performance onboard PCB antenna provides a low-cost but high-quality Bluetooth connectivity for various scenarios.

  • P/N:

    RF-BM-2340T3

  • SoC:

    CC2340R5

  • Processor:

    48 MHz ARM® Cortex®-M0+

  • Protocols:

    Bluetooth 5.3 Low Energy, Zigbee 3.0, SimpleLinkTM TI 15.4-stack, Proprietary system

  • Working Frequency:

    2402 MHz ~ 2480 MHz

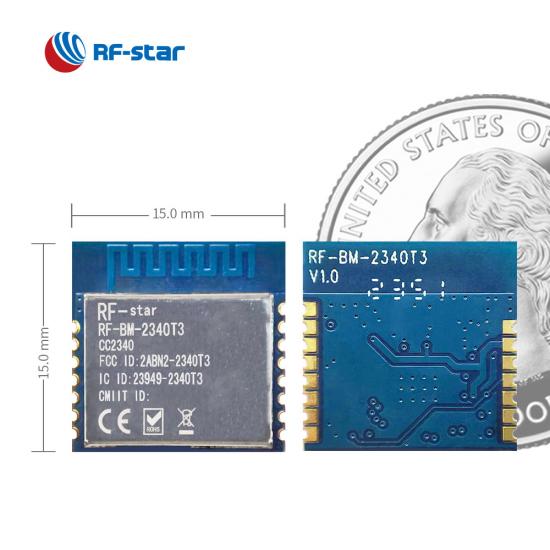

  • Package (mm):

    15 × 15× 2,half-hole, 1.27 pitch, 14-pin

  • Features:

    LE 1M PHY, LE 2M PHY, LE Coded PHY (long range), OTA

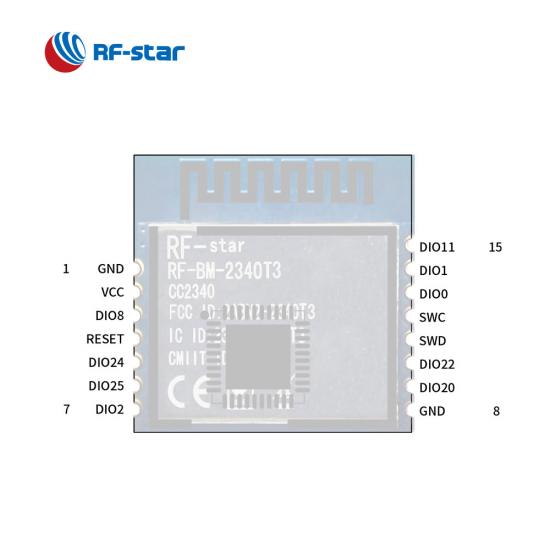

  • GPIO:

    11

  • Max. TX Power:

    +8 dBm

  • Transmission Range:

    130 m @ 1M PHY, 180 m @ LE Coded PHY
Inquiry Now

RF-BM-2340T3 is a 2.4GHz wireless module based on TI CC2340R5 chipset which supports Bluetooth 5.3 low energy (BLE), ZigBee 3.0, SimpleLinkTM TI 15.4-stack, and Proprietary system. The Bluetooth 5.3 transceiver module has a 48 MHz crystal, 512 KB of in-system Programmable Flash, 12 KB ROM for bootloader, and 36 KB of ultra-low leakage SRAM. Its powerful ARM® Cortex®-M0+ core processor can operate at an extremely low current at flexible power modes. Besides, the embedded Bluetooth UART serial port protocol and compact package helps you to create a space-constrained project quickly.


ZigBee protocol and Bluetooth Channel Sounding will be available in a future SDK. With the upcoming features, the CC2340 wireless modules are shining in the Building automation, asset tracking, medical devices and more location services.

CC2340R5 Multi Protocol Module RF-BM-2340T3

Reference Resource:

Affordable CC2340R5 Bluetooth 5.3 Modules - In Stock Now

Intorduction of CC2340 Series Ultra-Low Power BLE Module RF-BM-2340B1

Comparison in CC2340 Bluetooth LE modules



Wireless SoC:

  • 48 MHz ARM® Cortex®-M0+ processor

  • TX power: Up to +8 dBm
  • Sensitivity:

    • -96 dBm @ 802.15.4 (2.4 GHz)

    • -102 dBm @ Bluetooth 5.0 (LE Coded PHY) (125 kbps)

  • Memory
    • 512 kB flash
    • 12 kB ROM
    • 36 KB SRAM

  • Data Rate

    • LE 1M PHY
    • LE 2M PHY
    • LE Coded PHY (long range)



Protocols:

  • Bluetooth 5.3 Low Energy

  • Zigbee 3.0

  • Proprietary

  • SimpleLink TMTI 15.4-stack


Operating Range:

  • Supply voltage range 1.71 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:

  • ADC
  • UART
  • SPI
  • I2C
TI SimpleLink CC2340 Series Multi-Protocol Modules
Part Number RF-BM-2340B1 RF-BM-2340B1I RF-BM-2340A2 RF-BM-2340A2I RF-BM-2340C2
RF-BM-2340B1I CC2340R5 BLE module
 RF-BM-2340A2 CC2340R5 BLE module
 RF-BM-2340A2I CC2340R5 BLE module
 RF-BM-2340C2 CC2340R5 BLE module
IC CC2340R5 CC2340R5 CC2340R5 CC2340R5 CC2340R5
Core 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+
Antenna PCB IPEX/Half-hole interface IPEX IPEX/Half-hole interface Chip/Half-hole interface
RAM 36 KB 36 KB 36KB 36 KB 36 KB
Flash 512 KB 512 KB 512 KB 512 KB 512 KB
Protocols BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems BLE5.3, ZigBee, SimpleLink™ TI 15.4-stack, Proprietary systems
Power Supply 1.71 V ~ 3.8 V, recommend to 3.3 V 1.71 V ~ 3.8 V, recommend to 3.3 V 1.71 V ~ 3.8 V, recommend to 3.3 V 1.71 V ~ 3.8 V, recommend to 3.3 V 1.71 V ~ 3.8 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm
Receiving Sensitivity

–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps

–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps 		–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps 		–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps 		–102 dBm for 125 kbps LE Coded PHY
-96.5 dBm for BLE 1 Mbps
GPIO 24 24 12 12 12
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 130 m @ 1M PHY 180 m @ LE Coded PHY


150 m @ 1M PHY (external PCB antenna) 220 m @ LE Coded PHY (external PCB antenna)  130 m @ 1M PHY 180 m @ LE Coded PHY


150 m @ 1M PHY (external PCB antenna) 220 m @ LE Coded PHY (external PCB antenna) 50 m @ 1M PHY

80 m @ LE Coded PHY

Dimension (mm) 22.0 x 15.55 x 2.1 22.0 x 15.55 x 2.1 16.6 x 11.2 x 2.1 15.2 x 11.2 x 2.1 8.0 x 8.0 x 1.82
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA √ √ √ √ √
Bluetooth Mesh √ √ √ √ √
Long Range √ √ √ √ √
2Mbps PHY √ √ √ √ √
AoA/AoD SDK is under planning SDK is under planning SDK is under planning SDK is under planning SDK is under planning
UART Protocol BLE√ BLE√ BLE√ BLE√ BLE√
Application Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL Medical device, ESL
