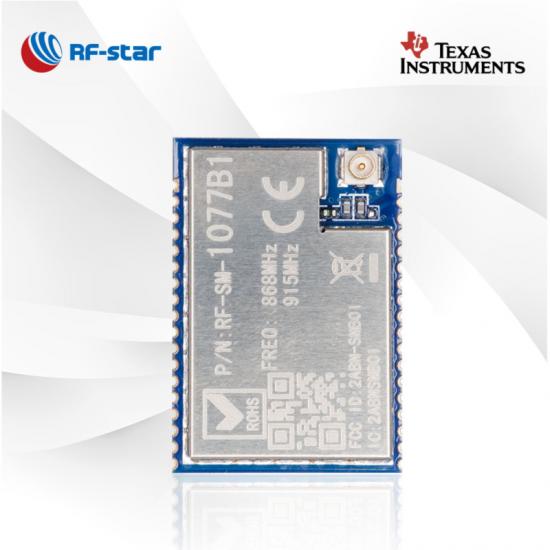

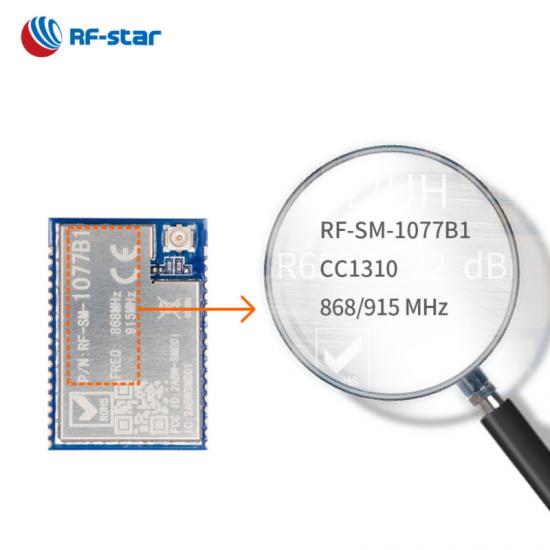

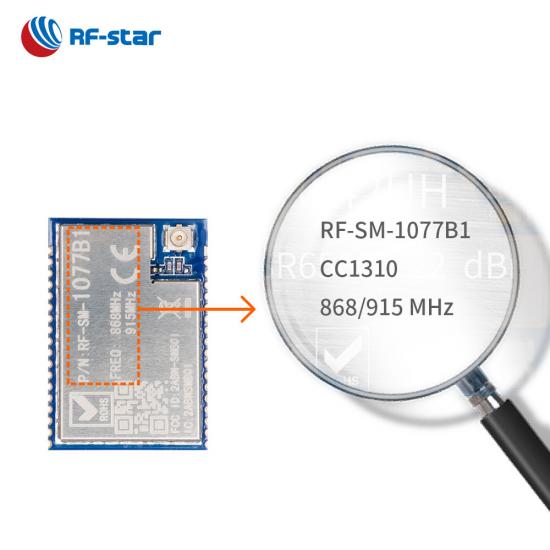

CC1310 Sub-1G Module Supporting 868 MHz & 915 MHz RF-SM-1077B1

RF-SM-1077B1 is a CC1310 module working under the sub-1GHz frequency supporting 868MHz and 915MHz. The Sub-1G module is targeted at long range and low power consumption applications. It is widely used in the sensor monitoring market. Choose 868 MHz - 915 MHz transceiver&transmitter RF-SM-1077B1 to simplify your end devices.

  • P/N:

    RF-SM-1077B1
  • SoC:

    CC1310
  • Processor:

    48 MHz Arm® Cortex®-M3
  • Protocols:

    IEEE 802.15.4, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY
  • Working Frequency:

    718 MHz ~ 878 MHz, 861 MHz ~ 1054 MHz
  • Package (mm):

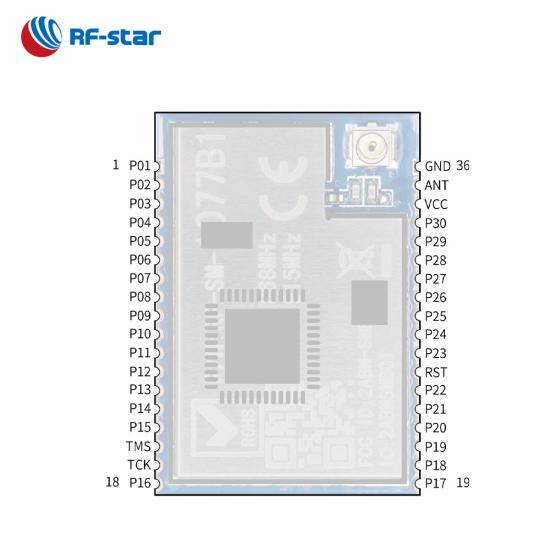

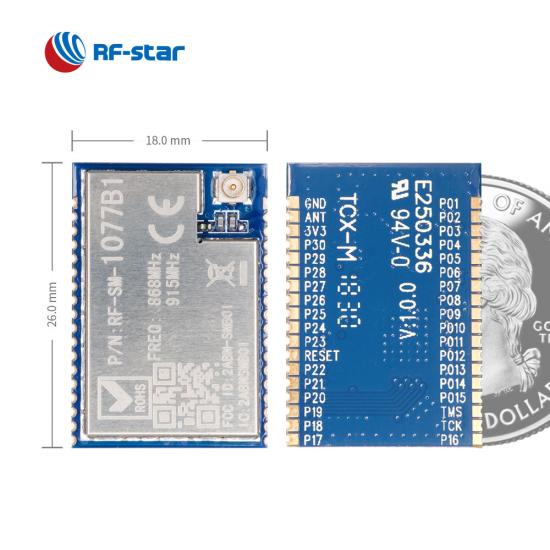

    26.0 × 18.0 × 2.3, half-hole, 1.27 pitch, 36-pin
  • Features:

    All GPIOs are lead out
  • GPIO:

    30
  • Max. TX Power:

    +14 dBm
  • Transmission Range:

    1500 m

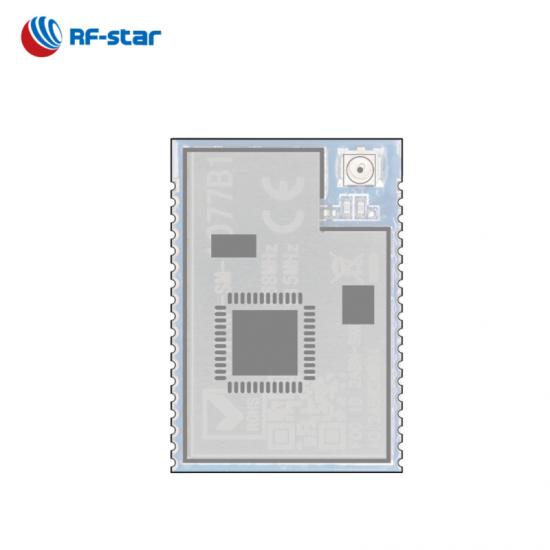

RF-SM-1077B1 is a 868 MHz - 915 MHz transmitter and receiver module. This sub-1G module is based on TI CC1310, and the 48 MHz Arm® Cortex®-M3 main processor makes the module can deal with data transmission with an ultra-low power consumption. It is integrated with a 24.0 MHz crystal, a balun, a bandpass filter, an antenna matching and an antenna option of IPEX antenna connector and the half-hole interface. The TX power is up to 14 dBm under RF-star protocol, which enables the module to reach a longer coverage of the transmission, kindly adapted in wireless alarm and security systems, energy-harvesting applications, smart grid and automatic meter reading, etc.


CC1310 Sub-1GHz Module Supporting 790 MHz to 930 MHz Frequency RF-SM-1077B1

Powerful Processor

Based on TI CC1310, RF-SM-1077B1 Sub-1G module is designed for a flexible, very low-power RF transceiver with a powerful 48 MHz ARM® Cortex®-M3 microcontroller.

Continuous Frequency

For the working frequency from 790 MHz to 930 MHz, the center frequencies can be met: 868 MHz, 915 MHz and 920 MHz.

UART Protocol

Change the radio frequency: 868 MHz, 915 MHz and 920 MHz. Change the data transmission rate: 625 bps, 50 Kbps, 200 Kbps.

Rich Peripherals

All digital peripheral pins can be routed to any GPIO and these interfaces including ADC, UART, SPI, I2C, I2S, RTC are available.

Flexible RF Output Modes

You can choose either the IPEX antenna connector or the half-hole RF pin to satisfy your project.

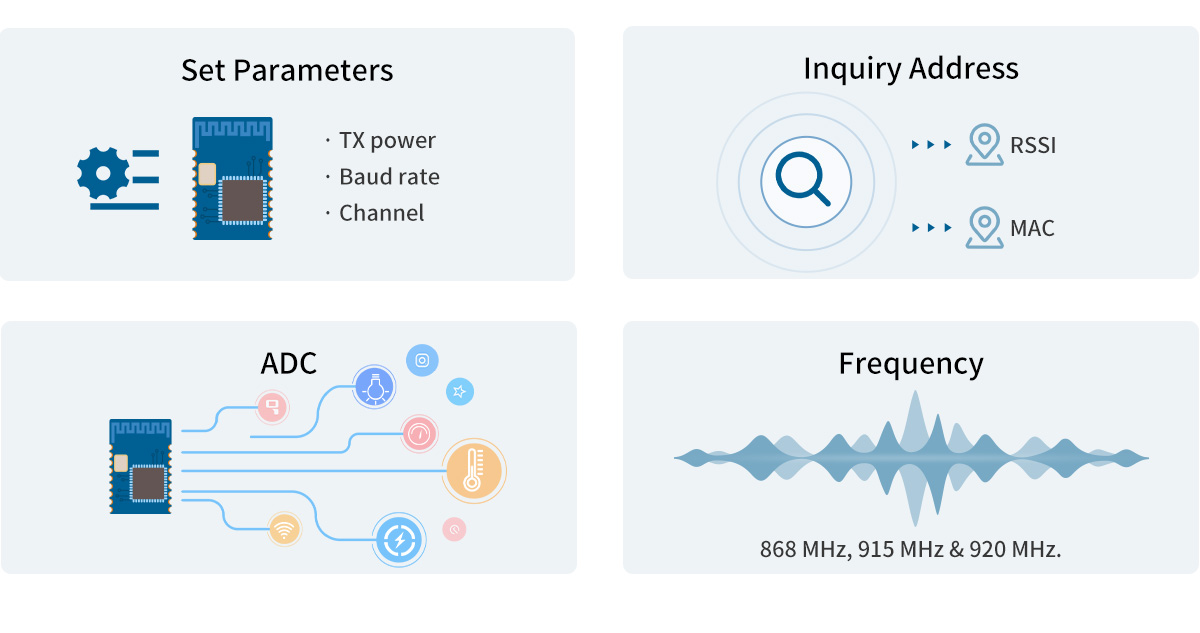

· Set parameters: TX power, Baud rate, Channel

· Inquiry RSSI and MAC address

· ADC acquisition enabled

· Frequency:868 MHz, 915 MHz and 920 MHz.

CC1310 sub-1G module features

Wireless SoC:


  • 48 MHz ARM® Cortex®-M3 processor
  • TX power: Up to +14 dBm
  • Sensitivity:
    • -124 dBm @ Long-Range Mode
    • -110 dBm @ 50 kbps
  • Memory
    • 128 kB flash
    • 8 kB SRAM
  • Data Rate:
    • 625 bps
    • 50 kbps
    • 200 kbps

Features:


  • AES-128 security
  • 30 GPIOs


Operating Range:


  • Supply voltage range 1.8 V ~ 3.8 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency: 718 MHz ~ 878 MHz, 861 MHz ~ 1054 MHz


Rich Peripherals:


  • ADC
  • UART
  • SPI
  • I²C
  • I²S
  • RTC


Certificates:


  • RoHS
  • Reach
TI CC131x Series Sub-1G Modules
Part Number RF-TI1354P1 RF-TI1352P2 RF-TI1352P1 RF-TI1352B1 RF-SM-1277B2 RF-SM-1277B1 RF-SM-1044B2 RF-SM-1044B1 RF-SM-1077B2 RF-SM-1077B1
IC
CC1354P10
CC1352P7 CC1352P CC1352R CC1312R CC1312R CC1310F128RSM CC1310F128RSM CC1310F128RGZ CC1310F128RGZ
Core
48 MHz ARM® Cortex®-M33
48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3 48 MHz ARM® Cortex®-M3
Antenna IPEX IPEX Half-hole interface IPEX IPEX/Half-hole interface IPEX/Half-hole interface Half-hole interface PCB IPEX/Half-hole interface IPEX/Half-hole interface
RAM 256 KB 152 KB 88 KB 88 KB 88 KB 88 KB 28 KB 28 KB 28 KB 28 KB
Flash 1024 KB 704 KB 352 KB 352 KB 352 KB 352 KB 128 KB 128 KB 128 KB 128 KB
Protocols
Thread, Zigbee®, Matter, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, IPv6-
enabled smart objects, (6LoWPAN), MIOTY®, Wireless M-Bus, Wi-SUN®, KNX
RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1
GHz)
Thread, ZigBee, Matter, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) Thread, ZigBee, BLE5.3, IEEE 802.15.4g, 6LoWPAN, MIOTY, Wireless M-Bus, Wi-SUN, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, IPv6-enabled smart objects(6LoWPAN), MIOTY®, Wireless M-Bus(T, S, C mode), Wi-SUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz) IEEE 802.15.4g, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY, SimpleLink™ TI 15.4 stack (Sub-1 GHz)
Power Supply
1.8 V ~ 3.8 V, 3.3 V is recommended
1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V
Frequency
800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz
800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MHz, 2.4 GHz 800 MHz ~ 928 MHz, 2.4 GHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 779 MHz ~ 930 MHz 431 MHz ~ 527 MHz 779 MHz ~ 930 MHz
Max. TX Power
+20.0 dBm (Sub-1 GHz)
+5 dBm (2.4 GHz)
+20 dBm +20 dBm +14 dBm @ Sub-1 GHz +5 dBm @ 2.4 GHz +13 dBm +14 dBm +14 dBm +14 dBm +15 dBm +14 dBm
Receiving Sensitivity
-121 dBm for 2.5 kbps long-range mode
-110 dBm at 50 kbps, 802.15.4, 868 MHz
-104 dBm for Bluetooth® Low Energy 125 kbps
-105 dBm for IEEE 802.15.4-2006 2.4 GHz OQPSK (coherent modem)
–121 dBm @Sub-1G (Long-Range Mode) –110 dBm @ 50 Kbps Sub-1G –104 dBm @125 kbps LE Coded PHY –121 dBm @Sub-1G (Long-Range Mode) –110 dBm @Sub-1G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @Sub G (Long-Range Mode) –110 dBm @Sub G (50 Kbps) –105 dBm @125 kbps LE Coded PHY –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –121 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps) –114 dBm @ Sub-1 GHz (Long-Range Mode) –110 dBm @ Sub-1 GHz (50 kbps)
GPIO 24 23 23 28 30 30 7 8 30 30
Working Temperature
-40 ℃ ~ +85 ℃
-40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature
-40 ℃ ~ +125 ℃
-40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Dimension (mm) 26.5 x 16.9 x 2.2 26.5 x 16.9 x 2.2 25.0 x 16.4 x 2.2 26.5 x 16.8 x 2.2 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3 12.5 × 9.0 × 1.8 22.0 × 14.0 × 1.8 26.0 x 18.0 x 2.3 26.0 x 18.0 x 2.3
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
Functions Wireless M-Bus, energy-harvesting Wireless M-Bus, energy-harvesting Smart agriculture, sensor control Smart grid, industrial monitoring and control Support DMM, longer transmission range Support DMM, longer transmission range Ultra-small dimension, feasible for external antennas Plug pins for easy embed Longer transmission range Longer transmission range
