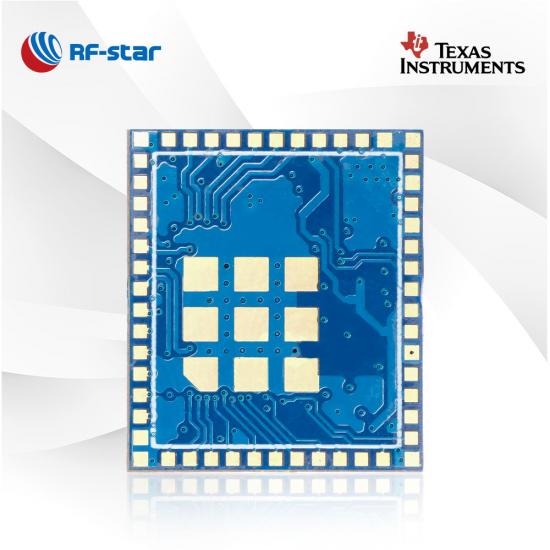

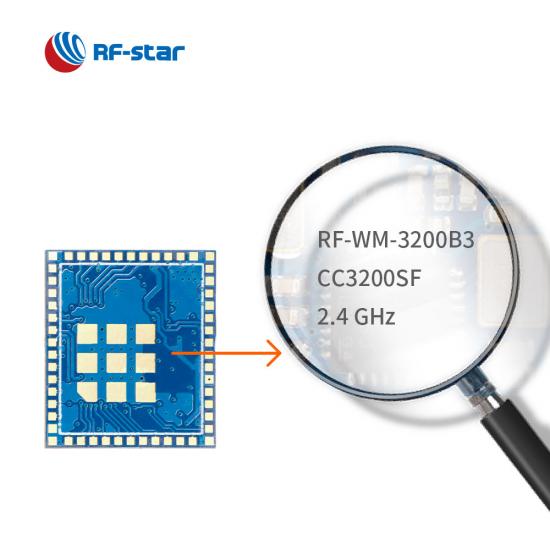

Low Consumption 2.4G CC3200 WLAN / Wi-Fi Module RF-WM-3200B3

RF-WM-3200B3 Wi-Fi module is targeted at smart IoT applications. It is pin-2-pin compatible with TI CC3200MOD. The compact size and the high integration make the module popular among the high requirements applications.


  • P/N:

    RF-WM-3200B3
  • SoC:

    CC3200
  • Processor:

    ARM® Cortex™-M4 at 80 MHz
  • Protocols:

    Wi-Fi 2.4 GHz
  • Working Frequency:

    2412 MHz ~ 2472 MHz

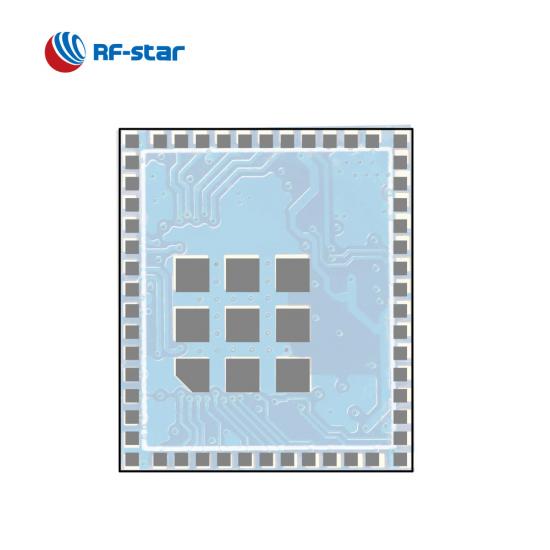

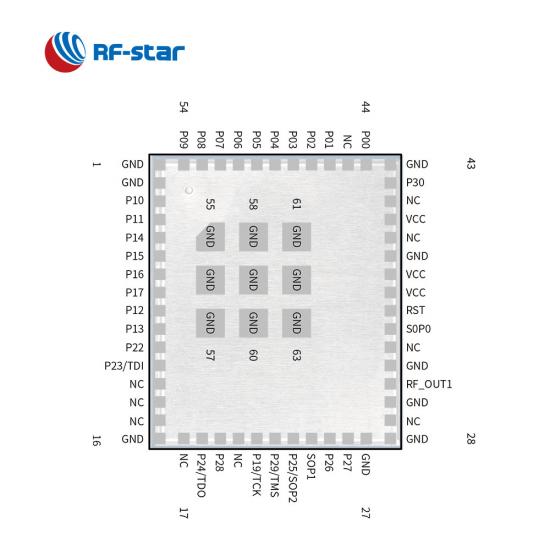

  • Package (mm):

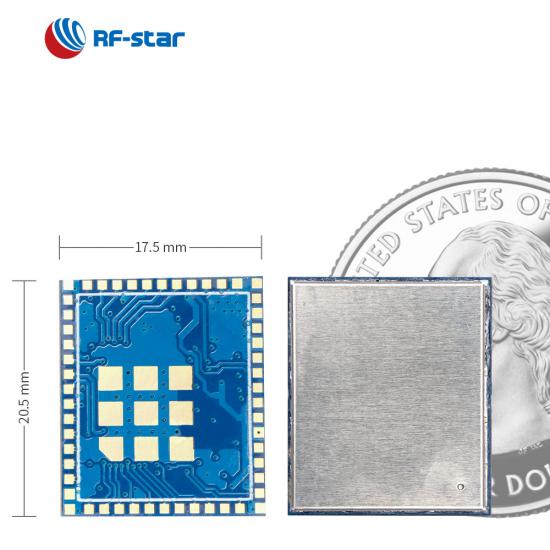

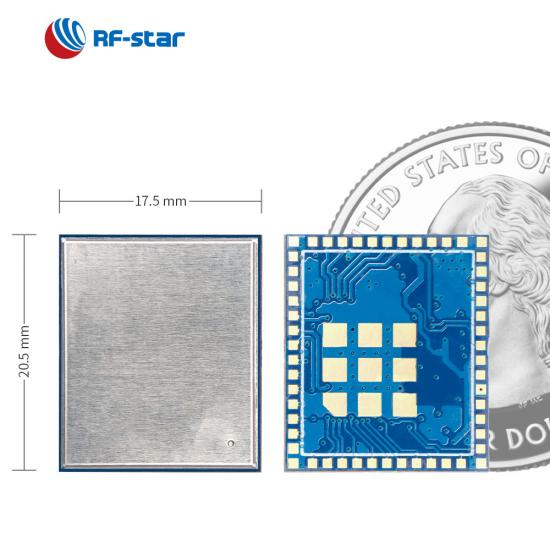

    20.5 × 17.5 × 2.5, 1.27 pitch, 63-pin
  • Features:

    802.11bgn, IPv4, 2 secure sockets, 1 STA
  • GPIO:

    27
  • Max. TX Power:

    +17 dBm (11 Mbps @ CCK)
  • Transmission Range:

    300 m

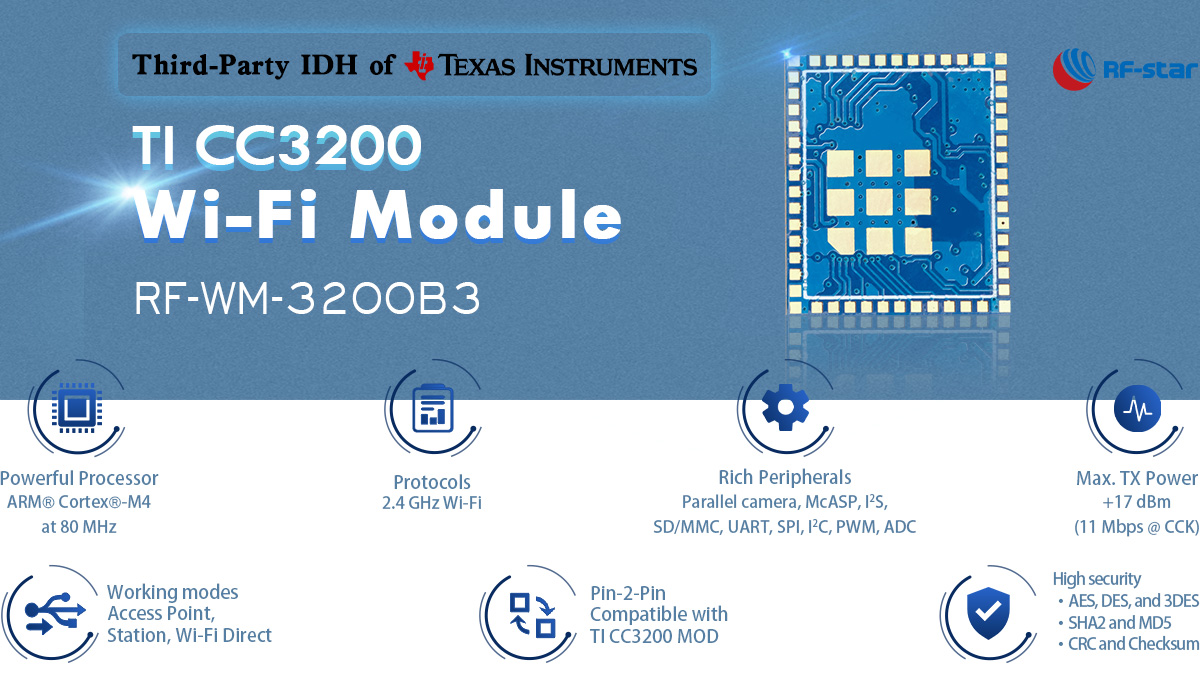

RF-WM-3200B3 Wi-Fi module is designed based on TI SimpleLink CC3200 wireless SoC with the embedded high-performance ARM® Cortex™-M4 MCU. The module integrates the crystals, the 1 MB flash and the filter. The high integration allows the customer to develop an entire application with this single module and to save the PCBA space. This module supports AP (access point) mode, STA (station) mode and Wi-Fi Direct mode, and it also can work the subsystems including 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The module can be applied to WPA2 personal and enterprise security and WPS 2.0. Its TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols enable the module to be able to enter a large range of applications.




- Applications -

· Multiparameter Patient Monitor

· Telehealth Systems

· Low-Power Camera

· HVAC Systems

· Thermostat

· Factory Automation



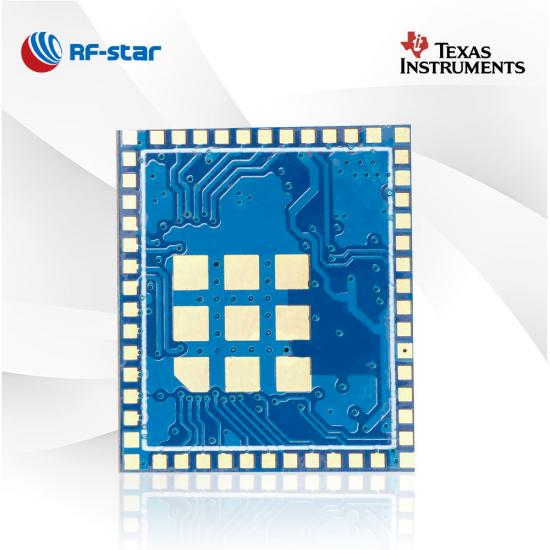

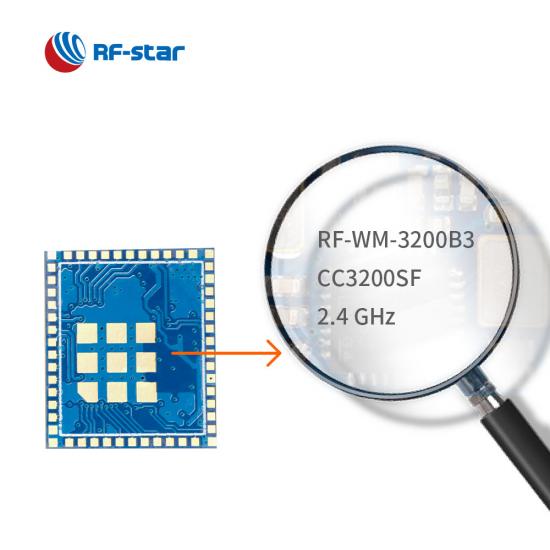

- Product Display -

Wireless SoC:


  • 80 MHz ARM® Cortex®-M4 processor
  • TX power:
    • +17 dBm (IEEE 802.11 B, 11 Mbps @ CCK)
    • +13 dBm (IEEE 802.11 G, 54 Mbps @ OFDM)
    • +12 dBm (IEEE 802.11 N, HT20 @ MCS7)
  • Sensitivity:
    • -80 dBm (IEEE 802.11 B, 11 Mbps @ CCK)
    • -69 dBm (IEEE 802.11 G, 54 Mbps @ OFDM)
    • -67 dBm (IEEE 802.11 N, HT20 @ MCS7)
  • Memory
    • 1 MB flash
    • 256 kB RAM
  • Application Throughput:
    • UDP: 16 Mbps
    • TCP: 13 Mbps
  • Security:
    • AES, DES, and 3DES
    • SHA2 and MD5
    • CRC and Checksum

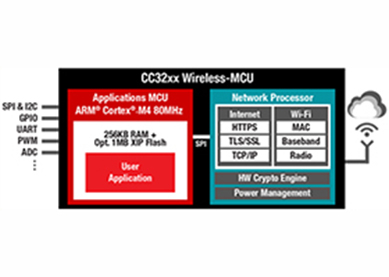

Wi-Fi Network Processor Subsystem


  • Featuring Wi-Fi internet-on-a-chipTM
  • Dedicated ARM MCU
    • Completely offloads Wi-Fi and internet protocol from the application microcontroller
  • Wi-Fi and internet protocols in ROM
  • 802.11 b/g/n radio, baseband, medium access control (MAC), Wi-Fi driver, and supplicant
  • TCP/IP stack
    • Industry-standard BSD socket APIs
    • 8 simultaneous TCP or UDP sockets
    • 2 simultaneous TLS and SSL sockets
  • Powerful crypto engine for fast, secure Wi-Fi and internet connections with 256-bits AES encryption for TIS and SSL connections
  • Station, AP, and Wi-Fi direct® modes
  • WPA2 personal and enterprise security
  • SimpleLink connection manager for autonomous and fast Wi-Fi connections
  • SmartConfigTM technology, AP mode, and WPS2 for easy and flexible Wi-Fi provisioning


Operating Range:


  • Supply voltage range 2.1 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency: 2412 MHz ~ 2472 MHz




Rich Peripherals:


  • Parallel camera
  • McASP
  • I²S
  • SD/MMC
  • UART
  • SPI
  • I²C
  • PWM
  • ADC
