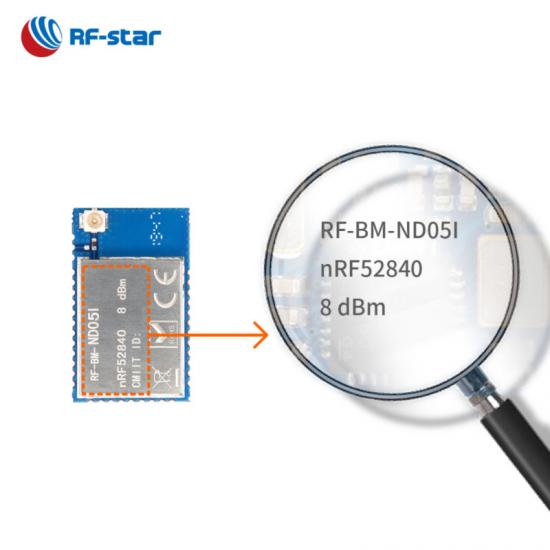

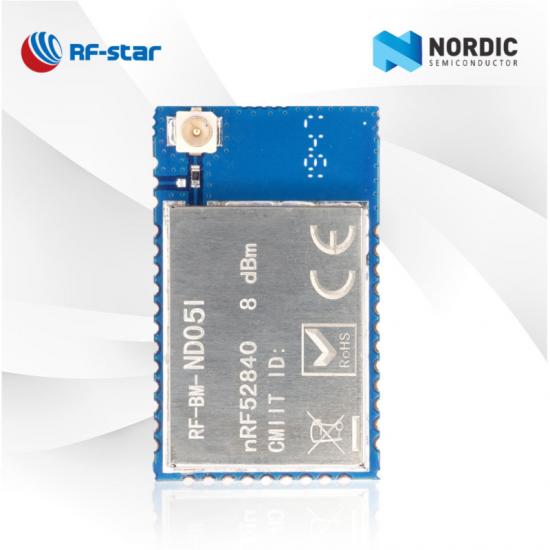

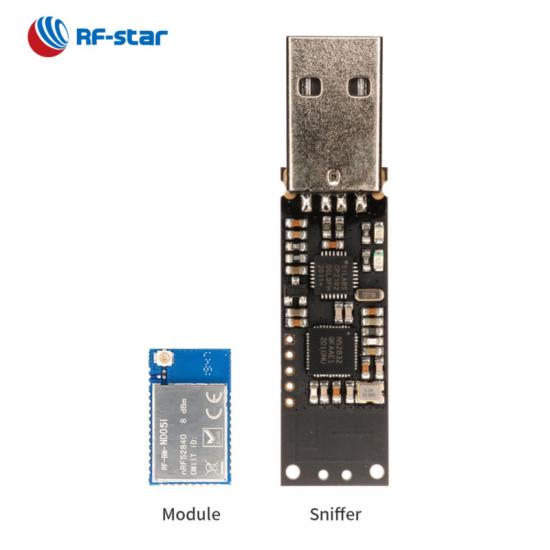

Multi-Protocol Nordic SoC nRF52840 Module IPEX Connector RF-BM-ND05I

RF-BM-ND05I is a muti-protocol module developed for the high reliability, high-performance requirements of battery-powered IoT products and gateways.The IPEX connector and the half-hole antenna interface make it reach more applications. This module also supports Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary. Start your product development with RF-BM-ND05I nRF52840 module.

  • P/N:

    RF-BM-ND05I
  • Goods Stock:

    1000
  • SoC:

    nRF52840
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 LE, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

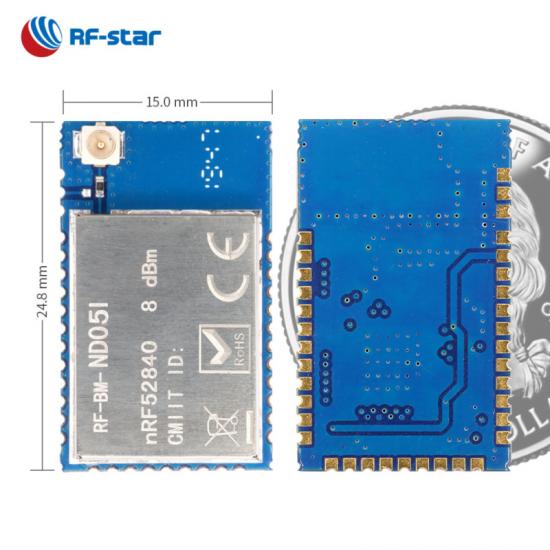

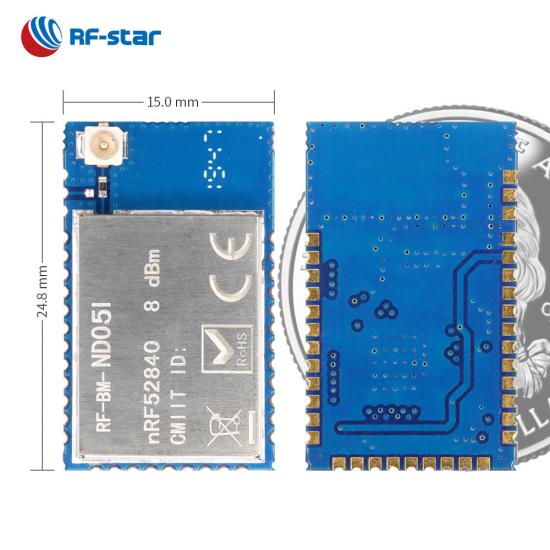

    24.8 × 15.0 × 2.3, half-hole, 1.27 pitch, 36-pin
  • Features:

    NFC, High-speed SPI
  • GPIO:

    29
  • Max. TX Power:

    +8 dBm
  • Transmission Range:

    500 m

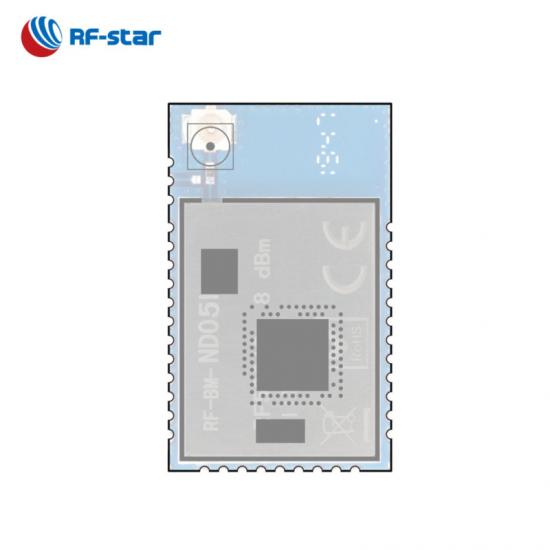

RF-BM-ND05I is an RF module based on Nordic multiprotocol SoC nRF52840 with a best-in-class 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, a power filter, an antenna matching, and antenna options of an IPEX connector and an half-hole interface. It supports BLE stack v5.0, Bluetooth mesh, Thread, ZigBee, IEEE 802.15.4-2006 and 2.4 GHz proprietary. It also has a range of analog and digital interfaces such as NFC-A, ADC, high-speed 32 MHz SPI, UART, SPI, I²C, PWM, I²S, PPI and PDM. It features high-performance digital interfaces, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.

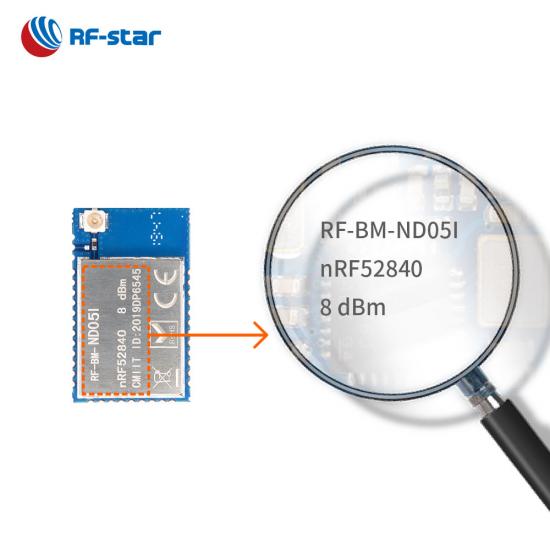

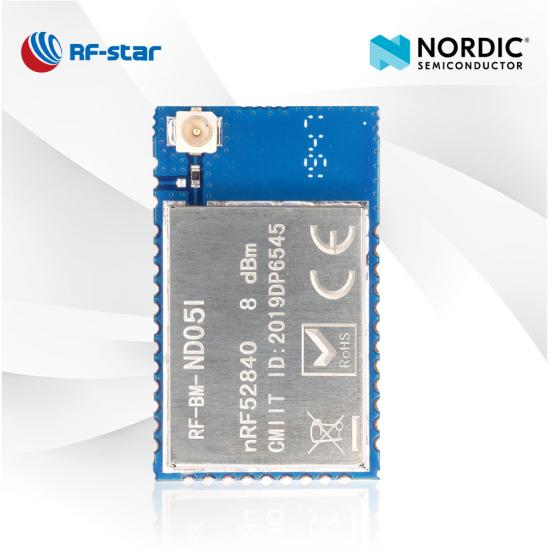

Multi-Protocol module nRF52840 RF-BM-ND05I

- Applications -

· Gateway

· Industrail IoT

· Sensors and controllers

· Health & Medical

· Lighting

· Mouse and keyboard

Multi-Protocol module nRF52840 RF-BM-ND05I Applications

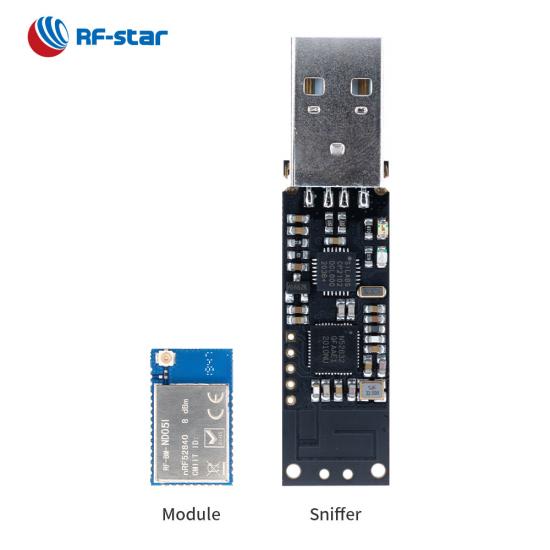

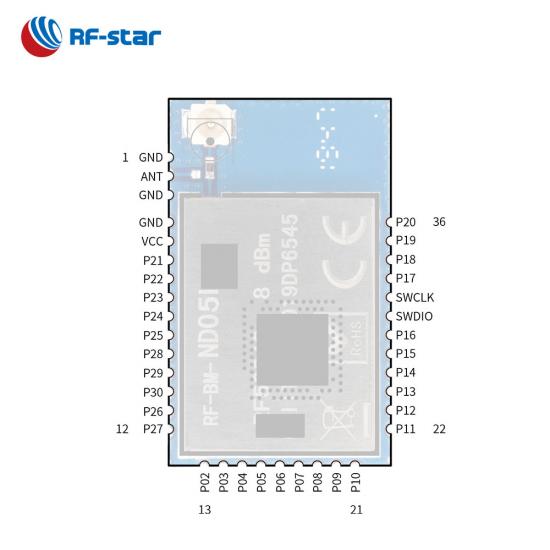

- Product Display -


Wireless SoC:


  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +8 dBm
  • Sensitivity in BLE mode: -95 dBm (@1 Mbps)
  • Memory
    • -1 MB flash
    • -256 KB RAM



RF Features:


  • Bluetooth® 5 Low Energy : 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
  • IEEE 802.15.4-2006: 250 kbps
  • 2.4 GHz Proprietary: 2 Mbps, 1 Mbps
  • Bluetooth Mesh
  • Thread
  • ZigBee



Current Consumption:


  • 4.8 mA peak current in TX (0 dBm)
  • 4.6 mA peak current in RX


Operating Range:


  • Supply voltage range 1.7 V ~ 5.5 V
  • Working temperature range: -40 °C ~ +85 °C



Rich Peripherals:


  • USB 2.0 full speed (12 Mbps) controller
  • NFC-A
  • 12-bit, 200 ksps ADC
  • 48 GPIOs
  • PWM
  • PDM
  • PPI
  • SPI master/slave
  • High-speed 32 MHz SPI
  • QSPI 32 MHz interface
  • I²C master/slave
  • I²S
  • 2×UART (CTS/RTS)



NORDIC nRF52 Series Multi-Protocols Modules
Part Number RF-BM-ND10 RF-BM-ND07 RF-BM-ND06 RF-BM-ND05I RF-BM-ND05 RF-BM-ND08A RF-BM-ND04A
IC nRF52833 nRF52833 nRF52840 nRF52840 nRF52840 nRF52811 nRF52811
Core 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4
Antenna PCB/IPEX/Half-hole interface Chip/IPEX/Pad PCB IPEX/Half-hole interface PCB PCB PCB
RAM 128 KB 128 KB 256 KB 256 KB 256 KB 24 KB 24 KB
Flash 512 KB 512 KB 1 MB 1 MB 1 MB 192 KB 192 KB
Protocols BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ANT BLE5.3, Proprietary, Thread, ANT
Power Supply 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm +4 dBm +4 dBm
Receiving Sensitivity -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE
GPIO 42 42 48 29 29 16 29
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range PCB antenna 110 m @ 1M PHY 150 m @ LE CODE Chip antenna 80 m @ 1M PHY 100 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE External PCB antenna 130 m @ 1M PHY 180 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE 80 m @ 1M PHY 110 m @ LE CODE 90 m @ 1M PHY 120 m @ LE CODE
Dimension (mm) 33.0 x 17.7 x 2.1 17.0 x 12.2 x 2.2 24.0 x 20.5 x 2.2 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3
Package 1.27-mm pitch half-hole 0.5-mm pitch DFN 0.8-mm pitch DFN 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × ×
Long Range
2Mbps PHY
AoA/AoD × × ×
UART Protocol N/A N/A N/A N/A N/A Slave Slave
Functions All IOs, Support AoA/AoD All IOs, Support AoA/AoD, Ultra-small dimension All IOs, Compact size Feasible for external antenna, BLE gateway Rich resources, Smart home gateway High compatibility, Support AoA/AoD Support AoA/AoD, High effective
