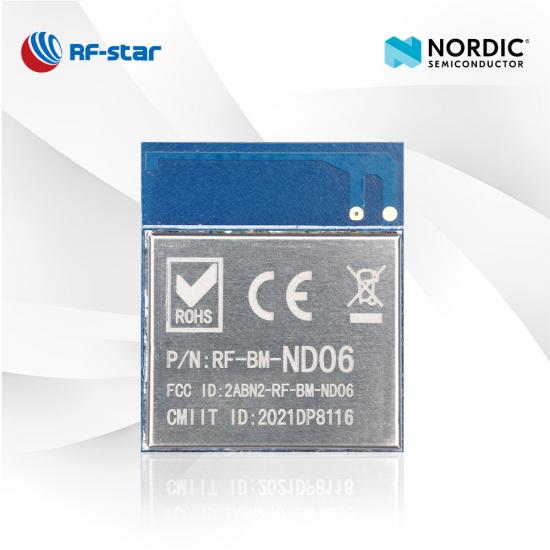

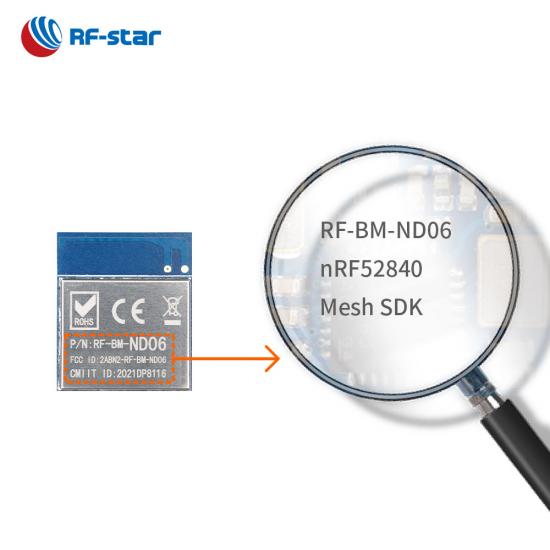

High-Performance Multi-Protocol BLE MESH Module with nRF52840 Chip RF-BM-ND06

RF-BM-ND06 is a multi-protocol module developed for the high reliability, high-performance requirements of battery-powered IoT products and the gateways. This module also supports Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary. Start your product development with RF-BM-ND06 nRF52840 module.

  • P/N:

    RF-BM-ND06
  • Goods Stock:

    1000
  • SoC:

    nRF52840
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 LE, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

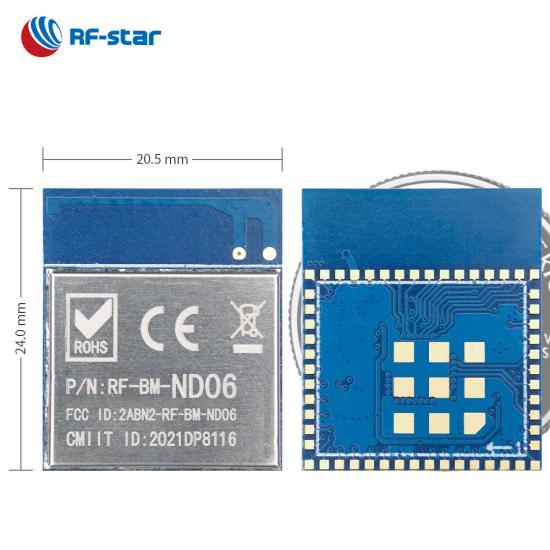

    20.5 × 24.0 × 2.2, LGA, 54-pin
  • Features:

    NFC, USB 2.0, High-speed SPI
  • GPIO:

    48
  • Max. TX Power:

    +8 dBm
  • Transmission Range:

    500 m

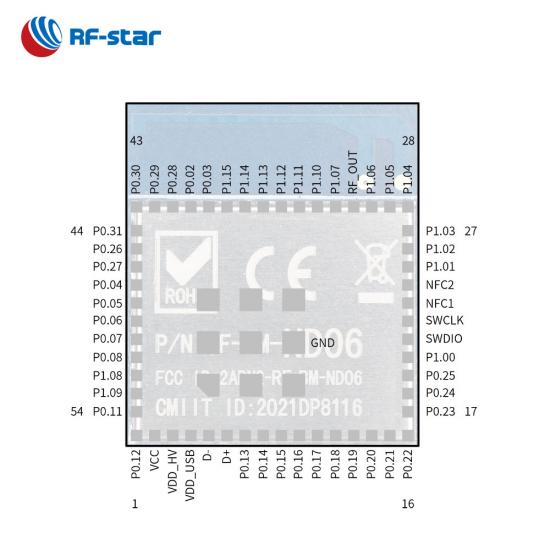

RF-BM-ND06 is an RF module based on Nordic multiprotocol SoC nRF52840 with a best-in-class 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, a power filter, an antenna matching, and a high-performance PCB antenna. All pins of RF-BM-ND06 are pulled out based on LGA package, which makes the module have more possibilities to enter complex applications. It supports BLE stack v5.0, Bluetooth mesh, Thread, ZigBee, IEEE 802.15.4-2006 and 2.4 GHz proprietary. Moreover, the nRF52840 module has a range of analog and digital interfaces such as USB2.0, NFC-A, ADC, high-speed 32 MHz SPI, UART, SPI, I²C, PWM, I²S, PPI and PDM. It features high-performance digital interfaces, robust connection distance, and rigid reliability. Develop these applications such as NFC-A tags, industrial mesh networks, fitness and health devices, romote controllers with the Nordic nRF52840 multi-protocol module now!


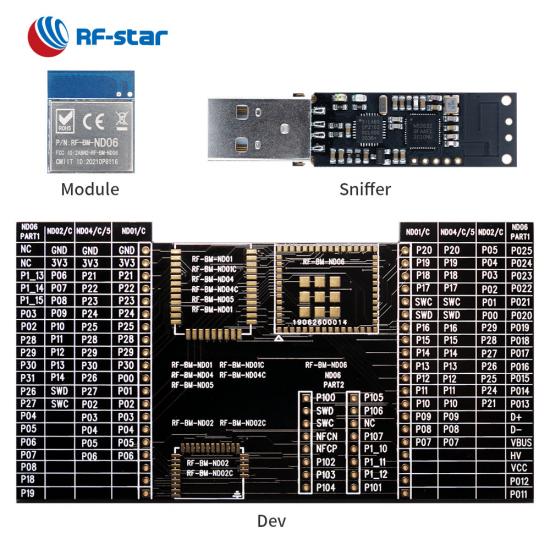

BLE MESH Module with nRF52840 Chip RF-BM-ND06

Multiple Protocols Supported

With the premium processor, the nRF52840 module supports Bluetooth mesh, Thread, ZigBee, NFC, Matter and other 2.4 GHz proprietary, widely applied in industrial mesh networks and medical devices.

Advanced Digital Interfaces

A wide range of digital interfaces such as UART, ADC, I2C, I2S are well-integrated, even high-speed 32 MHz SPI, NFC-A, PPI, USB 2.0 full speed (12 Mbps) controller and QSPI 32 MHz interface included.

FCC & CE Compliant Module

RF-BM-ND06 module has been certified by CE, FCC, RoHS, and SRRC, which meets the European and the United States markets.


Serial Port (UART) Protocol

The nRF52840 wireless module is embedded with the BLE5.0 transparent transmission protocol (serial port protocol) to realize rich functions with AT commands.

Related Resources:

nRF52840 Multi-Protocol SoC to Protect Online Encryption Assets

Comparison of RF-BM-ND05, RF-BM-ND05I, RF-BM-ND06

Wireless SoC:

  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +8 dBm
  • Sensitivity in BLE mode: -95 dBm (@1 Mbps)
  • Memory
    • -1 MB flash
    • -256 KB RAM

RF Features:

  • Bluetooth® 5 Low Energy : 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
  • IEEE 802.15.4-2006: 250 kbps
  • 2.4 GHz Proprietary: 2 Mbps, 1 Mbps
  • Bluetooth Mesh
  • NFC
  • Thread
  • ZigBee

Current Consumption:

  • 4.8 mA peak current in TX (0 dBm)
  • 4.6 mA peak current in RX

Operating Range:

  • Supply voltage range 1.7 V ~ 5.5 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • USB 2.0 full speed (12 Mbps) controller
  • NFC-A
  • 12-bit, 200 ksps ADC
  • 48 GPIOs
  • PWM
  • PDM
  • PPI
  • USB 2.0
  • SPI master/slave
  • High-speed 32 MHz SPI
  • QSPI 32 MHz interface
  • I²C master/slave
  • I²S
  • 2×UART (CTS/RTS)

Certificates:

  • FCC
  • SRRC
  • CE
  • RoHS
NORDIC nRF52 Series Multi-Protocols Modules
Part Number RF-BM-ND10 RF-BM-ND07 RF-BM-ND06 RF-BM-ND05I RF-BM-ND05 RF-BM-ND08A RF-BM-ND04A
Photo nRF52833 RF-BM-ND10 module nRF52833 RF-BM-ND07 module nRF52840 RF-BM-ND06 module nRF52840 RF-BM-ND05I module nRF52840 RF-BM-ND05 module nRF52811 RF-BM-ND08A module nRF52811 RF-BM-ND04A module
IC nRF52833 nRF52833 nRF52840 nRF52840 nRF52840 nRF52811 nRF52811
Core 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4
Antenna PCB/IPEX/Half-hole interface Chip/IPEX/Pad PCB IPEX/Half-hole interface PCB PCB PCB
RAM 128 KB 128 KB 256 KB 256 KB 256 KB 24 KB 24 KB
Flash 512 KB 512 KB 1 MB 1 MB 1 MB 192 KB 192 KB
Protocols BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ZigBee, ANT, NFC, Matter BLE5.3, Proprietary, Thread, ANT BLE5.3, Proprietary, Thread, ANT
Power Supply 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +8 dBm +8 dBm +8 dBm +8 dBm +8 dBm +4 dBm +4 dBm
Receiving Sensitivity -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -96 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -103 dBm @ 125 kbps LE Coded PHY -95 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE -104 dBm @ 125 kbps LE Coded PHY -97 dBm @1 Mbit/s BLE
GPIO 42 42 48 29 29 16 29
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range PCB antenna 110 m @ 1M PHY 150 m @ LE CODE Chip antenna 80 m @ 1M PHY 100 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE External PCB antenna 130 m @ 1M PHY 180 m @ LE CODE 110 m @ 1M PHY 150 m @ LE CODE 80 m @ 1M PHY 110 m @ LE CODE 90 m @ 1M PHY 120 m @ LE CODE
Dimension (mm) 33.0 x 17.7 x 2.1 17.0 x 12.2 x 2.2 24.0 x 20.5 x 2.2 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3
Package 1.27-mm pitch half-hole 0.5-mm pitch DFN 0.8-mm pitch DFN 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × ×
Long Range
2Mbps PHY
AoA/AoD × × ×
UART Protocol N/A N/A N/A N/A N/A Slave Slave
Functions All IOs, Support AoA/AoD All IOs, Support AoA/AoD, Ultra-small dimension All IOs, Compact size Feasible for external antenna, BLE gateway Rich resources, Smart home gateway High compatibility, Support AoA/AoD Support AoA/AoD, High effective
