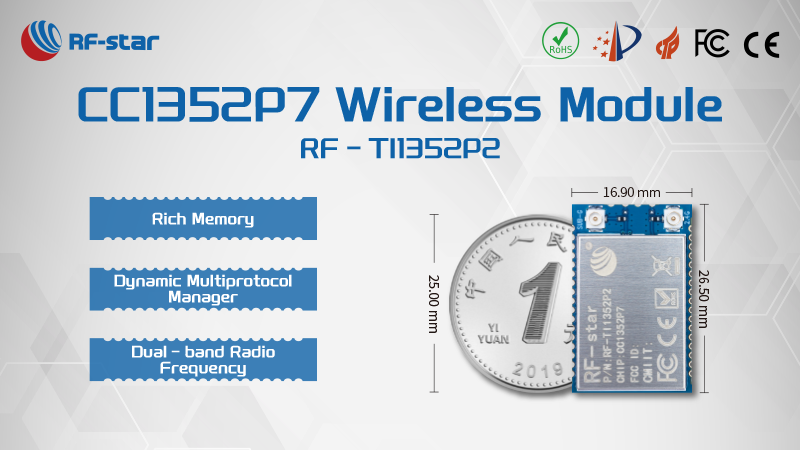

RF-star, a leading wireless module maker, launches a new versatile module over Texas Instrument’s SoC - CC1352P7. The product named as RF-TI1352P2 features dual-band radio (Sub-1 GHz and 2.4 GHz) , concurrent multiple protocols and long-range communication.

RF star CC1352P7 Multiprotocol Module Stands Ready

Specifications

RF-TI1352P2 is a new item in RF-star’s CC1352 series. Built upon an Arm® Cortex® M4F main processor the CC1352P7 SoC itself was optimized for low-power wireless communication and advanced sensing scenarios such as grid infrastructure, building automation, retail automation, personal electronics, and medical applications.

RF-TI1352P2Specifications

Chipset	CC1352P7
Supply Power Voltage	1.8 V ~ 3.8 V, 3.3 V is recommended
Frequency	800 MHz ~ 928 MHz, 2402 MHz ~ 2480 MHz
Maximum Transmit Power	+20.0 dBm (Sub-1GHz) +5.0 dBm (2.4 GHz)
Receiving Sensitivity	-121 dBm @ Sub-1 GHz (Long-range Mode) -110 dBm @ Sub-1 GHz (50 kbps) -104 dBm @ Sub-1 GHz (100 kbps) -97 dBm @ Bluetooth 5.0 (1 Mbps) -92 dBm @ Bluetooth 5.0 (2 Mbps) -104 dBm @ Bluetooth 5.0 (125 kbps LE Coded PHY)
GPIO	24
Flash	704 KB
ROM	256 KB
SRAM	88 KB
Power Consumption	RX current: 5.4 mA, 868 MHz 6.4 mA, 2.4 GHz TX current: 64 mA @ +20 dBm, 915 MHz 24.9 mA @ +14 dBm, 868 MHz MCU 48 MHz (CoreMark): 2.9 mA (60 μA/MHz) Sensor Controller: 30.1 μA @ low power mode, 2 MHz, running infinite loop 808 μA @ active mode, 24 MHz, running infinite loop Standby mode: 0.85 µA Sleep Mode: 150 nA
Supported Protocols	Thread, Zigbee®, Matter, Bluetooth® 5.2 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects, (6LoWPAN), MIOTY^®, Wireless M-Bus, Wi-SUN^®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4-Stack (Sub-1 GHz)
Crystal	48 MHz, 32.768 kHz
Package	SMT packaging (1.27-mm half-hole pitch stamp stick)
Dimension	26.5 mm × 16.9 mm × 2.1 mm
Type of Antenna	Half-hole ANT interface, IPEX connector
Operating Temperature	-40 ℃ ～ +85 ℃
Storage Temperature	-40 ℃ ～ +125 ℃

For the detailed specifications, please download RF-TI1352P2 hardware datasheet here.

1. Rich Computing Resources

The module is with a high-performance 48 MHz ARM Cortex-M4F processor, a 704 KB Flash memory and a 256KB ROM. The resources are rich enough to run various IoT applications, even for demanding Matter networking scenarios.

2. Concurrent Multiprotocol: BLE, ZigBee, Matter, Wi-SUN, etc

As a multi-protocol module, RF-TI1352P2 supports Zigbee®, Thread, Matter, Bluetooth® 5.2 Low Energy, IEEE 802.15.4g, 6LoWPAN, MIOTY®, Wi-SUN, proprietary systems. The protocols can run concurrently with a DMM (dynamic multiprotocol manager) which can make real-time switching among separate protocols in the chip, enabling you to design simple, cost-effective and still versatile solutions.

3. Dual-Band Radio: Sub 1GHz & 2.4 GHz

RF-star’s dual-band module RF-TI1352P2 provides maximum flexibility in network communication. In addition to the 2.4GHz band that accommodates Bluetooth Low Energy, ZigBee, Thread and more protocols, its sub 1GHz band ( 868 MHz and 915 MHz) further expands the communication range and scope of applications.

4. Power Amplifier Increases TX Power Up to +20dBm

RF-star’s all CC1352Px modules have a built-in power amplifier but with different maximum TX power. The RF-TI1352P2 features a maximum TX power of +20 dBm in the 915 MHz band +5 dBm in the 2.4 GHz band. It is the highest in the series.

5. IPEX Connectors & Half-Hole RF Output Pins Are Available

RF-TI1352P2 is designed with two IPEX antenna connectors and half-hole pins for connecting to another antenna printed on the motherboard. By trading off the restrictive conditions of prospective design, solution makers can flexibly elect between external antennas or onboard antenna. Such design can also help them to achieve high convergence while realizing suitable range, good signal directionality, high efficiency and strong interference mitigation.

6. Rich Peripheral Interfaces

The CC1352P7 module provides a wealth of peripheral interfaces, including 24 GPIOs and

generic serial communication ports such as SPI, UART and I2C. It offers sufficient room for designers to build different communication features for the solutions.

Applications of RF-star CC1352P7 Modules

Applications of RFstar CC1352P7 Modules

Thanks to its high performance and concurrent multiprotocol capacity, the CC1352P7 module is ideal for IoT, wireless sensor networks and more applications such as:

Grid Infrastructure

· Smart meters – water meter, gas meter, electricity meter, and heat cost allocators

· Grid communications – wireless communications – Long-range sensor applications

· EV charging infrastructure – AC charging (pile) stations

Building automation

· Building security systems – motion detector, door and window sensor, glass break detector, panic button, electronic smart lock and IP network camera

· HVAC systems – thermostat, environmental, sensor and HVAC controller

· Fire safety – smoke and heat detector, gas detector and fire alarm control panel

Retail Automation

· Retail automation & payment applications – electronic shelf labels and portable POS terminal

Consumer Electronics

· RF remote controls

· Smart Speakers, Smart Displays and Set-top box

· Gaming and electronic and robotic toys

· Wearables (non-medical), smart trackers, smart clothing and smartwatch

RF-TI1352P2 CC1352P7 module stands ready to ship now! Visit our website www.rfstariot.com or reach us by email address info@szrfstar.com for samples. RF-star will work with you to tap the great potential of the TI CC1352P7.
