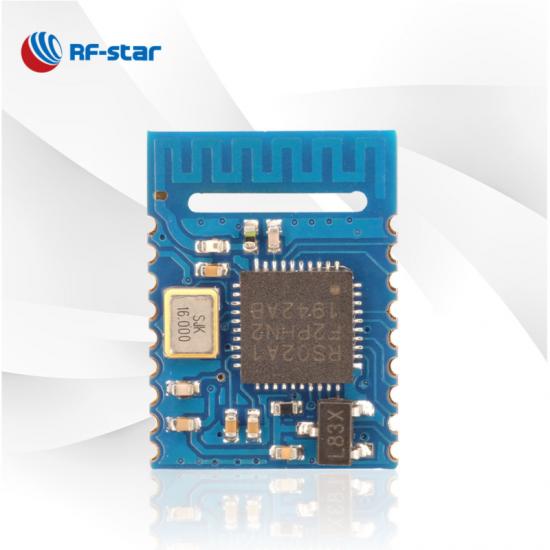

RSBRS02ABR BLE5.0 Slave Module

RSBRS02ABR, a Bluetooth LE 5.0 module, is designed for cost-effective applications. The peripherals of 7816 T-0 and infra-red enable the serial port module applied in the smart home remote control. Start your product development with RSBRS02ABR BLE5.0 module.

  • P/N:

    RSBRS02ABR
  • SoC:

    RS02A1-B
  • Processor:

    ARM Cortex-M0+ @ 48 MHz
  • Protocols:

    Bluetooth 5.0 low energy
  • Working Frequency:

    2402 MHz ~ 2480 MHz

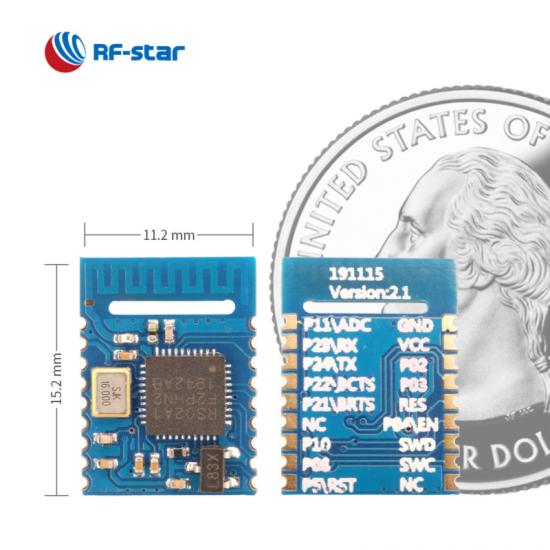

  • Package (mm):

    15.2 × 11.2 × 1.7, half-hole, 1.27 pitch, 18-pin
  • Features:

    7816 T-0, infra-red, 2 Mbps data rate
  • GPIO:

    11
  • Max. TX Power:

    +5 dBm
  • Transmission Range:

    120 m

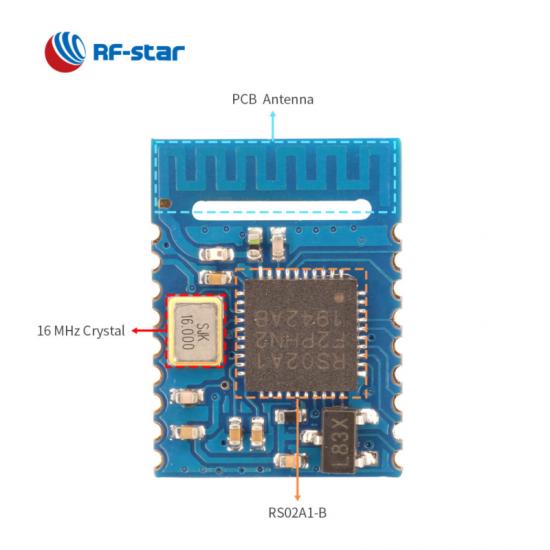

RSBRS02ABR, based on an RF-star SoC RS02A1-B, is a single-mode Bluetooth LE 5.0 module. There are so many advantages of this module: a compact size, a good noise reduction performance, a better sensitivity, and a robust transmission distance. It is pre-programmed with BLE5.0 transparent transmission protocol embedded 2 Mbps data rate, which makes this module enable to reach a rich range of applications. It also support the HID function, which enables some automatic connection use.


BLE5.0 Slave Module Beacon iBeacon RSBRS02ABR

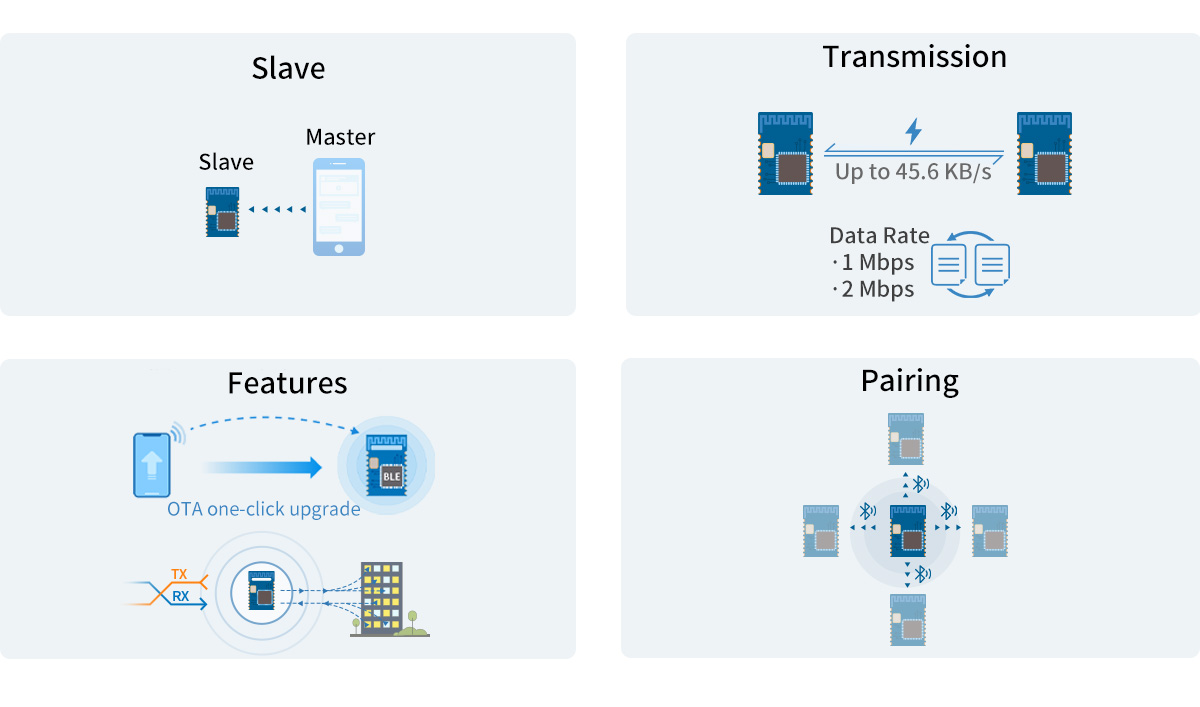

Transparent Transmission (Bridge) & Direct-Driven Protocol -

· Slave

· Max. transparent transmission rate: up to 45.6 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA

· Custom Service UUID

· Pairing

Transparent Transmission (Bridge) - & Direct-Driven Protocol

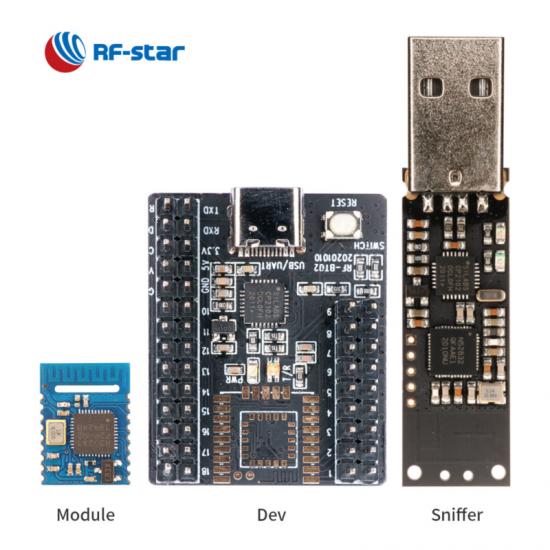

- Product Display -

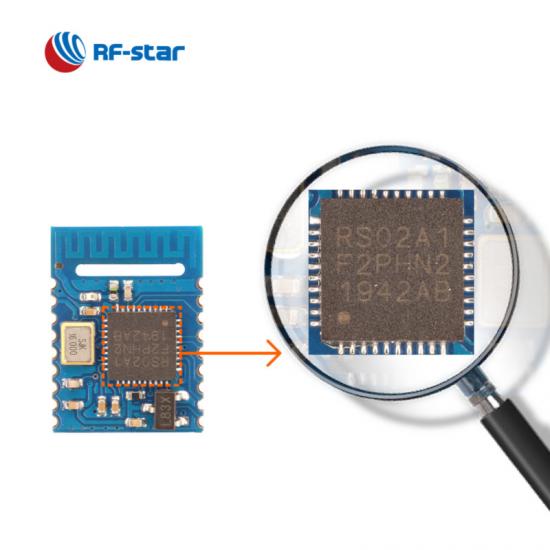

Wireless SoC:


  • ARM® Cortex®-M0+ processor, 48 MHz
  • TX power: -20 dBm to +5 dBm
  • Sensitivity: -94 dBm @ 1 Mbps
  • Memory
    • -256 kB flash
    • -32 kB SRAM
  • Data rate: 1 Mbps, 2 Mbps


Supported Protocols:


  • Bluetooth 5.0 low energy
  • Bluetooth 4.2 low energy


Current Consumption:


  • 5.49 μA in sleep mode
  • 132.08 μA at 200 ms broadcast cycle (disable EN internal pull-up)
  • 81.07 μA at 100 ms connection cycle (disable EN internal pull-up)

Operating Range:


  • Supply voltage range 2.3 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C


Rich Peripherals:


  • 11 GPIOs.
  • 2 UARTs with CTS/RTS
  • SPI with master/slave configurable
  • I2C with master/slave configurable
  • 7816 T-0 master interface
  • Keyboard interface
  • Infra-red generator
  • PWM
  • 9-bit ADC
  • DMA


Certificates


  • BQB
  • FCC
  • CE
  • SRRC
  • RoHS
  • Reach

Domestic IC-Based Series BLE Modules
Part Number RSBRS02ABR-01 RSBRS02ABRI RSBRS02ABR RSBRS02AI RSBRS02AA
Photo RSBRS02ABR-01 RSBRS02ABRI RSBRS02ABRI RSBRS02AI RSBRS02AA
IC RS02A1-B RS02A1-B RS02A1-B RS02A1-A RS02A1-A
Core 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+ 48 MHz ARM® Cortex®-M0+
Antenna PCB IPEX PCB IPEX PCB
RAM 36 KB + 4 KB 36 KB + 4 KB 36 KB + 4 KB 32 KB 32 KB
Flash 256 KB 256 KB 256 KB 256 KB 256 KB
Protocols BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY BLE5.0, BLE 2M PHY
Power Supply 2.3 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V 2.3 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V 1.8 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +5 dBm +5 dBm +5 dBm +7 dBm +7 dBm
Receiving Sensitivity -94 dBm @1 Mbit/s BLE -94 dBm @1 Mbit/s BLE -94 dBm @1 Mbit/s BLE -95 dBm @1 Mbit/s BLE -95 dBm @1 Mbit/s BLE
GPIO 11 11 11 13 13
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 110 m 140 m (exteral PCB antenna) 110 m 160 m (exteral PCB antenna) 120 m
Dimension (mm) 15.2 x 11.2 x 2.0 15.2 x 11.2 x 2.3 15.2 x 11.2 x 1.8 15.2 x 11.2 x 2.1 15.2 x 11.2 x 1.7
Package 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Mesh × × × × ×
Long Range × × × × ×
2Mbps PHY
AoA/AoD × × × × ×
UART Protocol Slave Slave Slave Master-slave simultaneously Master-slave simultaneously
Functions Small dimension, High transparent transmission rate Feasible for external antenna, Support OTA, Compact size Small dimension, High transparent transmission rate Feasible for external antenna, Support OTA, Compact size Support direct-driven mode, Easy to use
