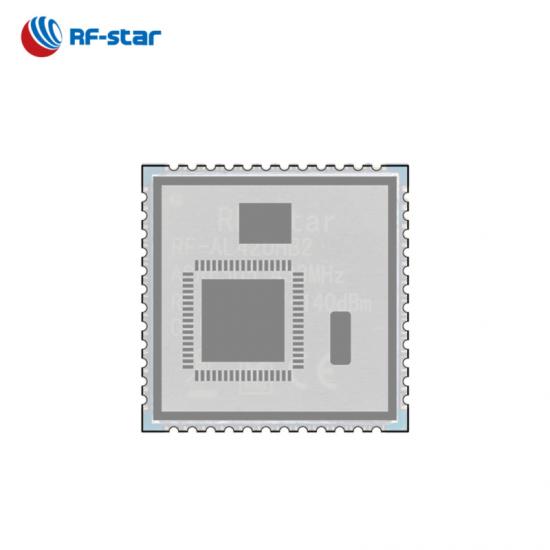

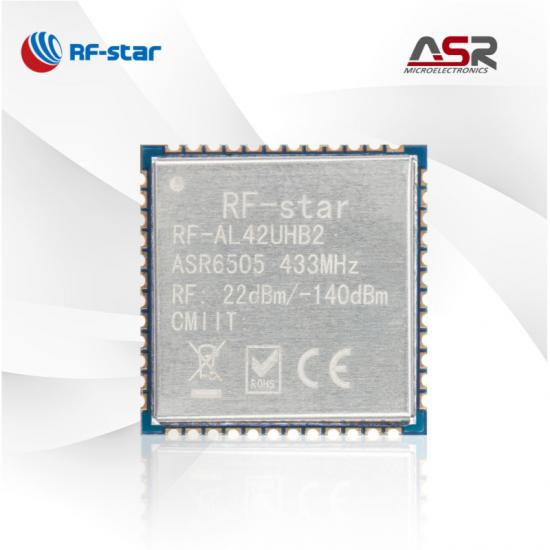

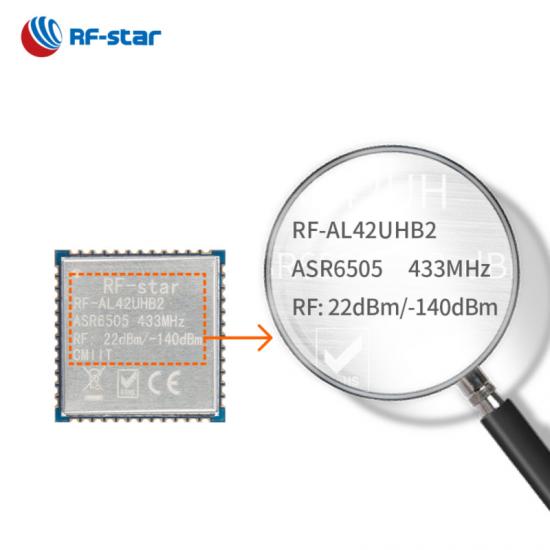

ASR6505 433 MHz LoRa Module RF-AL42UHB2

RF-AL42UHB2 is a LoRa and LoRaWAN module designed for the long range wireless data transmission markets. This module can work under a continuous frequency coverage from 410 MHz to 525 MHz. RF-AL42UHB2 will be a suitable module in LPWAN application.


  • P/N:

    RF-AL42UHB2
  • SoC:

    ASR6505
  • Processor:

    STM8L152
  • Protocols:

    LoRa, LoRaWAN
  • Working Frequency:

    410 MHz ~ 525 MHz

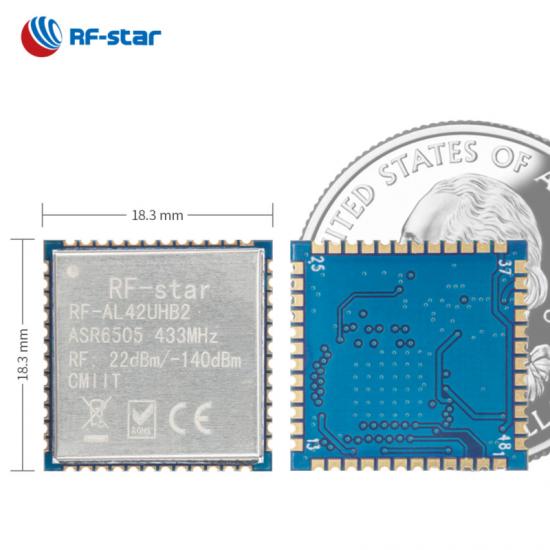

  • Package (mm):

    18.3 × 18.3 × 2.2, half-hole, 1.27 pitch, 48-pin
  • Features:

    SX1262 integrated
  • GPIO:

    40
  • Max. TX Power:

    +22 dBm
  • Transmission Range:

    7 Km

RF-AL42UHB2 is a LoRa wireless module based on ASR6505 with SX1262 + STM8L152 integrated. This communication module will have the features of ultra-long transmission range, high power density, high sensitivity, strong confidentiality, high anti-interference performance, ultra-low power consumption, and rigid reliability. The module with the PA and LNA supports the TX power up to 22 dBm and can reach an extremely long range than the normal modules. The compact size makes it suitable for many application.



- Application -

· Smart transportation

· Automatic collection system for water, electricity, gas and heating

· Farming modernization

· Wind and solar complementary system

· Sensor network

· Industrial equipment data wireless transmission

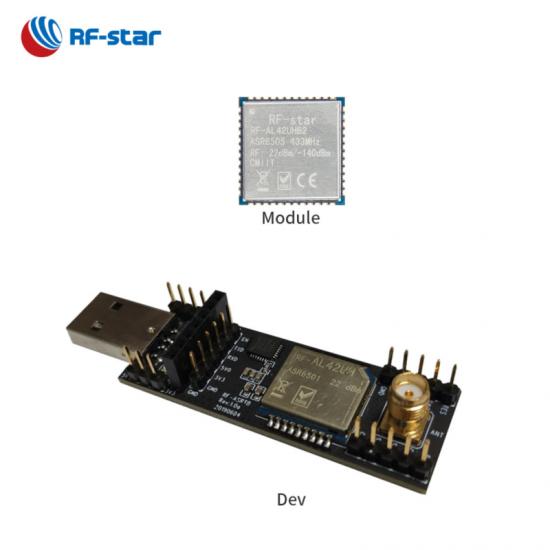

- Product Display -

Wireless SoC:


  • SX1262 + STM8L152 integrated
  • TX power: Up to +22 dBm
  • Sensitivity: -140 dBm
  • Memory
    • 64 kB flash
    • 4 kB SRAM
  • Data Rate
    • 62.5 kbps in LoRa modulation mode
    • 300 kbps in (G)FSK modulation mode.




Features:


  • LoRa Radio and LoRa Modem
  • Co-frequency and inter-frequency


Operating Range:


  • Supply voltage range 1.8 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C
  • Frequency Range: 410 MHz ~ 525 MHz




Rich Peripherals:


  • UART
  • I²C
  • SWIM
  • SPI
  • ADC
  • DMA
  • DAC
