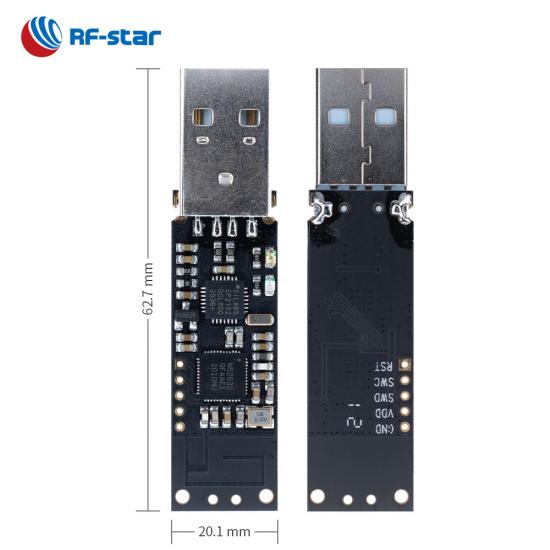

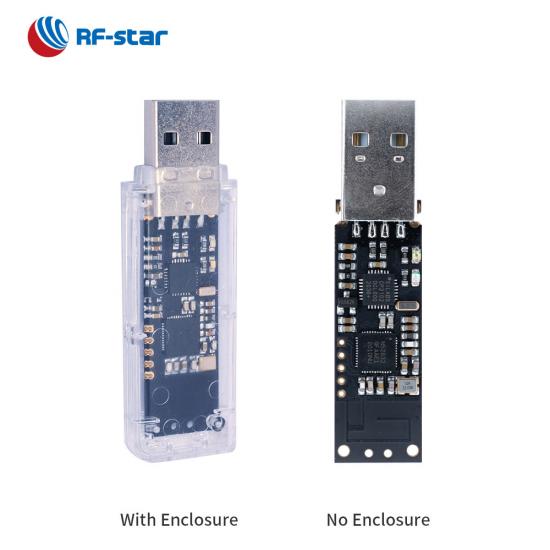

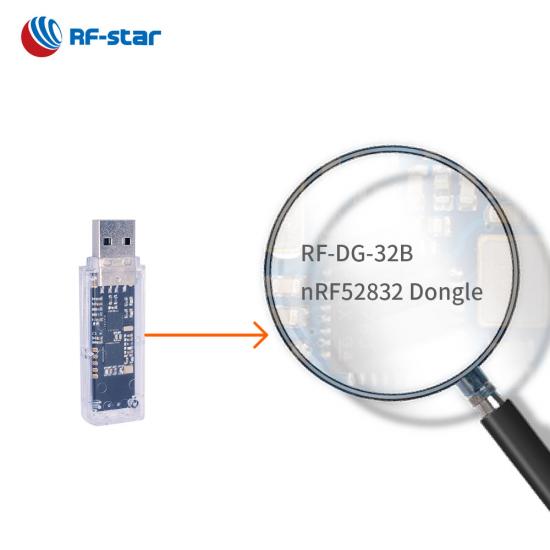

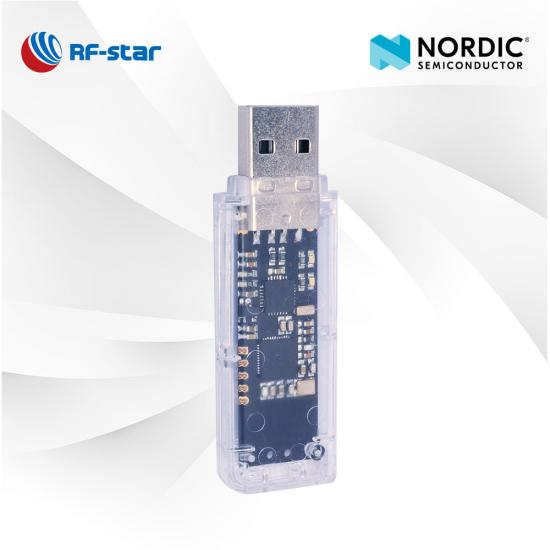

RF-DG-32B is RF-star Bluetooth USB dongle with a small size developed for BLE data capture. Order the nRF52832 Dongle Sniffer to start a quick analysis of the BLE broadcast data.
P/N:
RF-DG-32BSoC:
nRF52832Processor:
32-bit ARM® Cortex®-M4 64 MHzProtocols:
Bluetooth 5.0 low energyWorking Frequency:
2402 MHz ~ 2480 MHzFeatures:
BLE5.0 BLE4.2 data packet debuggingMax. TX Power:
+4 dBmTransmission Range:
100 mRF-DG-32B nRF52832 USB Dongle is a useful tool for debugging and analyzing the BLE broadcast data. It can act a great role when doing BLE development working with nRF Sniffer. The Bluetooth 5.0 USB adapter allows to get and display the near real-time display of Bluetooth LE packets. This development tool supports the user to identify and fix issues by allowing a view of what is happening on-air.
- Related Video -
Reference Resource:
| USB Dongles | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | RF-DG-22A | RF-DG-40A | RF-DG-32B | RF-DG-52PA | RF-DG-52PAS | USB Dongle | |||
| Photo |
|
|
|
|
|
|
|||
| IC | EFR32BG22C224 | nRF52840 | nRF52832 | CC2652P | CC2652P | CC2540 | |||
| Core | 76.8 MHz ARM Cortex-M33 | 64 MHz ARM® Cortex®-M4F | 64 MHz ARM® Cortex®-M4F | 48 MHz ARM® Cortex®-M4F | 48 MHz ARM® Cortex®-M4F | 8051 | |||
| Antenna | PCB | PCB (IPEX connector leads out the NFC signal) | PCB | PCB | SMA Connector | PCB | |||
| RAM | 32 KB | 256 KB | 64 KB | 88 KB | 88 KB | 8 KB | |||
| Flash | 512 KB | 1 MB | 512 KB | 352 KB | 352 KB | 256 KB | |||
| Protocols | Observer, BLE master-slave protocol | Sniffer (ZigBee/BLE), Bootloader, BLE master-slave protocol | Sniffer (BLE only), BLE master-slave protocol | ZigBee Coordinator | ZigBee Coordinator | Beacon, Sniffer, HID, HCI, , BLE slave protocol | |||
| Max. TX Power | +6 dBm | +8 dBm | +4 dBm | +20 dBm | +20 dBm | +4 dBm | |||
| PCBA Dimension (mm) | 56.7 x 13.9 x 4.5 | 60 x 18.5 x 4.5 | 56.7 × 13.9 × 4.5 | 62.8 × 16.7 × 4.5 | 73.3 × 20 × 7.5 | 19.8 × 9.7 × 4.5 | |||
| Overal Dimension (mm) | 62.9 x 20.2 x 8.0 | N/A | 62.9 x 20.2 x 8.0 | N/A | 73.3 × 23.6 × 14.1 | 21.7 × 14.3 × 5.3 | |||
| Functions | Beacon data monitor, BLE data packets capture, BLE gateway | Support PC nRF Connect, Support capture all BLE5.0 data packets, Can replace NORDIC Dongle | Support capture BLE5.0 data packets (except Long Range and Mesh) | Support open source platform ZHA and Zigbee2MQTT, Up to 20 dBm TX power with onboard PCB antenna, Smart home gateway | Support open source platform ZHA and Zigbee2MQTT, SMA connector for feasible external antennas, Smart home gateway | Small dimension, High cost-effective, Support TI Sniffer desktop tool, USB sensor, USD adapter | |||
