What Is An RF Antenna?

RF, or radio frequency antennas are the unsung heroes of wireless communication, enabling the transmission and reception of radio waves. In the realm of Bluetooth modules, RF antennas play a pivotal role in ensuring stable and reliable wireless communication between devices.

Common RF Antenna Types of Bluetooth Modules

Bluetooth modules come equipped with various RF antenna types, each designed to cater to specific applications and requirements. Let's explore the common Bluetooth antenna types in detail. Furthermore, understanding the advantages and disadvantages of each antenna helps you make informed decisions during the design and implementation phases.

1. PCB Antenna: Unlocking the Power of Integration

A PCB antenna, as the name suggests, is an antenna that utilizes the conductive traces and components directly onto the printed circuit board. These traces can take various shapes like straight lines, inverted F-shapes, serpentine patterns, or even circular designs. With a length equivalent to a quarter-wavelength, the traces effectively function as antennas, radiating electrical signals or capturing incoming signals.

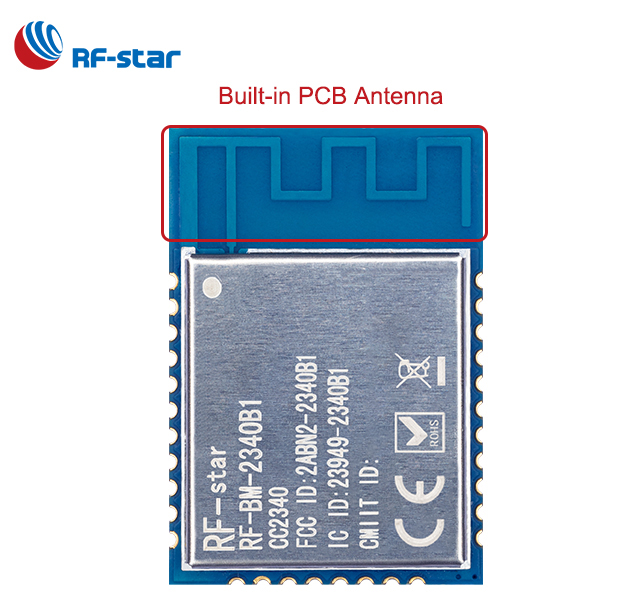

Figure 1 RF-star CC2340R5 Module RF-BM-2340B1 Integrated with Inverted-F Antenna

While offering advantages in terms of space efficiency and cost savings, it comes with certain trade-offs.

PCB Antenna: Space Efficiency vs. Limited Range

• Cost-Effective Integration: The integration of the antenna directly onto the PCB reduces the need for additional components, resulting in cost savings during manufacturing.
• Space Efficiency: PCB antennas optimize space utilization, making them suitable for devices with limited real estate.
• Streamlined Aesthetics: The absence of external antennas contributes to a cleaner and more aesthetically pleasing design, which is crucial for consumer-oriented products.
• Customizable Designs: PCB traces can be customized into various patterns, providing flexibility in designing antennas tailored to specific performance requirements.
• Signal Range Limitations: PCB antennas may have limitations in signal range compared to external antennas. This trade-off should be considered based on the application's requirements.
• Potential Interference: Proximity to other components on the PCB can lead to interference and affect the antenna’s performance. Proper design considerations are crucial to mitigate this issue.
• Single-Frequency Constraint: PCB antennas are tailored for single-frequency applications such as Bluetooth or WiFi, and their effectiveness may diminish beyond these designated ranges. In instances where wideband or multi-band coverage is essential, exploring alternative antenna solutions could prove more advantageous.

PCB antennas find their sweet spot in applications that prioritize space-saving, cost-effectiveness, and simplified assembly. They are particularly well-suited for wireless modules operating in the 2.4 GHz frequency band, including WiFi modules, Bluetooth modules and ZigBee modules.

2. IPEX Connector: Harnessing Flexibility and Range

IPEX connector is specifically designed as a micro coaxial connector that excels in connecting external antennas to small electronic devices, such as wireless modules, WiFi modules, and Bluetooth modules. Its external configuration can take various forms, offering versatility. The IPEX interface, typically a small metal socket with compact metal pins, serves as a matching interface for connecting external antennas.

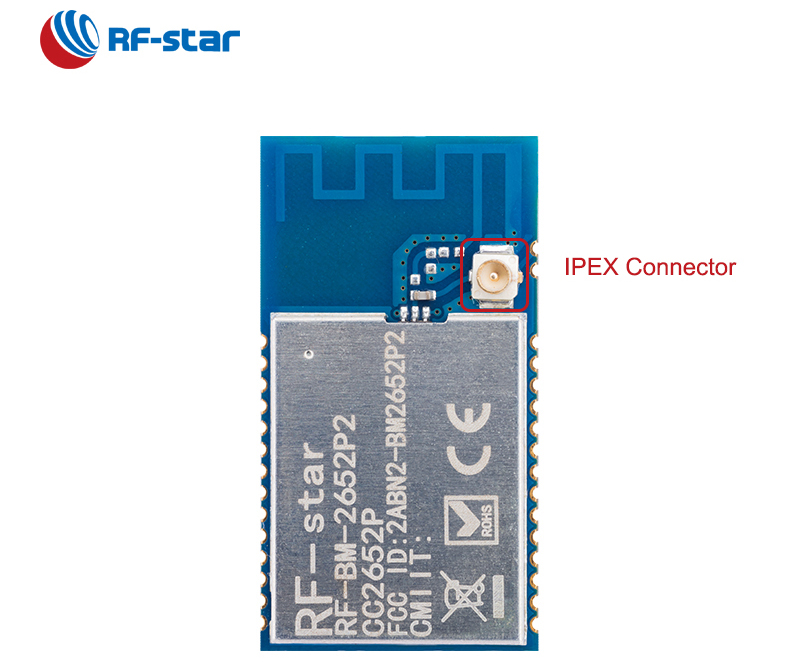

Figure 2 RF-star CC2652P Module RF-BM-2652P2I with IPEX Connector

It's important to emphasize that the IPEX connector is not standardized; it has different types like MHF1, MHF2, MHF3, and more Hence, when acquiring external antennas or adapters, it's crucial to to carefully choose the accurate IPEX connector to ensure compatibility and establish a reliable connection.

IPEX External Antenna: Range Mastery vs. High Cost

• Excellent Directional Signal: IPEX external antennas precisely orient signals, enhancing communication accuracy for extended coverage applications
• Customization: Detachable and replaceable, providing flexibility for specific applications.
• Interference Resilience: External configuration minimizes interference from internal components, ensuring a stable connection even in challenging environments.
• Debugging Simplicity: The effortless connectivity achieved through minimal tuning and matching requirements, streamlining the integration process for manufacturers.
• Higher Cost: Compared to PCB antenna, the inclusion of IPEX external components and connectors may increase manufacturing expenses. However, these additional costs bring superior RF performance.

Thanks to its flexibility and high performance, the wireless modules with IPEX connectors can cover extended distances with unwavering connectivity.

3. Ceramic Antenna: Refining Miniaturization

The ceramic antenna, a miniaturized chip antenna suitable for lesser spatial needs, is usually integrated into PCBs to emit high-frequency electromagnetic waves. However, their small size renders them ideal for compact devices like WiFi routers and smartphones.

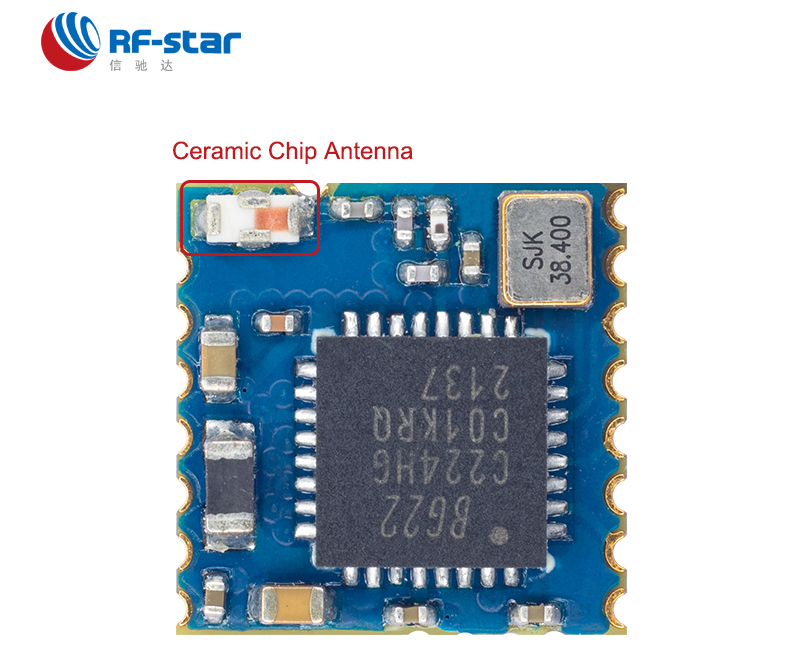

Figure 3 RF-star EFR32BG22 Module RF-BM-BG22C3 with Ceramic Chip Antenna

The following are the pros and cons of ceramic chip antennas:

• Compact Size: Ideal for mobile communication devices like smartphones, where seamless antenna integration is pivotal for wireless communication.
• Superior Performance: Operating within specific frequency bands, ceramic chip antennas utilize ceramic materials for excellent gain and radiation efficiency. The advanced production process and optimized design ensure high signal quality, minimizing noise and interference.
• Effortless Integration: Easily mounted on the Printed Circuit Board using Surface Mount Technology (SMT) assembly, simplifying production, especially for high-volume projects.
• Cost Considerations: Similar to other ceramic components, ceramic chip antennas may incur higher costs due to material and manufacturing expenses, whether for the antenna itself or the associated ceramic PCB.
• Narrow Bandwidth: As mentioned earlier, these antennas operate within specific frequency ranges. Consequently, designers must devise distinct antenna designs for different frequency bands to ensure optimal performance.

Accordingly, Bluetooth Low Energy modules embedded with ceramic antenna also stand out in terms of size, performance, and interference resistance. However, it comes with the drawback of higher costs. It is necessary to strike the right balance based on specific requirements.

4. Stamp-Hole Interface: A Flexible RF Output Mode for Antenna Design

The stamp-hole interface introduces a novel approach to antenna design by utilizing module antenna (ANT) pins to extend the antenna. Customers can independently craft their antenna circuits by accessing the radio frequency (RF) output pins on the module.

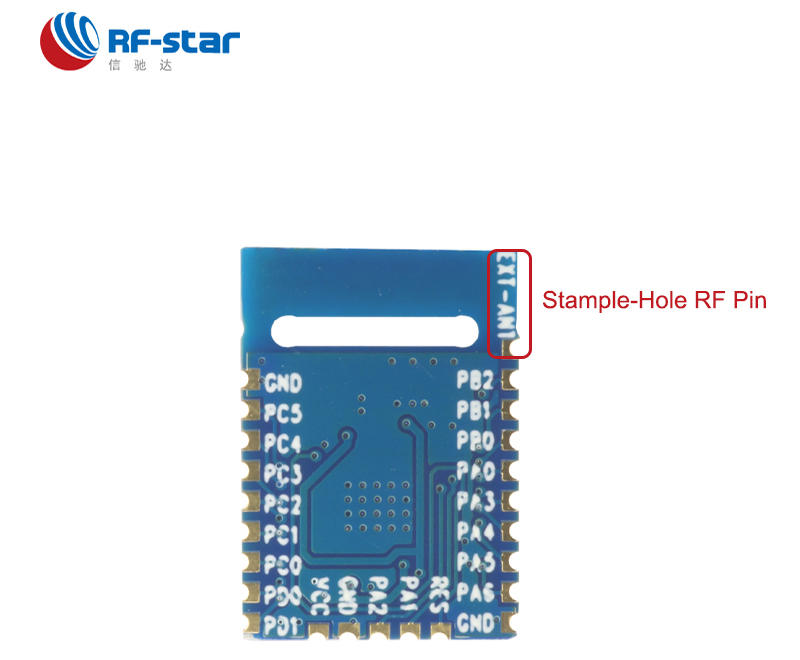

Figure 4 RF-star EFR32BG22 Module RF-BM-BG22A1 with Stample-Hole RF Pin

This innovative design comes with advantages like a small impact on the module's size and the freedom to adapt designs, but some RF antenna design skills are required.

• Compact Design: This design doesn't take up much space in the module, making it smaller overall.
• Design Flexibility: Users can independently create their antennas, giving them the freedom to design as they wish.
• Tailored Antennas: If standard antennas aren't doing the trick, users can go for the stamp-hole interface to make antennas to suit them perfectly.
• Expertise Required: But here's the catch – using this output mode needs users to be somewhat skilled in antenna circuit design and RF tuning.

In summary, each of the four RF antenna output modes has its own advantages and limitations. RF-star's same-series BLE modules, for example, CC2340, EFR32BG22 modules, etc. typically have built-in PCB antennas, IPEX connectors, or ceramic antennas. But here's the cool part – the stamp-hole interface acts like a superhero backup! If the regular antennas don't cut it for a customer and they know a bit about designing antennas, they can go for Bluetooth modules with the stamp-hole interface.

Advice for Embedding Bluetooth Antenna into Your Project

Embarking on a project involving Bluetooth antennas? Navigate the connectivity maze with these golden nuggets of advice:

• Understand Project Requirements: Clearly define the requirements of your project, including signal range, space constraints, and budget considerations. This will guide you in selecting the most suitable Bluetooth antenna type.
• Consider Environmental Factors: Evaluate the operating environment. For extended signal coverage or challenging conditions, consider IPEX external antennas for enhanced performance.
• Balance Aesthetics and Performance: Striking a balance between visual appeal and antenna performance is key, especially for consumer-oriented products.
• Seek Professional Guidance: When in doubt, don’t hesitate to consult experienced professionals or RF engineering experts. Their insights can be invaluable in making the right decisions for your project.

Final Words

In general, when selecting a Bluetooth Low Energy module, various factors come into play, including transmission rate, range, dimension, power consumption, chip specifications, peripheral interfaces, and budget. And RF antenna significantly influences transmission range, size, and overall cost.

We sincerely advise you to carefully choose the most suitable Bluetooth antenna type based on specific needs for your applications.

RF-star's Bluetooth LE modules integrated with the same chip series operate in identical environments, the different RF output versions exhibit variations in transmission distance. Modules with IPEX connector/stamp-hole interfaces boast the optimal transmission range, by those with PCB antennas, and lastly,  ceramic antenna versions. However, the specific performance should be verified through real-testing.
