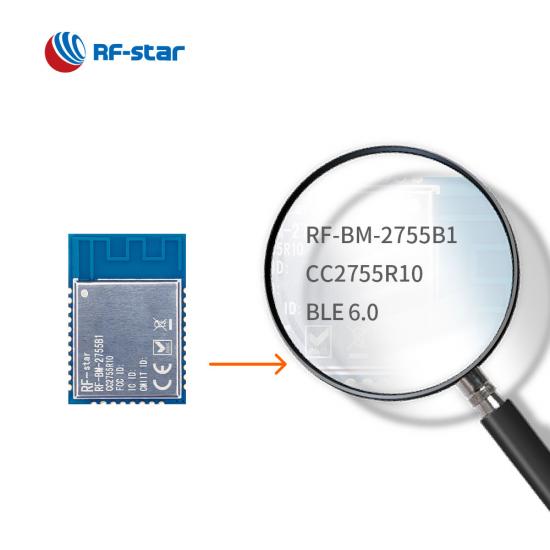

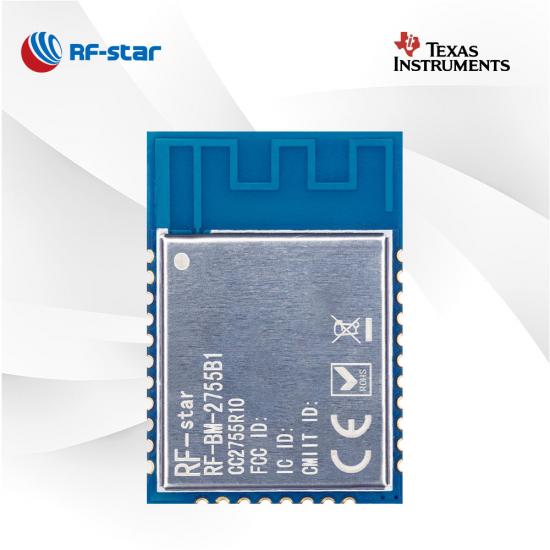

RF-BM-2755B1 is wireless connectivity module based on TI CC2755R10. It integrates a 48 MHz crystal and a 32.768 kHz crystal, up to 1 MB programmable flash, and 162 KB SRAM making it possible in many complex applications. Its 96 MHz ARM® Cortex®-M33 core can operate at an extremely low current at flexible power modes. Its multiprotocol 2.4 GHz RF transceiver is compatible with Bluetooth® 6.0 Low Energy of Channel Sounding, and 2.4 GHz Proprietary. It features a small size, robust connection distance, and rigid reliability. And the modules enable long-range and low-power applications using 10 dBm high-power with best-in-class transmit current consumption. The 1.27-mm half-hole pitch stamp stick makes the module more convenient for application and development. It has a high-performance PCB antenna.The Edge AI NPU, HSM, and 1MB flash memory enable these modules to operate in the emerging intelligent industry.
Multi-Protocol Capacity
Supporting Bluetooth® 6.0 Low Energy for Channel Sounding, Matter, ZigBee® 3.0, Proprietary, Multi-Protocol. CC2755 modules are suitable for Locating Soutions of Sale, etc.
Serial Port (UART) Protocol
RF-BM-2755B1 is embedded with the BLE5.0 transparent transmission protocol (serial port protocol) to realize rich functions with AT commands.
Rich Resources
The CC2755R10 modules offer an in-system programmable flash of 1 MB, enough ROM of 162 KB, and an ultra-low leakage System RAM (SRAM) of 32 KB.
Superior RF Performance
Its output power reaches up to +10 dBm with temperature compensation, and the receiving sensitivity is optimized to -97 dBm for BLE 1 Mb/s, -103 dBm for IEEE 802.15.4(2.4 GHz) and -103.5 dBm for BLE Coded PHY 125 kbps.
