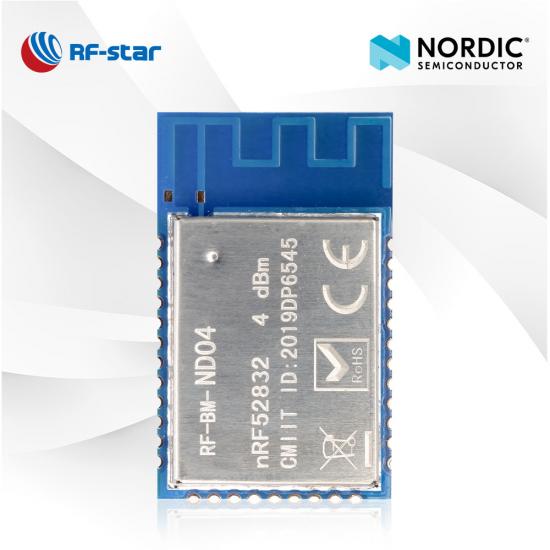

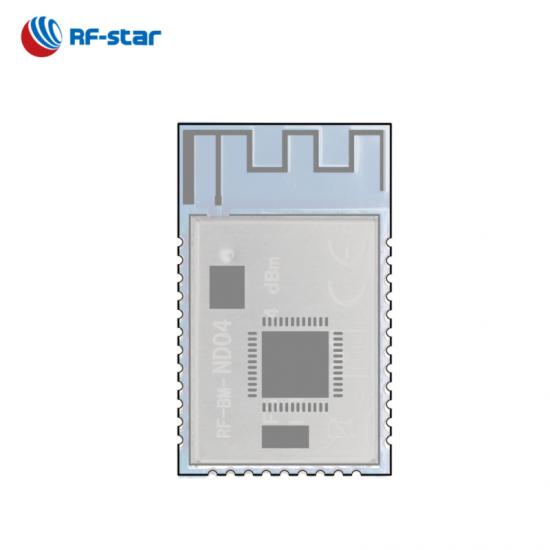

Bluetooth 5.0 low energy Bluetooth Mesh Low Energy nRF52832 module RF-BM-ND04

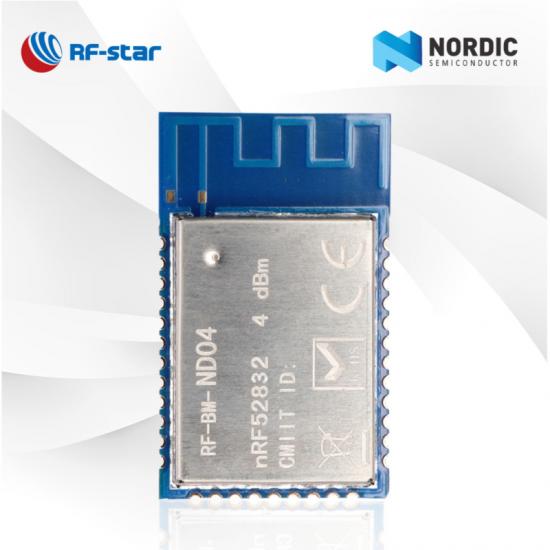

RF-BM-ND04 is a Bluetooth 5.0 Low Energy module developed for the high reliability, high-performance requirements of battery-powered IoT products and the gateways. This module with robust size also supports Bluetooth mesh and NFC. Start your product development with RF-BM-ND04 nRF52832 BLE module.

  • P/N:

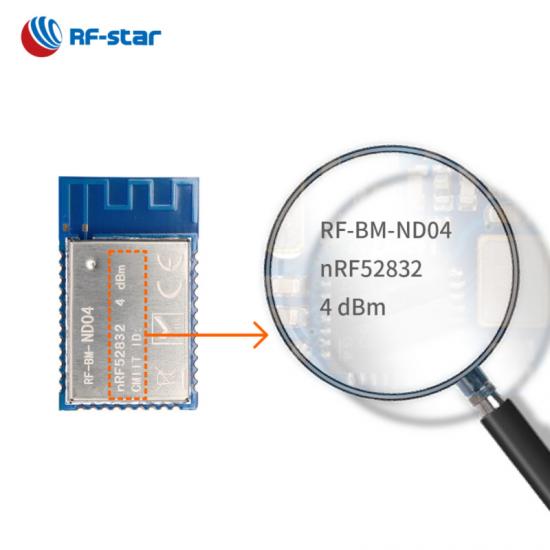

    RF-BM-ND04
  • Goods Stock:

    1000
  • SoC:

    nRF52832
  • Processor:

    32-bit ARM® Cortex®-M4 64 MHz
  • Protocols:

    Bluetooth 5.0 low energy, Bluetooth Mesh
  • Working Frequency:

    2402 MHz ~ 2480 MHz
  • Package (mm):

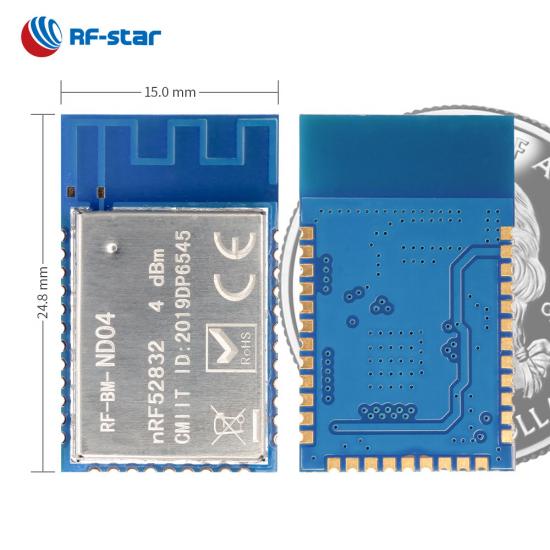

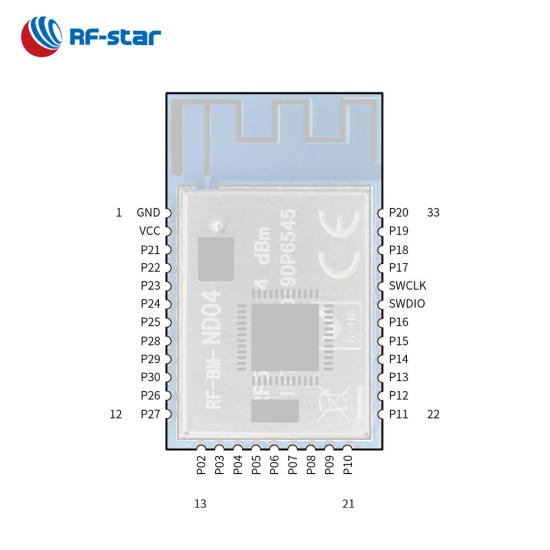

    24.8 × 15.0 × 2.3, half-hole, 1.27 pitch, 33-pin
  • Features:

    NFC, ANT, 2.4 GHz proprietary
  • GPIO:

    29
  • Max. TX Power:

    +4 dBm
  • Transmission Range:

    100 m

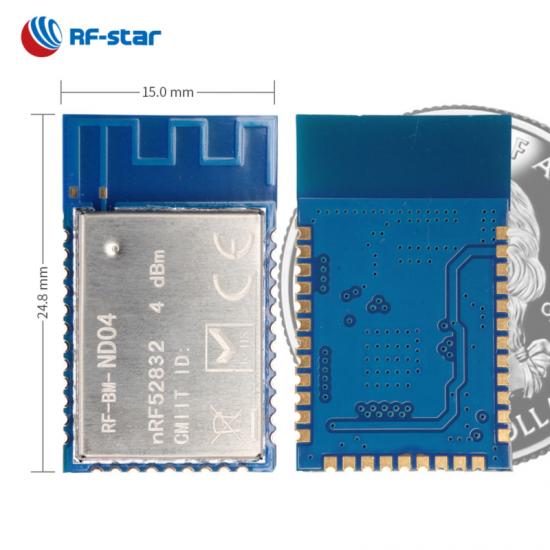

RF-BM-ND04 is an RF module based on versatile Nordic BLE5.0 SoC nRF52832 with a 32-bit ARM® Cortex®-M4 processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching, and a meander line inverted-F PCB antenna. It supports BLE stack v5.0 including the high-speed 2 Mbps feature and can be preprogrammed with serial interface communication protocols, such as NFC, ANT, and 2.4 GHz proprietary. It also supports Bluetooth mesh which can be run concurrently with Bluetooth Low Energy. The NFC-A peripheral enables the module used in simplified pairing and payment solutions. The numerous digital peripherals and interfaces of RF-BM-ND04, such as ADC, PDM, PWM, I2C, and I2S, make it applied in many applications. All in all, the nRF52832 module features low power consumption, small size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package is for easy assembling and cost-effective PCB design. It becomes the perfect BLE module for security systems, Internet gateways, and other IoT terminal devices.

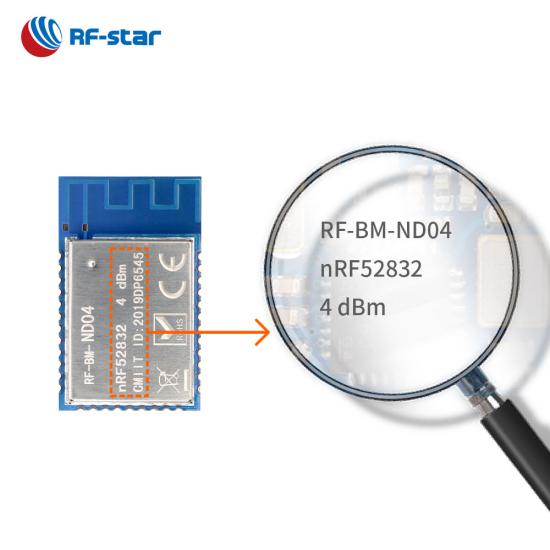

Bluetooth Mesh Low Energy nRF52832 module RF-BM-ND04

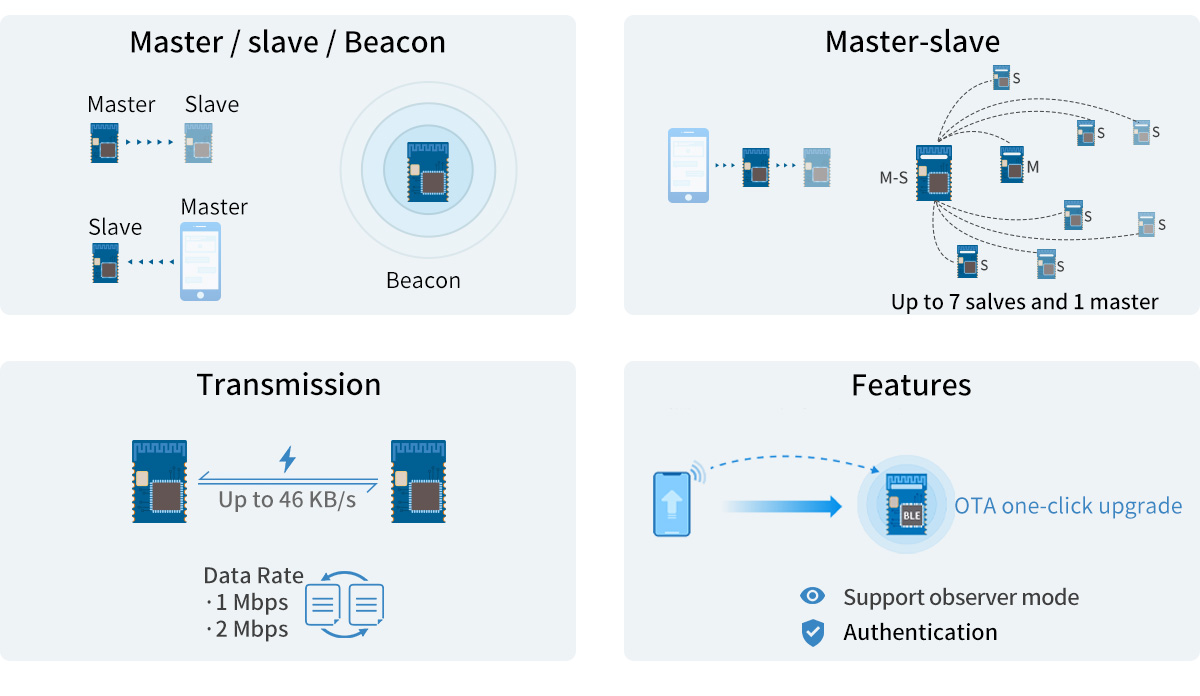

- Transparent Transmission (Bridge) Protocol -

· Several roles: Master, slave, master-slave, Beacon

· Multi-connection function: Up to 7 salves and 1 master

· Max. transparent transmission rate: up to 46 kB/s

· Data rate: 1 Mbps, 2 Mbps

· Features: OTA, observer, authentication

Transparent Transmission (Bridge) Protocol -



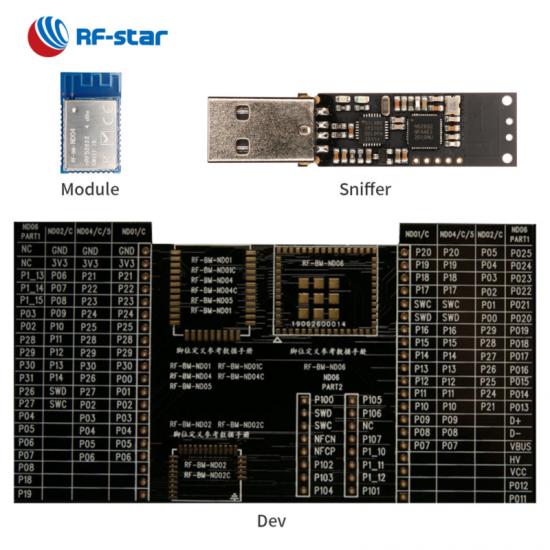

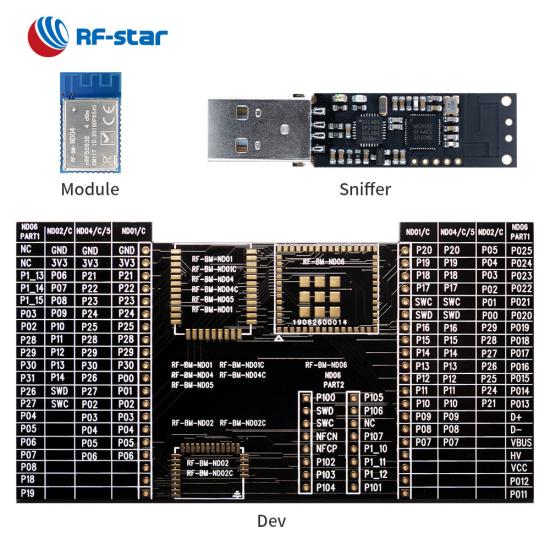

- Product Display -



Related Resources:

Comparison between Long Range nRF52833 and nRF52832

Introduction of NRF52832 Bluetooth LE Sniffer

Wireless SoC:

  • ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
  • TX power: -20 dBm to +4 dBm
  • Sensitivity in BLE mode: -96 dBm
  • Memory
    • -512 KB flash
    • -64 KB RAM
  • Data rate: 1 Mbps, 2 Mbps

Supported Protocols:

  • Bluetooth 5.0 low energy
  • Bluetooth Mesh
  • NFC
  • ANT
  • 2.4 GHz proprietary

Current Consumption:

  • 2.62 μA in sleep mode
  • 77.7 μA at 200 ms broadcast cycle
  • 72.8 μA at 50 ms connection cycle

Operating Range:

  • Supply voltage range 1.7 V ~ 3.6 V
  • Working temperature range: -40 °C ~ +85 °C

Rich Peripherals:

  • NFC-A
  • 12-bit, 200 ksps ADC
  • 29 GPIOs
  • PWM
  • PDM
  • SPI master/slave
  • I²C master/slave
  • I²S
  • UART (CTS/RTS)

Certificates:

  • FCC
  • SRRC
  • CE
NORDIC nRF52 Series BLE Module
Part Number RF-BM-ND09A RF-BM-ND09 RF-BM-ND08C RF-BM-ND04CI RF-BM-ND04C RF-BM-ND08 RF-BM-ND04I RF-BM-ND04
IC nRF52805 nRF52805 nRF52810 nRF52810 nRF52810 nRF52832 nRF52832 nRF52832
Core 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F
Antenna PCB/Pad Pad PCB/Half-hole interface IPEX/Half-hole interface PCB PCB/Half-hole interface IPEX/Half-hole interface PCB
RAM 24 KB 24 KB 24 KB 24 KB 24 KB 64 KB 64 KB 64 KB
Flash 192 KB 192 KB 192 KB 192 KB 192 KB 512 KB 512 KB 512 KB
Protocols BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, BLE 2M PHY, Proprietary, ANT BLE5.3, Proprietary, ANT BLE5.3, Proprietary, ANT, NFC BLE5.3, Proprietary, ANT, NFC BLE5.3, Proprietary, ANT, NFC
Power Supply 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V 1.7 V ~ 3.6 V, recommend to 3.3 V
Frequency 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Max. TX Power +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm +4 dBm
Receiving Sensitivity -97 dBm @1 Mbit/s BLE -97 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE -96 dBm @1 Mbit/s BLE
GPIO 10 10 16 29 29 29 29 29
Working Temperature -40 ℃ ~ +85 ℃ -40 ℃ ~ +105 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃ -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃ -40 ℃ ~ +125 ℃
Transmission Range 30 m 40 m (external PCB antenna) 75 m 100 m (external PCB antenna) 80 m 80 m 110 m (external PCB antenna) 90 m
Dimension (mm) 7.0 x 9.0 x 2.0 7.0 x 7.0 x 2.0 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3 15.2 x 11.2 x 1.7 24.8 x 15.0 x 2.3 24.8 x 15.0 x 2.3
Package 0.6-mm pitch DFN 0.6-mm pitch DFN 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole 1.27-mm pitch half-hole
OTA
Bluetooth Mesh × × × × ×
Long Range × × × × × × × ×
2Mbps PHY
AoA/AoD × × × × × × × ×
UART Protocol Slave Slave Slave Slave Slave Master-slave simultaneously, one master-slaves Master-slave simultaneously, one master-slaves Master-slave simultaneously, one master-slaves
Functions Ultra-small dimension, High effective Ultra-small dimension, high effective, Feasible for external antenna High compatibility, High effective High effective, IPEX conenctor for more external antenna design Lower power consumption, High effective Compact size for more applications Feasible for external antennas with a longer transmission range High compatibility
