BLE 4.2 TI CC2540 USB Dongle iBeacon for Data Advertising

  • BLE 4.2 TI CC2540 USB Dongle
  • BLE 4.2 TI CC2540 USB Dongle
  • BLE 4.2 TI CC2540 USB Dongle
  • BLE 4.2 TI CC2540 USB Dongle
  • BLE 4.2 TI CC2540 USB Dongle

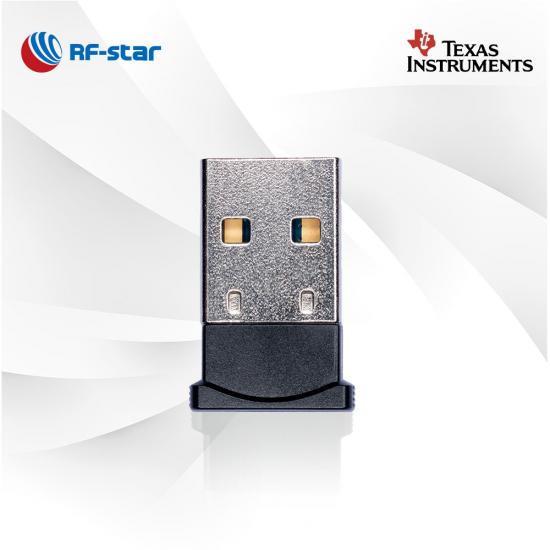

BLE 4.2 TI CC2540 USB Dongle iBeacon for Data Advertising

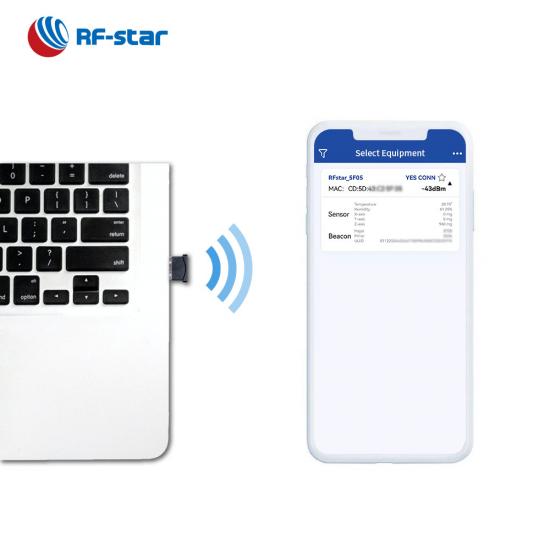

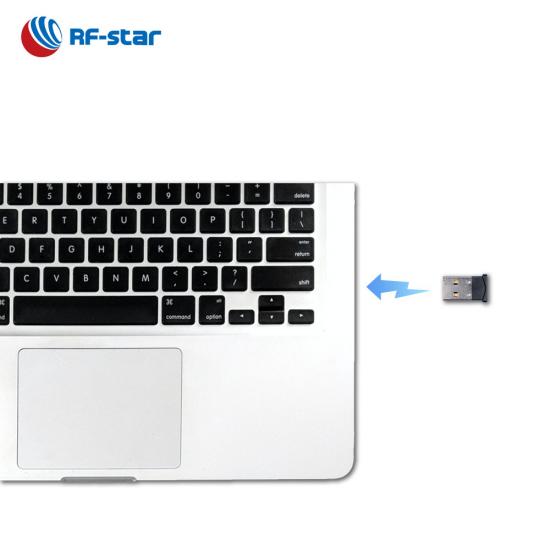

The CC2540 Dongle iBeacon is a BLE 4.2 USB tag. No need for battery. It can be powered by the USB port of the computer, the laptop and any micro USB port. After power-on, it can advertise  the iBeacon standard protocol. The beacon is mainly used for short-distance information marketing and indoor positioning services in shopping malls, bus stations, supermarkets and so on.

  • P/N:

    USB Dongle-iBeacon

  • SoC:

    CC2540

  • Protocols:

    BLE 4.2

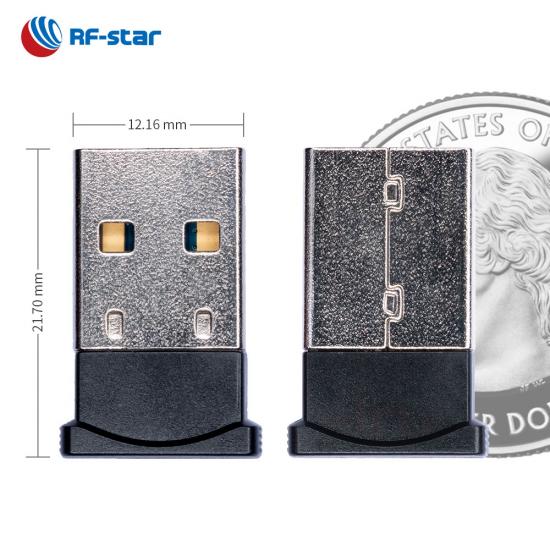

  • Package (mm):

    21.70 mm × 12.46 mm

  • Max. TX Power:

    +4 dBm

  • Transmission Range:

    50 m
Inquiry Now


· High Compatibility:
Supported iOS 9.0+ and Android 5.0+ system

Compatible with all BLE 4.2 devices


· High Security
AES Hardware Encryption

· No Need for Battery:

Powered by USB port


· UUID, Major, Minor, device name and password can be set by AT commands


- Applications -

· Attendance System

· Electric fencing

· Information Marketing

· Navigation


- Product Display -

USB Dongles
Part Number RF-DG-22A RF-DG-40A RF-DG-32B RF-DG-52PA RF-DG-52PAS USB Dongle
Photo EFR32BG22 USB Dongle RF-DG-22A nRF52840 USB Dongle RF-DG-40A nRF52832 USB Dongle RF-DG-32B CC2652P USB Dongle RF-DG-52PA CC2652P USB Dongle RF-DG-52PAS CC2650 USB Dongle
IC EFR32BG22C224 nRF52840 nRF52832 CC2652P CC2652P CC2540
Core 76.8 MHz ARM Cortex-M33 64 MHz ARM® Cortex®-M4F 64 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 48 MHz ARM® Cortex®-M4F 8051
Antenna PCB PCB (IPEX connector leads out the NFC signal) PCB PCB SMA Connector PCB
RAM 32 KB 256 KB 64 KB 88 KB 88 KB 8 KB
Flash 512 KB 1 MB 512 KB 352 KB 352 KB 256 KB
Protocols Observer, BLE master-slave protocol Sniffer (ZigBee/BLE), Bootloader, BLE master-slave protocol Sniffer (BLE only), BLE master-slave protocol ZigBee Coordinator ZigBee Coordinator Beacon, Sniffer, HID, HCI, , BLE slave protocol
Max. TX Power +6 dBm +8 dBm +4 dBm +20 dBm +20 dBm +4 dBm
PCBA Dimension (mm) 56.7 x 13.9 x 4.5 60 x 18.5 x 4.5 56.7 × 13.9 × 4.5 62.8 × 16.7 × 4.5 73.3 × 20 × 7.5 19.8 × 9.7 × 4.5
Overal Dimension (mm) 62.9 x 20.2 x 8.0 N/A 62.9 x 20.2 x 8.0 N/A 73.3 × 23.6 × 14.1 21.7 × 14.3 × 5.3
Functions Beacon data monitor, BLE data packets capture, BLE gateway Support PC nRF Connect, Support capture all BLE5.0 data packets, Can replace NORDIC Dongle Support capture BLE5.0 data packets (except Long Range and Mesh) Support open source platform ZHA and Zigbee2MQTT, Up to 20 dBm TX power with onboard PCB antenna, Smart home gateway Support open source platform ZHA and Zigbee2MQTT, SMA connector for feasible external antennas, Smart home gateway Small dimension, High cost-effective, Support TI Sniffer desktop tool, USB sensor, USD adapter
